iFlight BLITZ Whoop 5.8GHz 2.5W VTX Video Transmitter

The BLITZ Whoop 5.8GHz 2.5W VTX from iFlight — is a compact and high-performance video transmitter for FPV drones (category: Drones & Quadcopters > Transmitters), combining powerful signal transmission, reliability, and advanced customization options. The device operates in the 5.8 GHz band and supports adjustable output power from PIT/25 mW to 2500 mW (34 dBm), making it suitable for both racing and freestyle drones.

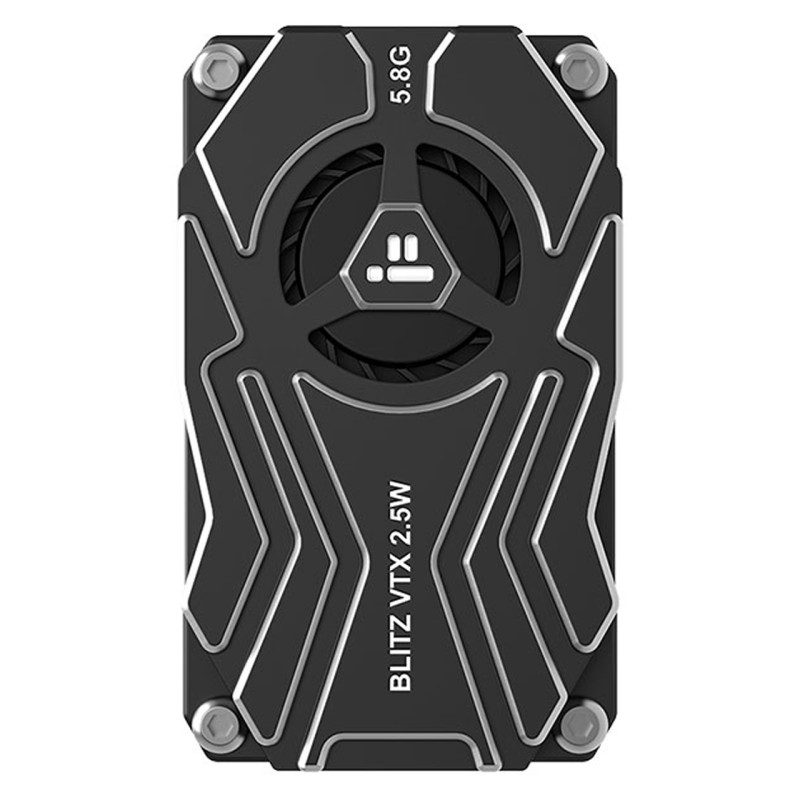

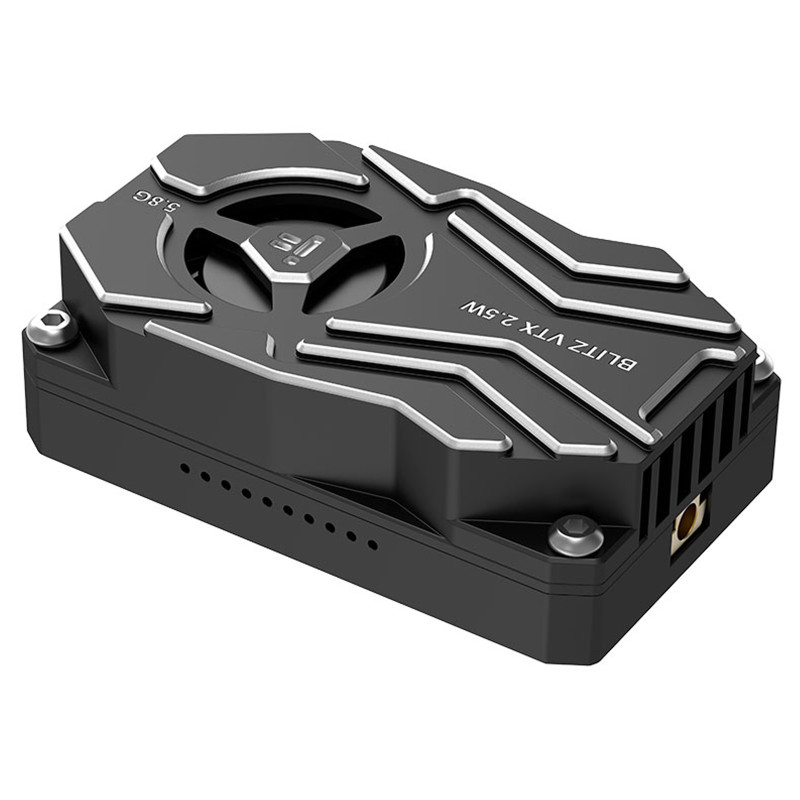

The transmitter features 40 channels, including Raceband, and is equipped with a built-in high-quality microphone with automatic gain control (AGC) for audio transmission. For continuous long-term operation, an active cooling system with an integrated fan is installed, and a durable CNC-machined aluminum alloy casing ensures efficient heat dissipation and longevity. The casing color is black.

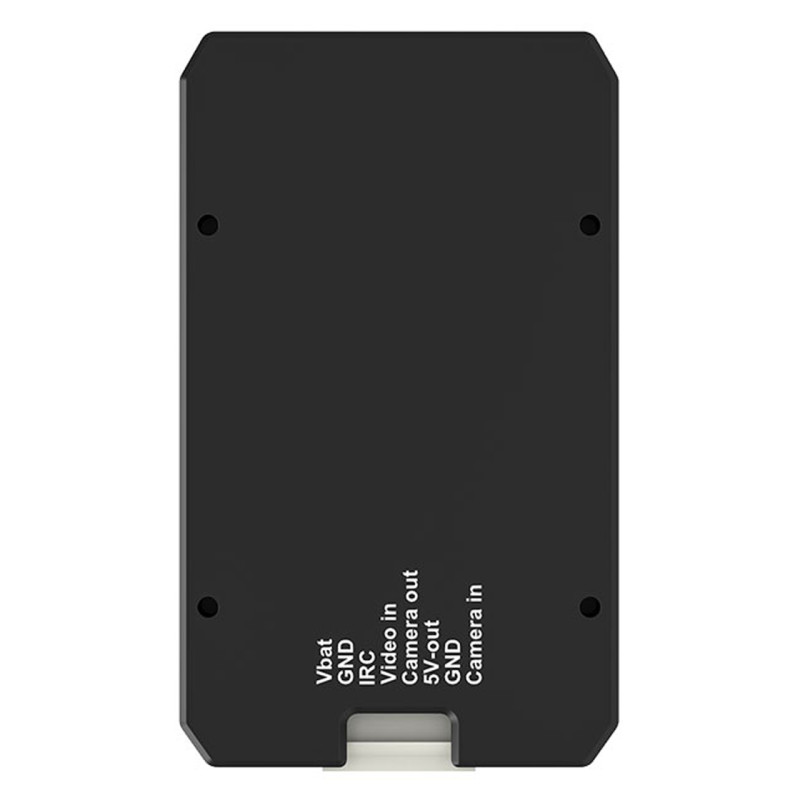

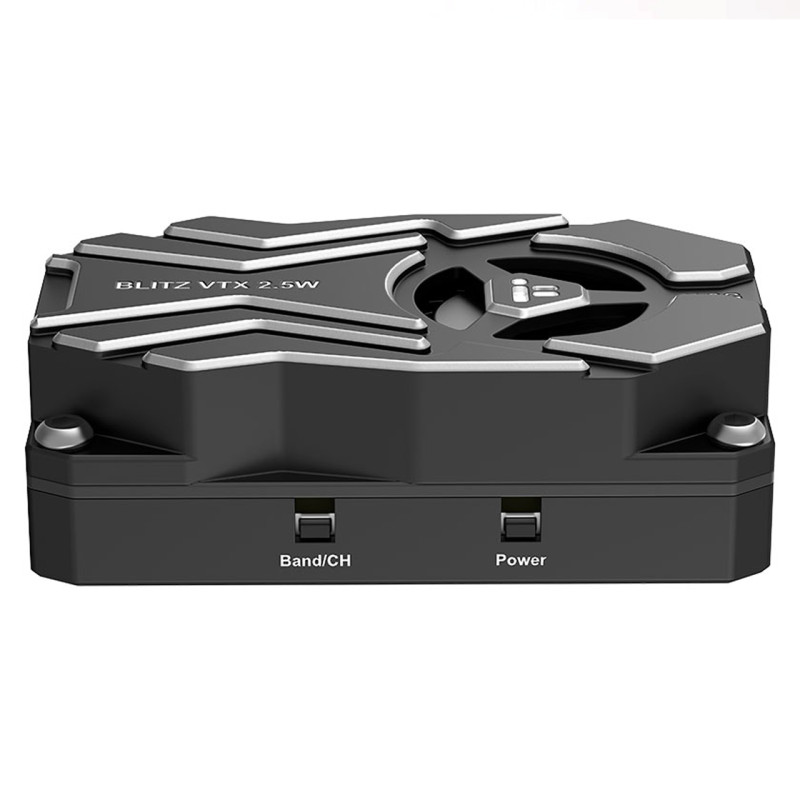

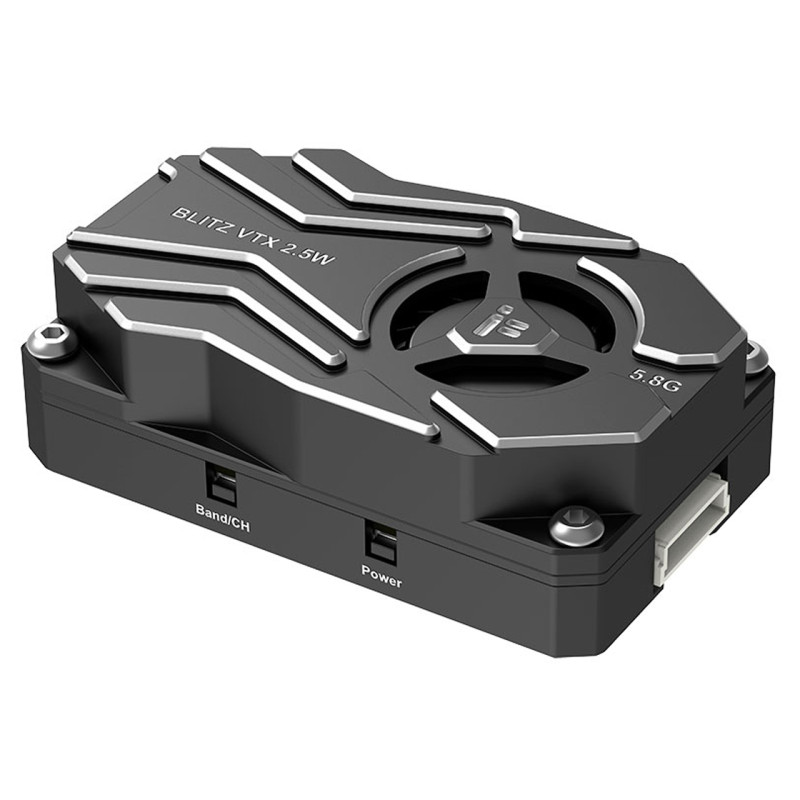

The power supply accepts a wide voltage range from 7 to 34 V DC (supporting 6S–8S LiPo), and also provides stable 5V (500 mA) power for peripheral devices. The antenna connector is MMCX, and the mounting standard is 25.5×25.5 mm (Ø1.6), allowing for easy integration of the module into many frames and platforms. The transmitter also supports VTX telemetry via the IRC Tramp protocol, has an LED status indicator, and a functional control button for quick mode changes.

Key Features and Benefits

• High output power up to 2500 mW (34 dBm) with PIT/25 mW/400 mW/1000 mW/2500 mW modes for various flight conditions.
• Wide input range of 7–34 V DC, compatible with 6S–8S batteries.
• Built-in microphone with automatic gain control (AGC) for high-quality audio transmission.
• Active cooling with an integrated fan for stable operation under load.
• Convenient antenna connection via MMCX and standardized 25.5×25.5 mm (Ø1.6) mounting.

Setup and Compatibility: Frequency adjustment is possible both automatically and manually; OSD is supported via Betaflight/Cleanflight for displaying video signal parameters in the flight OSD. The module complies with international CE, FCC, and RoHS standards, confirming its quality and operational safety.

Operating Recommendations: Before connecting, check the antenna connection, power supply voltage, and contact reliability; ensure sufficient ventilation space around the VTX to avoid overheating protection activation. Adhering to these simple rules will extend the module's service life and maintain stable image and sound transmission.

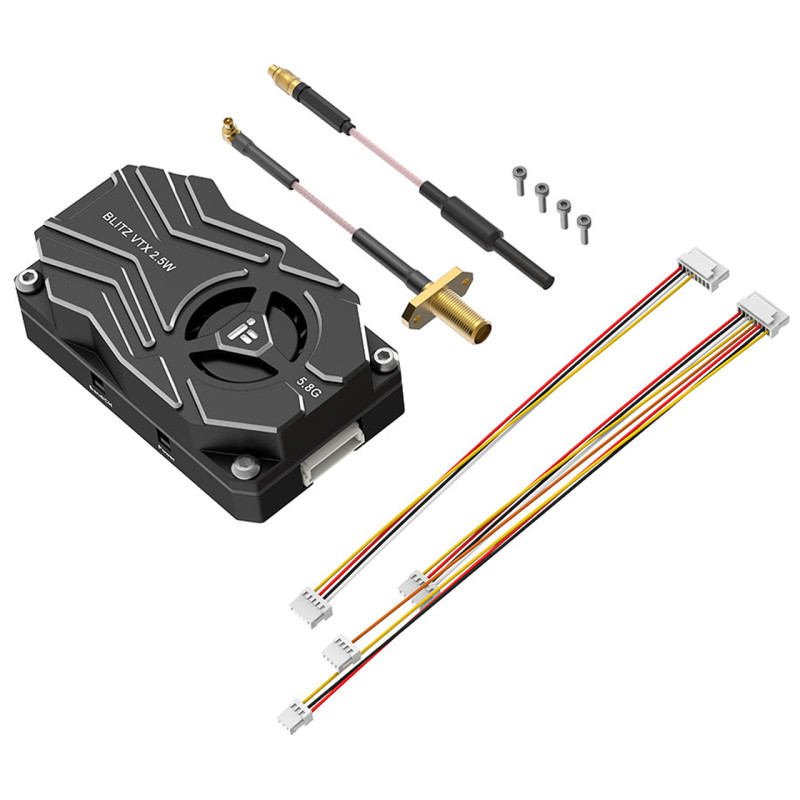

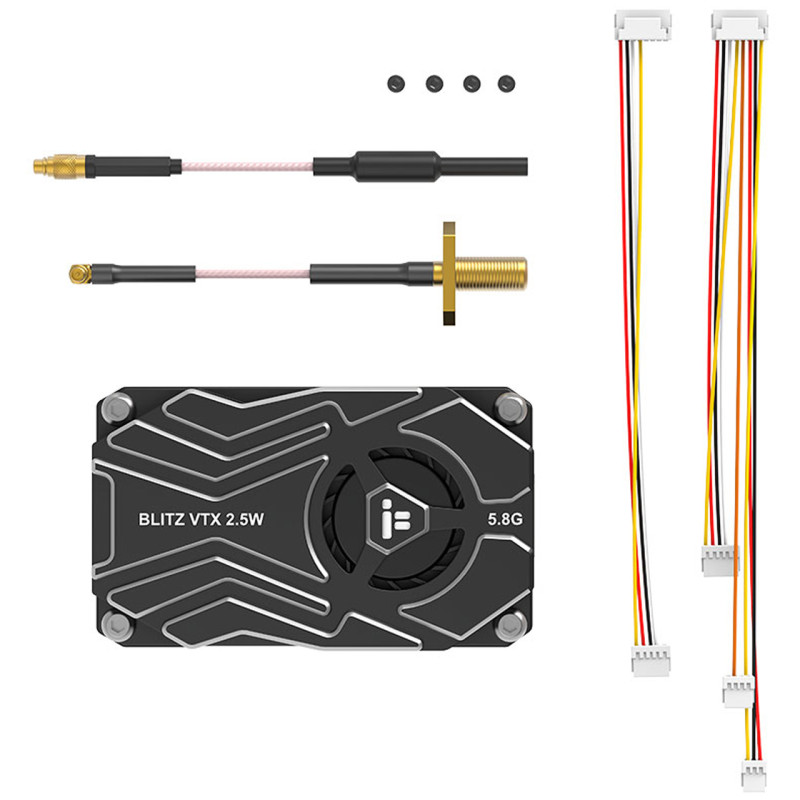

Package Contents: 1 x BLITZ Whoop 5.8G 2.5W VTX

Frequency Table

Attention! Before operation, carefully read the connection instructions; before powering on, check the antenna installation and voltage compatibility. Failure to follow recommendations may lead to protection activation or device damage. Ensure sufficient airflow around the VTX for effective cooling.

The BLITZ Whoop — is an ideal choice for those who need a VTX configured for various flight modes with high power and quality video and audio transmission. The combination of flexible power modes, modern IRC Tramp telemetry protocols, OSD support via Betaflight/Cleanflight, and a well-designed cooling system makes this module an excellent solution for professional pilots and FPV enthusiasts.
