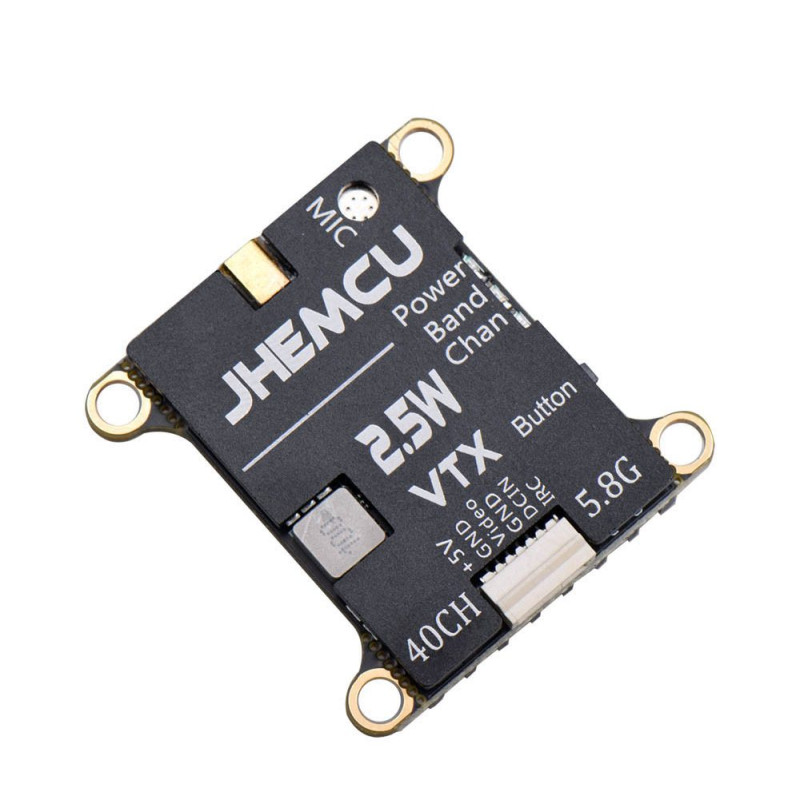

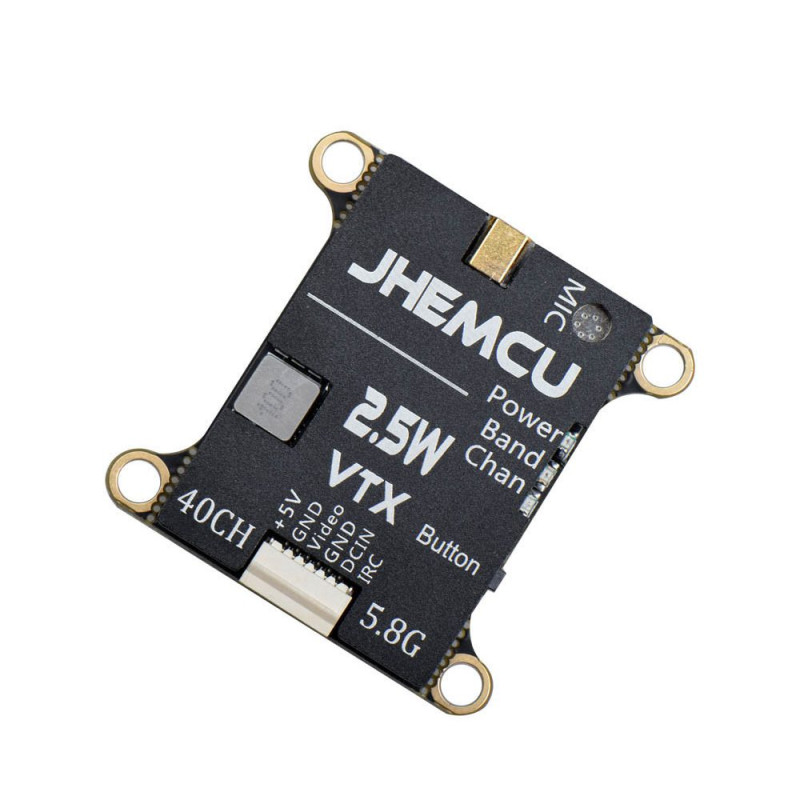

YRRC 5.8G 2.5W VTX — Powerful Video Transmitter for FPV
Brand: YRRC. The YRRC 5.8G 2.5W VTX video transmitter is designed for those seeking a reliable, durable, and flexible platform for long-range video signal transmission. This module is ideal for FPV racing, aerial photography, and professional applications where signal stability and the ability to adjust power and modulation modes are critical.
Key Advantages
The YRRC VTX combines compactness, high output power, and advanced integration features. Key advantages include:
- High output power up to 2.5W for clear, long-range video transmission.
- Adjustable power levels (0/25/400/800/1500/2500 mW) to optimize power consumption and comply with local regulations.
- 40-channel support for selecting the optimal frequency band.
- Built-in microphone, compatible with most FPV goggles and receivers.
- Supports firmware updates via USB or external interface, UART control, and OSD display.
Technical Specifications
Below is a complete table of specifications, listing all technical parameters of the YRRC 5.8G 2.5W VTX video transmitter:
| Specifications | Description |
|---|---|
| Transmission Power | 0/25/400/800/1500/2500 mW |
| Frequency | 5645-5945 MHz |
| Input Voltage | 7-26V (2-6S) |
| Power Supply | 16V/650A |
| Channels | 40 |
| Built-in Microphone | Yes |
| Mounting Holes | 30.5×30.5 mm (M3) |

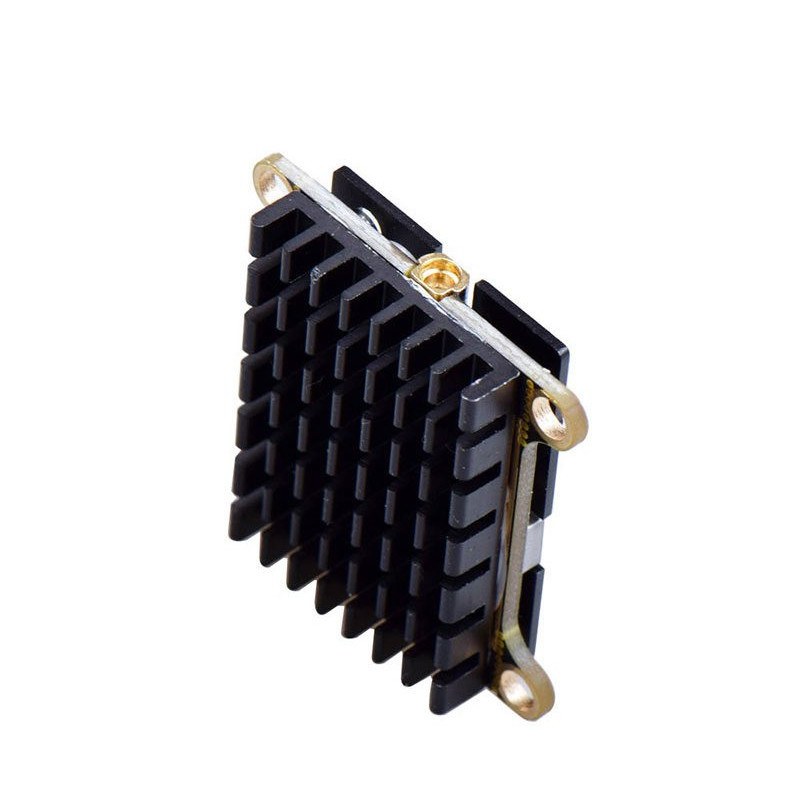

| Connector | MMCX |
| Dimensions | 36x36x9.5 mm |

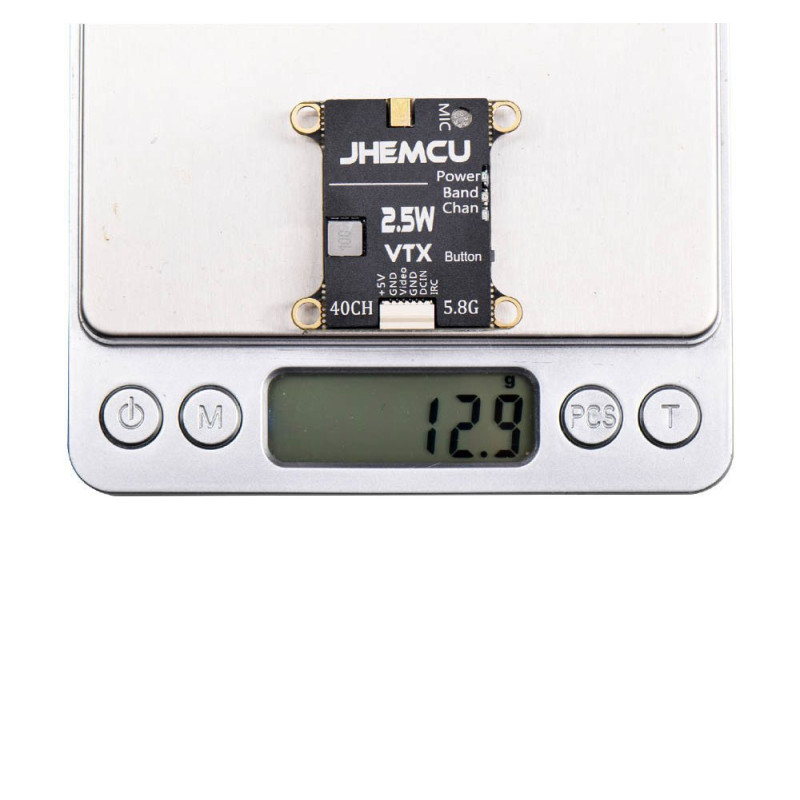

| Weight | 12.9 g |
| Modulation Type | FM, AM, Digital |
| Temperature Range | -10°C to +55°C |
| Antenna Type | Omnidirectional, Directional |
| Compatibility | Compatible with most FPV goggles and receivers |
| Software | Supports updates via USB/external interface |
| Additional Features | OSD, UART control, adjustable output signal |
These specifications guarantee extensive customization options and flexibility in choosing configurations for your task: from minimal power consumption to maximum power for long-range flights. The 5645-5945 MHz frequency range and 40 channels allow you to select the optimal frequency to minimize interference in dense radio frequency environments.
Integration and Mounting
Small dimensions (36x36x9.5 mm) and a weight of 12.9 g allow for easy installation of the module on various drone frames. Standard 30.5×30.5 mm (M3) mounting holes ensure compatibility with popular designs, and the MMCX connector enables quick antenna connection or replacement. Support for various antenna types (omnidirectional or directional) and an adjustable output signal allow the system to be adapted to specific flight tasks.
Package Contents

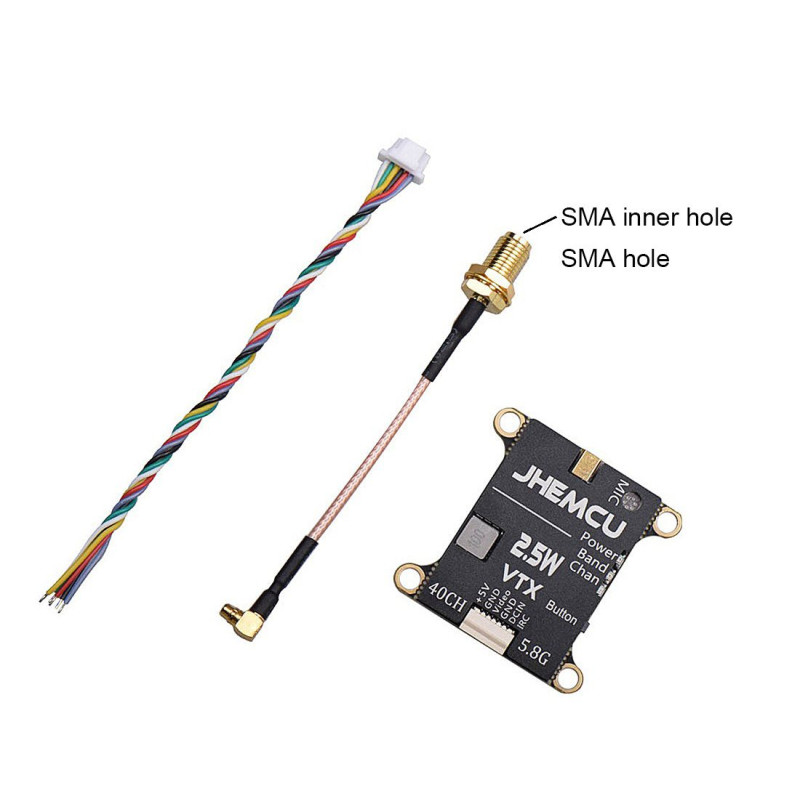

Package Contents:
- 5.8G, 2.5W Video Transmitter - 1 pc.
- Power Cable - 1 pc.
- MMCX-SMA Adapter Cable - 1 pc.
The model supports software updates, UART control, and OSD display, making setup simple and convenient. Before installation, ensure that the power source matches the input voltage of 7-26V (2-6S) and consider the operating temperature range of -10°C to +55°C. Also, note the power supply parameter specified — 16V/650A.
Product Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters.
The YRRC 5.8G 2.5W VTX is a combination of high power, compactness, and extensive functionality for modern FPV pilots, which will improve video transmission quality and expand the limits of your flights. Thanks to update support, numerous channels, modulation modes (FM, AM, digital), and the ability to connect various antennas, this model can be adapted for amateur and professional tasks.
