Video Transmitter VTX 9CH 1.2-1.3GHz 1W5

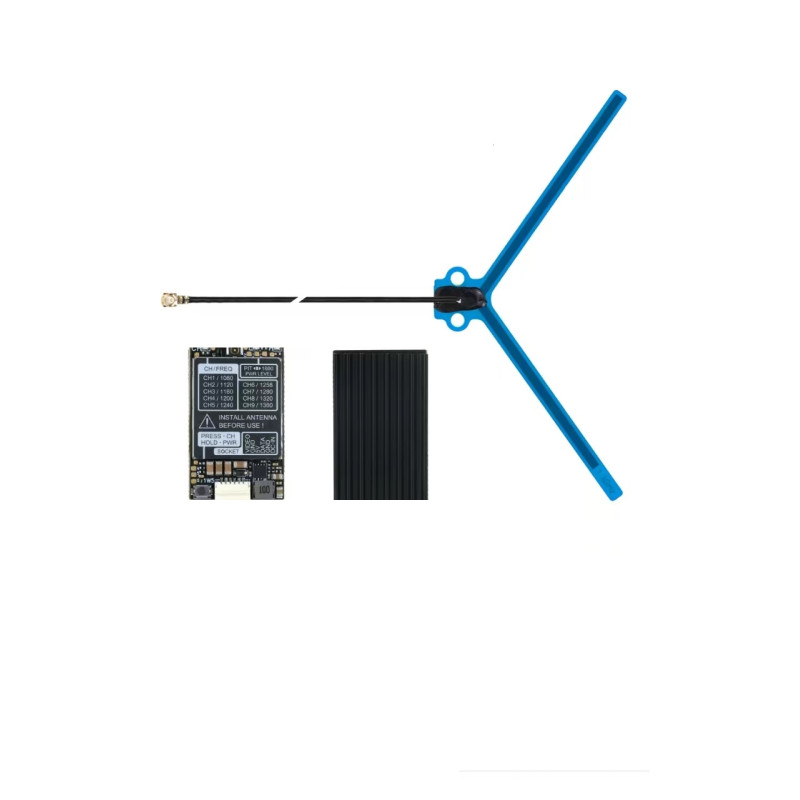

The VTX 9CH 1.2-1.3GHz 1W5 is a compact and powerful analog video transmitter designed for integration into drones and quadcopters. This module operates in the 1.2–1.3 GHz frequency range (specifically 1060–1380 MHz) and is intended to provide stable video signal transmission over long distances. With IRC VTX support, you gain the ability to remotely control transmitter parameters, while a mechanical switch ensures simple and reliable local adjustment of channels and power levels.
Features
- 1.3 GHz range with excellent environmental adaptability.
- Reliable mechanical switch for power and channel configuration.
- Stable transmission power up to 1600 mW (1.6 W) for long-range and confident video streaming.
- Wide DC 7-36 V input voltage range — compatible with 3-6S LiPo batteries.
- Support for IRC VTX control protocol for convenient and flexible parameter management.
- Equipped with a lightweight antenna for quick integration into a multicopter frame.

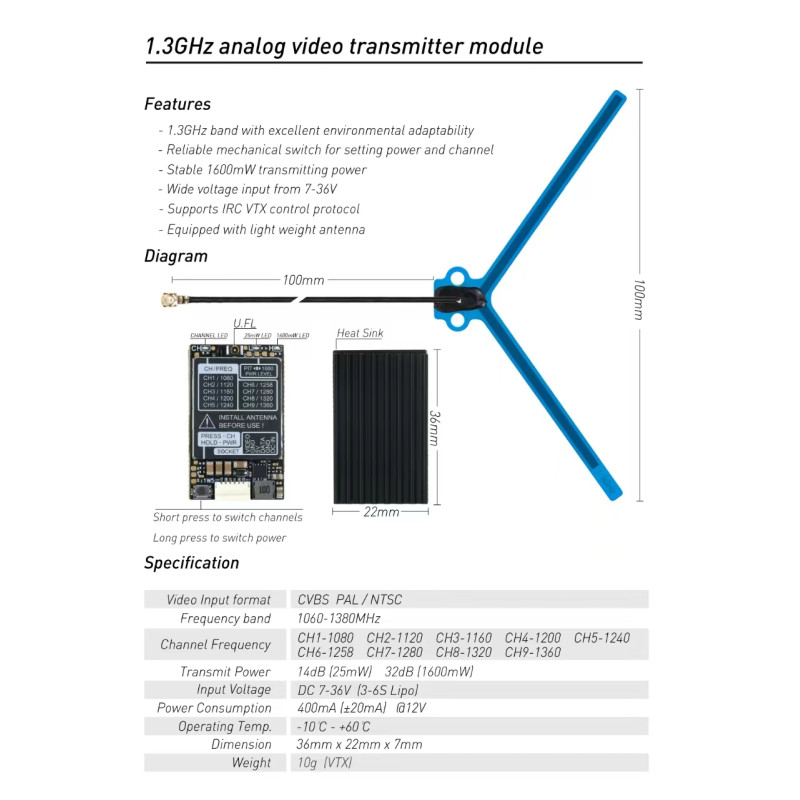

Control Scheme and Dimensions
- Transmitter length: 100 mm — convenient placement in the drone body.
- Cooler size: 36 mm x 22 mm — efficient heat dissipation at high power.
- Short button press — channel switching for quick flight preparation.
- Long button press — power level switching (option to select 25 mW or 1600 mW).
Technical Specifications
Below is a complete list of technical parameters for the VTX 9CH 1.2-1.3GHz 1W5 video transmitter. This data corresponds to factory specifications and will help you correctly select the module for your project.
| Parameter | Value |
|---|---|
| Video Input Format | CVBS PAL / NTSC |
| Frequency Range | 1060-1380 MHz |
| Channel Frequencies | CH1-1080, CH2-1120, CH3-1160, CH4-1200, CH5-1240, CH6-1258, CH7-1280, CH8-1320 |
| Transmission Power | 14 dB (25 mW), 32 dB (1600 mW) |
| Input Voltage | DC 7-36 V (3-6S LiPo) |
| Power Consumption | 400 mA (±20 mA) at 12 V |
| Operating Temperature | from -10°C to +60°C |
| Dimensions | 36 mm x 22 mm x 7 mm |
| Weight | 10 g (transmitter only) |
Brand: China
Product Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters
This VTX is ideal for racing and freestyle drones, camera platforms, and other applications requiring reliable analog video signal transmission over long distances. Thanks to its wide input voltage range and IRC VTX support, you will get flexibility in configuration and operational stability even during long flights and at elevated temperatures. Its compact size and low weight allow the module to be integrated into most frames and designs without significantly increasing mass.
Before purchasing, please check compatibility with your power system (DC 7-36 V) and compliance of the frequency range with local radio frequency usage regulations. For optimal operation, it is recommended to install the module in a well-ventilated area and avoid direct contact with heating elements. Also, note that the 1600 mW mode provides greater range but requires proper cooling and adherence to local radio transmission standards.
If you are looking for a reliable and functional transmitter for competitions or amateur flights, the VTX 9CH 1.2-1.3GHz 1W5 combines the necessary features: channel selection, power change, compact dimensions, and compatibility with 3-6S LiPo batteries.
