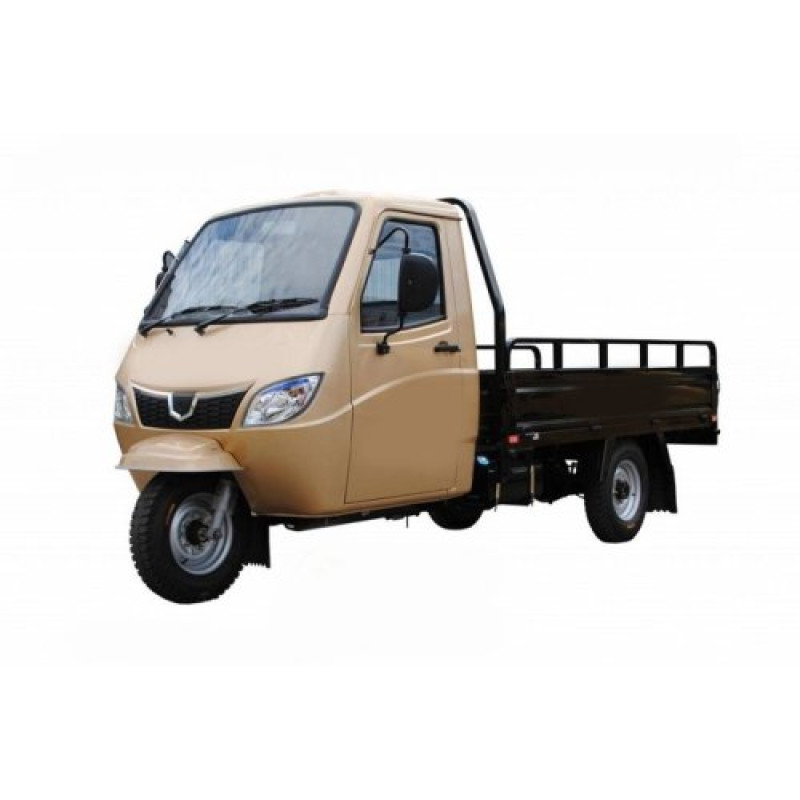

Cargo Tricycle Hercules J7-S 250
The Hercules J7-S 250 cargo tricycle is a practical and durable three-wheeled dump truck from the manufacturer Hercules, designed for agricultural, construction, and utility work. This model combines an economical 250 cm3 gasoline engine, a liquid cooling system, and quick electric starter, making it convenient for intensive daily use.
Description and Advantages
The heart of the tricycle is a 1-cylinder, 4-stroke gasoline engine with a volume of 250 cm3 and a power of 15.5 hp. The maximum speed of the model reaches 60 km/h, and the average fuel consumption is only 3 l/100 km, ensuring economical operation during long work shifts. Liquid cooling maintains a stable engine temperature, and the electric starter simplifies starting in any conditions.
The drive is implemented via a cardan reducer to the rear wheel, which increases the reliability of the transmission under significant loads. The body is designed as a dump truck with a tipping mechanism and folding sides (rear/left/right), which significantly facilitates loading and unloading.
Technical Features and Operation
- Number of seats: 1
- Number of gears: 5-speed with reducer + low range + reverse
- Front suspension: telescopic fork with coil springs
- Rear suspension: leaf spring with shock absorber
- Front and rear brakes: drum
- Tire size front/rear: 5.00-13
- Fuel tank capacity: 16 l
- Engine and gearbox oil volume: 1.1 l
- Weight: 650 kg
- Wheelbase: 2800 mm
The model's load capacity is 700 kg, and the body dimensions are 2200x1400 mm, making the tricycle suitable for transporting construction materials, harvests, and other medium-volume cargo. The presence of reverse and a reducer ensures convenient maneuverability in confined spaces, and the simplicity of maintenance allows the machine to be kept in working condition with minimal costs.
Technical specifications:
| Engine type | 1-cylinder, 4-stroke, gasoline |
| Engine power, hp | 15.5 |
| Engine displacement, cm3 | 250 |
| Max. speed, km/h | 60 |
| Cooling system | liquid |
| Engine start | electric starter |
| Motorcycle type | dump truck |
| Number of seats | 1 |
| Rear wheel drive | cardan |
| Front brake type | drum |
| Rear brake type | drum |
| Number of gears | 5-speed with reducer + low range + reverse |
| Front suspension | telescopic fork with coil springs |
| Rear suspension | leaf spring with shock absorber |
| Fuel consumption, l/100 km | 3 |
| Body tipping | yes |
| Folding sides | rear/left/right |
| Front tire size, inches | 5.00-13 |
| Rear tire size, inches | 5.00-13 |
| Body dimensions (LxWxH), mm | 2200x1400 |
| Overall dimensions (LxWxH), mm | 3950x1400x1900 |
| Wheelbase, mm | 2800 |
| Load capacity, kg | 700 |
| Fuel tank volume, l | 16 |
| Engine and gearbox oil volume, l | 1.1 |
| Weight, kg | 650 |
This Hercules J7-S 250 configuration is suitable for those who need an easy-to-maintain yet productive cargo tricycle capable of performing daily transportation and on-site work. Brand: Hercules. Product type: Motor Vehicles > Motorcycles. The model combines economy, reliability, and versatility in use.
If you need a practical cargo tricycle for daily transportation and on-site work, the Hercules J7-S 250 combines economy, ease of maintenance, and sufficient load capacity for most tasks.
