ASTRALEXPRESS 10 Unmanned Aircraft System (UAS) with 10 km Fiber Spool
The ASTRALEXPRESS 10 unmanned aircraft system with a 10 km fiber spool is a ready-to-use solution for combat missions, supplied with service and training. The system was developed by Astral Express and belongs to the Drones & Quadcopters > FPV Drones category. The package includes a set of equipment and accessories for deployment and operation in the field.
Key Features
- The system includes 50 UAVs
- Fiber optic spool length: 10 km
- Supplied with service and personnel training
- Purpose: performing combat missions using FPV video transmission and control channel
FPV Specifications
- Spool length: 10 km
- Payload: up to 2.0 kg
- Flight speed, km/h: cruising — 60–70; maximum — 120
- Maximum flight duration: up to 10 min
Dimensions
- Length – 335 mm (equipped 550 mm)
- Width – 335 mm (equipped 550 mm)
- Height – 40 mm (equipped 345 mm)
ASTRALEXPRESS Fiber Optic Spool Specifications
- Spool length: 10 km
- Fiber type: single-mode G657a2, 0.25 mm
- Video protocol: PAL / NTSC
- Control protocol: CRSF
- Operating wavelength: 1310 / 1550 nm
- Spool weight and dimensions: 10 km — 1.1 kg; 370×120 mm

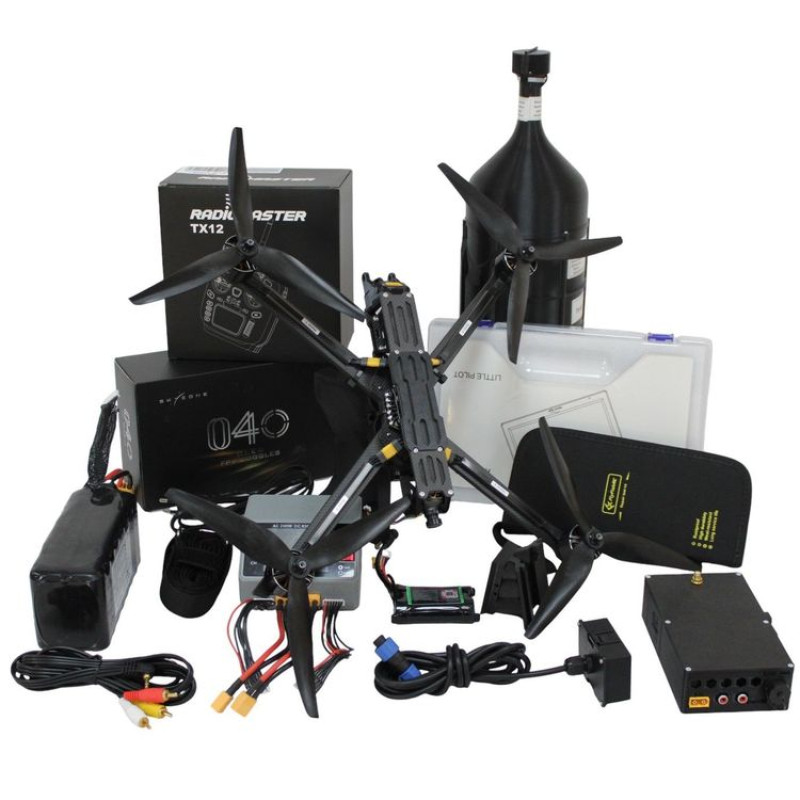

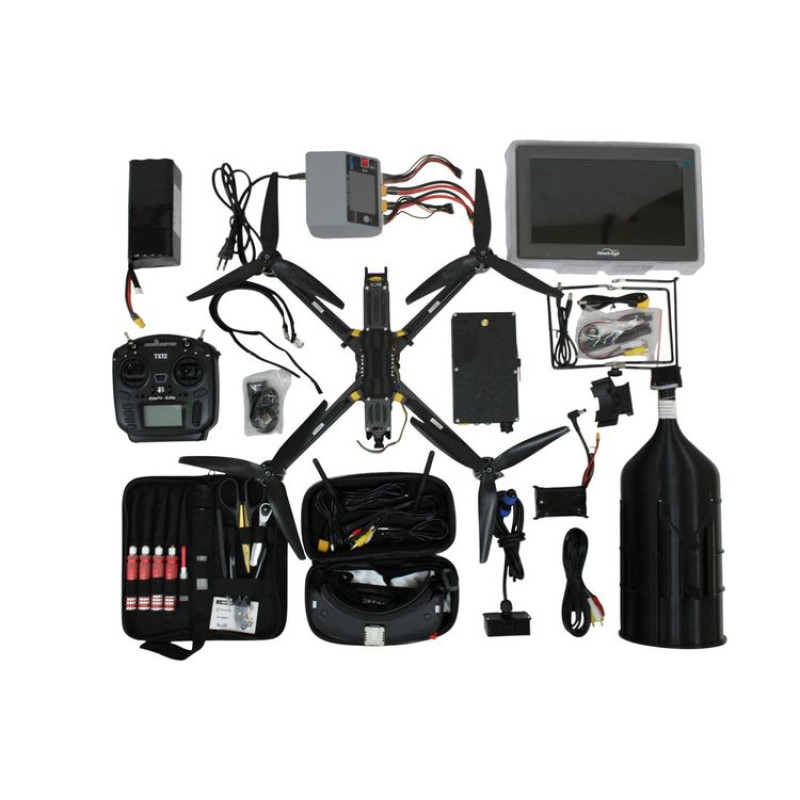

Kit Contents
- 1 x UAV
- 1 x Battery
- 4 x Reusable ties for warhead attachment
- 4 x Velcro straps for battery
- 1 x Spool mount
- 1 x ASTRALEXPRESS optical module (10 km)
- 1 x Control box
- 1 x FPV goggles with power elements
- 1 x Remote control
- 1 x Optical signal conversion module (NSU-5 pcs.)
- 1 x FPV DVR monitor
- 1 x Charger for rechargeable batteries (6s3p 15000 mAh battery)
- 1 x Spare parts and accessories kit (maintenance tools)
- 1 x Transport packaging
- 1 x Packaging for UAV — 1 unit
- 1 x Packaging for optical module — 1 unit per 8 pcs.
The ASTRALEXPRESS 10 system combines compact UAV dimensions, endurance, and sufficient speed for various tactical tasks, as well as a reliable 10 km optical data transmission channel based on G657a2 single-mode fiber. PAL/NTSC video protocols and CRSF control protocol ensure compatibility with professional equipment, while the presence of a unified optical module and signal conversion kit allows for quick integration of the system into existing workflows.
Delivery includes service support and personnel training, guaranteeing rapid mastery of the system and ensuring its reliable operation in the field. If necessary, additional customization for specific customer tasks is possible.
