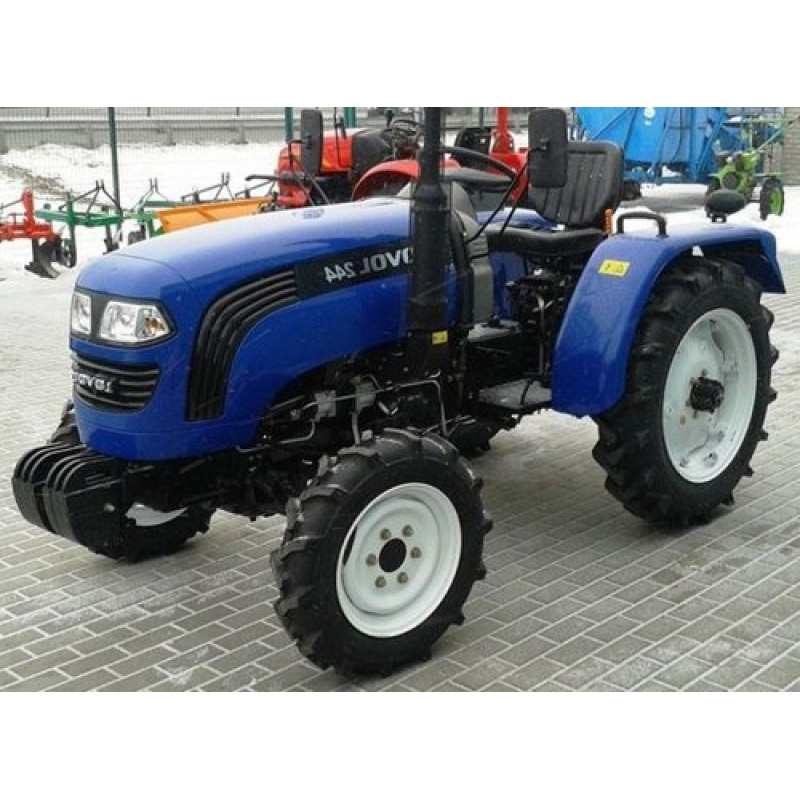

Foton-Lovol TE-244 Mini Tractor — Dual-Disc Clutch

Manufacturer: Foton-Lovol — a renowned Chinese brand of mini tractors. The TE-244 model combines reliability, ease of operation, and multifunctionality for work in the agricultural, municipal, and construction sectors. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.

Key Advantages and Purpose: Quality assembly: engine, hydraulics, chassis, and transmission are made of durable materials and withstand significant loads, ensuring reliable operation for 2000-4000 engine hours. Multifunctionality: compatibility with three-point implements, possibility of installing a front loader and blade, suitable for farms, greenhouses, and garden plots. Additional options: adjustable tracks, differential lock, power steering, power take-off (PTO), reverse. Compact dimensions allow working in confined spaces. Payback and maintainability: simple design, widely available spare parts, and service, including warranty and post-warranty service from "Moto Kosmos".

Technical and Design Features

Engine: Equipped with a 3-cylinder KM385BT diesel engine with 24 hp (17.6 kW) and forced liquid cooling system. Features an electric starter with safe start and a cold start system. Engine displacement — 1532 cm3. Nominal crankshaft speed — 2350 rpm.

Fuel Efficiency: Nominal fuel consumption is specified as 278 (units), nominal engine oil consumption is 2.31 g/kWh, highlighting low diesel consumption during operation.

Chassis and Drive: 4x4 all-wheel drive with adjustable tracks for inter-row cultivation. Wheelbase 1440 mm, minimum ground clearance 300 mm. Tire size: rear 9.5x20, front 6.0x14. Minimum turning radius with one-sided brake — 3.5 m, without brake — 3.9 m. Theoretical travel speed: forward 26.02 km/h, reverse 24.24 km/h.

Transmission and Clutch: Gearbox (4+1)x2; dual-disc dry friction clutch, convenient when working with a tiller, rotary mower, and other active equipment. Separate brake pedals for rear wheels, main accelerator and clutch pedals.

Brakes and PTO: Brake mechanism is shoe-type, dry. Two-mode power take-off (PTO) shaft 540/1000 rpm, allowing connection of active implements via a cardan shaft.

Hydraulics and Attachments: Rear lifting system with two hydraulic pairs and two-stage hitch adjustment. Maximum lifting capacity of the rear hitch — 450 kg. Hydraulic system pump type — gear pump.

Volumes and Capacities: Fuel tank volume — 32 L, engine crankcase volume — 5.0 L, gearbox and rear axle crankcase volume — 20.0 L, engine cooling system volume — 10 L, lift housing volume — 9.0 L.

Control and Comfort: Power steering with a gear pump and separate reservoir; illuminated dashboard in a single unit made of quality plastic; adjustable seat length. Controls consist of the following components:

• 1. Hydraulic steering (power steering, gear pump, separate expansion tank).
• 2. Transmission: (4+1)x2 gearbox, dual-disc clutch.
• 3. Illuminated dashboard.
• 4. Separate brake pedals for rear wheels, main accelerator and clutch pedals.
• 5. Levers for controlling the hydraulic floating mechanism.

Dimensions and Weight: Overall dimensions (LxWxH) — 3453/1440/2495 mm, weight — 1320 kg. Nominal traction force — 6.5 kN.

Delivery and Payment: Courier delivery across Ukraine in 1-2 days to any populated area. Payment to the courier in cash upon receipt.

Technical Specifications

The Foton-Lovol TE-244 mini tractor is designed as a versatile and reliable machine for small and medium-sized farms, municipal services, and owners of large plots. It combines an economical KM385BT diesel engine, a robust 4x4 chassis, efficient hydraulics, and a convenient transmission with a dual-disc dry clutch. This is an optimal choice if you need a compact yet productive mini tractor with the ability to connect a wide range of mounted and trailed equipment.
