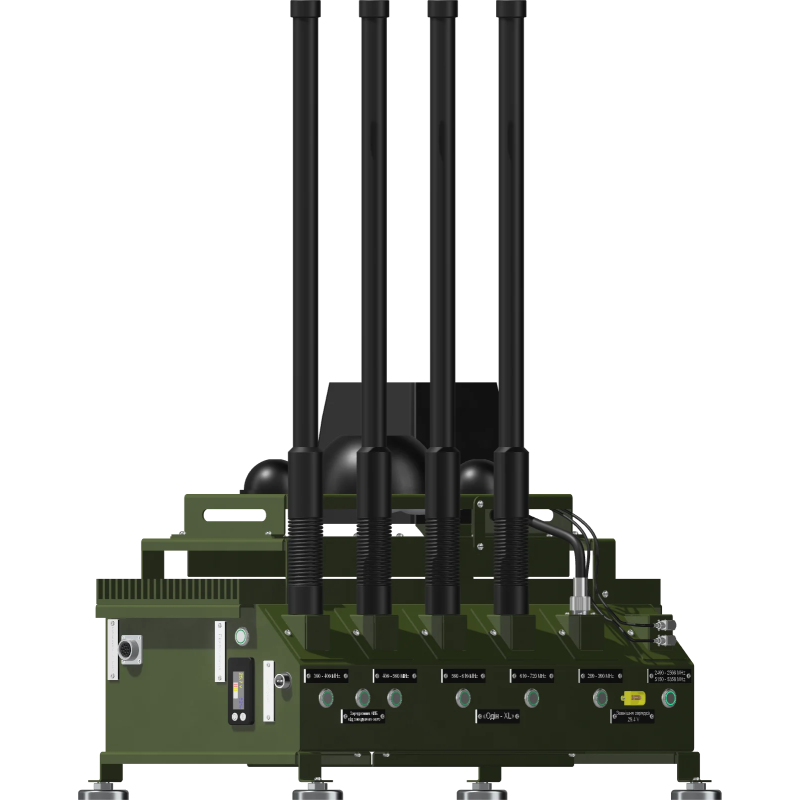

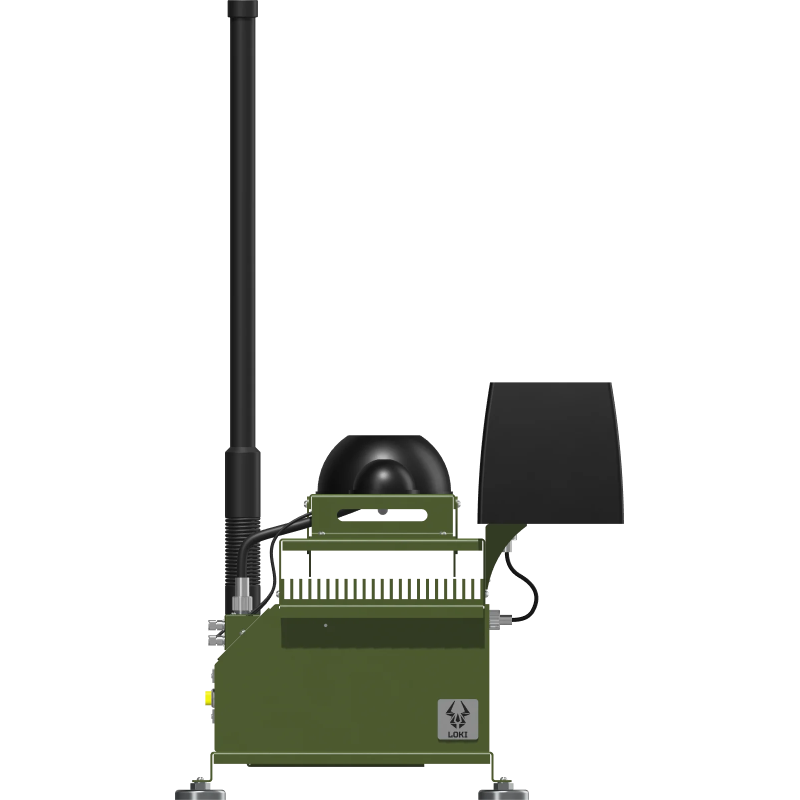

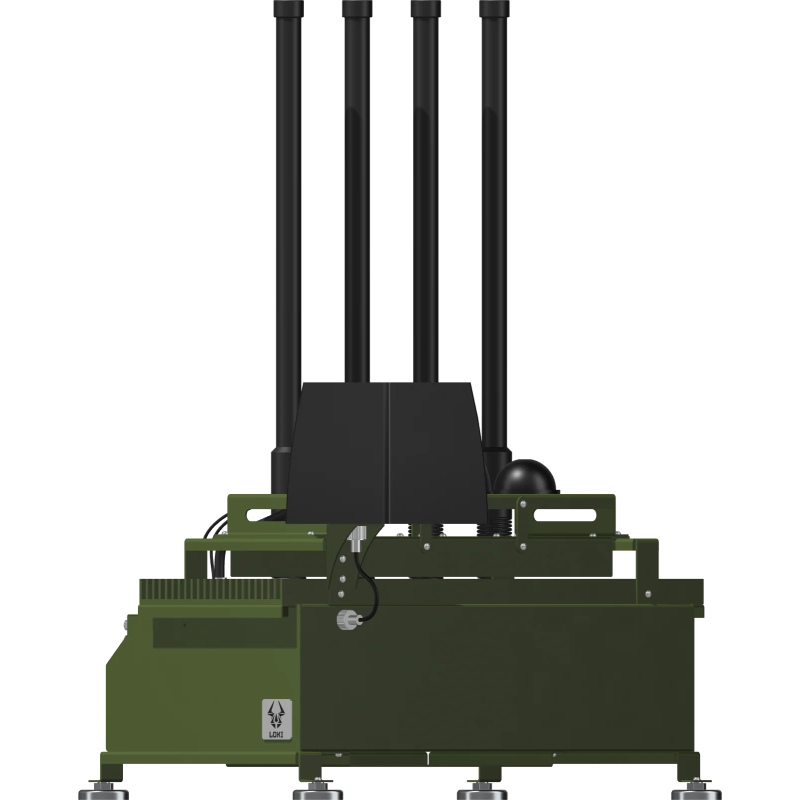

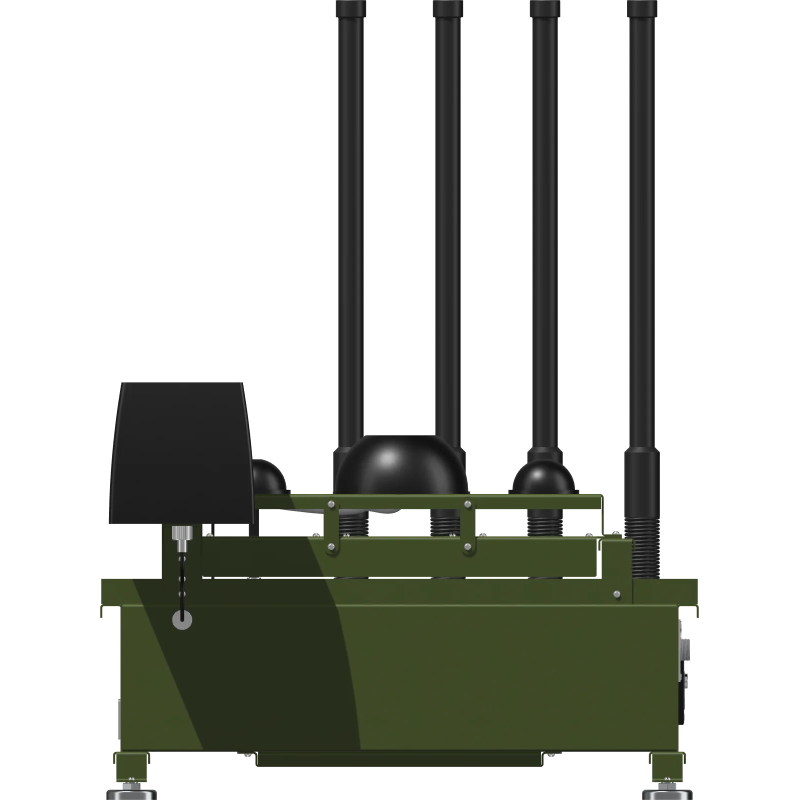

Universal EW Jammer "Odin XL-8" with Eight Antennas — Loki
The "Odin" anti-drone system from Loki is a universal portable complex for countering FPV drones, designed as a box that can be mounted on a vehicle roof or placed in a trench (dugout). The device is designed to protect equipment, vehicles, and positions, blocking signals across a wide frequency range and providing remote control for operational use in the field.
Key features and purpose: frequency blocking from 300 to 5850 MHz with an effective range of up to 500 m, support for a remote control up to 3,000 meters, magnetic mount for quick vehicle attachment, built-in diagnostic monitor for performance control. The complex is suitable for rapid installation on vehicles or stationary placement in shelters.
"Odin" Specifications
- Frequency range: from 200 to 5850 MHz. Ability to select any available sub-bands: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz.
- Power per antenna: 50 W per antenna (total output power = 50 W × number of antennas).
- Effective range: ~350 m (assuming distance between drone and drone operator – 3000 m), maximum stated blocking range up to 500 m in optimal conditions.
- Battery capacity: 35,000 mAh (internal battery).
- Maximum power: up to 250 W.
- Power supply: DC 12V-24V (autonomous power supply) and AC 110-240V (mains).
- Operating temperature range: from -25 °C to +85 °C.
- Average output power: 47 dBm.
- Kit weight: 12 kg (housing + antennas).
- Technology: GaN semiconductor technology — higher efficiency, less heat generation, and more compact size.
- Cooling: dual active cooling.
- Protection: reverse polarity protection.
- Wireless control: up to 3,000 meters.
- Vehicle mounting: magnetic mount for quick body attachment.
- Monitor: real-time diagnostics of performance and key characteristics.
- Antenna control: switches for individual power control of each antenna.
- Manufacture: Ukraine.

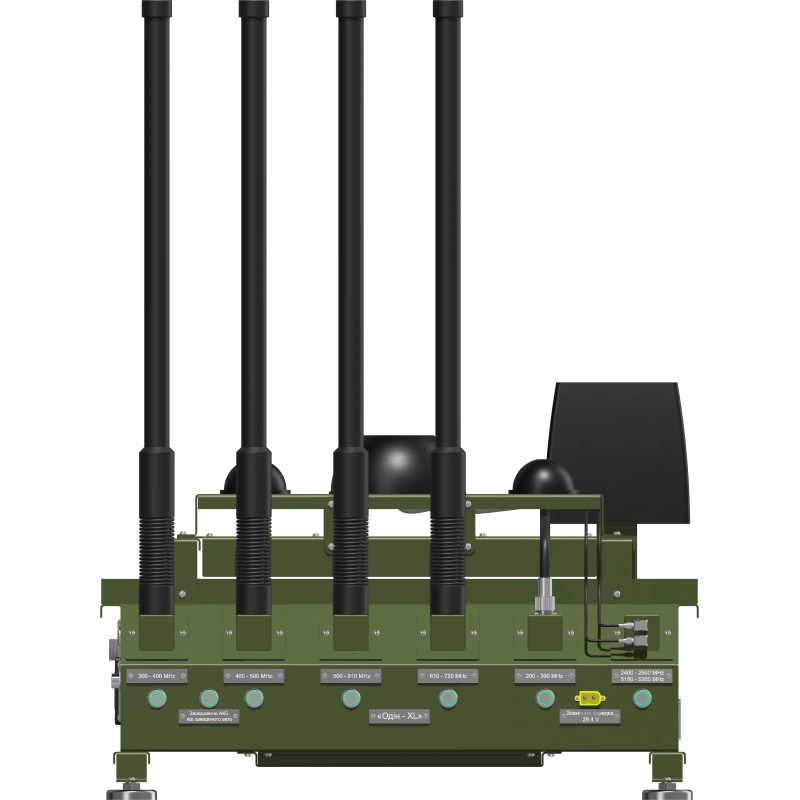

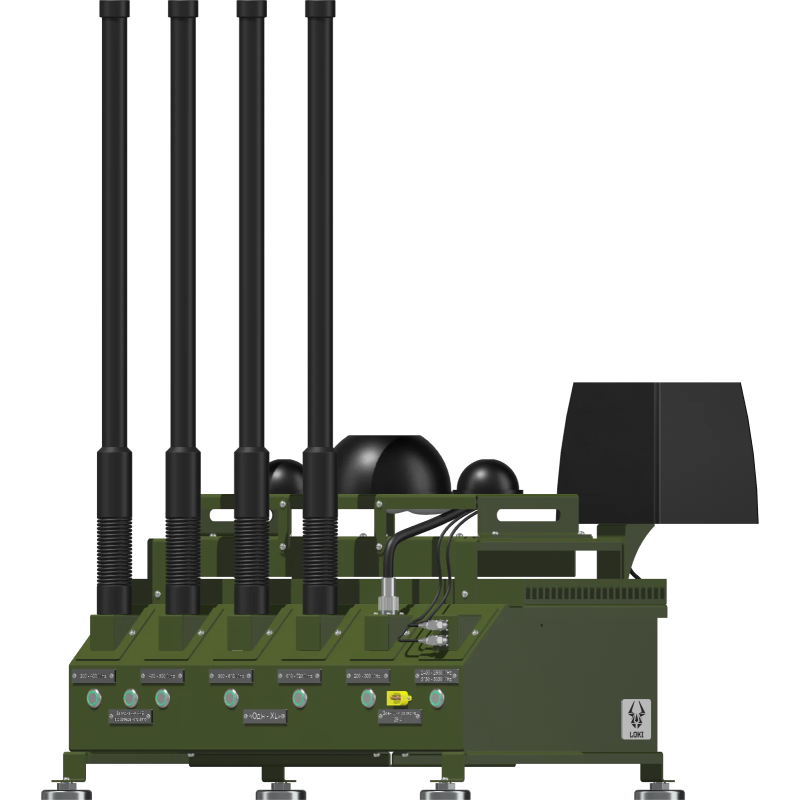

Construction Details and Front Panel Elements
- 1. 4-magnet vehicle mount.
- 2. External charging — 29.4 (connector for external charging source).
- 3. Switch from battery to external charging (power source switching).
- 4. Power buttons for each individual antenna (local on/off).
- 5. Active cooling (fans/radiators for maintaining operating temperature).
- 6. Connectors for antenna connection.
- 7. Connector for remote controls.

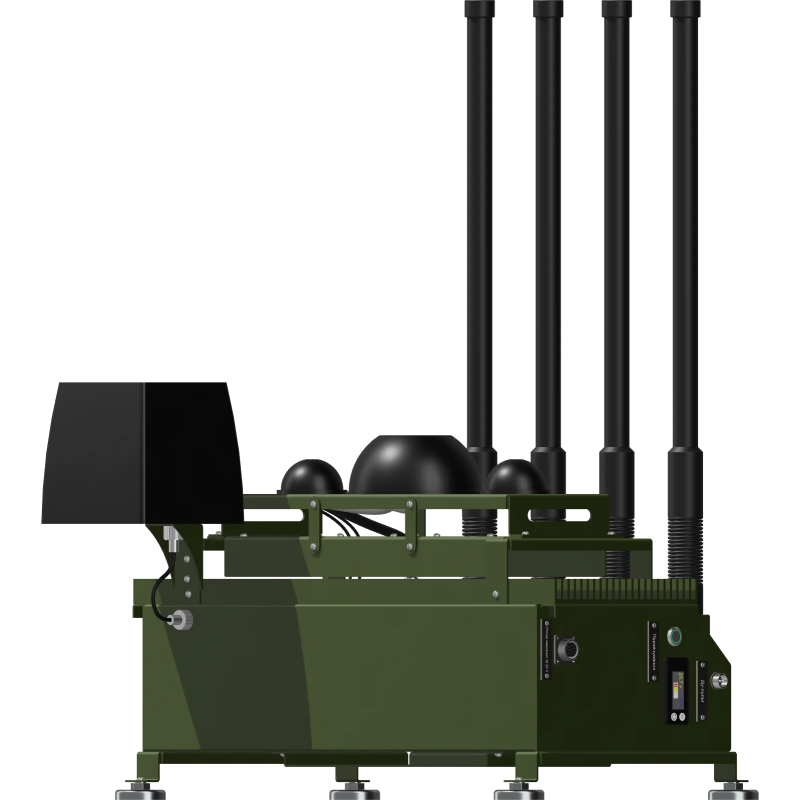

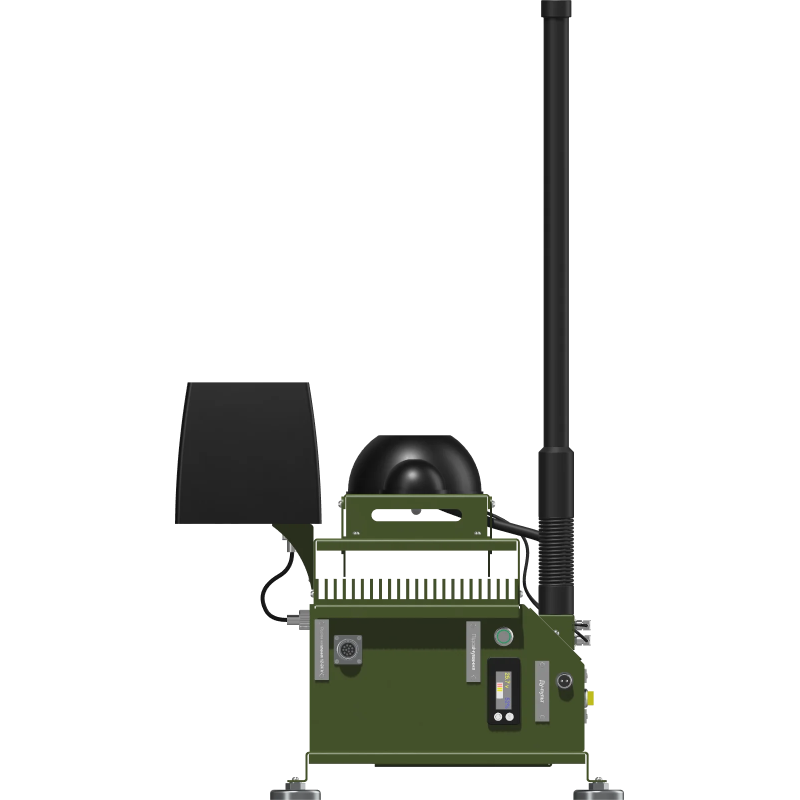

Control Panel and Diagnostics
- 1. Diagnostic monitor for tracking operating modes and parameters.
- 2. 12-24 V power connector for connecting to the vehicle's electrical system.
- 3. Backlight and device status indication.
"Odin-3" Package Contents
- 3 antennas — ability to choose the number of antennas depending on needs; any of the listed bands can be selected for each antenna.
- Control panel — power control panel that can be installed in the vehicle cabin — 1 pc.
- Remote control (RC) — operates up to 3,000 meters — 1 pc.
- Power cable — cable for connecting to the vehicle's electrical system.
- "Odin" complex — assembled complex — 1 pc.
- Battery pack — power supply unit for the onboard battery — 1 pc.
- Documentation — passport and user manual — 1 pc.
Practical use and advantages: mobile installation on a vehicle thanks to the magnetic mount and autonomous DC 12-24V power allows for rapid deployment of the system at positions or while moving, while GaN technology and dual active cooling ensure high efficiency with reduced heat generation. The ability to select bands and control each antenna separately provides flexibility in configuring for specific threats.
The product belongs to the category: EW Jammers. Brand: Loki. Product name: Universal EW Jammer Odin XL-8 with Eight Antennas.
