Universal EW Jammer «Odin XL-7» with Seven Antennas — Loki

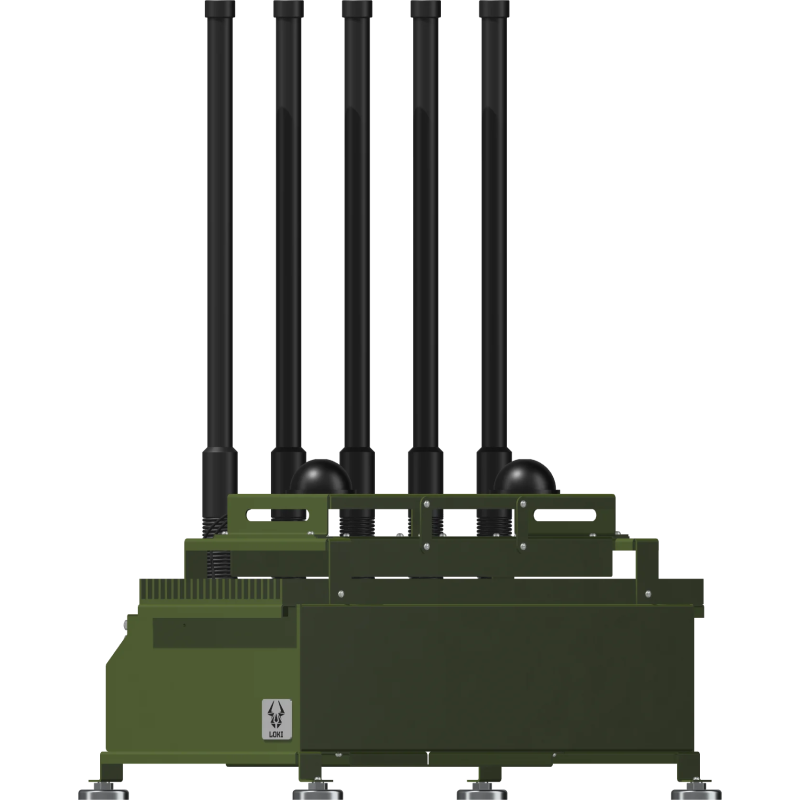

The «Odin» anti-drone system from manufacturer Loki is a universal complex in a box-type enclosure for countering FPV drones, which can be mounted on a vehicle roof or placed in a trench (dugout). The device blocks frequencies in the range from 200 to 5850 MHz with the ability to select specific sub-bands and provides protection for equipment, vehicles, and positions. The initial description states a blocking distance of up to 500 m, while the list of characteristics also indicates an effective operating distance of — 350 m (assuming a distance between the drone and the drone operator of — 3000 m). The complex is equipped with a remote control that operates up to 3,000 meters.
Frequency Ranges (Configurable)
Available sub-bands: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz.
Key Features
- From 200 to 5850 MHz — ability to select any available bands.
- Output power per antenna: 50 W per antenna (total output power depends on the number of antennas; for example, with 3 antennas 50W × 3 = 150W).
- Total power: up to 250 W.
- Effective operating distance: 350 m (specified assuming a distance between the drone and the operator of — 3000 m); the initial block also indicates a distance of up to 500 m.
- Internal battery capacity: 35,000 mAh.
- Average output power: 47 dBm.
- Power supply: DC 12V-24V (autonomous) and AC 110-240V.
- Operating temperature: -25 - +85 °C.
- Kit weight (enclosure + antennas): 12 kg.
- Semiconductor technology: GaN — higher efficiency, less heat generation, and more compact size.
- Cooling: dual active.
- Reverse polarity protection: yes.
- Wireless control: up to 3,000 meters.
- Car mounting: magnetic.
- Monitor: diagnostics of performance and characteristics.
- Antenna switches: individual antenna power control.
- Manufactured in: Ukraine.

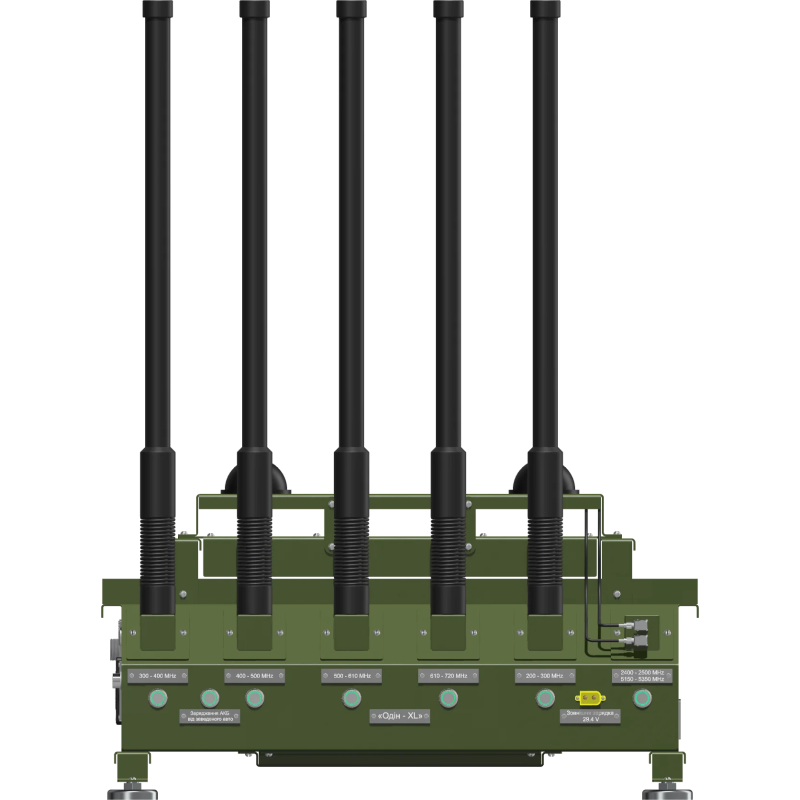

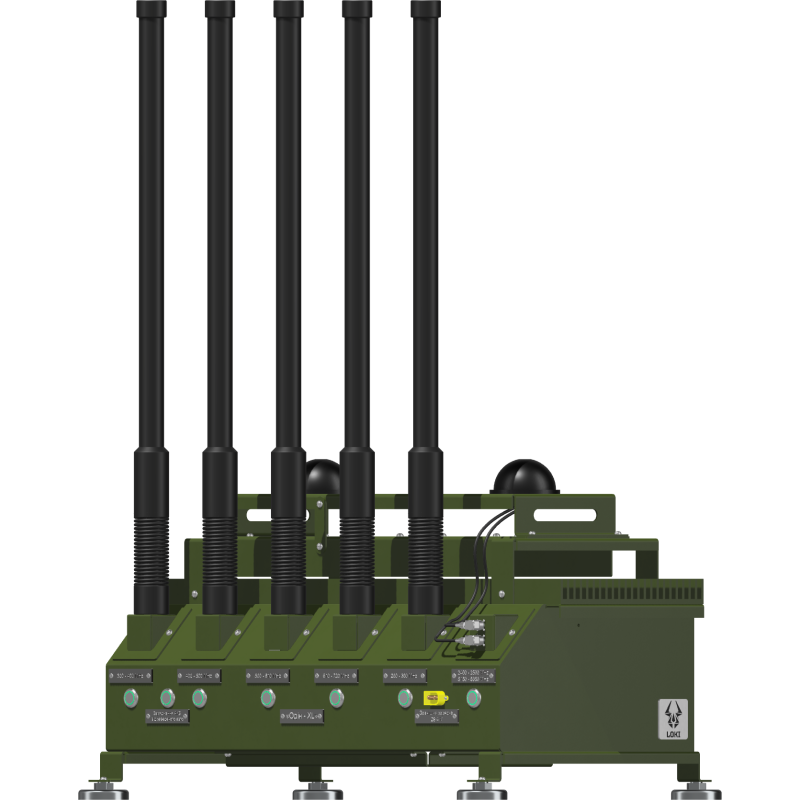

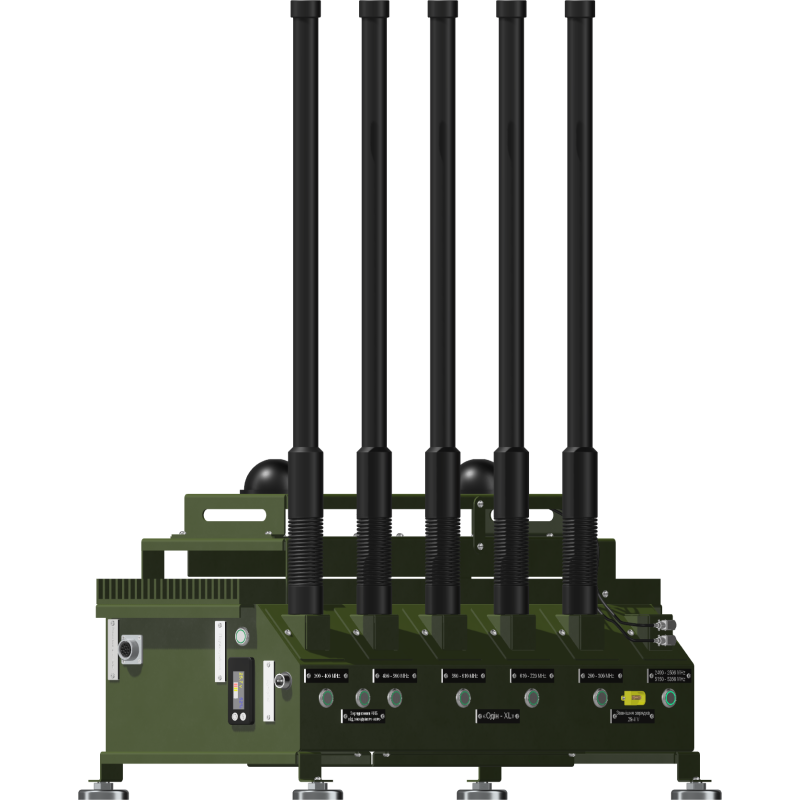

Front Panel and Enclosure Elements
- 1) 4-magnet car mount.
- 2) External charging - 29.4 V.
- 3) Switch from battery to external charging.
- 4) Power buttons for each individual antenna.
- 5) Active cooling.
- 6) Antenna connectors.
- 7) Remote control connector.

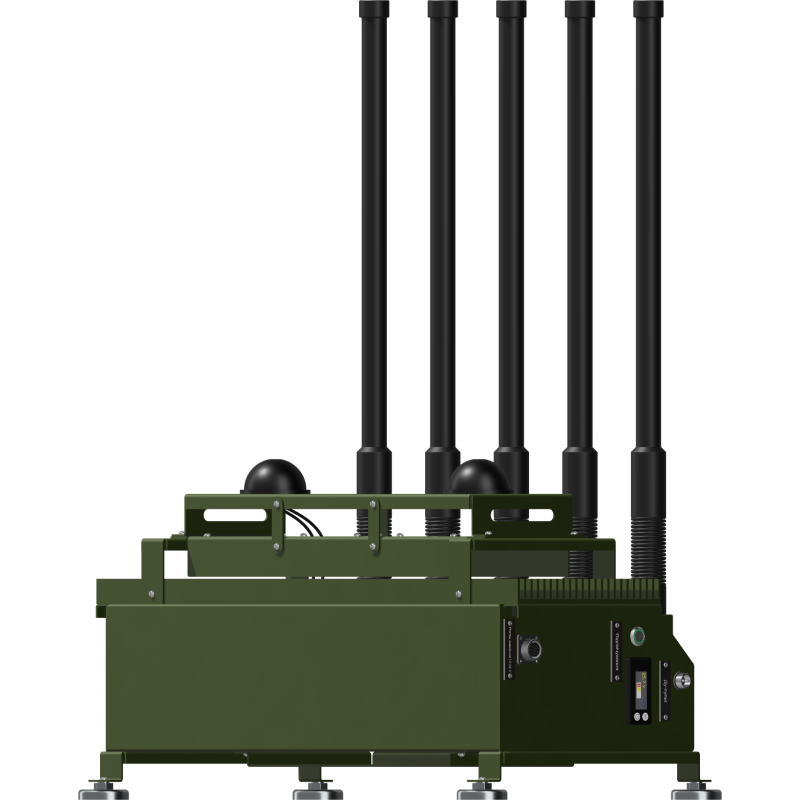

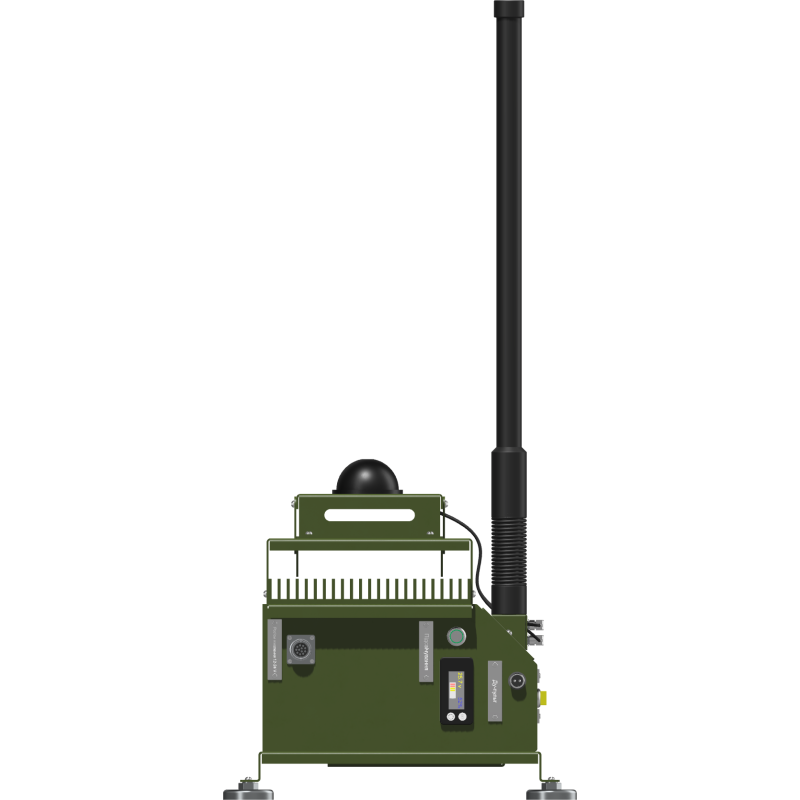

Other Interfaces
- 1) Diagnostic monitor.
- 2) 12-24 V power connector.
- 3) Backlight and indication.
«Odin-3» Package Contents
- 3 antennas (the number of antennas can be chosen depending on needs; any of the available bands can be set for each antenna).
- Power control panel, installable in the vehicle cabin — 1 pc.
- Remote control (operates up to 3,000 meters) — 1 pc.
- Power cable for connection to the vehicle's electrical system.
- «Odin» complex assembled — 1 pc.
- Battery pack for onboard power — 1 pc.
- Documentation: passport and user manual — 1 set.
The universal EW jammer «Odin XL-7» under the Loki brand — is a mobile solution for rapid deployment and reliable operation in challenging conditions, supporting antenna and frequency configuration selection, featuring autonomous and mains power, modern GaN electronics, protection, and active cooling for extended operation.
