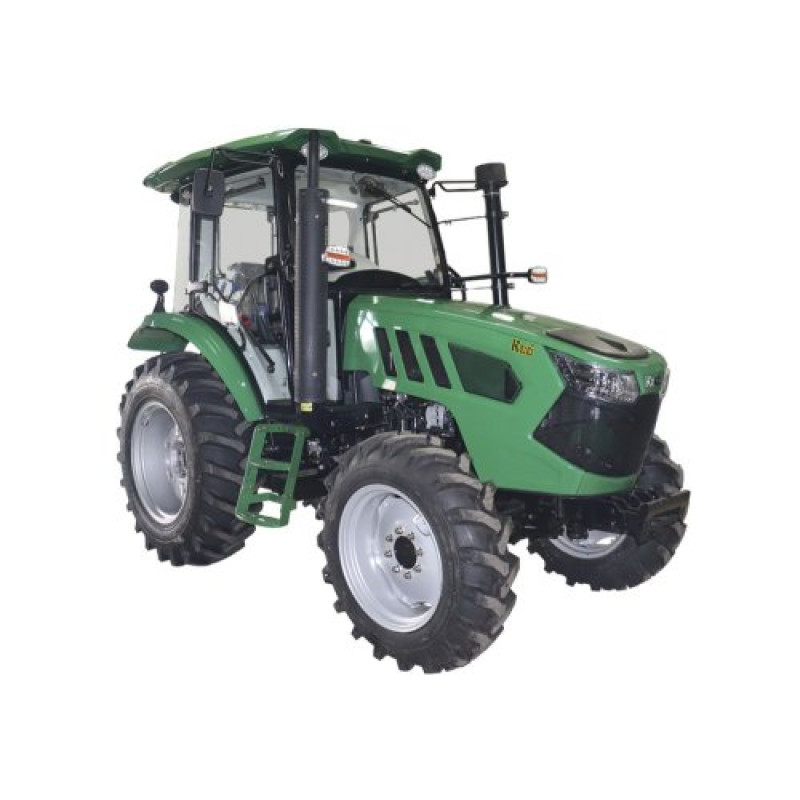

Tractor KIY-14904 — Universal Power for Professional Tasks
The KIY-14904 model from the KIY brand — is a robust and reliable mini-tractor designed for heavy field, agricultural, and municipal work. The combination of a 4-stroke diesel engine with a turbocharger and intercooler, 4x4 all-wheel drive, and a well-engineered transmission allows for efficient operation with a wide range of mounted and trailed equipment.
Key Technical Specifications and Advantages:
engine power of 90 hp (66.2 kW) with economical nominal fuel consumption ≤250 g/kWh; engine displacement of 4700 cm3; four vertically arranged cylinders; electric starter for quick ignition; liquid-closed cooling system with forced circulation.
The model's technical base includes a 24+24 mechanical gearbox, a dry single-disc dual clutch, a direct main drive, and the ability to lock the rear differential. Hydraulic steering ensures precise operation and has two hydraulic outlets for connecting mounted equipment and gear pumps (NSh) for driving the hitch and operating the power steering.
| Engine power, hp (kW) | 90 (66.2) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, with turbocharger and intercooler |
| Number and arrangement of cylinders | 4, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of cooling fluid |
| Engine displacement, cm3 | 4700 |
| Tractive effort, kN | 1.4 |
| Nominal engine fuel consumption, g/kWh | ≤250 |
| Fuel tank, L | 140 |
| Gearbox (КП) | 24+24 |
| Rear differential lock | + |
| Clutch | dry 1-disc dual |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on secondary gearbox shaft, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSh) for hitch drive / NSh for power steering operation |
| Hitch lifting capacity | 2050 kg |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Tire size | front 11.2-24, rear 16.9-30 |
| Wheel track | front 1300/1410/1540/1630/1740, rear 1300/1368/1468/1578/1650/1770 |
| Ground clearance, mm | 375 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Dimensions LхWхH mm | 4200х1820х2610 |
| Curb weight, kg | 3520 |
The model is optimally suited for working with plows, harrows, seeders, feed distributors, and other implements: a hitch lifting capacity of 2050 kg and two PTO modes (540/1000 rpm) allow for the use of a wide range of mounted equipment. Track adjustment (wide range for front and rear wheels) and a ground clearance of 375 mm ensure excellent cross-country capability and adaptation to various soil conditions.
The tractor's design provides for convenient servicing and long operational life: high-quality transmission components, a reliable hydraulic system with gear pumps, and a trailer connector for safe use with trailed equipment. The braking system is located on the secondary gearbox shaft with brake drums, ensuring effective braking under intense loads.
Brand: KIY. Category: Tractors > Mini-Tractors. Model: KIY-14904.
