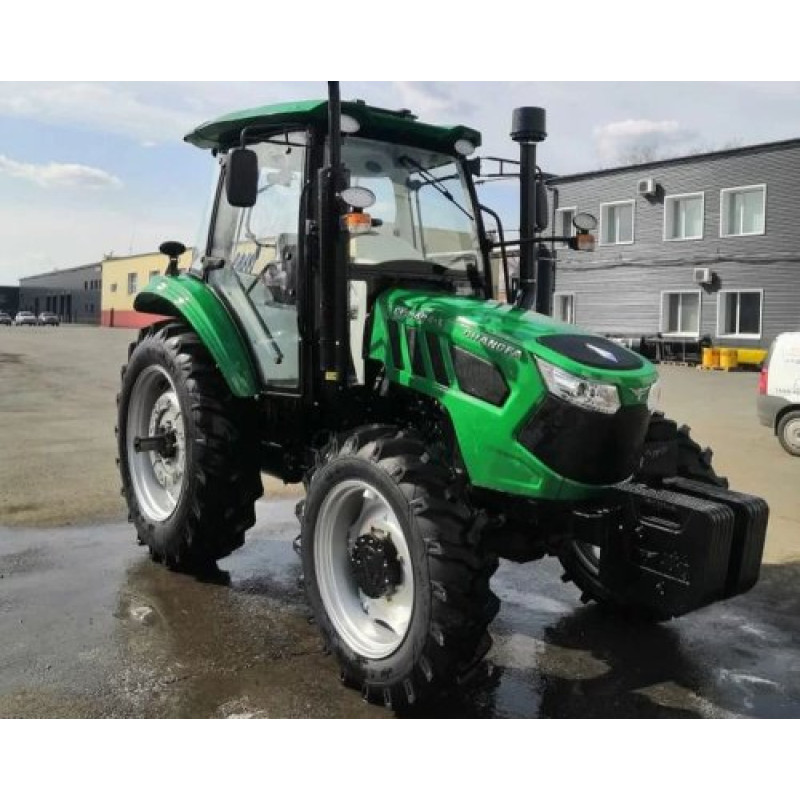

Changfa CFG1404 Tractor Overview
The Changfa CFG1404 tractor is a powerful, versatile, and reliable machine from the manufacturer Changfa, designed to perform a wide range of agricultural, municipal, and industrial tasks. The model combines an efficient Yuchai diesel engine with turbocharging and intercooler, high technical characteristics of the transmission and hydraulic system, and a well-designed sealed cabin for comfortable and safe operator work.
Key Advantages
- The Yuchai YC6J165-T301 (Euro III) engine with turbocharging and pre-start heating provides a nominal power of 140 hp (103.5 kW) for stable operation under load.
- The transmission with a wide gear range — 24 forward + 24 reverse — allows for precise speed selection for various operations.
- Electronic hitch control from Rexroth (Germany) ensures accuracy and reliability when working with heavy mounted implements.
- The high lifting capacity of the hitch mechanism — 4900 kg — allows for the use of a wide range of heavy implements and trailers.
- The sealed cabin with heating and air conditioning ensures operator comfort in various climates.
Technical Specifications
Detailed technical parameters of the Changfa CFG1404 tractor are provided in the table below.
| Engine type | Yuchai YC6J165-T301 Euro III with turbocharger, intercooler, pre-start heating |
| Engine power, hp (kW) | 140 (103.5) |
| Air filter | Dry, 2-stage with paper elements and clogging indicator |
| Clutch | 13-inch LUK dual-action, single-disc clutch |
| Transmission | 24 forward + 24 reverse |
| Hydraulic system: type / number of hydraulic outlets | Separate / 3 pairs |
| Hydraulic pump type | Gear pump with engine drive |
| Hitch control | Rexroth electronic system (Germany) |
| PTO: power, hp / kW | 107/79 |
| PTO: speed, rpm | 540/760/1000 |
| Hitch lifting capacity, kg | 4900 |
| Hydraulic system flow rate, l / min | 51 |
| Rear differential lock | Mechanical |
| Front wheel track, mm | 1616/1644/1748/1800/1932 |
| Rear wheel track, mm | 1614/1656/1682/1730/2014 |
| Steering | Hydraulic, independent |
| Front / rear tire size, inch | 14.9-26 / 16.9-38 or 18.4-38 |
| Turning radius, m | 4.9 |
| Ground clearance, mm | 475 |
| Overall dimensions: LxWxH, mm | 5044×2120×3040 |
| Wheelbase, mm | 2680 |
| Curb weight, kg | 5960 |
| Ballasting: front / wheel counterweights, kg | 540/600 |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel tank capacity, l | 220 |
| Cabin equipment | Sealed cabin with heating and air conditioning system, cabin filters, roof hatch, engine operating mode switch |
The Changfa CFG1404 is suitable for heavy-duty tasks: towing cargo trailers, working with large mounted implements, and implements requiring high PTO power. The powerful PTO (107 hp / 79 kW) with 540/760/1000 rpm modes and mechanical rear differential lock improve off-road capability and stability when working in difficult conditions. The separate hydraulic system with three pairs of hydraulic outlets combined with a flow rate of 51 l/min ensures reliable operation of hydraulic equipment.
Operational Features and Comfort
The sealed cabin with heating, air conditioning, cabin filters, and a roof hatch guarantees operator comfort during long shifts and in various weather conditions. Oil-bath disc brakes with hydraulic drive provide effective and reliable braking. Track options and large tire sizes (front 14.9-26; rear 16.9-38 or 18.4-38) allow the tractor to be adapted to different soil and climatic conditions and field tasks.
Manufacturer: Changfa. Product type: Tractors > Mini Tractors. Model: Changfa CFG1404 Tractor. The configuration uses proven components: Yuchai engine, Rexroth hitch control system, LUK clutch, making this model a profitable choice for enterprises, farms, and municipal services that require a powerful and versatile tractor.
