DTZ 1404 Tractor — Powerful Universal Mototractor from DTZ

Brand: DTZ. Model: DTZ 1404 Tractor. Category: Tractors > Mototractors. This model is presented in the "Flash Army" online store — the official sales representative of the Dnipropetrovsk Tractor Plant. We offer to buy DTZ 1404 with the option of credit or installment payment and delivery throughout Ukraine.

Below are the full technical specifications contained in the model's specification and seller's description. The table retains the original values of the technical parameters:

The DTZ 1404 is the flagship model in the manufacturer's lineup in terms of power. The heart of the tractor is a powerful CF5F140-T-GB011Q diesel engine with a displacement of 7130 cm3, developing 140 hp (103 kW). The specification indicates a six-cylinder vertical cylinder arrangement; the description also mentions possible configuration options, among which a four-cylinder variant sometimes appears — we recommend clarifying the configuration with the manager when ordering.

The starting system is an electric starter; cooling is liquid, closed, with forced circulation, which guarantees stable operation under high loads. The engine has a three-stage air purification and a modern fuel filtration system, and the electronic control system contributes to fuel economy. The torque reserve in the region of maximum power is about 30%, which ensures efficient operation on heavy soils. The fuel tank capacity is 170 liters, and the tank filler neck has an increased diameter for quick refueling.

Transmission and Operational Characteristics

The tractor is equipped with a 24+24 reversible gearbox, which provides a wide range of speeds for field, transport, and maneuvering operations. The clutch is a dry 2-disc constantly closed type, the final drive is direct, and there is a rear differential lock. The nominal traction force is 28.7 kN, allowing work with heavy mounted and trailed equipment.

The steering is hydraulic, simplifying maneuvering; the braking system is implemented on the secondary shaft of the gearbox with brake drums. The power take-off shaft is rear, splined, operating in 540 and 1000 rpm modes. The hitch lifting capacity is 3200 kg. The hydraulic pump type is a gear pump (NSh) for both hitch drive and power steering operation; the number of hydraulic outlets is 2.

About Cross-Country Capability, Tires, and Cabin

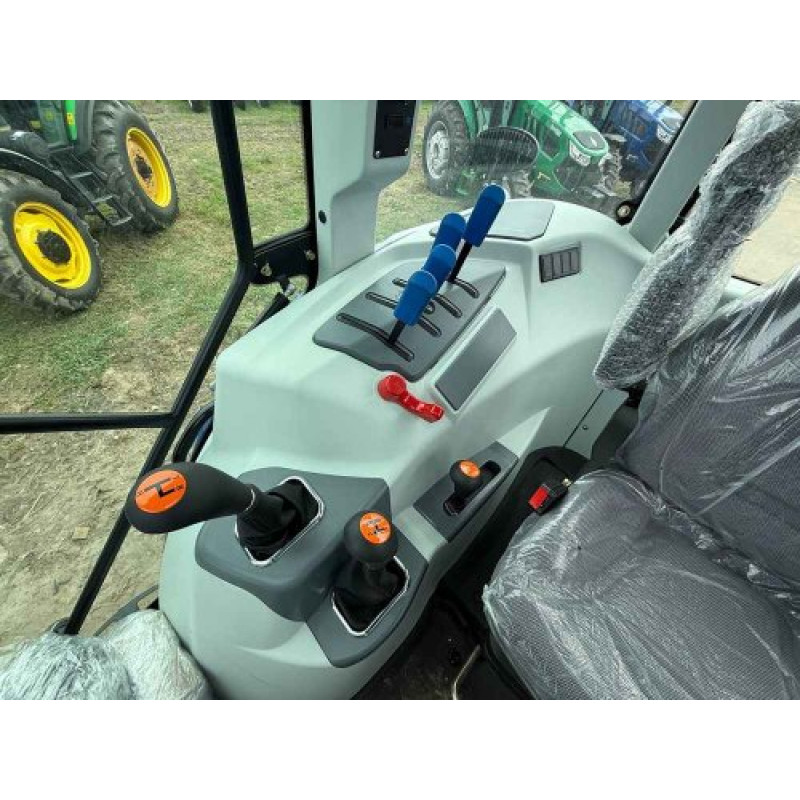

The 4x4 all-wheel drive combined with a ground clearance of 475 mm ensures high cross-country capability on difficult terrains. The adjustable front wheel track is 1720 / 1815 / 1934 / 2100 mm; the rear axle is 1700–2300 mm. Tire size: front 14.9-26, rear 16.9-38. The spacious and sealed cabin is designed with operator comfort in mind: ergonomic control placement, a seat with suspension and armrests, and low noise levels. The basic configuration includes air conditioning and a compressor, which increases comfort during long work shifts.

Advantages of the DTZ 1404 Model

• Versatility of application: possibility of connecting heavy mounted and trailed units of large volume;
• Ease of maintenance: convenient access to filler necks and filters reduces maintenance time;
• Reliable and unpretentious engine with an efficient cooling and heating system, suitable for operation in any season;
• Modern transmission ensures smooth and precise control of operating modes;
• Extensive service network and available spare parts for quality after-sales service throughout Ukraine.

The Flash Army online store offers new DTZ 1404 tractors at a favorable price with a warranty. Our catalog also features a wide selection of agricultural machinery, mounted and trailed equipment. Online ordering and offline store branches are available. Delivery throughout Ukraine, installment or credit terms possible. Contact managers to clarify configuration and availability.
