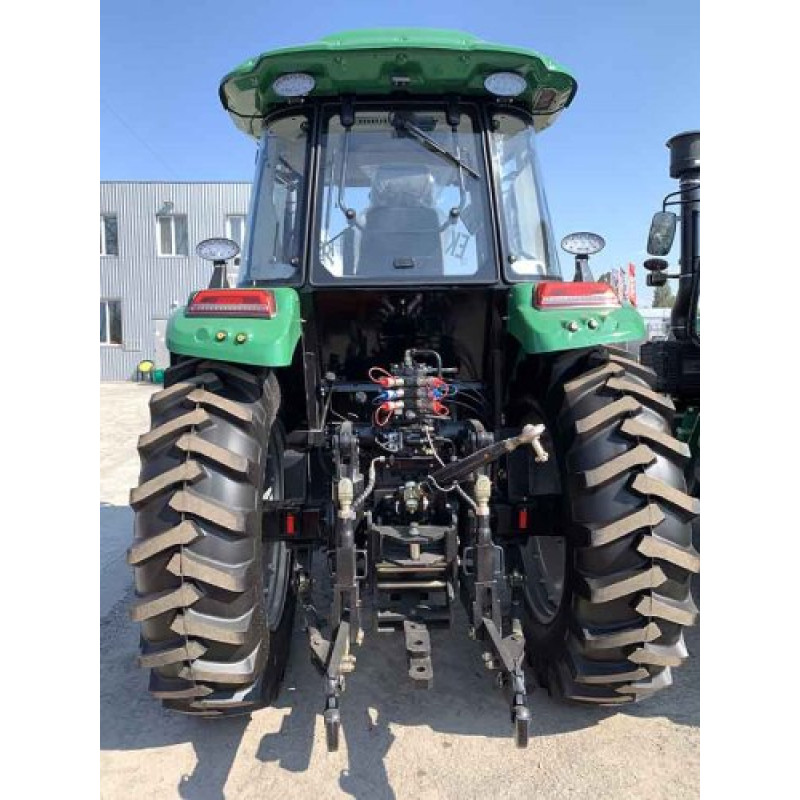

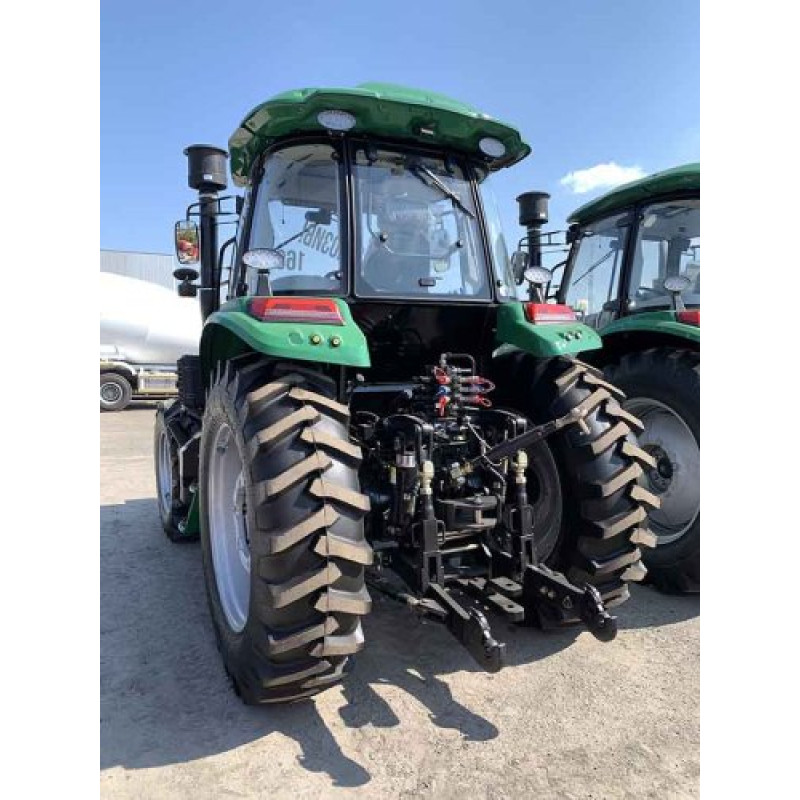

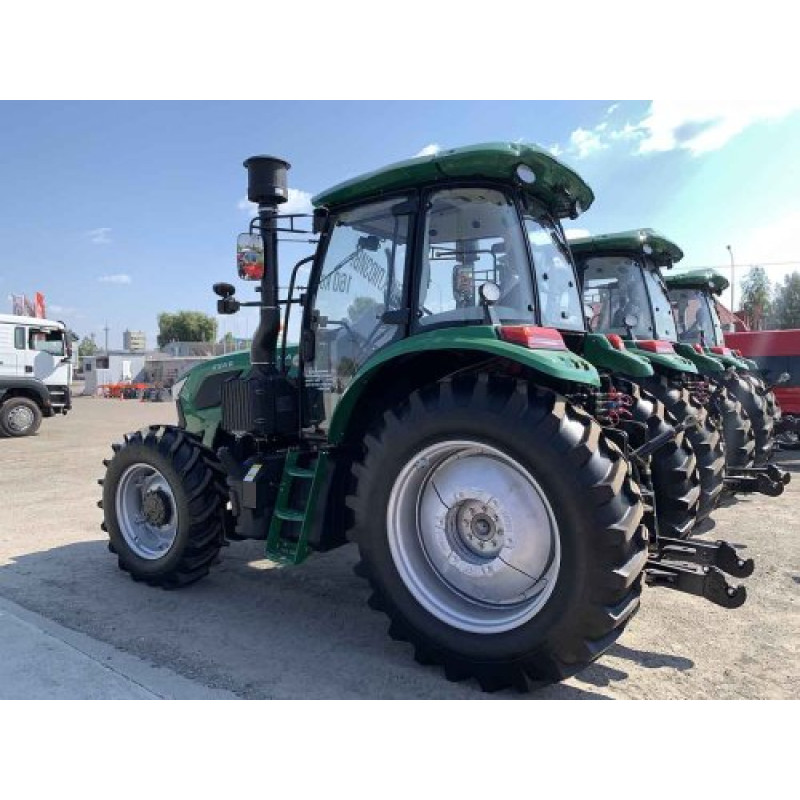

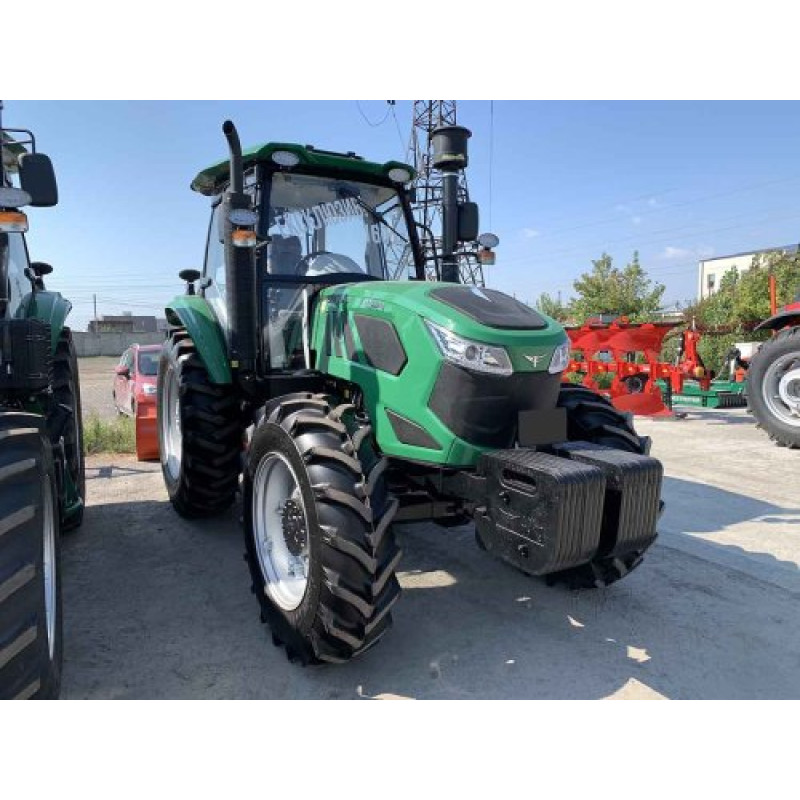

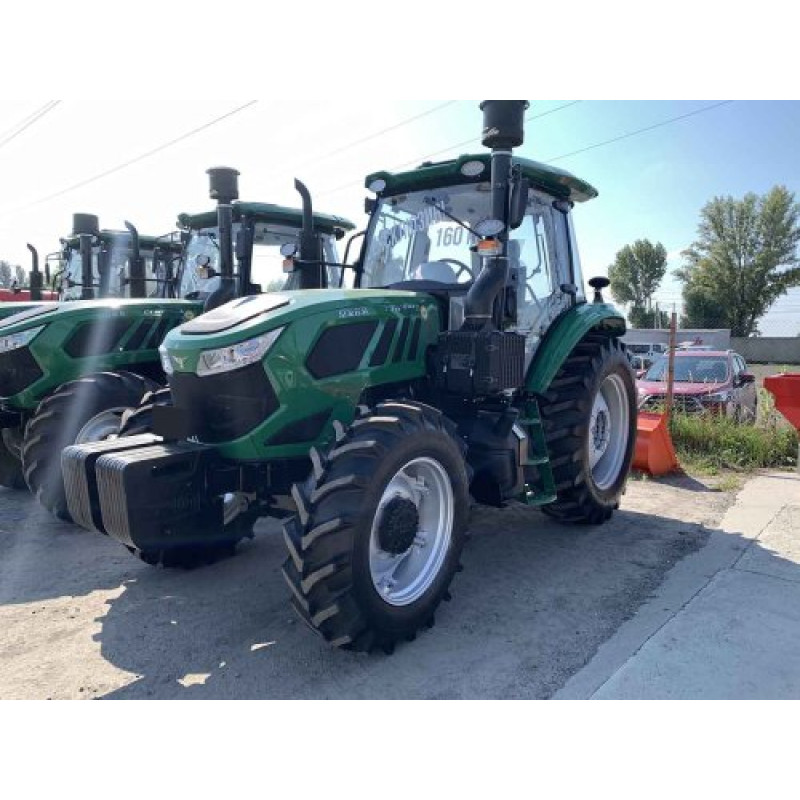

Changfa CFH1604A Tractor — a reliable mototractor for professional work
The Changfa CFH1604A tractor from the Changfa brand is a practical and economical solution in the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mototractors. The model is designed for a wide range of agricultural and transport tasks on fertile and heavy soils, ensuring high productivity, structural durability, and operator comfort at a moderate price compared to imported counterparts.
At the heart of the CFH1604A is a powerful six-cylinder Yuchai YC6J90-T301 Euro III engine with turbocharging, intercooler, and pre-start heating. The engine is equipped with an ultra-efficient two-stage air filter and a three-level fuel filtration system for enhanced reliability. Thanks to the application of German technologies, the torque reserve has been increased by 33%, and the electronic power management system allows for optimized fuel consumption and flexible adjustment of operating parameters.

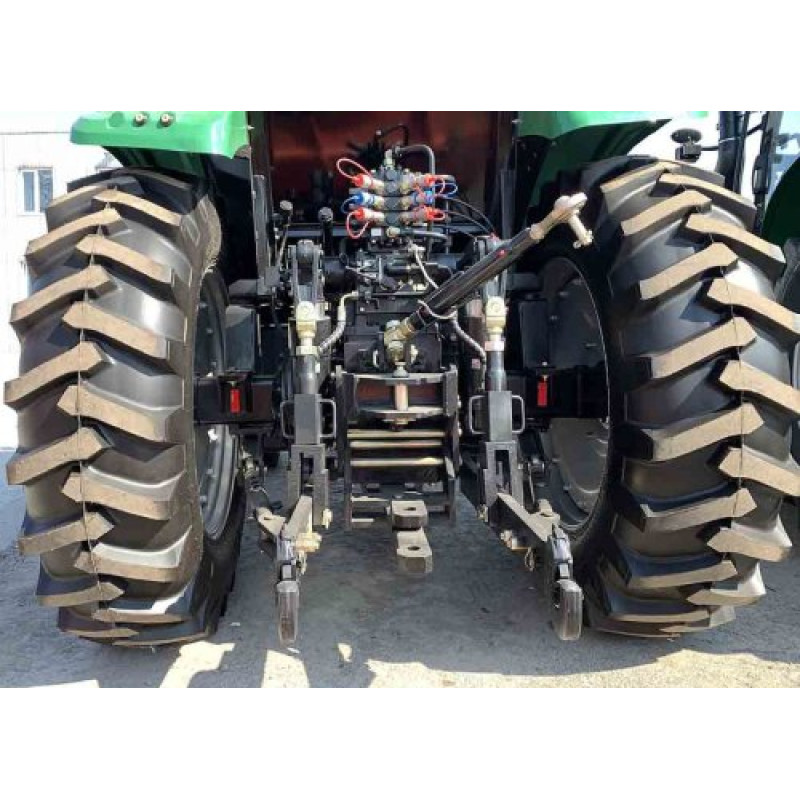

A capacious 220 L fuel tank ensures long continuous operation in the field. Power transmission is realized through a reversible transmission with a creeper gear and synchronizers, making control smooth and convenient; the maximum tractor speed is 36 km/h. The CFH1604A easily aggregates with a large number of attachments thanks to a powerful hydraulic system and electronic hitch control, expanding its utility on the farm.
The tractor's frame and chassis are rigidly constructed with reinforced axles, guaranteeing reliable operation under heavy loads. The cabin is sealed and comfortable: it features heating and air conditioning systems, cabin filters, a roof hatch, an engine operating mode switch, and a rear-view camera with a monitor for increased safety and operator convenience.
Advantages of Changfa CFH1604A
- High productivity thanks to a powerful six-cylinder Yuchai engine with electronic power management;
- Three-level fuel filtration system and ultra-efficient two-stage air filter for long-term and reliable operation;
- Large 220 L fuel tank for long work shifts without refueling;
- Comfortable sealed cabin with heating, air conditioning, cabin filters, hatch, and video camera for safe operator work;
- Wide aggregation possibilities thanks to a powerful hydraulic system and electronic hitch control;
- Robust rigid chassis with reinforced axles and wet disc brakes.
How to order
You can buy the Changfa CFH1604A tractor in Ukraine at the "Flash Army" online store. We work directly with the manufacturer, so we offer a favorable price, full warranty support, and service. To place an order, fill out the form on the website — our managers will contact you to clarify details and arrange delivery to all regions of the country.
Technical Specifications
Technical Specifications:
| Engine type | Yuchai YC6J90-T301 Euro III with turbocharger, intercooler, pre-start heating |
| Engine power, hp (kW) | 117.5 (160) |
| Air filter | Ultra-efficient 2-stage air cleaner (Luxurious) |
| Clutch | 14-inch LUK dual-action clutch, single-disc with hydraulic drive |
| Transmission | With synchronizer and creeper gear: 32 forward + 32 reverse |
| Hydraulic system: type / number of hydraulic outlets | Separate / 3 pairs |
| Hydraulic pump type | Gear pump with engine drive |
| Hitch control | Rexroth electronic system (Germany) |
| PTO: power, hp / kW | 143 / 105.3 |
| PTO damper | Hydraulic with energy accumulator |
| PTO: revolutions, rpm | 540/1000 |
| Number of PTO splines | 8-48x40x8 (base) / option 8-38x29.4x6 or 6-34.8x28.9x8.7 |
| Hitch lifting capacity, kg | 4500 |
| Hydraulic system flow rate, l/min | 52 |
| Rear differential lock | Hydraulic |
| Front / rear wheel track, mm | 1736 / 1656-2588 |
| Steering | Hydraulic, independent |
| Front / rear tire size, inch | 14.9-28 / 18.4-38 |
| Turning radius, m | 5.4 |
| Ground clearance, mm | 490 |
| Overall dimensions: LxWxH, mm | 5100×2390×2970 |
| Wheelbase, mm | 2680 |
| Curb weight, kg | 5350 |
| Ballasting: front / wheel counterweights, kg | 640 / 600 |
| Brakes | Disc, wet, with hydraulic drive |
| Fuel tank capacity, L | 220 |
| Cabin equipment | Sealed cabin with heating and air conditioning system, cabin filters, roof hatch, engine operating mode switch, rear-view camera with monitor |
The "Flash Army" online store provides delivery throughout Ukraine, service support, and the opportunity to purchase the Changfa CFH1604A tractor at a favorable price directly from the manufacturer.
