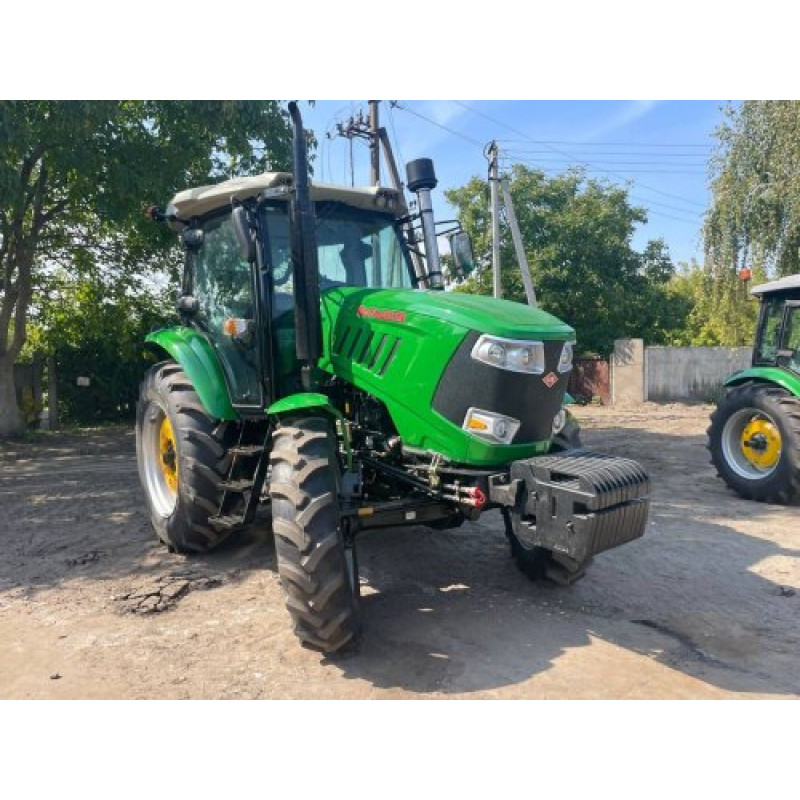

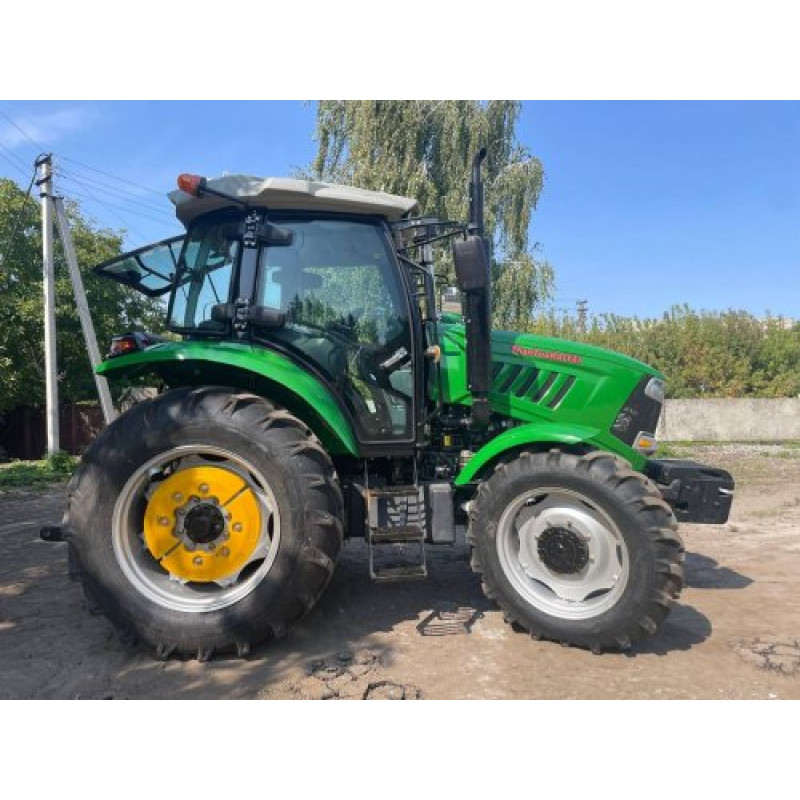

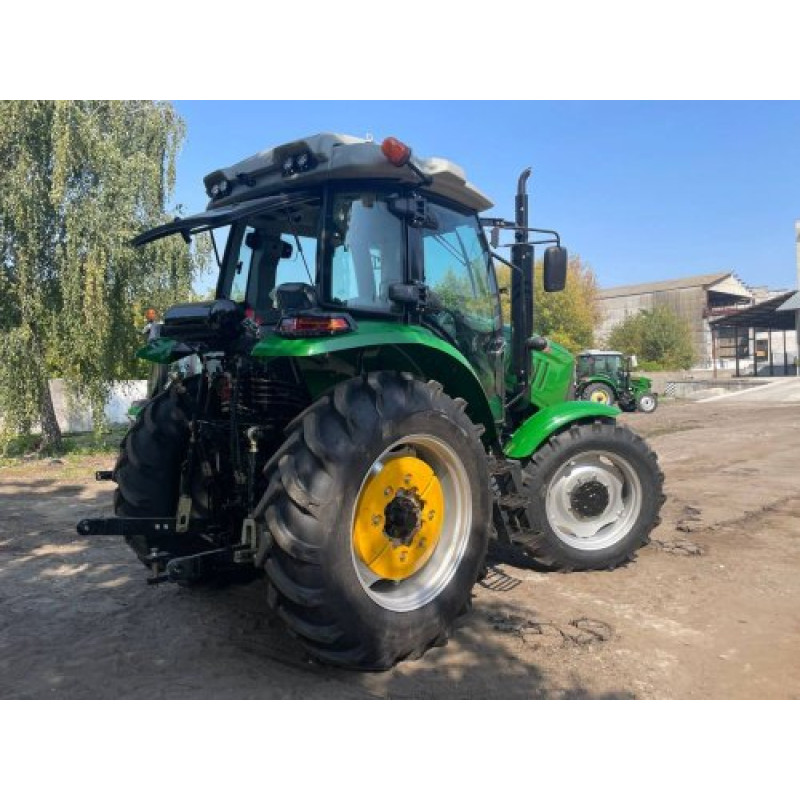

KATA KD1104 Tractor — Powerful Universal 4x4 Mototractor
Introducing the KATA KD1104 — a reliable heavy-duty diesel mototractor designed for intensive use in agriculture, utilities, and industry. This model combines a high engine power of 110 hp (81.4 kW) with a balanced chassis design and an efficient hydraulic system, making the KD1104 a versatile solution for a wide range of tasks: plowing, harrowing, seeding and harvesting operations, trailer towing, and working with heavy attachments.
Key advantages: 4x4 all-wheel drive for enhanced off-road capability; closed liquid cooling system with forced circulation; electric starter for quick and reliable engine ignition; robust transmission and 16+8 gears for precise selection of operating modes; hydraulic power steering for comfortable control; rear differential lock for working in difficult conditions.
Technical specifications and design data:
| Engine power, hp (kW) | 110 (81.4) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, YTO LR4M3Z |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Engine displacement, cm3 | 5610 |
| Nominal traction force, kN | 28 |
| Transmission (КП) | 16+8 |
| Rear differential lock | + |
| Clutch | dry, 2-disc, constantly closed type |
| Final drive | direct |
| Steering | hydraulic |
| Brakes | on secondary gearbox shaft, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump for hitch drive / gear pump for power steering |
| Hitch lifting capacity | 2785 kg |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Wheel track | front 1595-1675 1755-1855, rear 1650-2050 |
| Tire size | front 12.4-28 (11.2-24), rear 16.9-34 |
| Ground clearance, mm | 405 |
| Number of hydraulic outlets | 3 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LхWхH mm | 4810х2380х3100 |
| Curb weight, kg | 4300 |
The KATA KD1104 is equipped with a robust YTO LR4M3Z diesel engine with a displacement of 5610 cm3 and a nominal traction force of 28 kN, allowing it to work effectively with heavy plows, harvesters, and trailers. The 16+8 transmission provides a wide range of speeds and allows for selecting the optimal mode for various field operations. The rear differential lock enhances off-road capability in difficult soil conditions, and the hydraulic system with gear pumps and three outlets ensures stable operation of attached equipment.

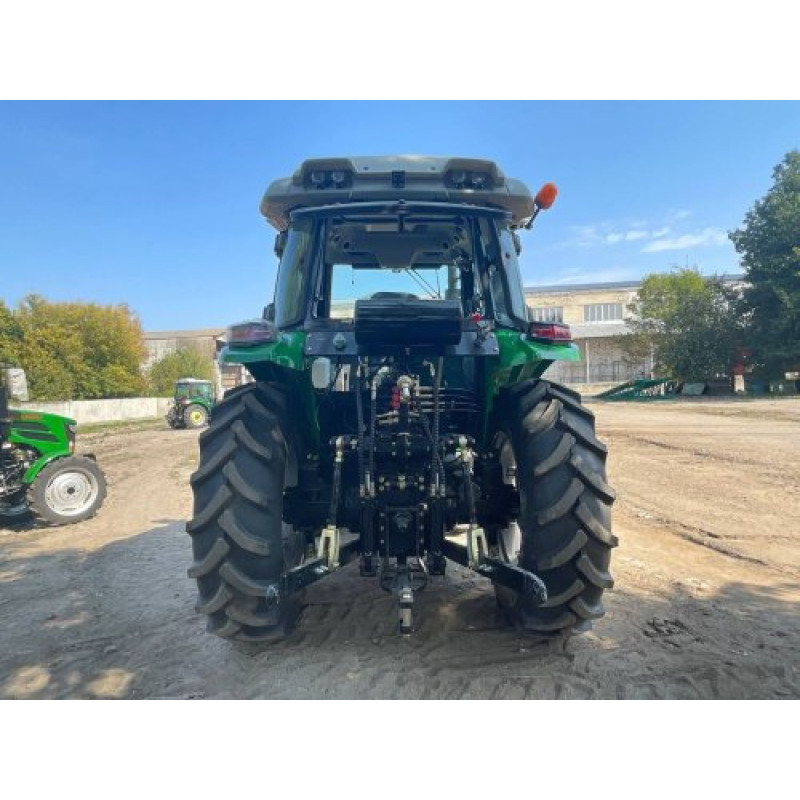

The rear splined PTO with 540 and 1000 rpm modes makes the tractor compatible with a wide range of implements: mowers, seeders, potato diggers, cultivators, and other trailed and mounted equipment. The braking system on the secondary gearbox shaft with drums effectively brakes even under significant loads. Additional options — electric starter, compressor, and trailer connector — enhance ease of use.
Dimensions of 4810x2380x3100 mm and a curb weight of 4300 kg make the KATA KD1104 stable and balanced when working in fields and on roads. The 405 mm ground clearance allows for work on uneven terrain, and the recommended tire sizes of front 12.4-28 (or 11.2-24) and rear 16.9-34 ensure optimal ground contact and minimal compaction.
This tractor is ideal for large farms and agro-industrial enterprises that require power, reliability, and versatility for seasonal and daily tasks with minimal downtime. Manufacturer: KATA. Product category: Tractors / Mototractors.
