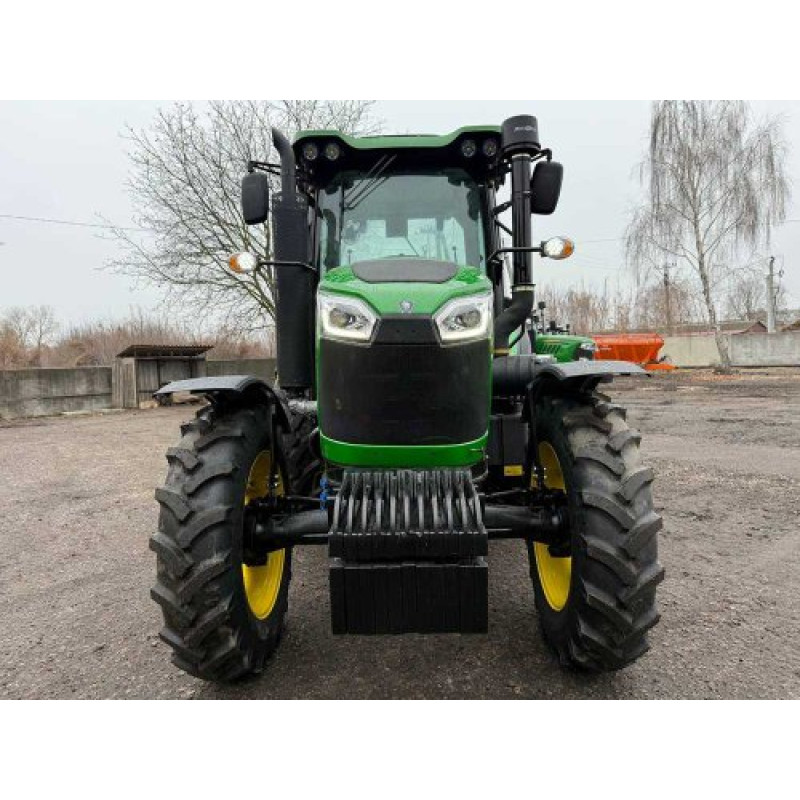

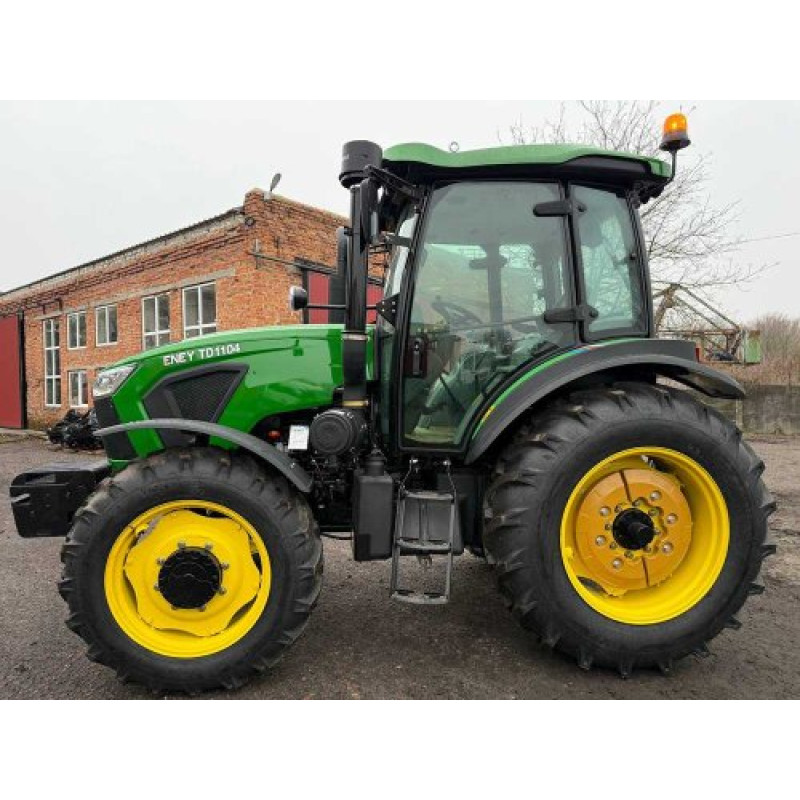

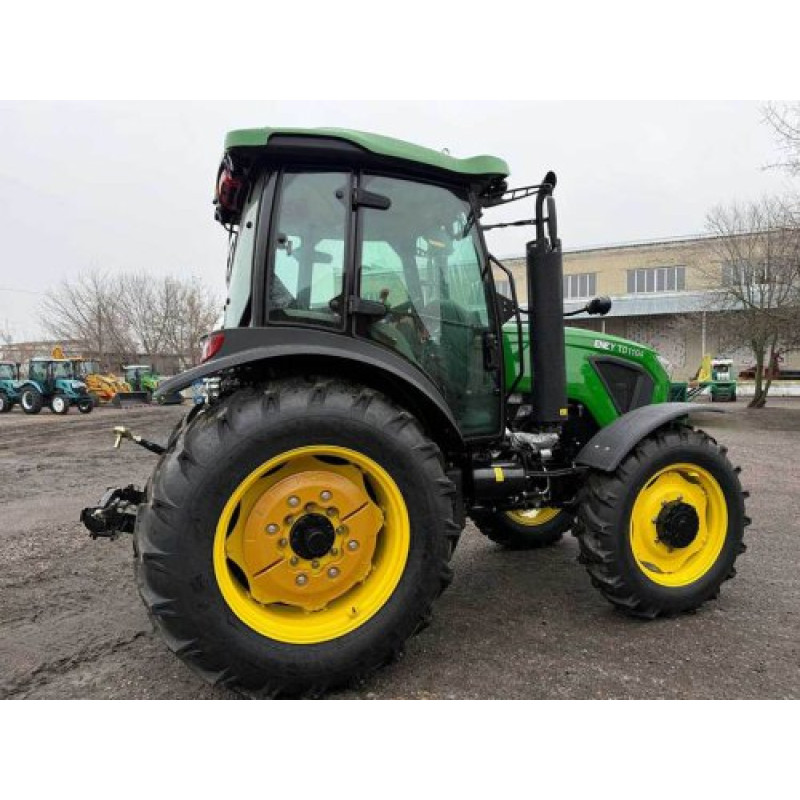

Tractor ENEY TD1104

ENEY TD1104 is a powerful universal mototractor in the 110 hp category, designed for intensive agricultural and municipal use. Brand: ENEY. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mototractors. This model combines a reliable HUAFENG diesel engine, 4x4 all-wheel drive, a multi-stage transmission, and an extended set of hydraulic outlets, making it an optimal choice for medium and large farms, municipal services, and agricultural enterprises that require versatile equipment for fields and roads with increased cross-country capability.

Advantages of ENEY TD1104:

  • Powerful 110 hp (81.4 kW) engine ensures high productivity with economical fuel consumption.
  • 4x4 all-wheel drive guarantees excellent traction and maneuverability on difficult terrain.
  • 16+8 transmission allows precise speed selection for field and transport operations; nominal traction force is 28 kN.
  • Rear splined PTO with 540/1000 rpm modes is compatible with a wide range of mounted and trailed equipment.
  • Hydraulic system with gear pumps and four hydraulic outlets increases versatility for connecting tools and aggregates.
  • Convenient hydraulic steering and effective brakes on the gearbox's secondary shaft ensure operator safety and comfort.

Below is a complete list of technical specifications for the ENEY TD1104 model, preserved according to original data:

Engine power, hp (kW)110 (81.4)
Wheel formula4x4
Engine typediesel, 4-stroke, HUAFENG 4RM1ZT26
Number and arrangement of cylinders4, vertical
Engine start systemelectric starter
Cooling systemliquid, closed, with forced circulation of cooling fluid
Engine displacement, cm35200
Nominal traction force, kN28
Gearbox (КП)16+8
Rear differential lock+
Clutchdry 2-disc constantly closed type
Main drivedirect
Steeringhydraulic
Brakeson the gearbox's secondary shaft, brake drums
Power take-off (PTO)rear, splined
Hydraulic system pump typegear pump (НШ) for hitch drive / gear pump for power steering operation
Hitch lifting capacity, kN≥21.17
Power take-off (PTO) speed, rpm540/1000
Tire sizefront 12.4-28, rear 16.9-34
Wheel trackfront 1595167517551855, rear 1650-2050
Agrotechnical clearance, mm405
Number of hydraulic outlets4
Trailer connector (socket)+
Compressor+
Dimensions LxWxH mm4810х2380х4100
Curb weight, kg4500

The HUAFENG 4RM1ZT26 engine is a diesel 4-stroke unit with 4 vertical cylinders and an electric starter, providing stable traction and long service life during intensive operation. The liquid closed cooling system with forced circulation maintains optimal temperature under load. The transmission with 16 forward and 8 reverse modes allows flexible speed selection for field and transport operations, and the rear differential lock increases cross-country capability in difficult soil conditions.

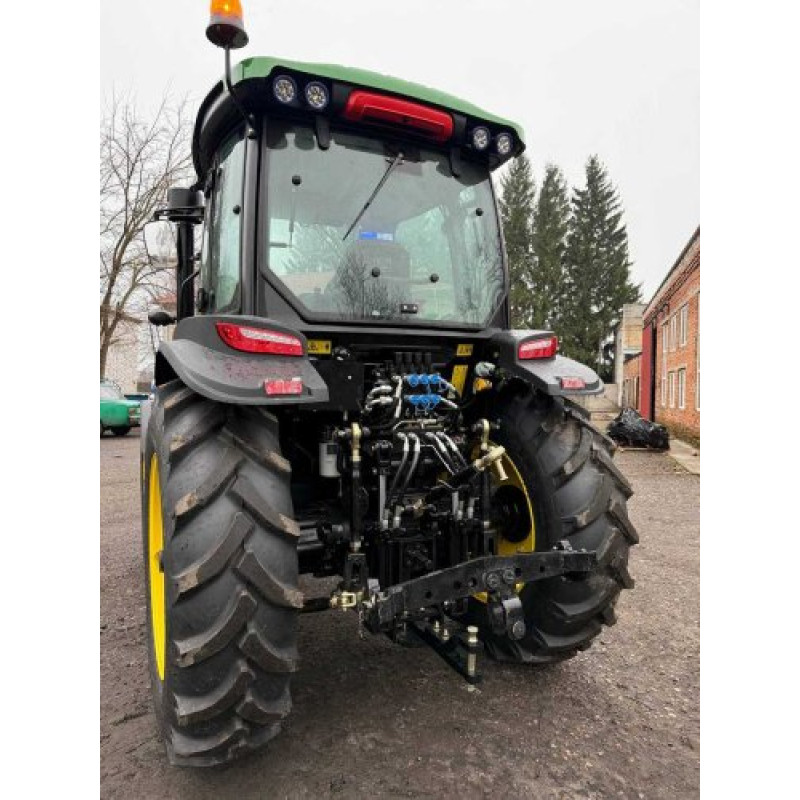

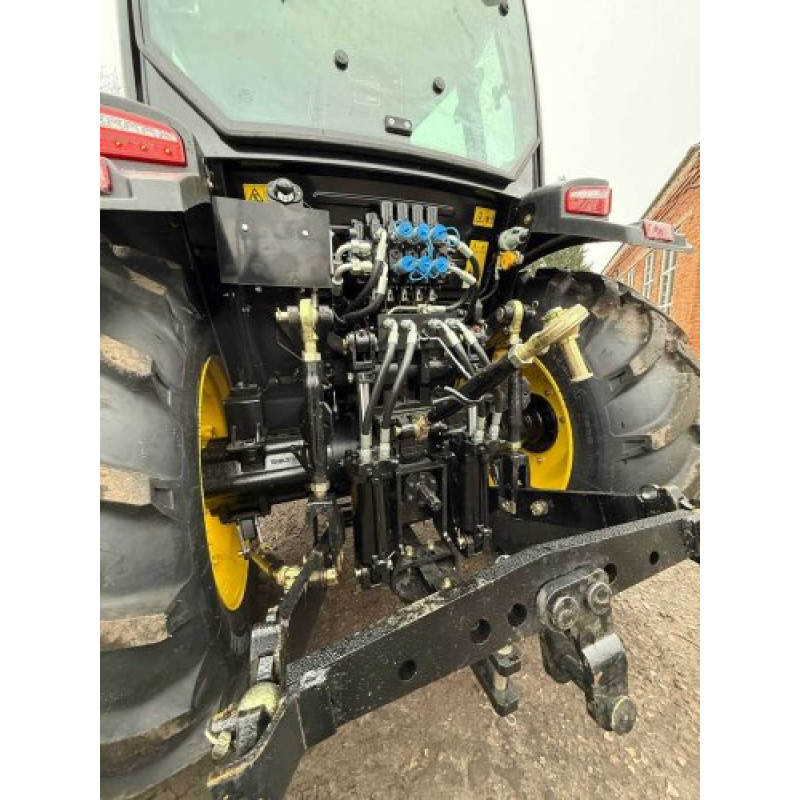

The hydraulic system, equipped with gear pumps for hitch drive and power steering, combined with four hydraulic outlets, expands the possibilities for connecting plows, cultivators, seeders, and other mounted equipment. The rear splined PTO with 540/1000 rpm modes allows the use of a wide range of modern aggregates; the hitch lifting capacity of ≥21.17 kN guarantees the lifting of heavy working tools.

Dimensions of 4810x2380x4100 mm and a curb weight of 4500 kg ensure the tractor's stability and balance when working with large mounted and trailed systems. Tire sizes and track allow the ENEY TD1104 to be operated on various soil types, ensuring less compaction and high versatility of application. The presence of a trailer connector and a compressor adds convenience when organizing work processes on the farm.

The ENEY TD1104 model combines the build quality of the ENEY brand, economy, and functionality, making it a profitable solution for those looking for a reliable mototractor with wide application possibilities.
