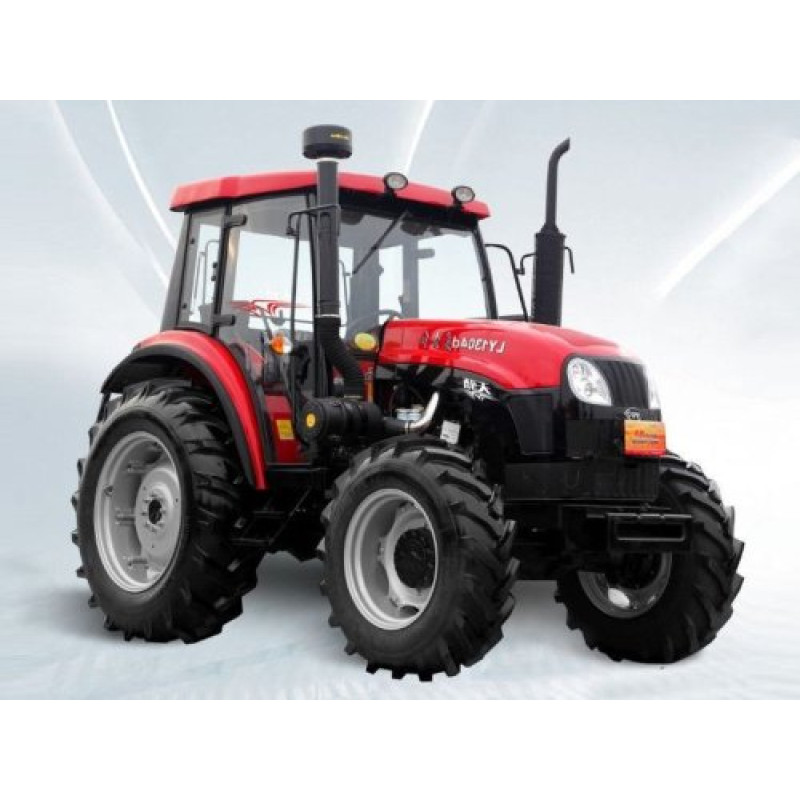

YTO ELY1204 Tractor — Reliable and Powerful Mototractor for Your Farm
The YTO ELY1204 model from the YTO brand combines proven technical solutions and updated components, built on the popular 954 series. This Chinese manufacturer has implemented increased engine power and a modern reversible transmission in the ELY1204, expanding the machine's capabilities for use in fields, construction sites, and municipal services. The tractor is available in various modifications, allowing you to choose the configuration for specific tasks.
The heart of the tractor is a four-cylinder LR4A3L-23A diesel engine, manufactured under license from the British company Perkins: turbocharged with an intercooler, water cooling, mechanical fuel injection, and pre-start heating. The engine is equipped with a cyclonic air filter and provides high traction with economical fuel consumption, meeting international exhaust gas purification standards.
The transmission is implemented according to Italian FIAT standards: a reversible gearbox in a (6+6)x2 configuration with synchronizers provides 12 forward and 12 reverse gears, allowing precise speed selection for the type of work. The clutch is a single-disc, dual-action unit manufactured by LUK (Germany) with a diameter of 12", ensuring smooth shifts and reliable torque transmission.
The tractor cabin is sealed and equipped with modern comfort features: heating and air conditioning, cabin filters, a 12V socket, a comfortable CRAMMER seat with a seat belt, an additional passenger seat, a radio with MP3, a sun blind, wipers with washers, and sound-insulating trim. For increased accuracy in field operations, a factory "Autopilot" navigation system is available.
The basic configuration includes additional equipment that enhances the machine's versatility: a fuel system filter-separator, synchronized gear shifting, double auxiliary hydraulic cylinders for the hitch, a toolbox, a single-circuit pneumatic trailer brake system with a compressor, a drawbar and towing device for trailers, an additional fuel tank, and an external hitch control lever.
Where to buy: Flash Army online store offers a selection of YTO ELY1204 modifications and online ordering or via a manager call. Leave your number — a specialist will contact you to clarify the configuration, options, and delivery.
Technical specifications:
| Engine type | LR4A3L-23A, diesel, 4-cylinder, turbocharged with intercooler, water cooling, mechanical fuel injection, pre-start heating |
| Engine power, hp (kW) | 120 (88.8) |
| Rated engine crankshaft speed, rpm | 2300 |
| Rated / maximum traction force, kN | 29.7 / 44.7 |
| Air cleaning system | Cyclonic type with oil bath |
| Clutch | LUK (Germany), single-disc, dual-action, 12" diameter |
| Gearbox | (6+6)x2 with synchronizers |
| Speed range forward / reverse, km/h | 2.62-36.72 / 2.28-37.02 |
| Hydraulic system: type / number of hydraulic outlets | 3 pairs |
| Hydraulic pump type | Gear pump with engine drive |
| PTO: power, hp / kW | 101/75 |
| PTO: speed, rpm | 540/1000 (6 and 8 spline shafts) |
| Hitch lifting capacity, kg | 3500 |
| Hydraulic system flow rate, l/min | 46 |
| Rear differential lock | Hydraulic |
| Front / rear wheel track, mm | 1760-2000 / 1652-2152 |
| Steering | Hydraulic, independent |
| Front / rear tire size, inch | 13.6-24 / 16.9-34 |
| Turning radius, m | 6.5 |
| Ground clearance, mm | 440 |
| Overall dimensions: LxWxH, mm | 4536x2245x2970 |
| Wheelbase, mm | 2500 |
| Curb weight, kg | 4920 |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel tank capacity, l | 115 main + 65l auxiliary |
| Cabin equipment | Air conditioner, cabin filters, heater, radio with MP3 player, 12V socket, sun blind, wipers with glass washers, comfortable CRAMMER seat (with seat belt), additional seat, fire extinguisher bracket, sound-insulating cabin trim |
| Tractor additional equipment package (included in price) | Fuel system filter-separator; synchronized gear shifting; double auxiliary hydraulic cylinders for the hitch; toolbox; single-circuit pneumatic trailer brake system with compressor; drawbar and towing device for trailers, additional fuel tank, external hitch control lever |
The model belongs to the category: Mototractors. If you need a versatile, comfortable, and productive tractor for professional tasks or private farming, the YTO ELY1204 is a worthy choice that combines efficiency, reliability, and modern technologies.
