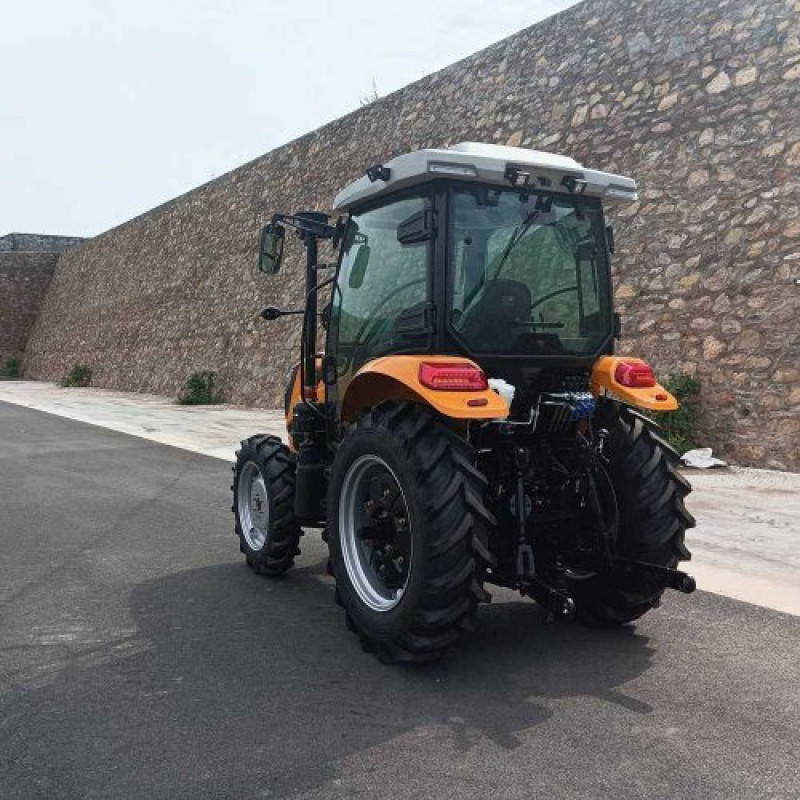

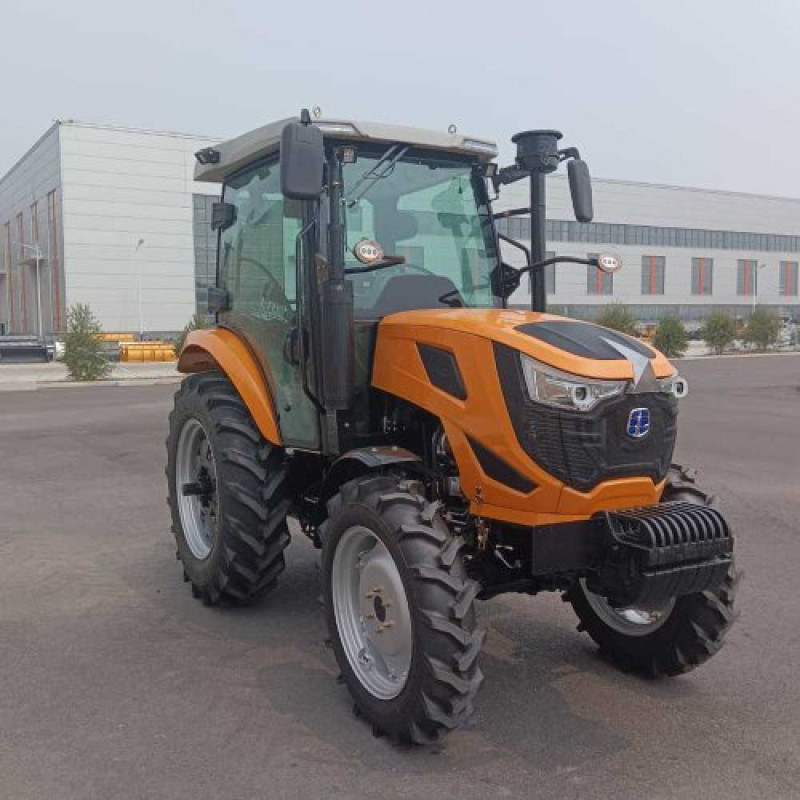

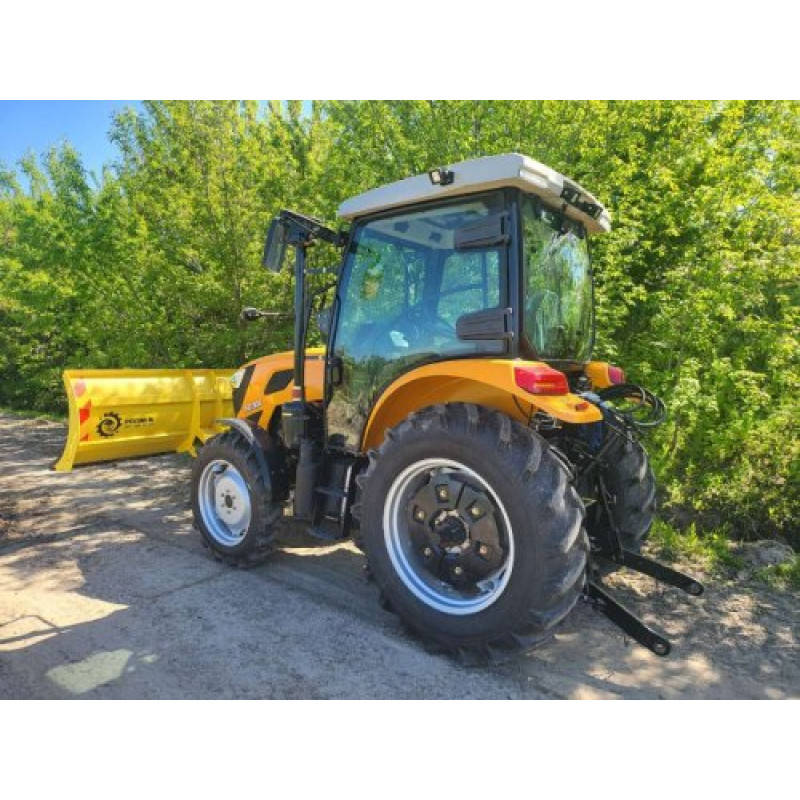

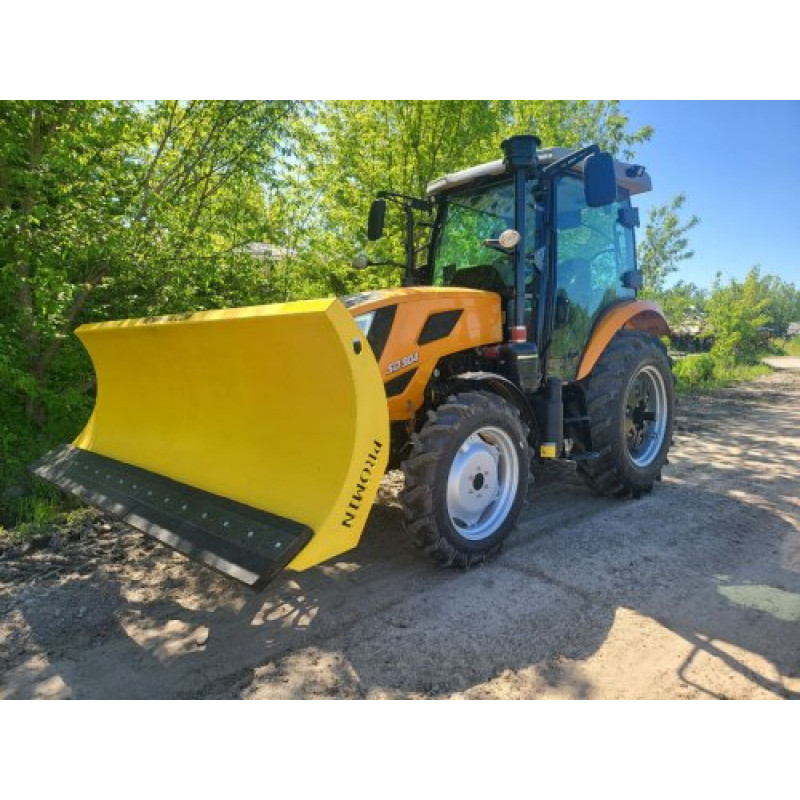

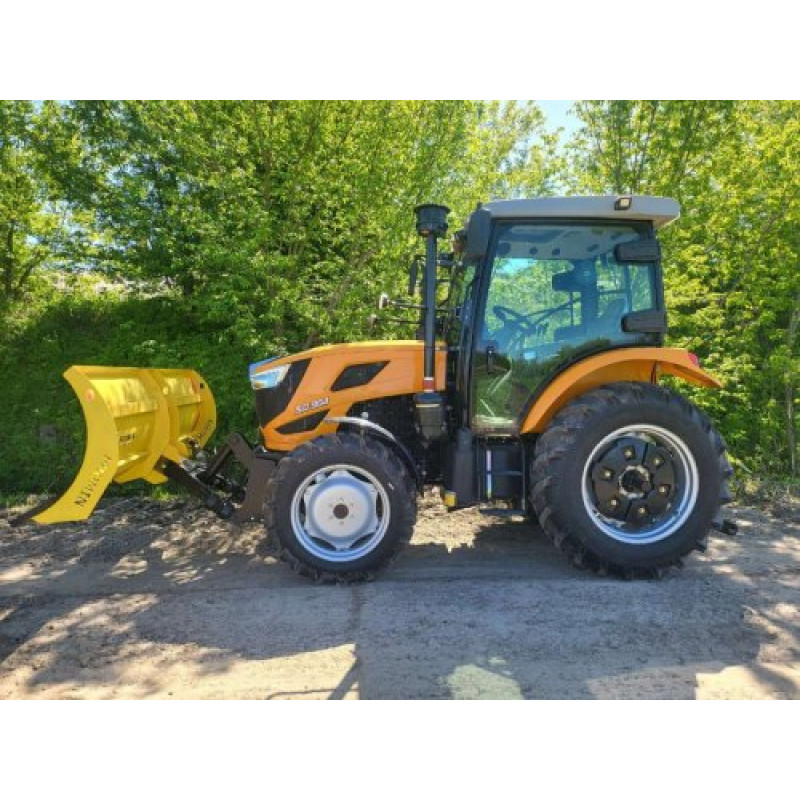

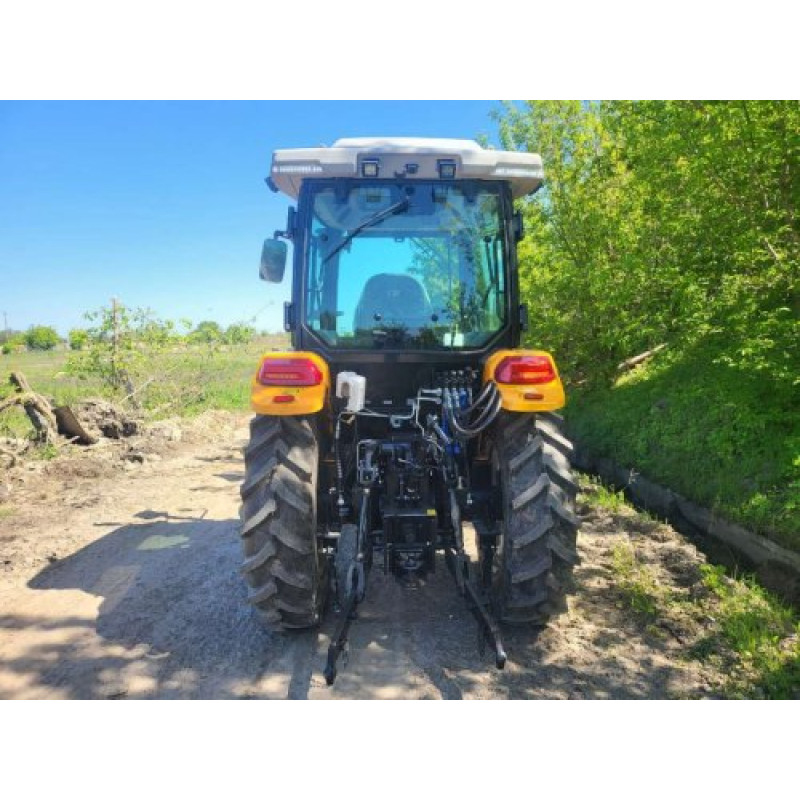

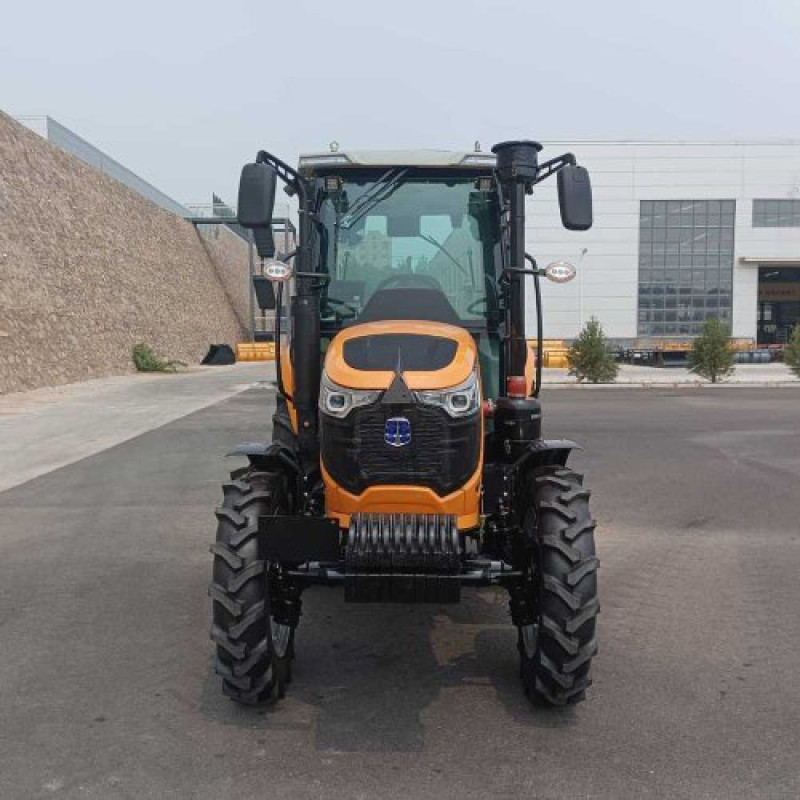

SADIN SD904 Tractor
Introducing the versatile and robust SADIN SD904 tractor from the SADIN brand — a machine designed for agricultural, municipal, and industrial tasks. This model combines a reliable diesel engine, all-wheel drive, and well-engineered hydraulics, making it efficient for tillage, sowing, cleaning, cargo transport, and heavy traction-coupling operations on various surfaces and in challenging conditions.
The engine is a 4-stroke diesel Quan Chai 4C6-90U32/CN III with a vertical arrangement of 4 cylinders, producing 90 hp (66.2 kW), with a displacement of 4200 cm3. The nominal fuel consumption is ≤323 g/kWh. Starting is via an electric starter, and the cooling system is liquid-based, closed with forced circulation, ensuring stable operation under prolonged loads.
The transmission features a gearbox with a 12+12 configuration, providing a wide range of speeds for precise execution of technological operations. The clutch is independent, dry, and double-acting; the final drive is direct. For enhanced off-road capability, a rear differential lock is provided. Steering is hydraulic, and the braking system is pneumatic, increasing safety during operation and transport.
The hydraulic system is equipped with gear pumps (NSh) for both the hitch drive and power steering operation; there are 6 hydraulic outlets, and the hitch lifting capacity is 1880 kg. The power take-off (PTO) is rear, splined, with speeds of 540/1000 rpm, ensuring compatibility with a wide range of mounted and trailed equipment.
The machine has a 4x4 wheel formula, tire sizes: front 9.5-24 and rear 14.9-30. The front wheel track is adjustable 1300/1400/1450 mm, and the rear is 1300-1500 mm. The tractor's ground clearance is 390 mm, dimensions (LxWxH) are 4050x1830x2800 mm, and the curb weight is 3120 kg. A trailer connector (socket) is also provided.
Key advantages of the model:
- Powerful and economical Quan Chai diesel engine — 90 hp (66.2 kW).
- 4x4 all-wheel drive and rear differential lock for improved off-road capability.
- Hydraulics with a lifting capacity of 1880 kg and 6 outlets for various mounted equipment.
- Versatile 12+12 gearbox and 540/1000 rpm PTO for compatibility with a wide range of equipment.
- Reliable solutions in starting, cooling, and braking systems for intensive operation.
Technical specifications:
| Engine power, hp (kW) | 90 (66.2) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, Quan Chai 4C6-90U32/CN III |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Engine displacement, cm3 | 4200 |
| Nominal engine fuel consumption, g/kWh | ≤323 |
| Gearbox (КП) | 12+12 |
| Rear differential lock | + |
| Clutch | independent dry, double-acting |
| Final drive | direct |
| Steering | hydraulic |
| Brakes | pneumatic braking system |
| Power take-off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump (NSh) for hitch drive / NSh for power steering operation |
| Hitch lifting capacity | 1880 kg |
| Power take-off (PTO) speed, rpm | 540/1000 |
| Tire size | front 9.5-24, rear 14.9-30 |
| Wheel track | front 1300/1400/1450, rear 1300-1500 |
| Ground clearance, mm | 390 |
| Number of hydraulic outlets | 6 |
| Trailer connector (socket) | + |
| Dimensions LxWxH mm | 4050x1830x2800 |
| Curb weight, kg | 3120 |
If you need a productive, economical, and multifunctional tractor for intensive operation, the SADIN SD904 is a reliable choice for your farm or enterprise. High-quality components and a well-thought-out configuration ensure long-term operation and ease of maintenance.
