Product Code: FA101-116814-101
269 620 грн.
Buy this product in 1 click:
Main specifications
Additional Cockpit Equipment:
–
Additional Equipment:
–
Additional Footrests:
on the left side
Additional front/rear payload, (unit × kg):
4×12 / –
Additional Step-Down Gearboxes:
2×2 bands
All specifications
We will deliver this product:
Payment
Description

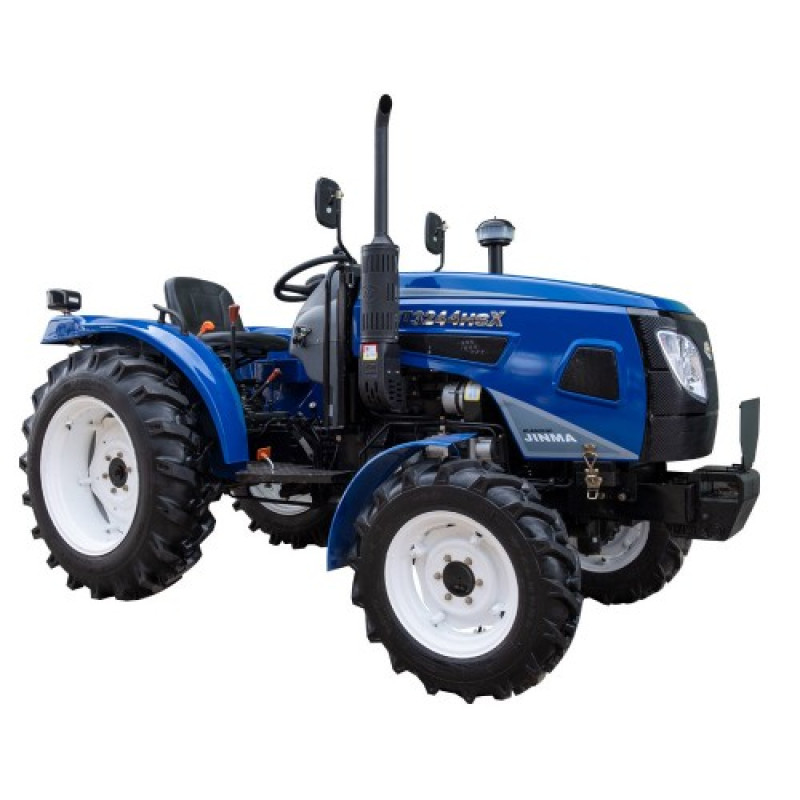

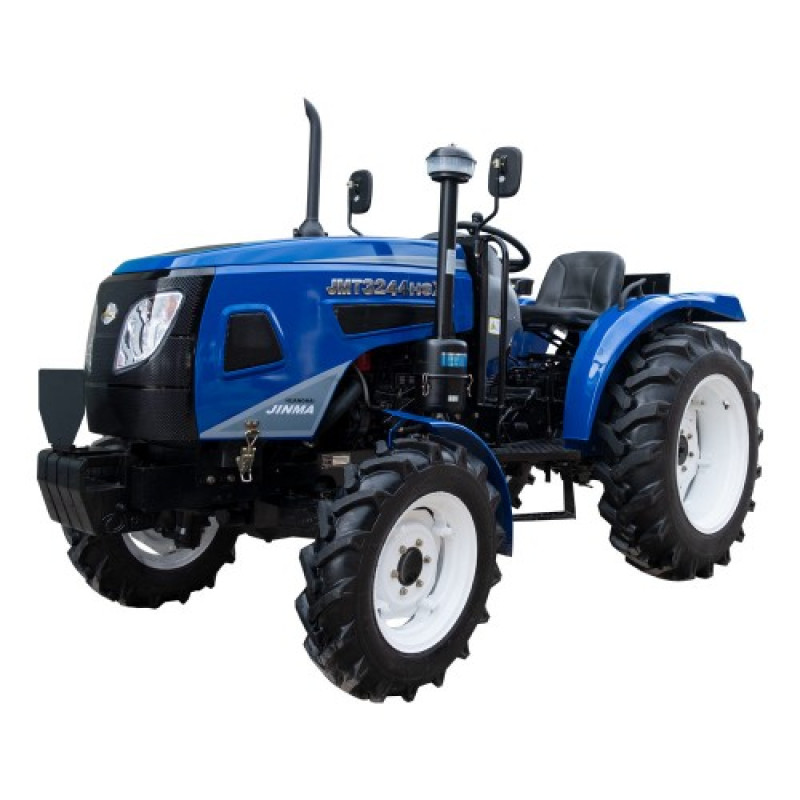

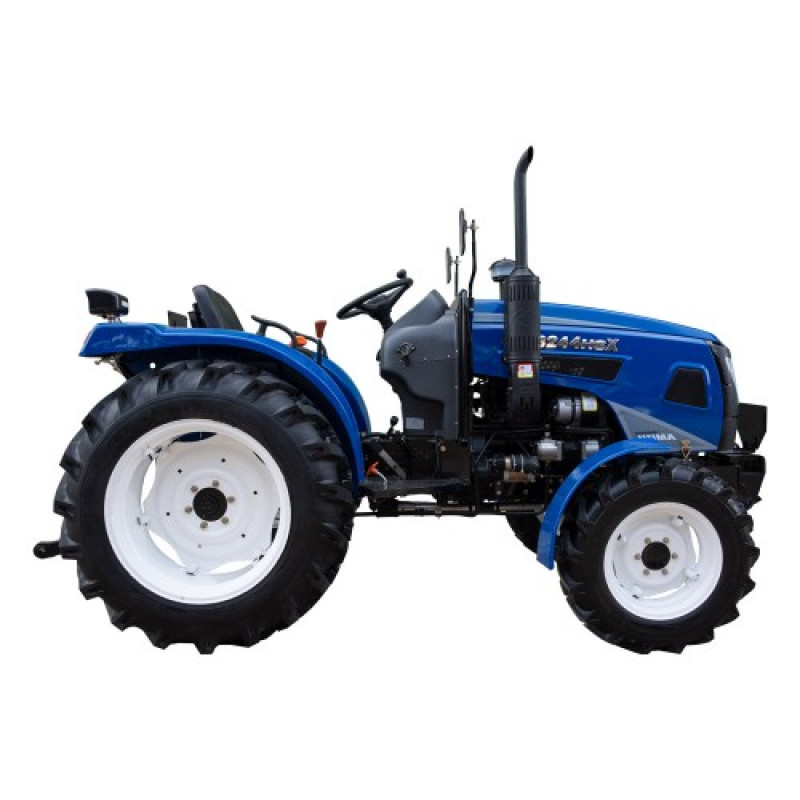

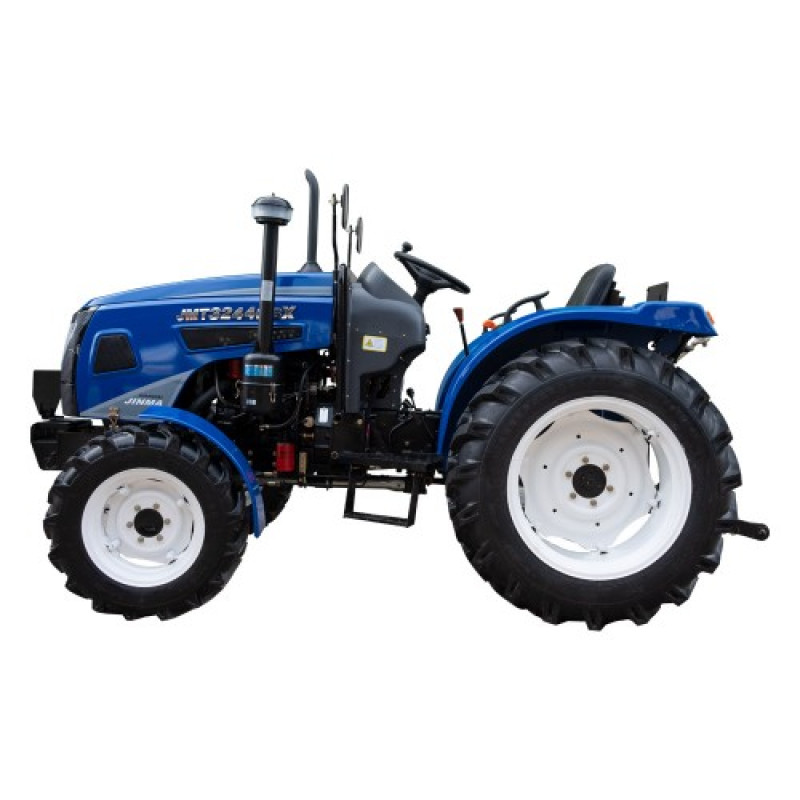

Description of Jinma JMT 3244HSX Tractor
All-wheel drive universal tractor with 24 hp, equipped with a three-cylinder engine with vertical cylinder arrangement. A translucent cyclone allows monitoring of air filter contamination. The tractor is equipped with hydraulic power steering for more convenient and comfortable control. Gear shifting formula: (4+1)×2×2. The rear hitch system has reinforced lower links.
Design features of the Jinma JMT 3244HSX model:

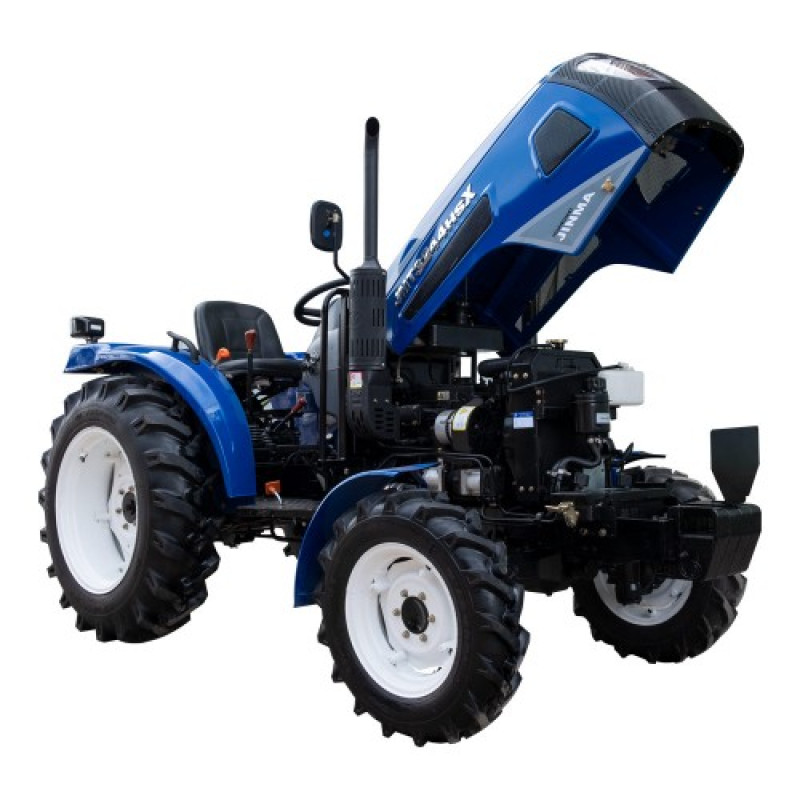

- economical and reliable 3-cylinder engine;
- large, convenient fuel tank;
- fuel return line from injectors;

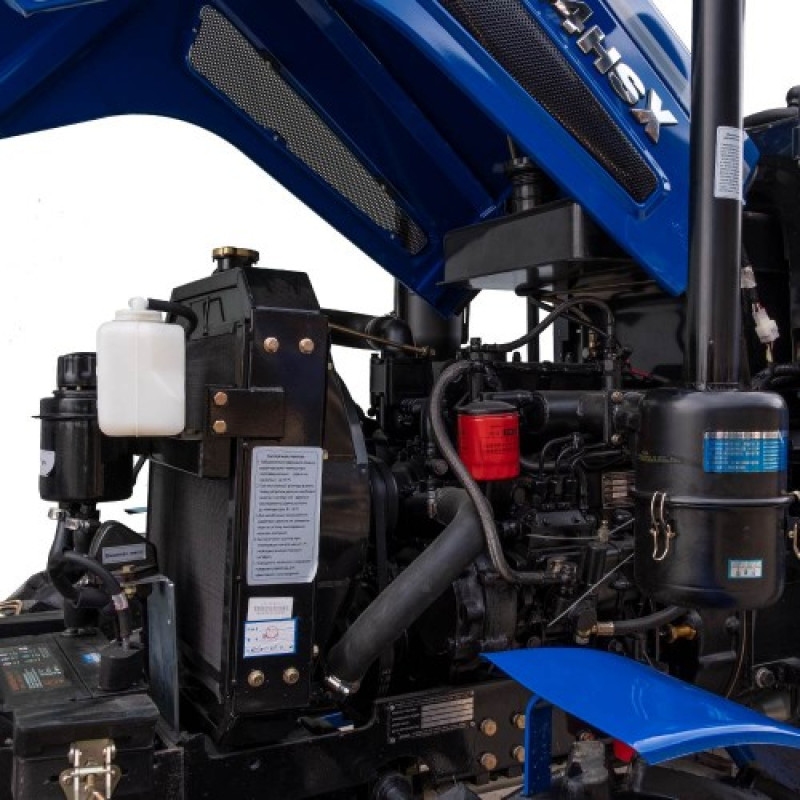

- transparent cyclone on the air filter intake;
- electric flare system for air heating in the intake manifold;
- muffler and muffler elbow covered by a protective casing along their entire length;
- 2-speed power take-off shaft: 540/1000 rpm;

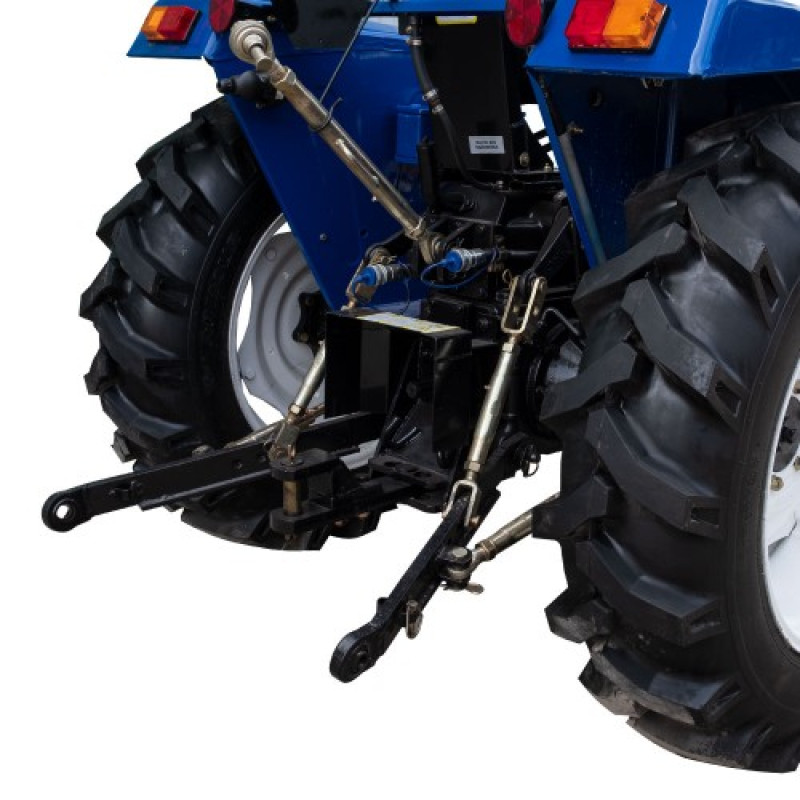

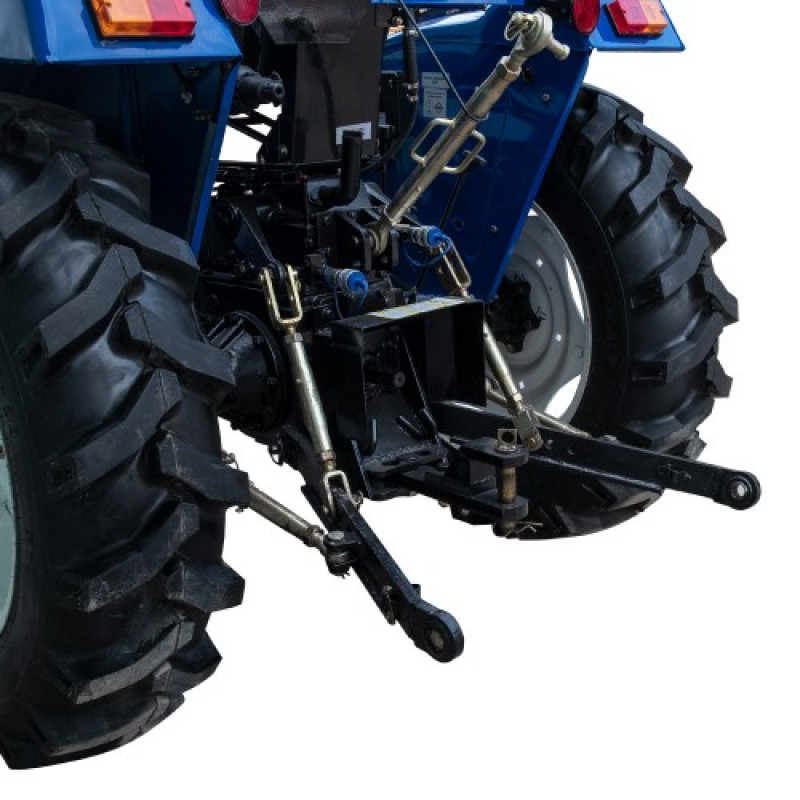

- hitch system with reinforced lower links and hydraulic lift;
- hydraulic system with separate hydraulic pump and oil bath;
- towing device — quick-release swinging drawbar;
- portal-type front drive axle with high side reducers;
- hydrostatic steering with separate reservoir and hydraulic pump;
- high ground clearance and agricultural clearance;

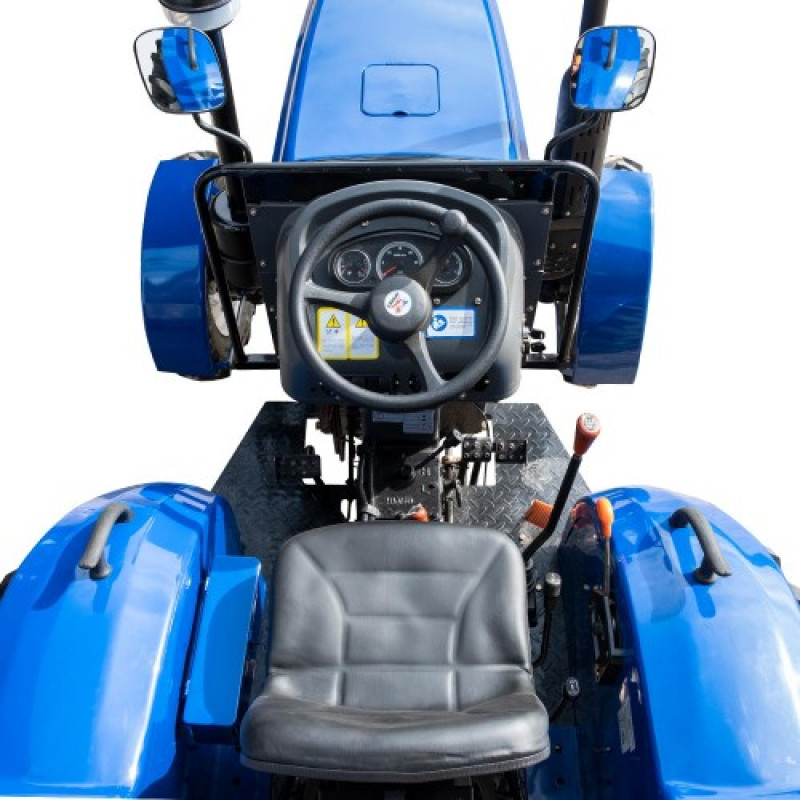

- spacious operator's area;
- convenient arrangement of control systems;
- gearbox with extended speed range 16+4;
- large wheels: front 6.50-16, rear 11.2-24;
- rear drum brakes;
- separate rear wheel brakes;
- adjustable front and rear tracks;
- rear axle differential lock.
Equipment of the Jinma JMT 3244HSX model:

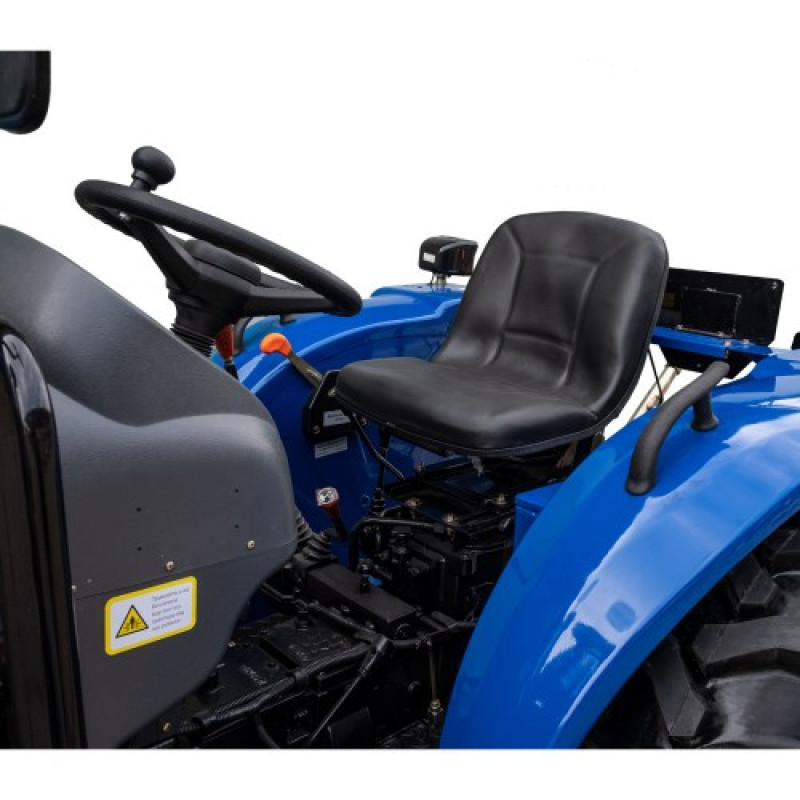

- comfortable adjustable seat with shock absorber;

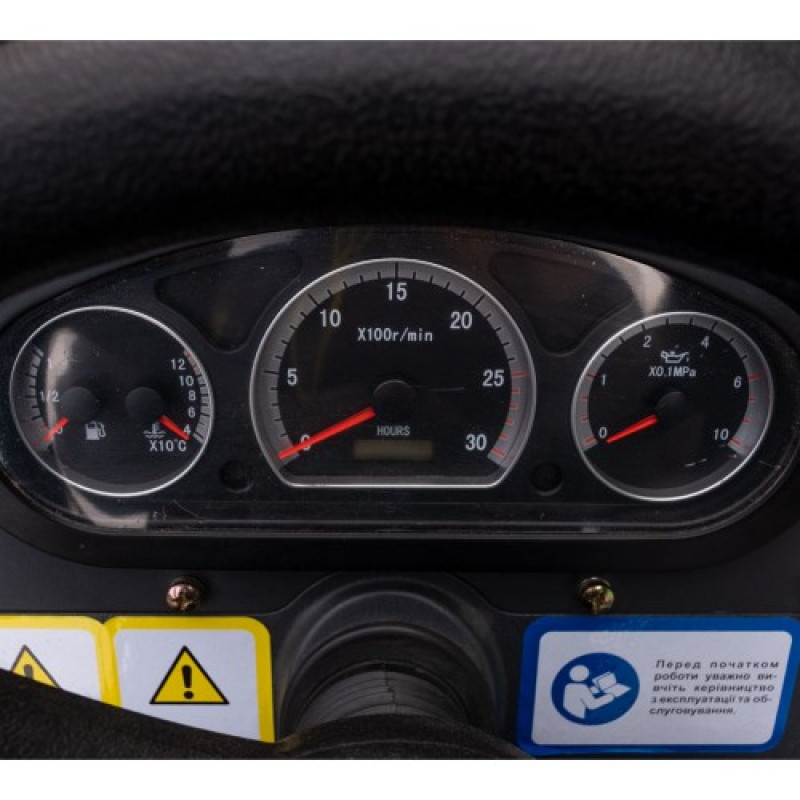

- informative dashboard: digital tachometer and hour meter, digital fuel level indicator, analog voltmeter, analog indicators for engine temperature and oil pressure in the engine lubrication system;
- additional footrest with high corrugation;
- quick steering knob;
- fuses with LED failure indication;
- electrical socket for trailer;

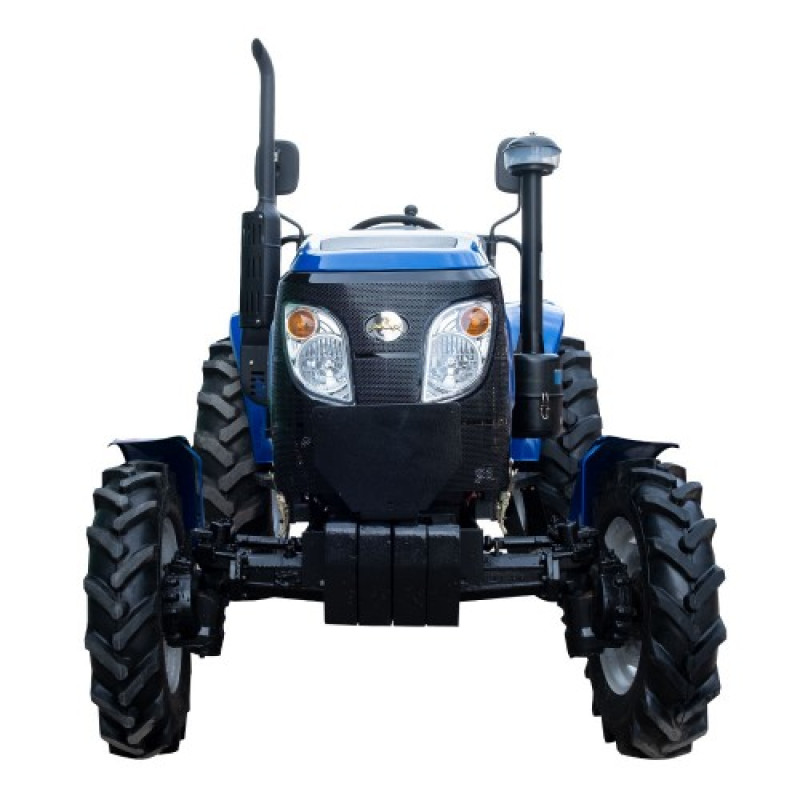

- modern powerful lenticular high beam headlights and LED low beam;

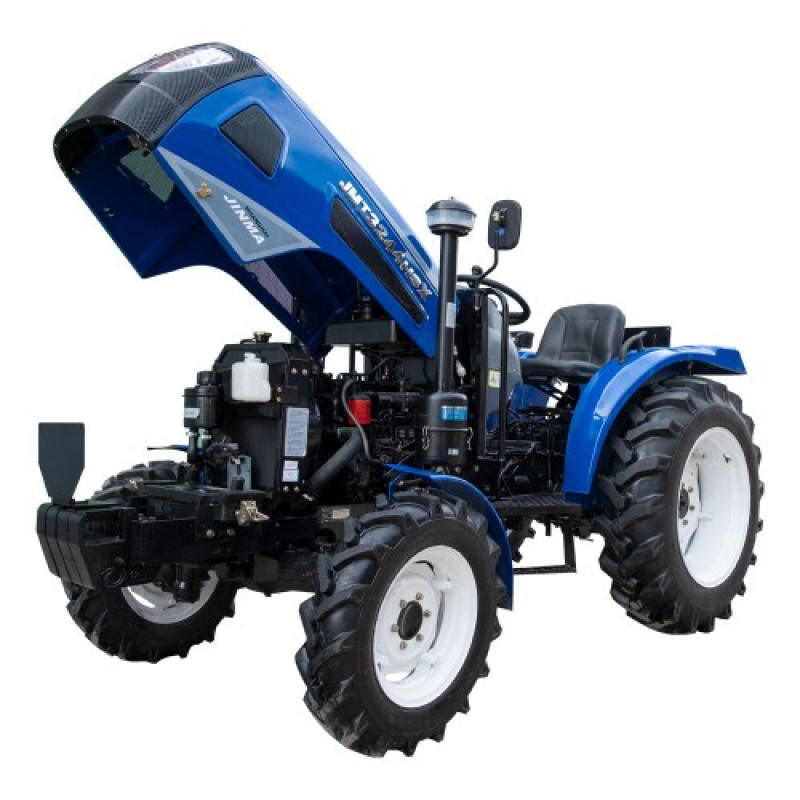

- hood prop;
- reliable hood locks;
- large rearview mirrors;
- 2 hydraulic outlets with quick-release couplings;
- front mounted weights;
- front wheel fenders;
- rear fenders;
- mass switch;
- rear additional headlight;
- front and rear mounts for license plates;
You can buy the JMT 3244HSX tractor throughout Ukraine from our official representatives or order it using the special feedback form in the "Contacts" section. All JINMA tractors come with a 2-year warranty period.
Specifications
Additional Cockpit Equipment
–
Additional Equipment
–
Additional Footrests
on the left side
Additional front/rear payload, (unit × kg)
4×12 / –
Additional Step-Down Gearboxes
2×2 bands
Agrotechnical clearance, mm
370
Air Filter
contact-oil: high air intake with transparent cyclone, oil bath, metal mesh
Battery disconnect switch
on the battery frame under the hood
Battery voltage and capacity, V/Ah
12 / 80
Brakes
on rear wheels, drum, with mechanical drive, dual pedals
Clearance, mm
350
Clutch coupling
dry, 2-way, normally closed type
Cockpit
–
Cooling System
liquid, closed, with forced circulation of coolant
Crankcase oil capacity, L
6.5
Crankcase oil type
TM "DTZ" TURBO SYNT 10W-40 API CF-4/SG
Dashboard
combined instrument panel
Decompression Needle
–
Design of side guy lines and braces
lower rods are not adjustable, central upper rod, vertical posts and side stays — smoothly via thread
Driver's Cab
–
Driver's Seat
on a shock absorber, adjustable for distance to handlebars
Engine displacement, cm³
1532
Engine model
KM385BT
Engine type
diesel, 4-stroke, with direct injection
Expansion Tank for Cooling System
+
Front Axle
leading, with ability to disable
Front Harness System
–
Front tire size
6.50-16
Front track, mm
1220; 1290; 1300; 1380
Fuel filter, fine filtration
SX0706
Fuel injection pressure, MPa (kgf/cm²)
18.5-19.0 (185-190)
Fuel pre-filter
transparent sump
Fuel tank capacity, L
30
Gear Shifting Formula
(4+1)×2×2
Generator – type, voltage (V), power (W)
AC, 14, 350
Hydraulic fluid type
DTZ HYDRA SYNT ISO NM ISO 46 DIN HLP 46
Hydraulic lift actuator
integrated hydraulic cylinder, separate gear hydraulic pump
Hydraulic Lift Control
Three-position hydraulic control valve
Hydraulic lift oil placement
separately in the cavity of the hydraulic lift mechanism
Hydraulic outputs for connecting attachments
2 (1 pressure/drain, 1 drain) with quick-release couplings, controlled by main hydraulic distributor
Hydraulic system oil tank volume, L
8.0
Intake manifold air heater
Electric flare candle
Kit Contents
metal front fenders, metal rear fenders, license plate brackets, hood with hydraulic lift
Launch System
electric starter
Lighting Equipment
low beam, high beam, rear headlight, tail lights, front and rear turn signals
Lubrication System
combined, pump and spray
Main Gearbox
4 speeds
Maximum payload capacity of the attachment mechanism, kg
420
Minimum turning radius with brakes, m
3.8
Minimum turning radius without brakes, m
4.3
Nominal crankshaft speed, rpm
2300
Nominal fuel consumption, g/kW*h
≤275
Nominal pulling force, kN
5.8
Number and arrangement of cylinders
3, vertical
Oil filter for lubrication system
+
Operating weight, kg
1380
Other Electronic Equipment
audible alarm, emergency alarm
Other Equipment
–
Overall dimensions (L x W x H), mm
3150x1540x1900
Parking Brake
by locking the main brakes with a lever
Power steering oil tank volume, L
2.0
Power Take-Off (PTO)
rear, longitudinal, 6 splines, Ø35
Power take-off (PTO) shaft speed, rpm
540 / 1000
Quick Control Handle
+
Rated engine power, hp (kW)
24 (17.6)

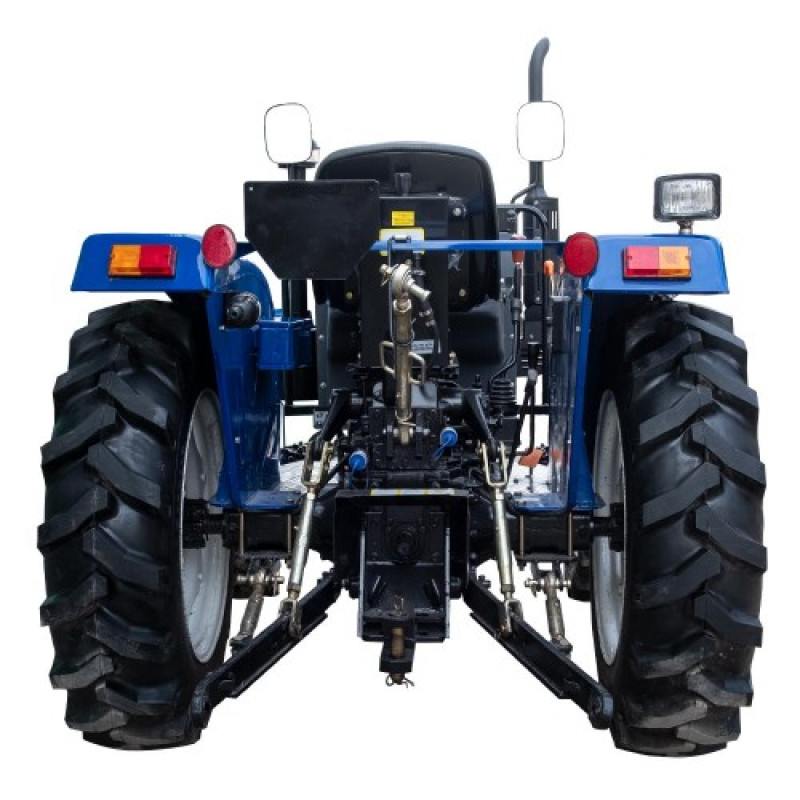

Rear attachment system
universal 3-point with hydraulic lift
Rear axle differential lock
lever
Rear Tire Size
11.2-24
Rear track, mm
1000; 1080; 1140; 1180; 1220; 1260; 1320; 1400
Safe Launch
Clutch pedal starter interlock
Separate Reversible Box
–
Simultaneous PTO and towing capability
+
Steering
hydrostatic with separate pump and separate oil tank
Steering Hydraulic Cylinder
two-way symmetrical
Theoretical forward speed, km/h
1.73–26.4
Theoretical reverse speed, km/h
2.28–11.02
Towing Device
removable pendulum ear with vertical non-rotating trunnion
Trailer Connector Socket
+
Transmission type
mechanical gear
Transmission/FWD axle oil capacity, L
14.0 / 5.0
Turbocharger
–
Type of grease in NVG
DTZ HYDRA SYNT ISO NM ISO 46 DIN HLP 46
Type of lubricant in the transmission and front axle crankcase
TM "DTZ" TAD-17i API GL-5
Wheel formula
4×4
Wheelbase, mm
1700
