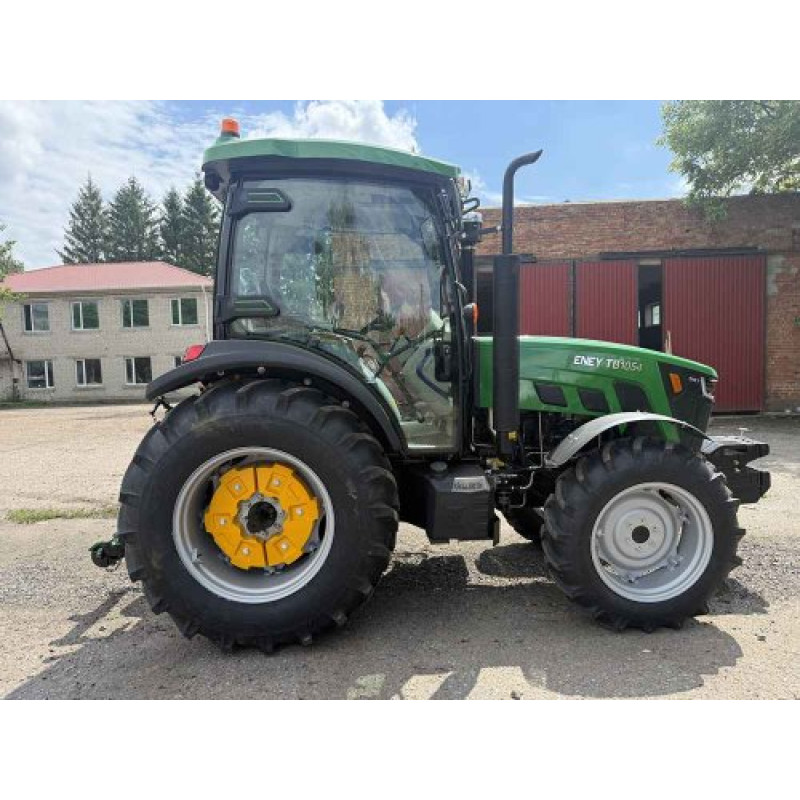

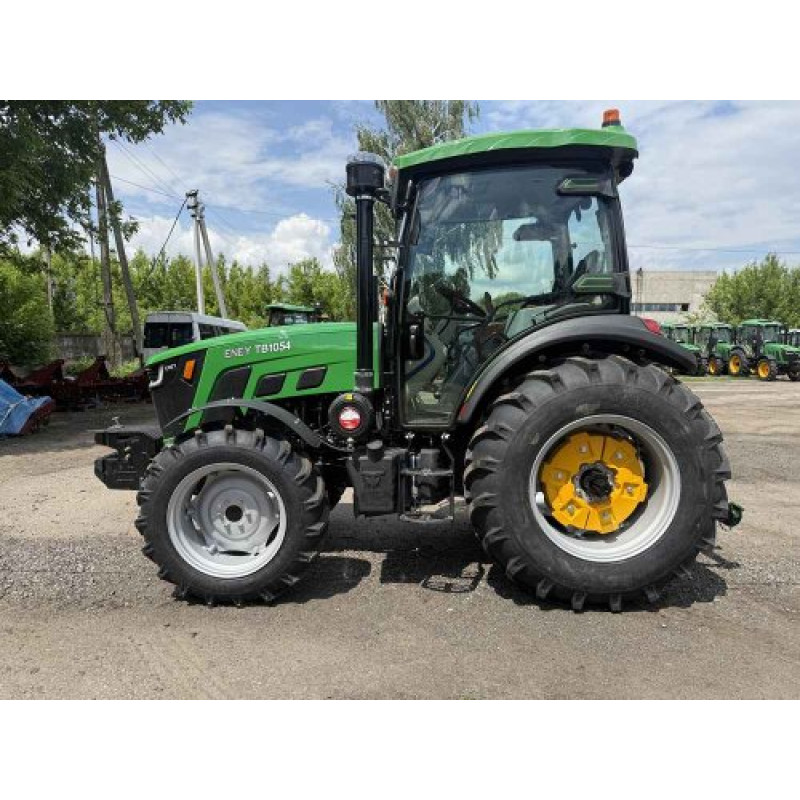

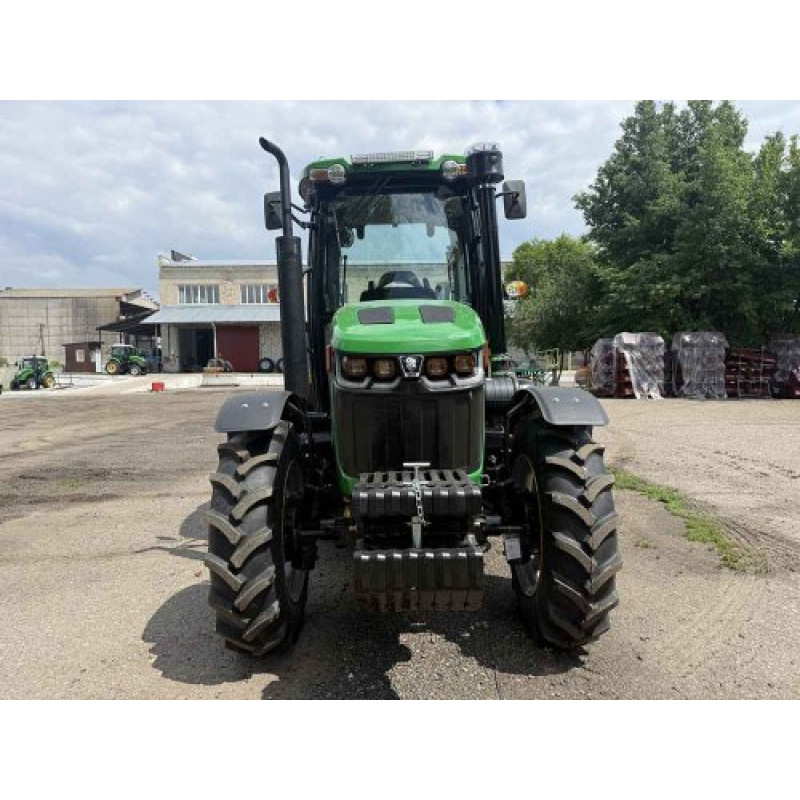

ENEY TB1054 Tractor — a powerful and versatile mid-range mini-tractor designed for farming, utility tasks, and transportation. Brand: ENEY. Category: Tractors > Mini-Tractors. Model: TB1054. This machine combines a high-power diesel engine, 4x4 all-wheel drive, and a well-engineered transmission for reliable operation in the field and on the farm.
Engine and Chassis Overview
The mini-tractor is equipped with a HUAFENG 4RM1ZT25 four-stroke diesel engine with 4 vertically arranged cylinders, a displacement of 4650 cm3, and a nominal power of 105 hp (77.2 kW). The starting system is an electric starter. Cooling is liquid, closed with forced circulation of coolant. The 4x4 wheel formula and a nominal traction force of 24 kN ensure confident grip and the ability to perform heavy towing operations.
Transmission, Steering, and Brakes
The tractor features a 12+12 gearbox with a direct main drive, a dry two-disc constantly closed-type clutch, and a rear differential lock. Steering is hydraulic for comfortable maneuvering. The braking system is located on the secondary shaft of the gearbox and implemented with brake drums.
| Engine power, hp (kW) | 105 (77.2) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, HUAFENG 4RM1ZT25 |
| Number and arrangement of cylinders | 4, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Engine displacement, cm3 | 4650 |
| Nominal traction force, kN | 24 |
| Gearbox (GB) | 12+12 |
| Rear differential lock | + |
| Clutch | dry 2-disc constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (GP) for implement drive / GP for power steering operation |
| Implement lifting capacity, kN | ≥17.2 |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Tire size | front 11.2-24, rear 16.9-34 |
| Wheel track | front 1275-1400, rear 1270-1536 |
| Agrotechnical clearance, mm | 535 |
| Number of hydraulic outlets | 4 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LхWхH mm | 3970х1710х2615 |
| Curb weight, kg | 3800 |

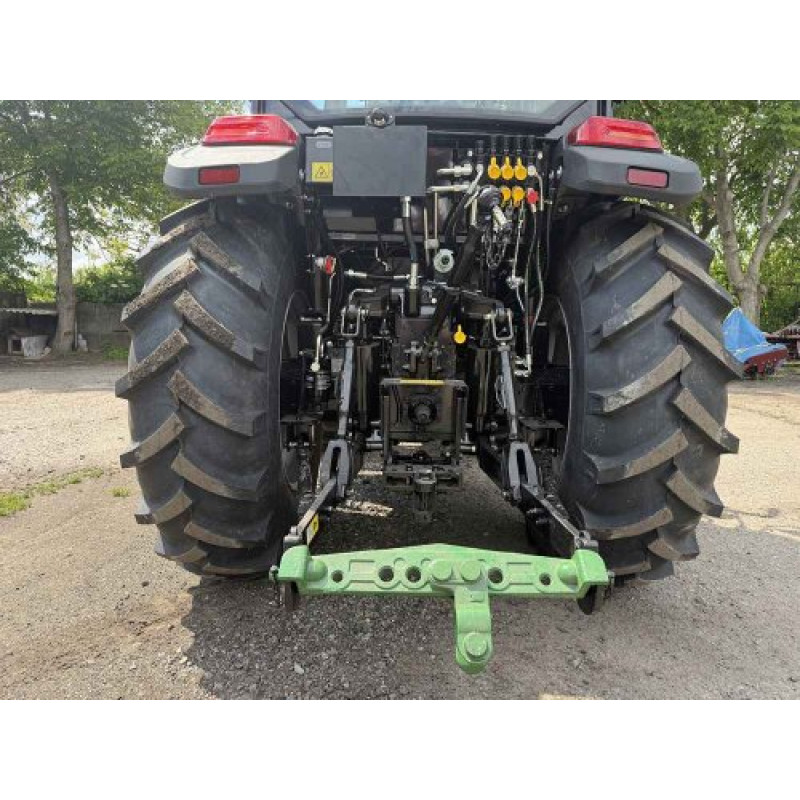

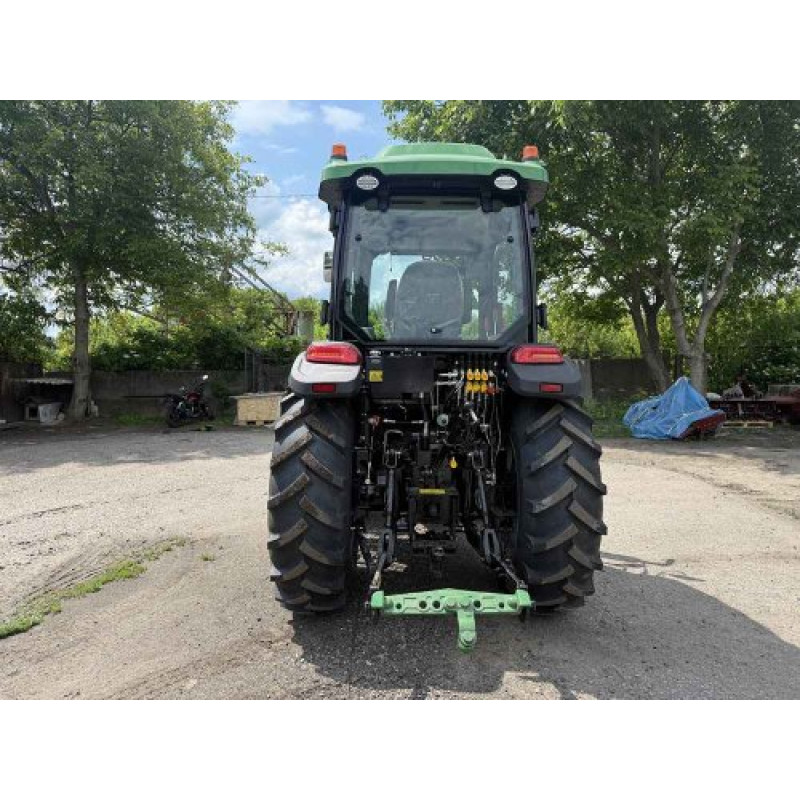

Hydraulic System and PTO
The rear splined power take-off shaft operates at 540 and 1000 rpm, making the ENEY TB1054 compatible with a wide range of mounted and trailed equipment. The hydraulic system is built on gear pumps (GP) — separately for implement drive and for power steering operation; there are four hydraulic outlets. The lifting capacity of the mounted mechanism is at least 17.2 kN, and there is a trailer connector and a compressor.
Geometry, Tires, and Adjustments
The tractor's dimensions of 3970x1710x2615 mm and a curb weight of 3800 kg ensure stable operation on various soils. The agrotechnical clearance of 535 mm and adjustable track (front 1275-1400 mm, rear 1270-1536 mm) allow the machine to be adapted to the row spacing of different crops. Tire size: front 11.2-24, rear 16.9-34.
Advantages of the ENEY TB1054 Model
- Powerful 105 hp diesel engine for heavy agricultural work;
- 4x4 all-wheel drive and 24 kN traction force for better ground grip;
- Versatile 12+12 gearbox and rear differential lock for maneuverability and control;
- Efficient hydraulic system with 4 outlets and lifting capacity ≥17.2 kN;
- Rear PTO 540/1000 rpm for various types of mounted and trailed equipment;
- Compressor and trailer connector increase functionality on the farm.
The ENEY TB1054 is a practical solution for farm owners, agricultural enterprises, and contractors who need reliable equipment with good traction characteristics and wide compatibility with mounted equipment. This mini-tractor is suitable for soil cultivation, sowing, harvesting, connecting plows, cultivators, mowers, and other implements.
