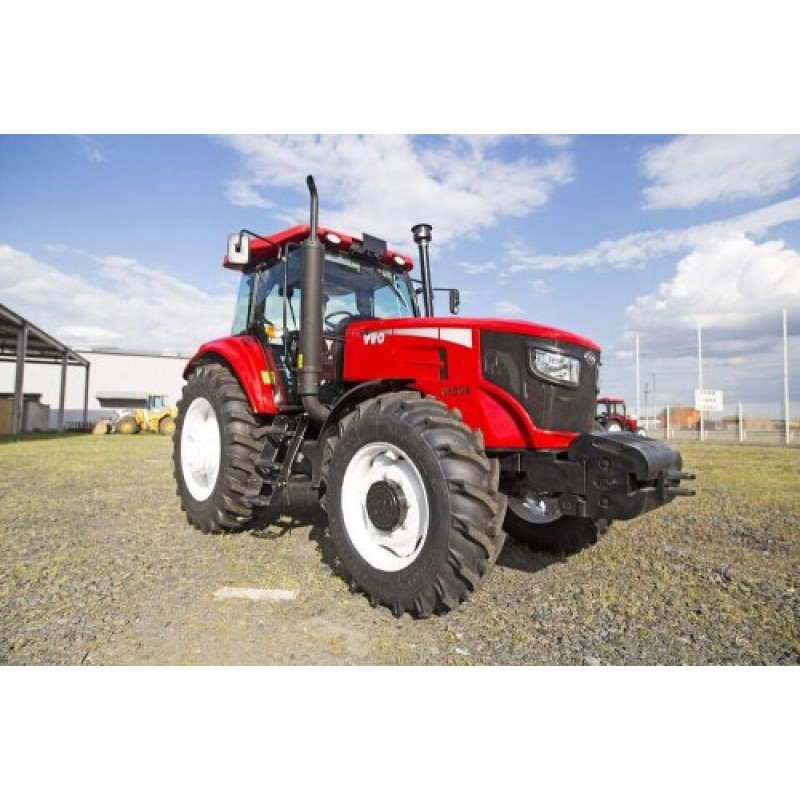

YTO NLX 1304 Tractor is a powerful universal tractor from the manufacturer YTO, category: Tractors > Mini Tractors. The model is designed for intensive work in the field, on the farm, and in utilities, combining a reliable six-cylinder diesel engine with modern transmission components and an advanced hydraulic system. The YTO NLX 1304 is ideal for heavy implements, tillage, transport, and utility work, ensuring high efficiency and economy.
Engine, Transmission, and Key Specifications
The heart of the tractor is a 6-cylinder diesel engine with water cooling and a pre-start heater, with a power of 130 hp (88.2 kW) and a displacement of 7.4 L at a nominal 2300 rpm. The air purification system is two-stage with dry Donaldson elements, and the clutch is a 12" single-disc unit manufactured by LUK (Germany). The transmission is a 12+4 synchronized gearbox, ensuring smooth shifting and a wide range of speeds for various operations.
| Engine type | 6-cylinder diesel engine with water cooling and pre-start heater |
| Engine power, hp (kW) | 130 (88.2) |
| Engine displacement, L | 7.4 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Air filter type | 2-stage with dry Donaldson elements |
| Clutch | 12" LUK (Germany), single-disc |
| Gearbox | 12+4, synchronized |
| Hydraulic system: type / number of hydraulic outlets | Separate / 3 pairs |
| Hydraulic pump type | Gear pump driven by engine |
| PTO: power, kW | 78.32 |
| PTO: speed, rpm | 540 (6 splines) / 1000 (21 splines) |
| Hitch lifting capacity, kg | 4500 |
| Hydraulic system flow rate, L / min | 45 |
| Rear differential lock | Hydraulic |
| Front / rear wheel track, mm | 1822-2153 / 1662-2262 |
| Steering | Hydraulic, independent |
| Front / rear tire size, inch | 14.9-26 / 18.4-38 |
| Turning radius, m | 7 |
| Ground clearance, mm | 470 |
| Overall dimensions: LxWxH, mm | 4900x2500x3000 |
| Wheelbase, mm | 2688 |
| Curb weight, kg | 4750 |
| Counterweights: front / on rear wheels | 10pcs x 50kg / 6pcs x 50kg |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel tank capacity, L | 150 |
| Cabin equipment | Air conditioner, cabin filters, heater, MP3 radio, 12V socket, sun blind, comfortable CRAMMER seat (with seat belt), additional seat, fire extinguisher bracket, thick solid sound-insulating mat, upholstery; toolbox for tools and accessories; single-circuit pneumatic trailer brake system with compressor; drawbar and towing hitch, external hitch control lever |
Hydraulic System and PTO
The robust separate hydraulic system with a flow rate of 45 L/min and three pairs of hydraulic outlets allows working with a wide range of implements. The power take-off shaft is rated for 78.32 kW and standard speeds of 540/1000 rpm (6 and 21 splines, respectively). The hitch mechanism can withstand up to 4500 kg, making the tractor suitable for heavy implements, and the hydraulic rear differential lock increases off-road capability in difficult conditions.
Operator Comfort and Safety
The cabin is equipped with air conditioning, a heater, an MP3 radio, a 12V socket, a sun blind, and a comfortable CRAMMER seat with a seat belt; there is an additional passenger seat. Practical options include a toolbox, a fire extinguisher bracket, a solid sound-insulating mat, a single-circuit pneumatic brake system with a compressor for the trailer, a drawbar, and a towing device. The 150 L fuel tank capacity ensures long autonomous operation in the field.
The YTO NLX 1304 is an optimal solution for farmers and businesses requiring a reliable tractor with balanced technical characteristics, high lifting capacity, and a comfortable cabin for long work shifts.
