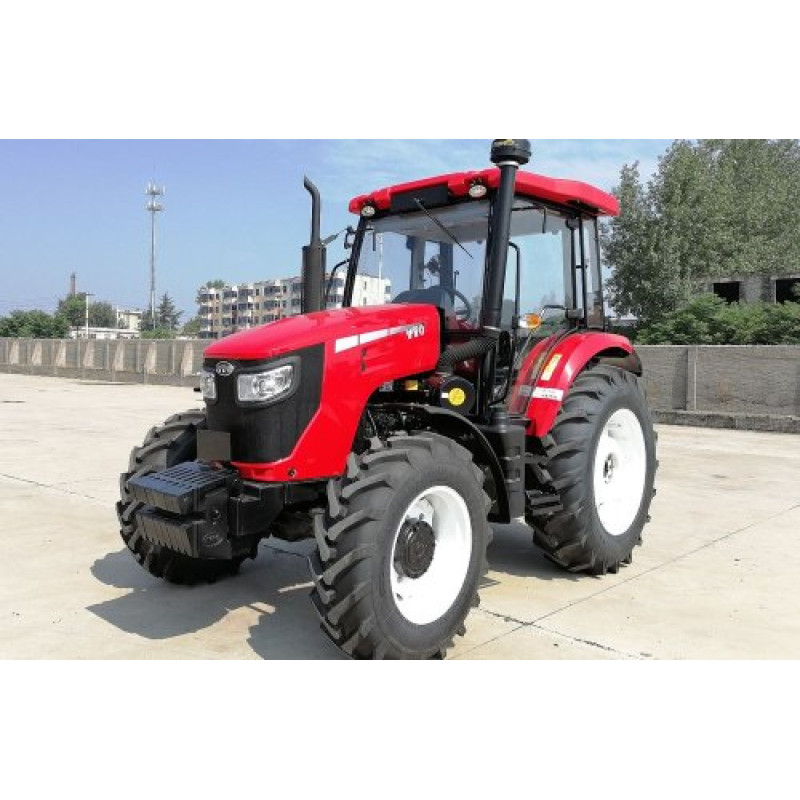

YTO NLX1024 — Powerful Universal Mototractor for Agriculture
Model: YTO NLX1024. Manufacturer: YTO. Type: Tractors, Mototractors, ATVs, Boats (Vehicle) > Tractors > Mototractors. This mototractor combines robust construction, a modern cabin, and technical specifications that meet the needs of farms, municipal services, and transporters.
Key advantages of the model: powerful 76 hp (102 kW) engine, reliable transmission, efficient hydraulic system, and a comfortable cabin with air conditioning and sound insulation. The YTO NLX1024 is designed for intensive use and provides high productivity in the field and on the road.
Technical Specifications:
| Engine power, hp (kW) | 76 (102) |
| Rated engine crankshaft speed, rpm | 2300 |
| Clutch | LUK (Germany), single-disc |
| Transmission | 12+4 |
| Number of hydraulic outlets | 3 pairs |
| Hydraulic pump type | Gear pump with engine drive |
| PTO: power, hp | 76 |
| PTO: speed, rpm | 540/1000 |
| Hitch lifting capacity, kg | 3500 |
| Hydraulic system output, l/min | 45 |
| Rear differential lock | Hydraulic |
| Steering | Hydraulic, independent |
| Front / rear tire size, inch | 11.2-28 / 16.9-34 |
| Ground clearance, mm | 440 |
| Overall dimensions: LxWxH, mm | 4350x2300x2850 |
| Curb weight, kg | 4470 |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel tank capacity, l | 150 |
| Cabin equipment | Air conditioner, cabin filter, heater, radio with MP3 player, 12V socket, sun visor, comfortable seat (with seat belt), additional seat, sound-insulating cabin lining |
| Additional equipment package (included in price) | Fuel system filter-separator; 11" LUK clutch; single additional hydraulic cylinders for hitch; toolbox; single-circuit pneumatic trailer brake system with compressor; |
The YTO NLX1024 is equipped with a reliable LUK (Germany) single-disc clutch and a mechanical gearbox with a 12+4 scheme, providing a wide range of gears for field work and transportation. The PTO offers 76 hp at 540/1000 rpm, making the tractor compatible with various mounted and towed equipment.
The hydraulic system has an output of 45 l/min and three pairs of hydraulic outlets, allowing work with powerful implements. The hitch lifting capacity is 3500 kg, the rear differential lock is hydraulic, and the steering is hydraulic and independent for increased maneuverability and off-road capability.
The YTO NLX1024 cabin is designed for operator comfort: air conditioner, cabin filter, heater, MP3 radio, 12V socket, sun visor, adjustable comfortable seat with seat belt, and an additional seat. Sound-insulating cabin lining reduces fatigue during long shifts.
Tractor dimensions: 4350x2300x2850 mm, ground clearance 440 mm, curb weight 4470 kg. Tire size: front 11.2-28, rear 16.9-34. Fuel tank capacity is 150 l, ensuring long operation without frequent refueling. The braking system is disc-type in an oil bath with hydraulic drive.
The package included in the price comprises: fuel system filter-separator; 11" LUK clutch; additional hydraulic cylinders for hitch; toolbox; single-circuit pneumatic trailer brake system with compressor. This allows for a wide range of work to begin immediately after purchase.
The YTO NLX1024 is an optimal choice for those who need power, functionality, and comfort in one machine. If you are looking for a tractor with a strong hydraulic system, high lifting capacity, and a well-designed cabin, this model deserves attention.
