Mini Tractor Zoomlion RC1104 with Cabin — Power, Comfort, and Versatility
The ZOOMLION RC1104 tractor (brand: Zoomlion) — a robust and reliable representative of the Tractors > Mini Tractors category, designed for intensive daily year-round operation. This model combines high performance, thoughtful design, and a protected cabin with heating and 360-degree visibility, making it suitable for spring field work, soil preparation, working with mounted and trailed equipment, and snow removal in winter.
Key Advantages and Design Overview

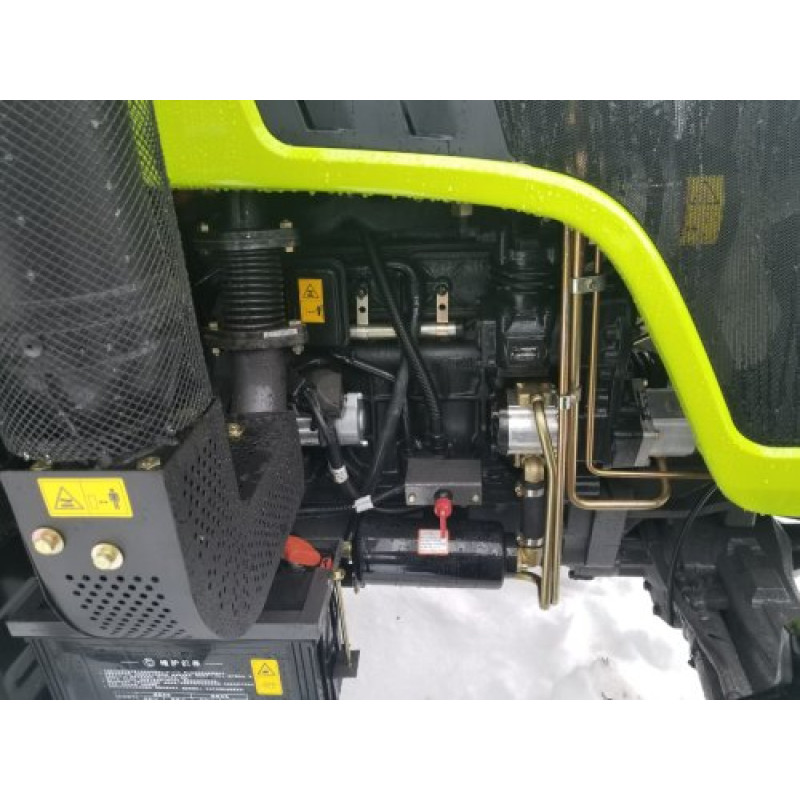

At the heart of the mini tractor is a 4-cylinder LR4M3Z-24 diesel engine with direct injection, a displacement of 4750 cm3, and a maximum power of 81/110 (110) hp. The antifreeze-based water cooling system ensures stable operation under heavy loads. Thanks to such power, the tractor effectively handles a wide range of agricultural and municipal tasks.
The transmission — mechanical, complex gearbox with 24 gears: 16 forward and 8 reverse, allowing for optimal operating mode selection for various operations. 4x4 drive, differential lock, two hydraulic pumps, and PTO make the RC1104 versatile for use with various mounted equipment. Power steering enhances maneuverability and reduces operator fatigue during long hours of work.
Transmission, Clutch, and Power Take-Off
Gearbox: 16 forward / 8 reverse. Clutch type: 2-disc 12-inch (dry dual-disc), clutch control is via a standard pedal, with a manual mode provided. The PTO operates at speeds of 540/1000 rpm, ensuring compatibility with a wide range of working units.
Operator Comfort and Safety
The cabin is equipped with heating, allowing comfortable work in cold weather. The seat with air suspension and a seat belt is adjustable for the operator's height and weight. Additional comfort is provided by a cigarette lighter, car radio, and charger. The ergonomic arrangement of controls and wide visibility from the cabin contribute to less fatigue and precise control of the work process.
Where to Buy, Prices, and Purchase Conditions
The most reliable way to buy the Zoomlion RC1104 tractor is through the official dealer Flash Army — this guarantees originality and the availability of certificates. The store offers favorable purchase conditions and the possibility of obtaining a loan with bank support. Delivery in Kyiv and Kyiv region is free; delivery costs throughout Ukraine are agreed upon individually. For details, contact the manager for consultation and assistance in selecting the configuration.
Technical Specifications
Technical Specifications
| Engine Model | LR4M3Z-24, 4 cylinders |
| Wheel Formula | 4x4 |
| Power, hp / kW | 81/110 |
| Number of Cylinders | 4 |
| Displacement, cm3 | 4750 |
| Fuel Type | Diesel |
| Engine Cooling | Antifreeze |
| Air Filter Type | Air-vortex, multi-stage in oil bath. |
| Glow Plug | Direct Injection |
| Number of Gears in Gearbox | 16-forward; 8-reverse |
| Clutch Type | 2-disc 12-inch |
| Weight | 4040 |
| Front / Rear Weights, kg | 11 x 40 kg. 4 x 40kg |
| Overall Dimensions LxWxH, mm | 4382 x 2083 x 2810 |
| Wheelbase, mm | 2192 |
| Front Wheel Track, mm | 1600-1980 |
| Rear Wheel Track, mm | 1600-2000 |
| Front Tire Size | 12.4-24 |
| Rear Tire Size | 18.4-34 |
| Power Steering | Yes |
| Number of Hydraulic Pumps | 2 |
| Parking Brake | Yes |
| PTO, Rotation Speed, rpm. | 540/1000 |
| Fuel Tank Capacity, L | 150 |
Briefly about key parameters: tractor weight — 4040 kg; front weights: 11 x 40 kg; rear weights: 4 x 40 kg; overall dimensions LxWxH — 4382 x 2083 x 2810 mm; wheelbase — 2192 mm; front wheel track — 1600-1980 mm; rear wheel track — 1600-2000 mm; front tire size — 12.4-24; rear — 18.4-34. Fuel tank capacity — 150 L; number of hydraulic pumps — 2; parking brake — present.
The LR4M3Z-24 engine with four cylinders runs on diesel fuel. The air filter system — air-vortex, multi-stage in an oil bath; engine cooling is performed by antifreeze. The direct injection ignition system ensures efficient operation under load, and the 110 hp power allows for the use of a wide range of mounted equipment.
The Zoomlion RC1104 is recommended for farms, municipal services, and private users who need a reliable, productive, and comfortable mini tractor for year-round use. The model is suitable for plowing, harrowing, soil preparation, working with trailed and mounted equipment, and snow removal.
