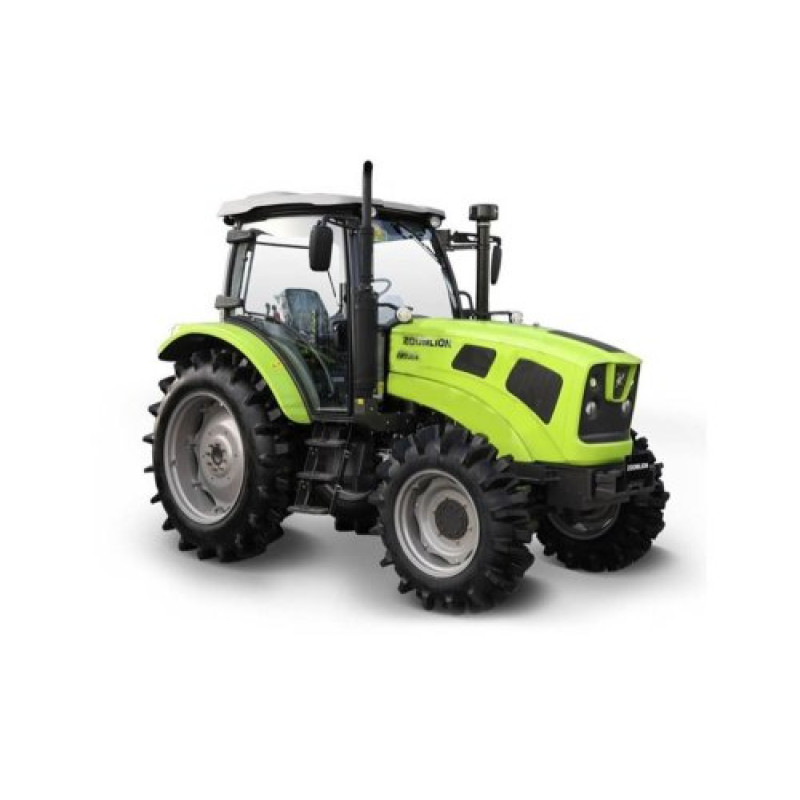

Zoomlion RS1304 Tractor — Reliable Power for Large Farms
The Zoomlion RS1304 tractor from the manufacturer Zoomlion is designed for intensive use in field, transport, and soil work. This is a versatile machine with a 6-cylinder Yuchai engine, built for long-term operation under heavy loads thanks to a well-designed hydraulic system, powerful PTO, and reliable transmission. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
Key Technical Specifications
| Engine Type | 6-cylinder engine, manufactured using Yuchai technologies with water cooling and pre-start heater |
| Engine Power, hp (kW) | 130 (88.2) |
| Engine Displacement, L | 6.5 |
| Rated Engine Crankshaft Speed, rpm | 2300 |
| Clutch | Dry type 14" LUK, independent dual-action control |
| Transmission | 16+8 |
| Hydraulic System: Type / Number of Hydraulic Outlets | Separate / 3 pairs |
| Hydraulic Pump Type | Gear pump with engine drive |
| PTO: Speed, rpm | 540/1000 |
| Hitch Lifting Capacity, kg | 5200 |
| Hydraulic System Output, L/min | 70 |
| Rear Differential Lock | Hydraulic |
| Front / Rear Wheel Track, mm | 1800 / 1850 |
| Steering | Hydraulic, independent |
| Front / Rear Tire Size, inch | 14.9-26 / 18.4-38 |
| Turning Radius, m | 5.8 |
| Ground Clearance, mm | 450 |
| Overall Dimensions: LxWxH, mm | 5200x2435x3250 |
| Wheelbase, mm | 2640 |
| Curb Weight, kg | 5810 |
| Counterweights: Front / Rear Wheels | 520 kg / 480 kg |
| Brakes | Disc, oil-immersed, with hydraulic drive |
| Fuel Tank Capacity, L | 300 |
| Cabin Equipment | Air conditioner, cabin filters, heater, MP3 radio, 12V socket, sun blind, comfortable seat, additional seat, fire extinguisher bracket, thick solid sound-insulating mat; toolbox and accessories; single-circuit pneumatic trailer brake system with compressor; drawbar and towing hitch, external control lever. |
The 6.5 L Yuchai engine ensures stable operation at a rated 2300 rpm, delivering 130 hp (88.2 kW). Water cooling and a pre-start heater guarantee reliable starting in cold weather. The 14" LUK dry clutch with independent dual-action control provides precise shifting and durability under intensive loads.
The 16+8 transmission combined with a PTO operating at 540/1000 rpm makes the Zoomlion RS1304 versatile for a wide range of mounted and trailed equipment. The separate hydraulic system with three pairs of hydraulic outlets and an output of 70 L/min allows simultaneous control of complex implements, while the hitch lifting capacity of 5200 kg opens up possibilities for working with heavy plows, harrows, and trailers. The rear differential lock is hydraulic, increasing passability in difficult conditions.
Independent hydraulic steering and oil-immersed disc brakes with hydraulic drive ensure safe maneuvering and confident movement on slopes and during transport. A turning radius of 5.8 m, ground clearance of 450 mm, wheelbase of 2640 mm, and dimensions of 5200x2435x3250 mm give the tractor stability both in the field and on the road. A curb weight of 5810 kg and front/rear counterweights of 520/480 kg contribute to the stability of implements when working with heavy equipment.
The operator's cabin is equipped with air conditioning, cabin filters, a heater, MP3 radio, a 12V socket, a sun blind, a comfortable seat, and an additional passenger seat. A fire extinguisher bracket, a thick solid sound-insulating mat, a toolbox for tools and accessories, and a single-circuit pneumatic trailer brake system with a compressor are provided. Additionally, the tractor is equipped with a drawbar, a towing hitch, and an external control lever for ease of operation.
A fuel capacity of 300 L allows for long working hours without frequent refueling, and tire types 14.9-26 at the front and 18.4-38 at the rear guarantee reliable traction in various conditions. This makes the Zoomlion RS1304 an optimal choice for large farms, contracting companies, and agricultural enterprises that require powerful traction, high lifting capacity, and operator comfort.
Applications
The Zoomlion RS1304 is suitable for cultivating large areas, heavy field work, sowing, plowing, soil preparation, trailer towing, and working with mounted equipment. Thanks to its power, hydraulic capabilities, and spacious cabin, this tractor is effective during long shifts and on complex terrains with uneven relief.
