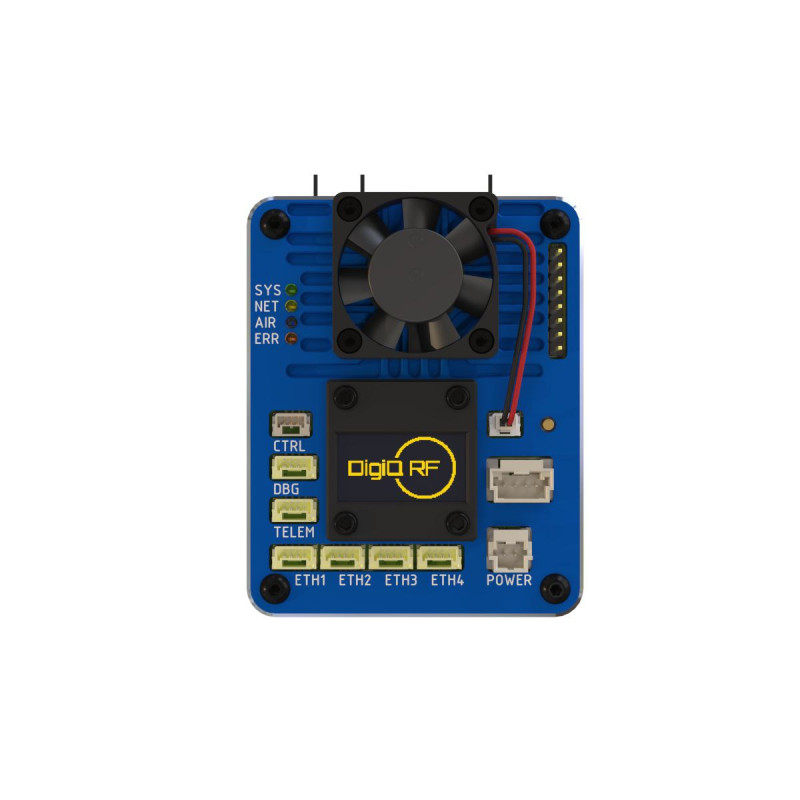

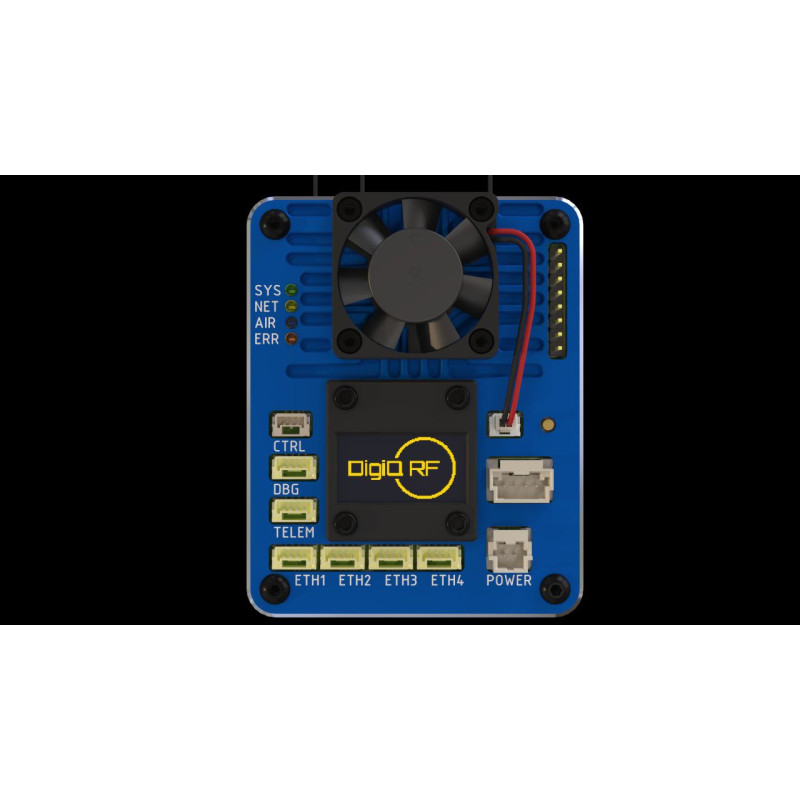

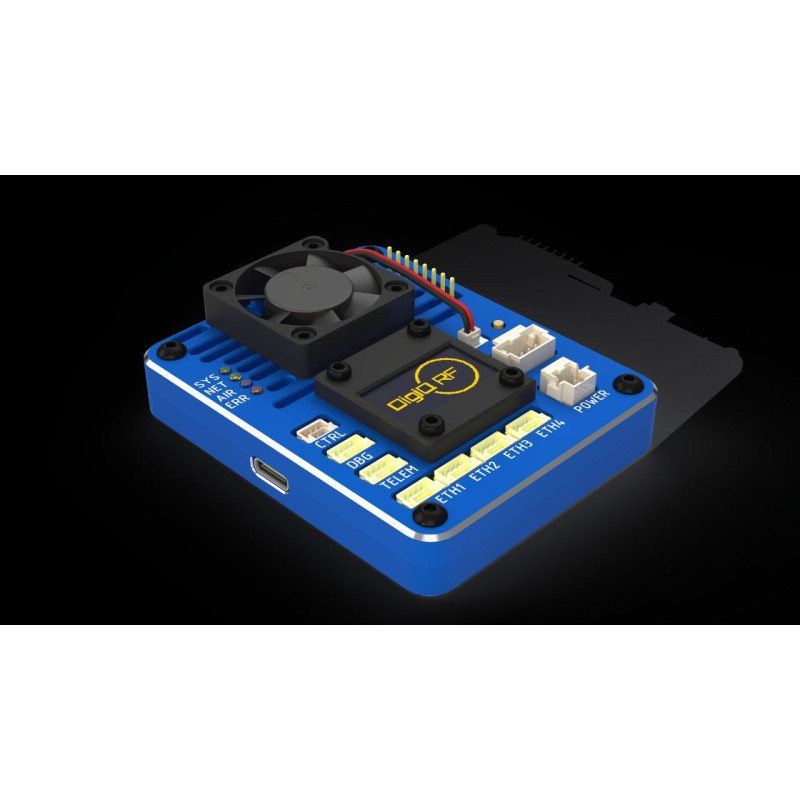

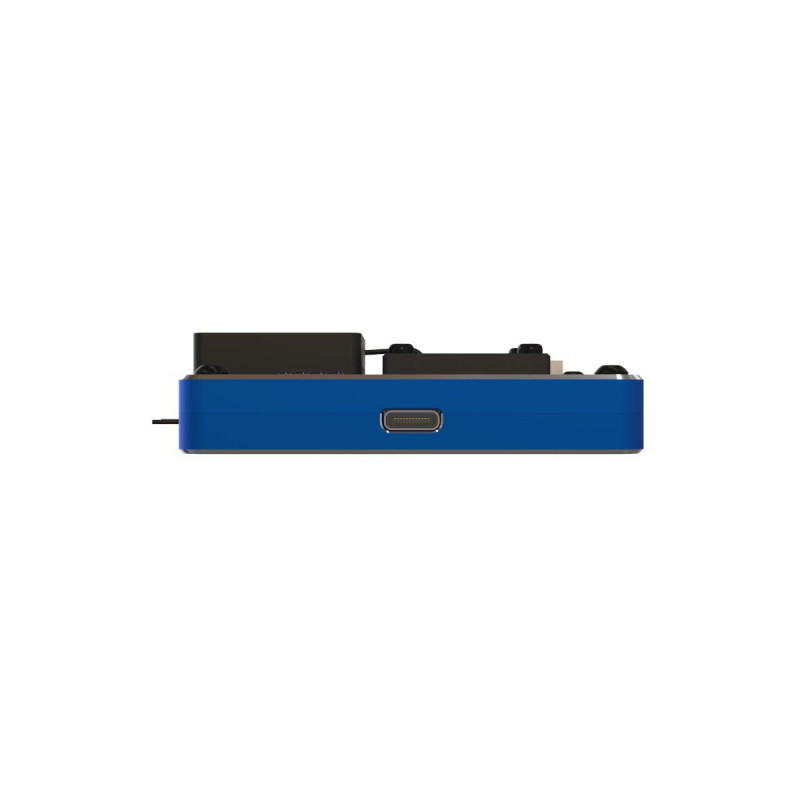

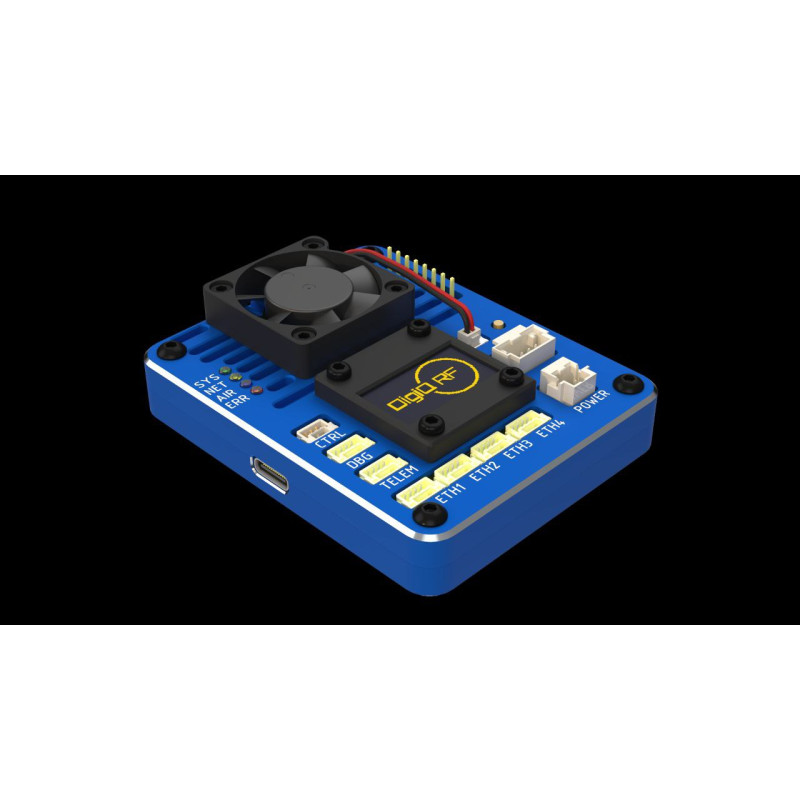

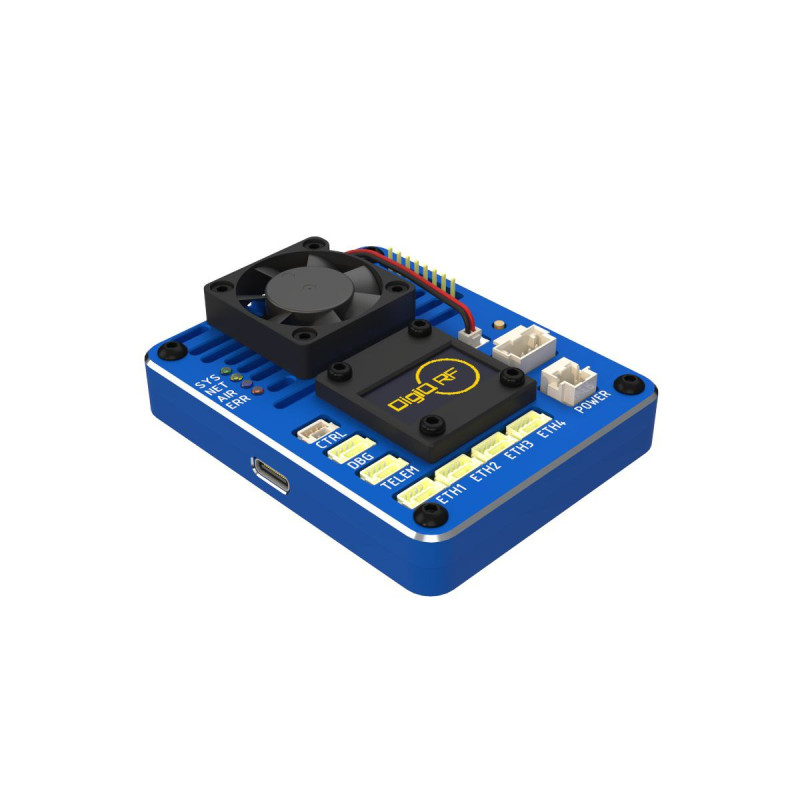

Sky Pulse v3 Jam-Resistant Digital Communication System
Product Code: 57297-999
In Stock
12 990 UAH
Buy this product in 1 click:
Main specifications
Communication range:
30 km (Full HD); 70 km (640×480)
Operating frequency range:
5050–6100 MHz
Output Power:
1 W
Type:
video system
All specifications
We will deliver this product:
Payment
Bought together with
Receiver RX COALAS::45RX, 370-530, 7W
650 UAH
576 UAH
Antenna COALAS::DIPOLE-PCB-270-520
248 UAH
207 UAH
Antenna COALAS::YAGI-270-410
3 200 UAH
2 904 UAH
Antenna Yagi 750MHz 9 sections 13.4 dBi
3 520 UAH
-80x80.jpg "Yagi Antenna 460-540 MHz Plastic 10dBi")
Yagi Antenna 460-540 MHz Plastic 10dBi
3 520 UAH
Antenna COALAS::BOWTIE-160
520 UAH
400 UAH
Dipole antenna 2.1GHz RX (any frequency from 1.9GHz to 2.8GHz)
250 UAH
150 UAH
Yagi Antenna 915MHz 7 Sections 11.9 dBi
3 520 UAH
TX COALAS Transmitter Module ::34TX, 270-410, 12W
13 600 UAH
11 600 UAH
Description
The interference-resistant Sky Pulse v3 digital communication system is designed for reliable video, telemetry, and control transmission between a drone and a ground station.
- Allows simultaneous connection of up to four IP cameras and/or proprietary peripheral equipment
- The system operates in the 5050 - 6100 MHz frequency range with custom 5, 10, and 20 MHz channel bandwidths and adaptive FHSS across the entire range
- An integrated spectrum analyzer scans the airwaves for external radio frequency interference
- Supports repeater mode, frequency shifter, and external LTE modem
- Ability to provide backup power for the flight controller

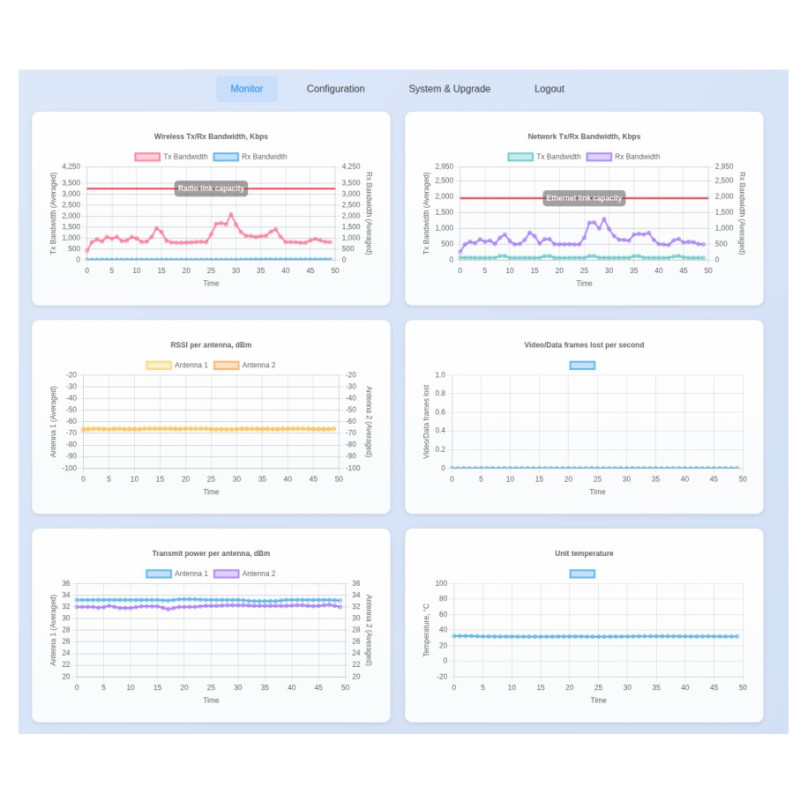

- Built-in browser configurator, mobile app for contactless configuration via BLE (Android), and API for software setup
- 1W transmit power, operating range - up to 30 km in Full HD video transmission mode and up to 70 km in 640x480 resolution transmission mode in the 5 MHz band.
Specifications
Communication range
30 km (Full HD); 70 km (640×480)
Operating frequency range
5050–6100 MHz
Output Power
1 W
Type
video system
