Product Code: FA100-HA-4563-12-2-x4-100
4 820 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
425 g
Frequency range:
4.5–6.3 GHz
Beam angle:
40–50°
All specifications
We will deliver this product:
Payment
Description

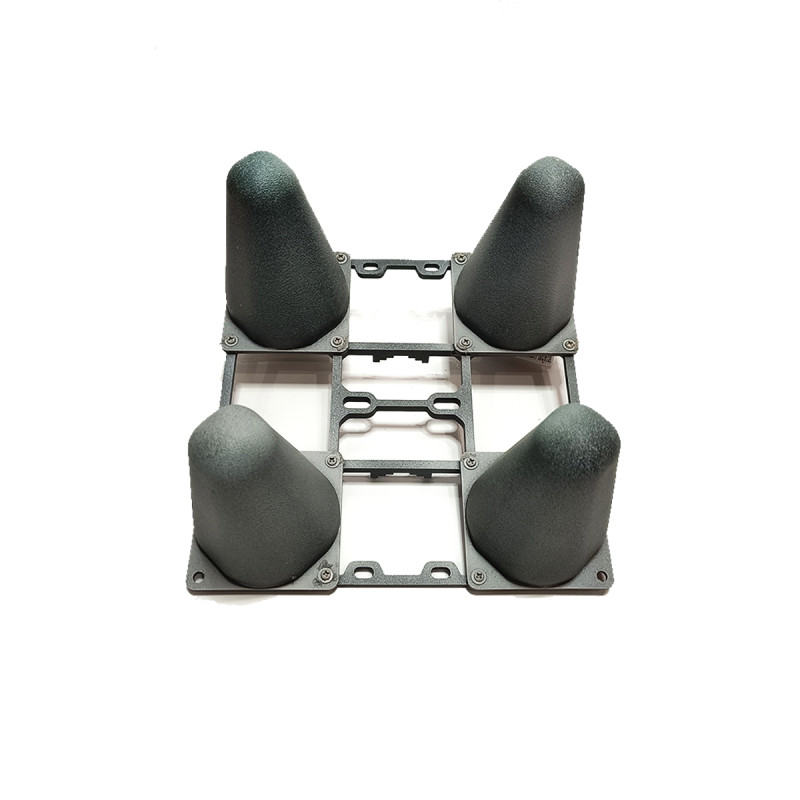

Quadruple wideband helical antenna, for mast mounting, 4.5 - 6.3 GHz range, RHCP or LHCP, gain from 11dBi at 4.5 GHz to 13dBi at 6.3 GHz. Beamwidth from 40 to 50 degrees. Optimized for use as part of a ground station.
Frequency range: 4.5-6.3 GHz
Beamwidth: 35-45 degrees
Number of turns - 14
Gain: 12.5 dBi
Polarization - RHCP or LHCP
VSWR - no more than 2
Connector - SMA
Dimensions: 245x245x130 mm
Weight - 425 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
425 g
Size
245×245×130 mm
Antennas
Frequency range
4.5–6.3 GHz
Beam angle
40–50°
Enhancements
12.5 dBi
