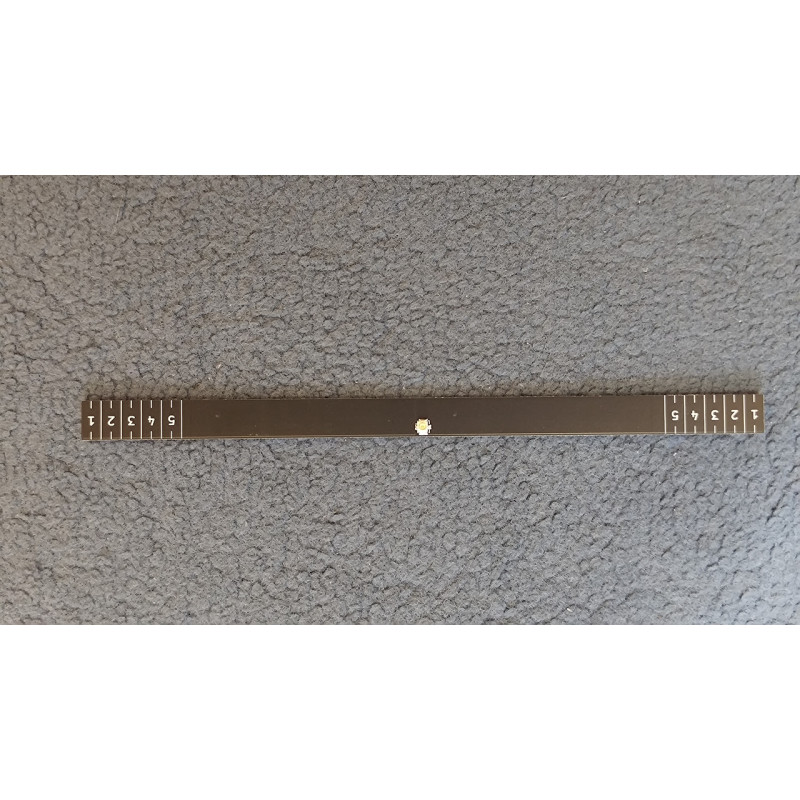

Aeronetix Receiving Dipole Antenna for FPV Drone Control 680-1200 MHz (IPEX u.fl)

We offer a compact and lightweight receiving dipole antenna from Aeronetix, specifically designed for FPV drone control. This model provides stable reception across a wide range of 680-1200 MHz, features optimized gain of 2 dBi, and a sleek design with dimensions of 170 x 20 x 1.5 mm, making it ideal for embedding into equipment enclosures or mounting on a PCB.

Key Features

Main Parameters:
Frequency Range: 680-1200 MHz
Gain: 2 dBi
Dimensions: 170 x 20 x 1.5 mm
Weight according to manufacturer's description: 5 g

Connector and Cable:
Connector: IPEX1 on board (IPEX u.fl)
Cable length included: 100 mm (10 cm)
The antenna comes with a 10 cm IPEX1 - IPEX1 cable.

Modes and Sub-bands

The antenna covers several sub-bands, allowing it to adapt to various frequency standards and regional requirements:

• 0 (730) - 680-780 MHz
• 1 (770) - 720-830 MHz
• 2 (820) - 760-880 MHz
• 3 (860) - 820-930 MHz
• 4 (920) - 860-990 MHz
• 5 (980) - 920-1050 MHz
• 6 (1050) - 980-1130 MHz
• (1130) - 1060-1200 MHz

Additional Information and Technical Parameters

The kit includes a 10 cm IPEX1 — IPEX1 cable, facilitating connection to a board or radio receiver. The antenna's thin 1.5 mm profile and low mass reduce its impact on the drone's aerodynamics and overall weight, which is especially important for FPV applications. Please note: the description provides a typical weight parameter of 5 g (manufacturer's specification) and a weight value from attributes of 0.100 kg — both values are present for full compliance with the product's original data.

Manufacturer: Aeronetix
Product Type: Antennas > Dipole Antennas
Product ID: 18329

Dimensional Parameters (from attributes)

• Length: 17.0 (specified in attributes)
• Weight, kg: 0.100 (specified in attributes)
• Height: 5.0 (specified in attributes)
• Width: 10.0 (specified in attributes)

The antenna is suitable for applications requiring a wide frequency range, compact form factor, and simple connection via an IPEX connector. It is ideal as a primary or backup antenna for FPV drone control remotes, as well as for integration into ready-made solutions thanks to the standard IPEX u.fl connector and the included 10 cm cable.

If you need an antenna with universal sub-bands for various regional frequencies or a spare 10 cm IPEX1 cable — this Aeronetix model will meet your requirements.
