Product Code: FA100-HA-2737-13-3-100
In Stock
1 885 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
60 g
Frequency range:
2.7–3.7 GHz
Beam angle:
40–53°
All specifications
We will deliver this product:
Payment
Description

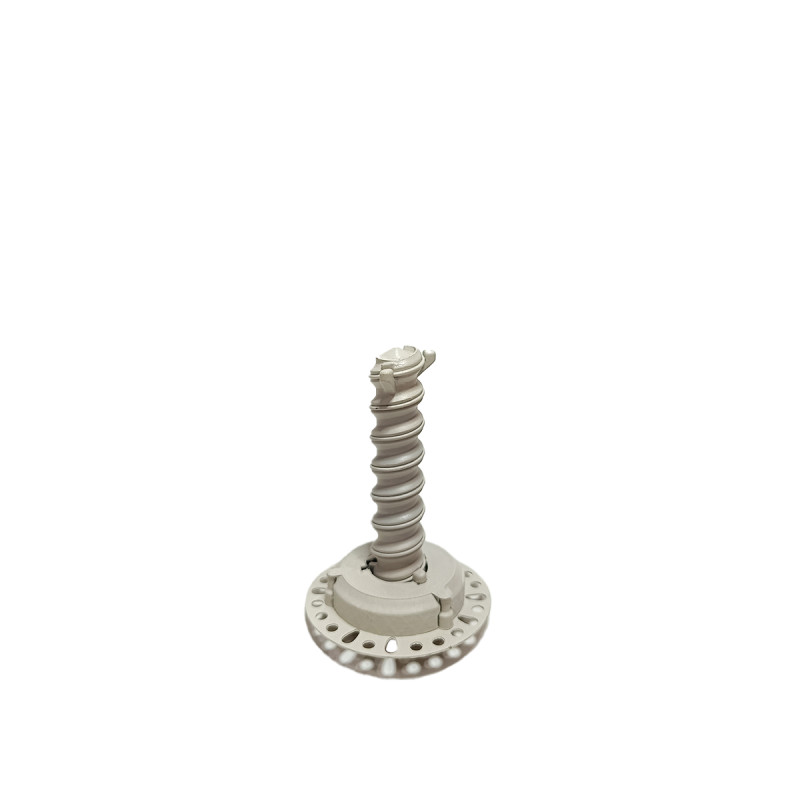

Broadband spiral antenna for the 2.7 - 3.7 GHz band, RHCP or LHCP, gain 10 dBi at 2.7 GHz up to 13 dBi at 3.7 GHz. Angle from 40 to 53 degrees. Optimized for installation on repeaters, has small size and weight
Frequency range: 2.7-3.7 GHz
Beamwidth 40-53 degrees
Number of turns - 14
Gain 10-13 dBi
Polarization - RHCP or LHCP
VSWR - no more than 2
Connector - SMA
Dimensions 96x96x135 mm
Weight - 60 gr
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
60 g
Size
96×96×135 mm
Antennas
Frequency range
2.7–3.7 GHz
Beam angle
40–53°
Enhancements
10–13 dBi
