Product Code: FA100-HA-1925-14-1-100
In Stock
3 360 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
180 g
Frequency range:
1.9–2.5 GHz
Beam angle:
35–47°
All specifications
We will deliver this product:
Payment
Description

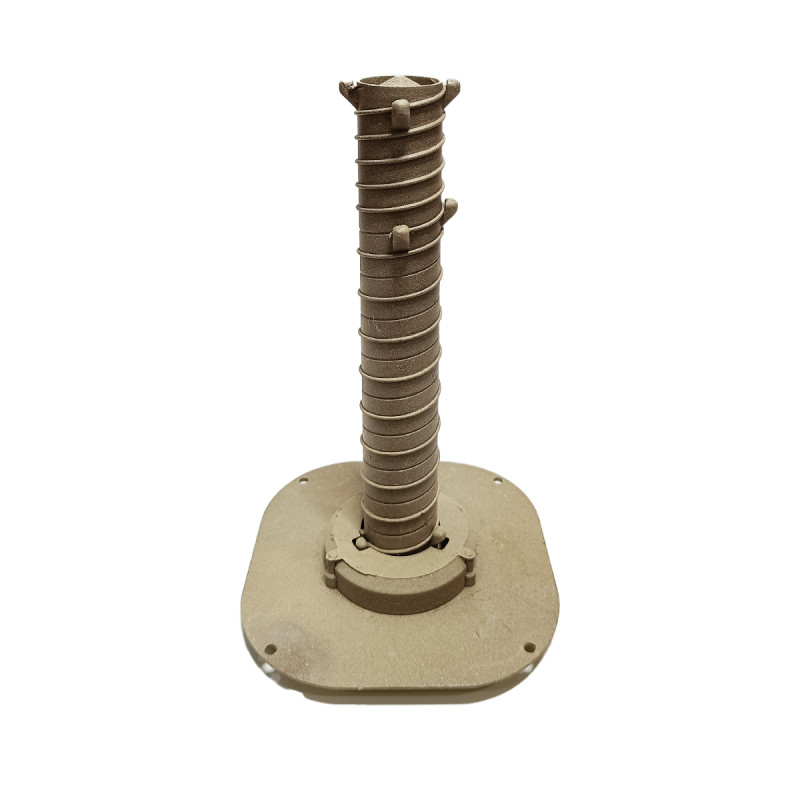

Broadband spiral antenna for the 1.9 - 2.5 GHz band, RHCP or LHCP, gain 11 dBi at 1.9 GHz up to 14 dBi at 2.5 GHz. Beamwidth from 35 to 47 degrees. Optimized for installation on repeaters, has small size and weight
Frequency range: 1.9-2.5 GHz
Beamwidth 35-47 degrees
Number of turns - 14
Gain 11-14 dBi
Polarization - RHCP or LHCP
VSWR - no more than 2
Connector - SMA
Dimensions 160x160x250 mm
Weight - 180 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
180 g
Size
160×160×250 mm
Antennas
Frequency range
1.9–2.5 GHz
Beam angle
35–47°
Enhancements
11–14 dBi
