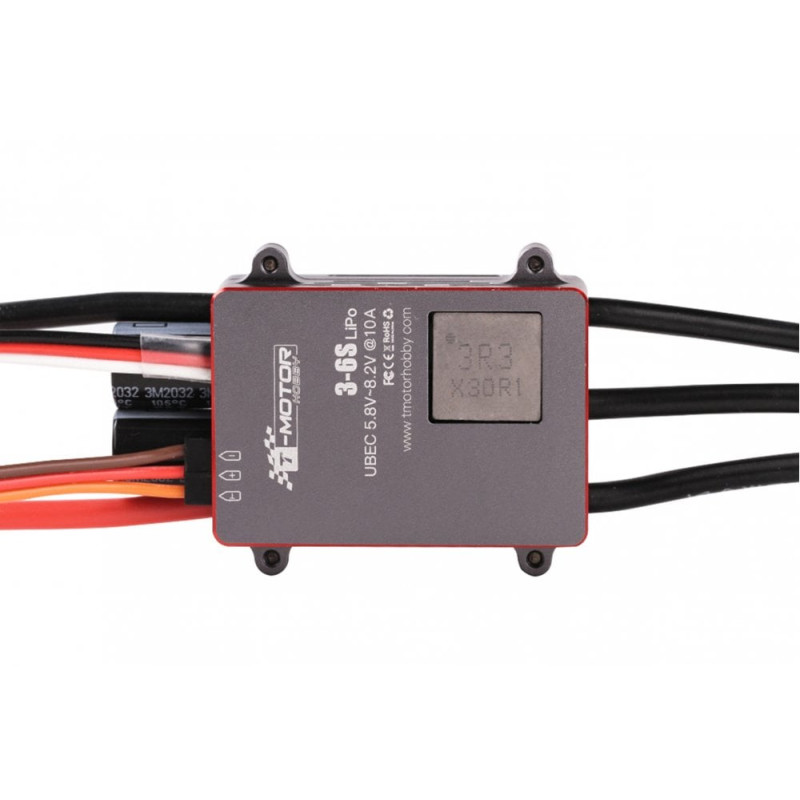

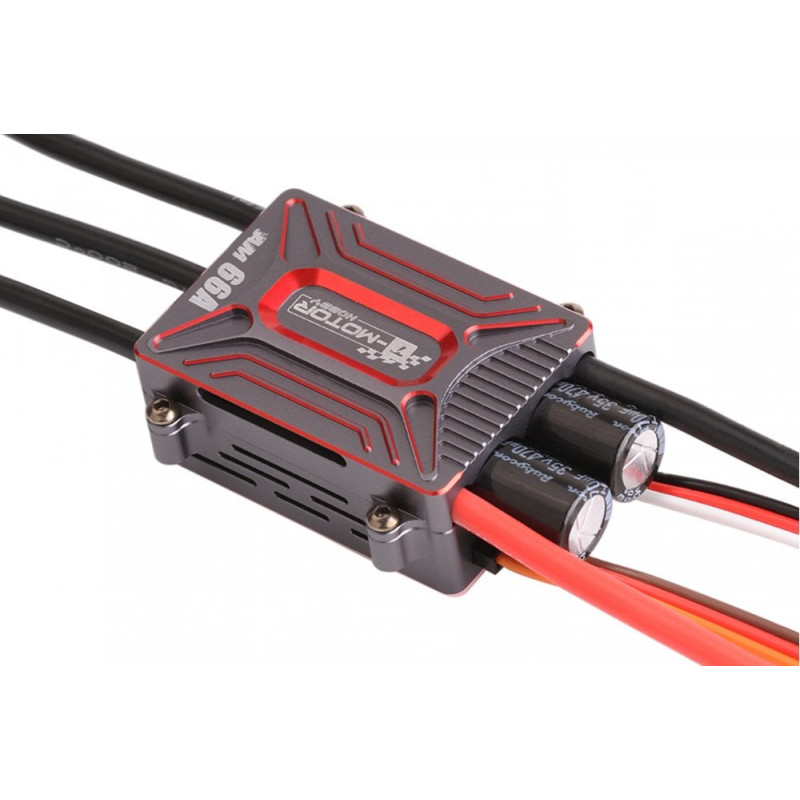

T-Motor AM66A + AM Link 3D ESC

The T-Motor AM66A + AM Link 3D electronic speed controller (ESC) is a powerful and reliable solution for modern multicopters, combining high performance with fine-tuning capabilities via the AM LINK system. It is designed for use in drones of various purposes: from dynamic FPV and freestyle to heavier configurations with 3-6S batteries. Manufacturer: T-Motor. Product category: Drones & Quadcopters > Stacks (FC+ESC).

Key Parameters and Design

ESC Body Dimensions: 56.6 × 38.8 × 18.5 mm
ESC Weight: 63.4 g
Power Input: 140 mm – 14AWG
Power Connector: No connector
Output Cable: 80 mm – 14AWG
Output Connector: With 3.5 mm (“female”) connector

Cables and Connections

• Signal Cable: 290 mm (black, red, and white)
• Return Cable: 290 mm (brown, red, and orange)
• Note: All specified cable lengths are raw cable lengths; the actual length of the finished ESC will be slightly shorter.

Performance Parameters

• Battery Cell Count: 3-6S LiPo
• Continuous Current: 66A
• Peak Current: 86A
• UBEC Output Voltage: 5.8V, 7.4V, 8.2V
• UBEC Output Current: 10A

Configuration Options and Compatibility

The controller is equipped with an AM LINK interface for convenient map return and programming. The kit/compatible solutions include the controller card (AM LINK) and the AM LINK programming card. Configuration software is supported on Windows and Android, allowing for quick and flexible ESC parameter adjustments on-site or in the workshop.

Advantages and Recommendations

The T-Motor AM66A is distinguished by reliable components and stable operation under high loads (66A continuous and 86A peak current). This makes it an ideal choice for pilots who require precise motor control and extensive UBEC configuration options. It is recommended to ensure sufficient ventilation for cooling during prolonged loads and to use high-quality connectors and batteries with appropriate characteristics (3-6S LiPo). Thanks to AM LINK support, parameter adjustment is quick and without complex adapters.

This ESC is suitable for projects requiring high current throughput, reliability under load, and fine configuration capabilities via software. Brand: T-Motor. Product type: Drones & Quadcopters > Stacks (FC+ESC).

Other technical details and compatibility can be clarified with the seller or in the device manual. Confidently use the AM66A in your builds if you need a powerful ESC with 3-6S support and a modern configuration interface.
