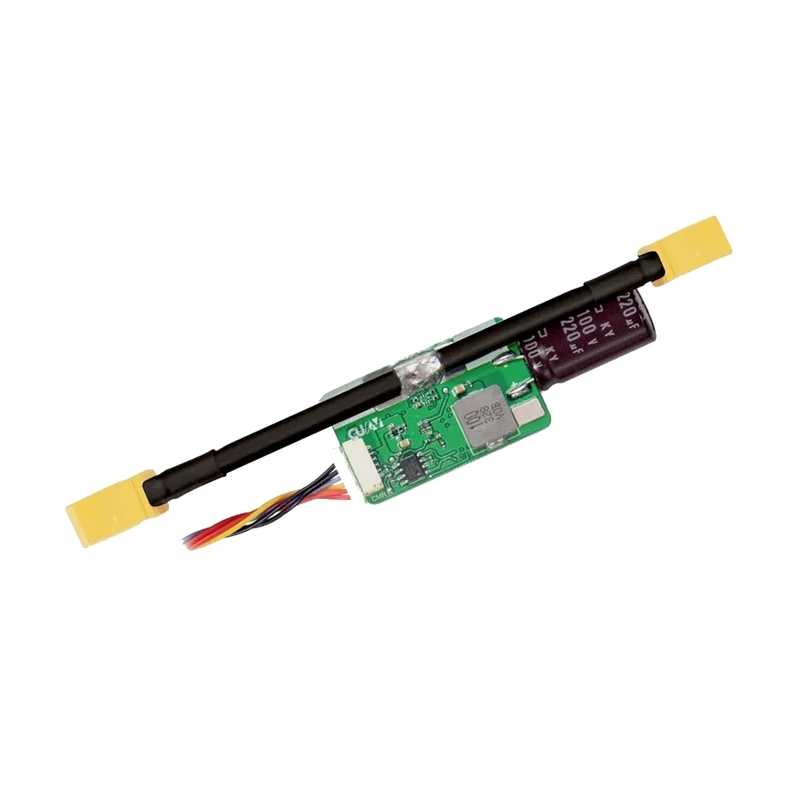

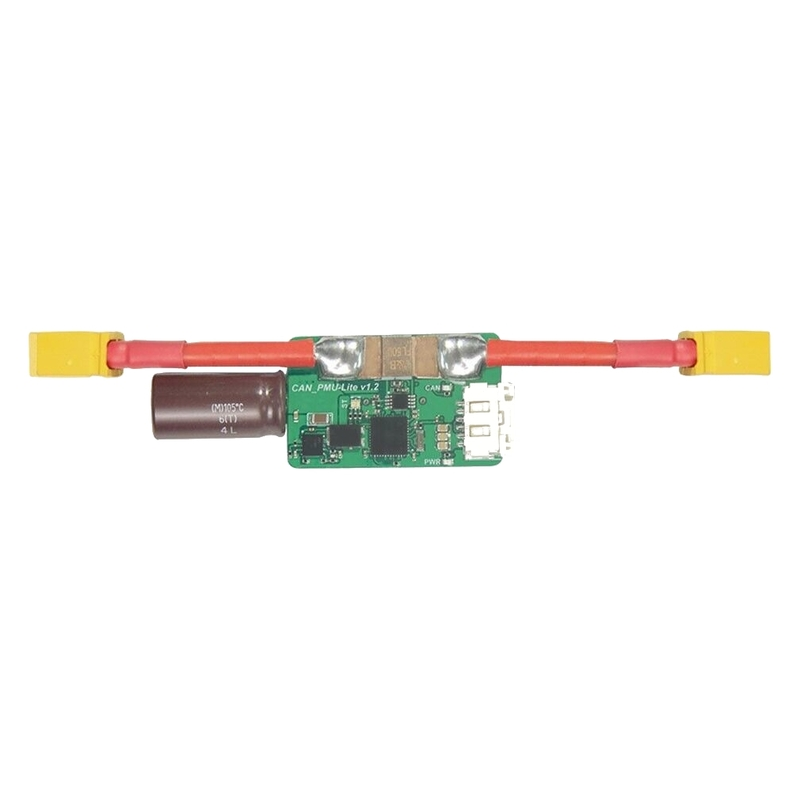

CUAV CAN PMU Lite Power Regulator — a professional power management module for drones and unmanned systems, model CUAV CAN PMU LITE 2-15S 110A. The device is equipped with a powerful built-in STM32F412 processor and is designed to work with a wide range of battery configurations. With an input voltage of 10 to 62 Volts (2-15S), the module is suitable for various platforms, ensuring stability and reliability in flight. Brand: China. Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts. Product type: Drones & Quadcopters > Stacks (FC+ESC).

Technical Specifications:

• Input Voltage: 10-62 Volts (2-15S)
• Maximum Measured Current: 90A
• Nominal Model Information: 110A (specified in the model name CUAV CAN PMU LITE 2-15S 110A)
• Voltage Detection Accuracy: 0.15 Volts
• Current Measurement Accuracy: 0.2 at current up to 80A
• Regulated Output: 5.2 V / 4 A (maximum power up to 21 W)
• LED Power Indicator: signals LiPo voltage status
• Protocol Support: UAVCAN via CAN bus
• Temperature Compensation Algorithm: ITT for accurate measurements at various temperatures
• Future Updates: possibility to add functions such as power consumption statistics

The CUAV CAN PMU LITE features factory calibration, ensuring high accuracy of readings and minimizing the need for additional adjustments after installation. Built-in temperature compensation (ITT) provides correct voltage and current measurements even with changing environmental conditions, which is especially important for professional pilots and complex missions. The module supports communication via CAN bus using the UAVCAN protocol, allowing easy integration into modern flight controllers and telemetry systems.

The regulated stabilized output of 5.2 V / 4 A (up to 21 W) allows powering additional onboard components — sensors, telemetry platforms, and other peripheral devices. The LED indicator provides quick visual control of the LiPo battery status, while factory calibration and accurate measurement algorithms ensure correct data for power consumption analysis.

This module is an excellent choice for engineers, professional UAV operators, and enthusiasts looking for a reliable and accurate PMU with the ability to update functionality. The CUAV CAN PMU LITE is suitable for complex battery configurations and ensures high power supply stability for the drone system. The CUAV CAN PMU LITE 2-15S 110A model with the STM32F412 processor combines measurement accuracy, a wide operating range, and convenient integration via UAVCAN.
