SpeedyBee F405 WING Flight Controller (Fixed Wing)

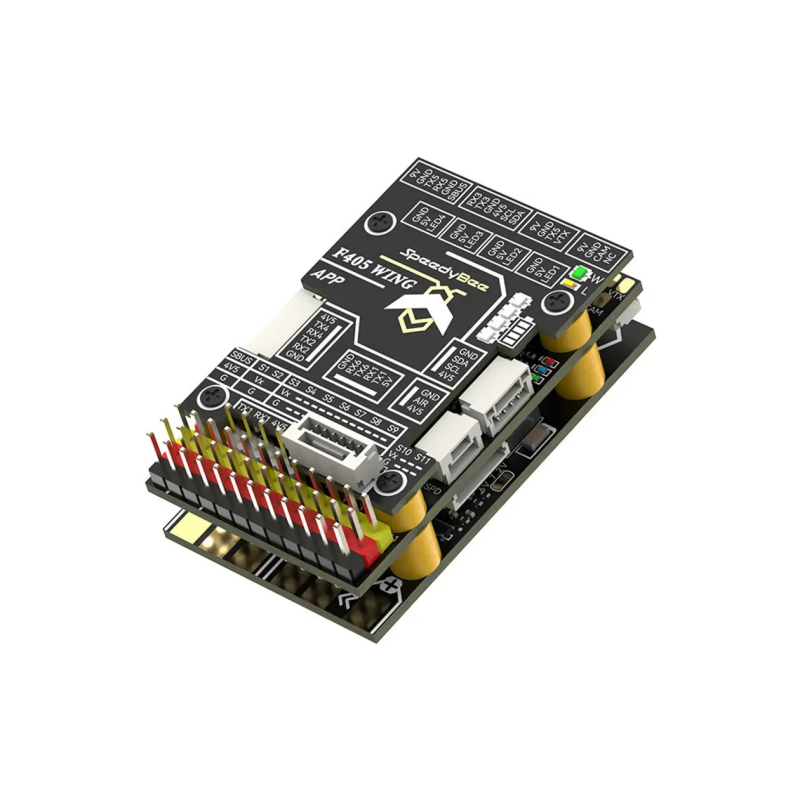

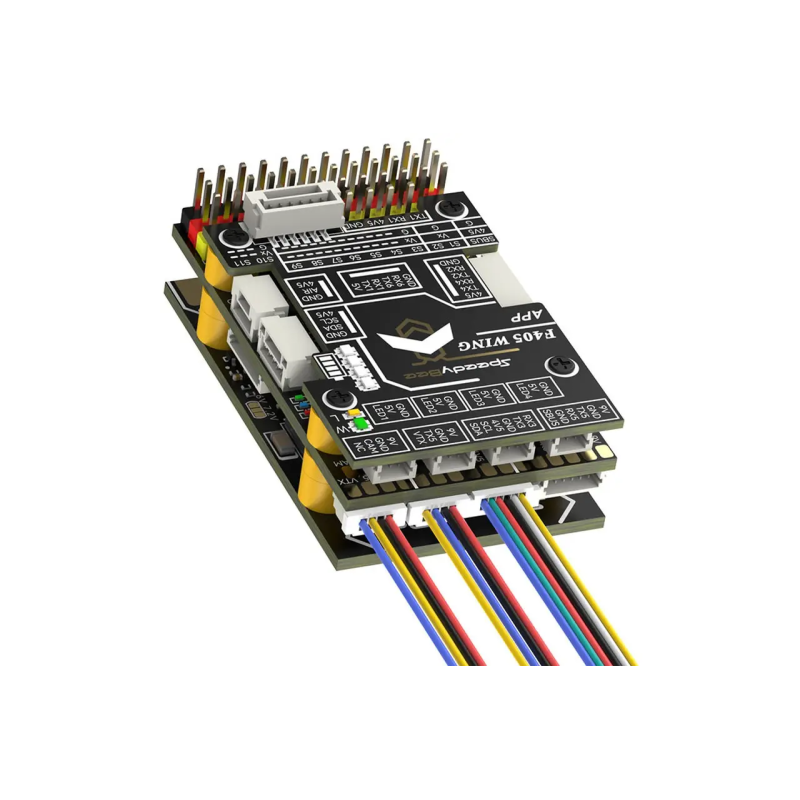

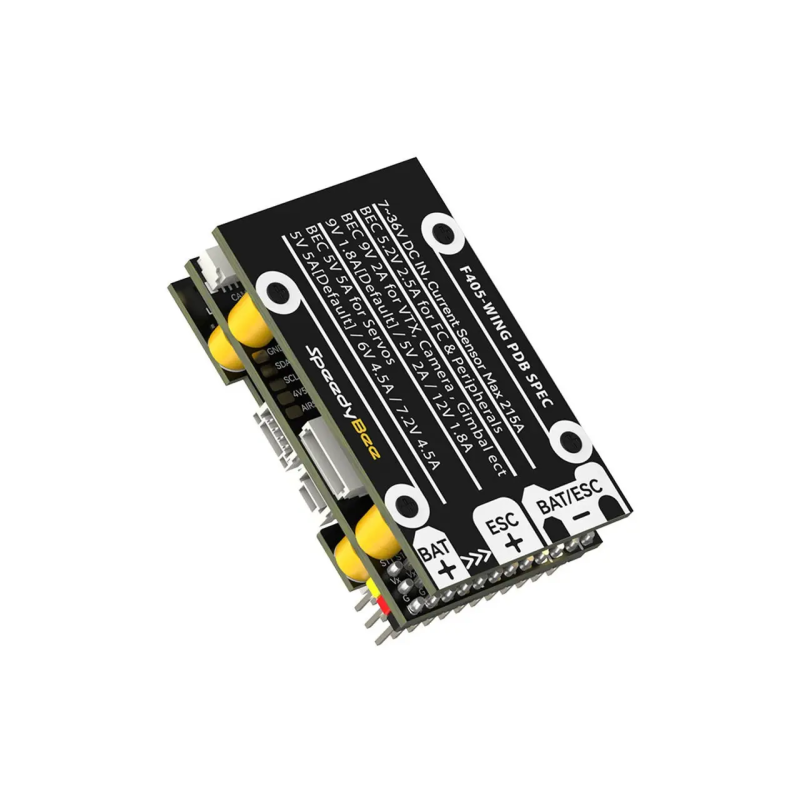

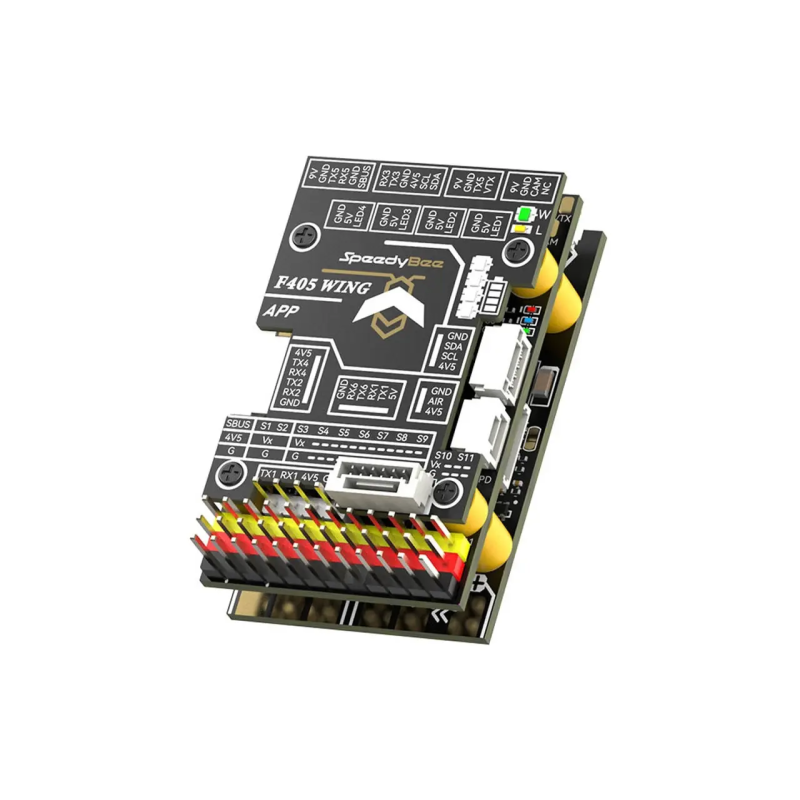

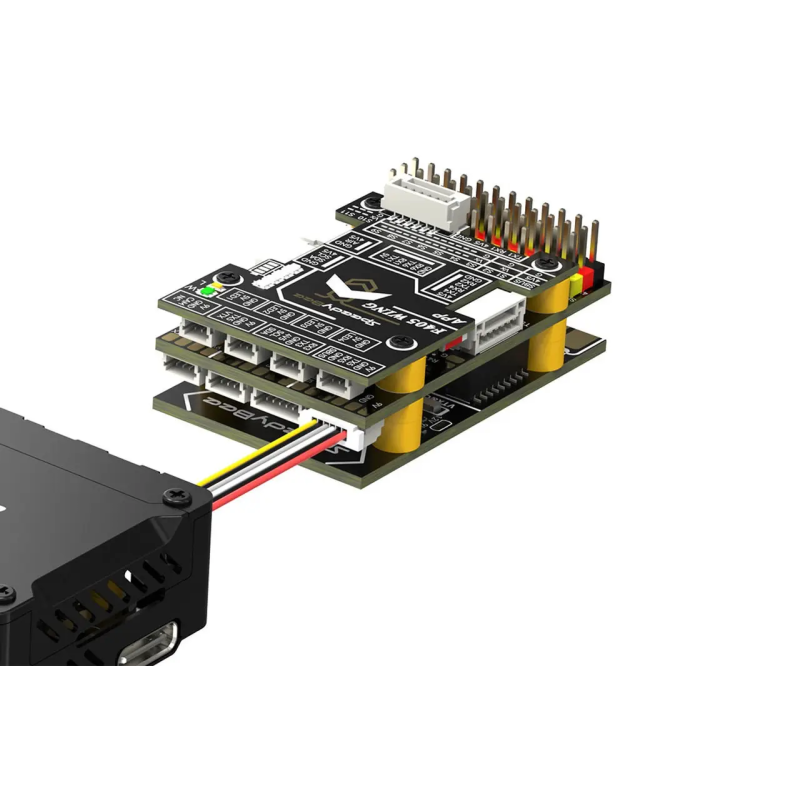

SpeedyBee F405 WING — a compact and functional flight controller designed specifically for fixed-wing aircraft and VTOLs. The device consists of three separate boards: a power distribution board (PDB), a main flight control board, and a wireless communication board. The package includes various cables, connectors, mounting hardware, and a detailed manual with useful wiring diagrams, ensuring quick and reliable integration into your wing.

The controller is based on the STM32F405 microcontroller with a clock frequency of 168 MHz and 1 MB of flash memory, compatible with both iNav and ArduPilot, making it a versatile solution for various aircraft models. For controlling motors and servos, the controller has up to 11 PWM outputs, as well as additional functions for connecting peripherals via 6 UART ports.

Key Features

• Support for wireless programming via the SpeedyBee app, allowing settings and firmware to be changed from a phone or computer in the field.
• Compatibility with various types of flying wings, including VTOLs.
• Wide input voltage range: 7-36V (2-6S LiPo).
• Up to 11 PWM outputs for motors and servos (12 PWM pads are available on the device: 11 + 1 «LED» pad).
• 6 UART ports for connecting GPS, telemetry, and other accessories.
• Built-in battery voltage indicator with LEDs and four separate LED ports with their own driver.
• Ability to connect Wi-Fi and Bluetooth for wireless access.

Technical Specifications

SpeedyBee F405 WING FC Board

• Manufacturer: SpeedyBee
• Microcontroller: STM32F405, 168 MHz, 1 MB Flash Army
• IMU (gyroscope and accelerometer): ICM-42688-P
• Barometer: SPL006-001
• OSD Chip: AT7456E
• Blackbox: MicroSD card slot
• UART Ports: 6 pcs. (USART1, USART2, USART3, UART4, UART5, UART6 — one of them is used for connecting the wireless telemetry board)
• I2C Port: 1 pc. (for magnetometer and digital airspeed sensor)
• ADC Ports: 4 pcs. (VBAT, Current, RSSI, analog airspeed measurement)
• PWM Outputs: 12 pcs. (11 + 1 «LED» pad)

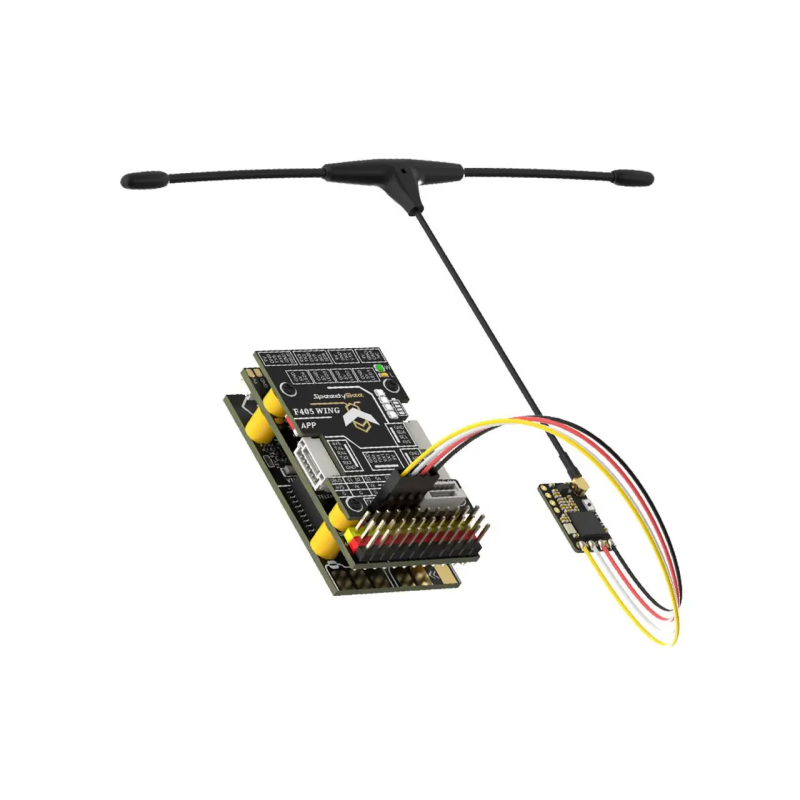

• Support for ELRS/CRSF receiver connected to UART1
• Built-in inverter for SBUS signal reception (UART2-RX)
• LEDs: 3 status LEDs (blue, green) and 3.3V indicator (red); 1 RGB LED
• RSSI Input: present (marked as RS)
• Firmware Support:
  • INAV: SpeedyBeeF405WING (default)
  • ArduPilot: SpeedyBeeF405WING
• Weight: 8.9 g

Package Contents

• Power board – 1 pc.
• Main control board – 1 pc.
• Interface board – 1 pc.
• Accessory kit (USB board, cables) – 1 pc.
• Rails – 1 set
• Accessory kit (assembly cables) – 1 pc.
• Accessory kit (standoffs and fittings) – 1 pc.

The SpeedyBee F405 WING combines professional hardware solutions (precise IMU, barometer, OSD chip, and MicroSD slot for Blackbox) with ease of use thanks to wireless access and a wide range of peripheral ports. This is an optimal choice for those who need a reliable flight controller for winged platforms of various complexity levels.
