Matek 12S 9-55V 3xBEC Power Regulator — Powerful Power Module for Large Drones

The Matek Power Module 12S power regulator is designed for reliable power supply to complex multi-rotors, FPV platforms with gimbals, and large-scale aircraft models. This product from Matek is compatible with batteries in the 9-55V (3-12S) range and allows for simultaneous power supply to multiple systems thanks to three independent BEC outputs: for the flight controller, video system, servos, and other peripheral devices without the need for additional converters.

Key Advantages

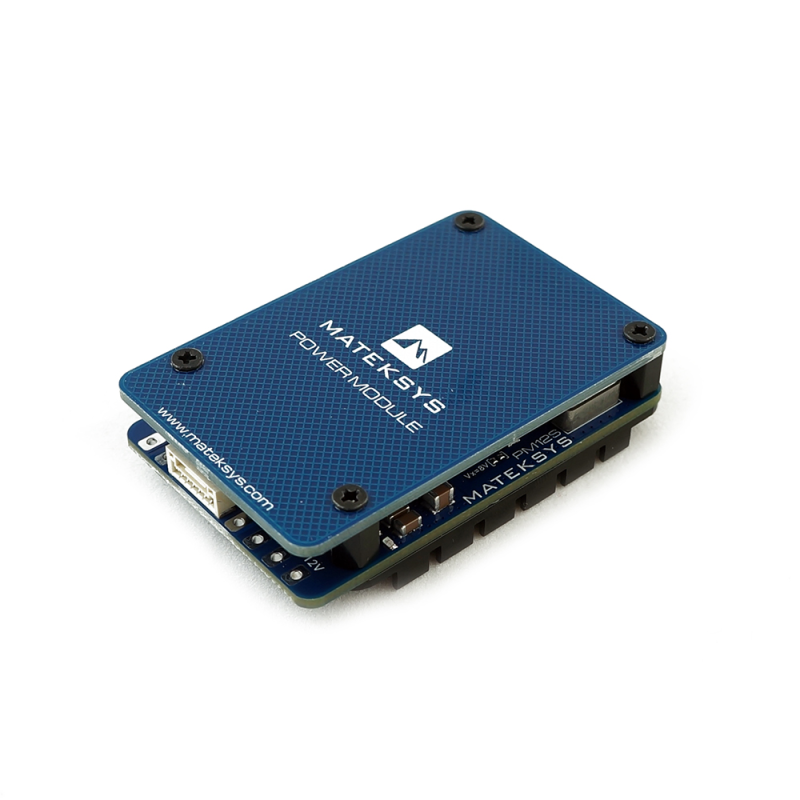

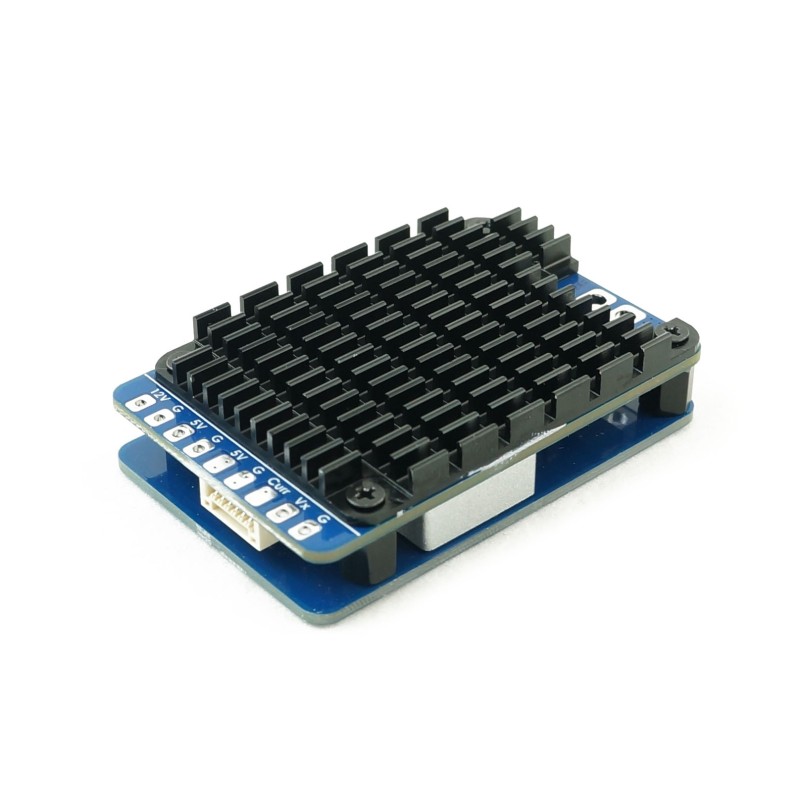

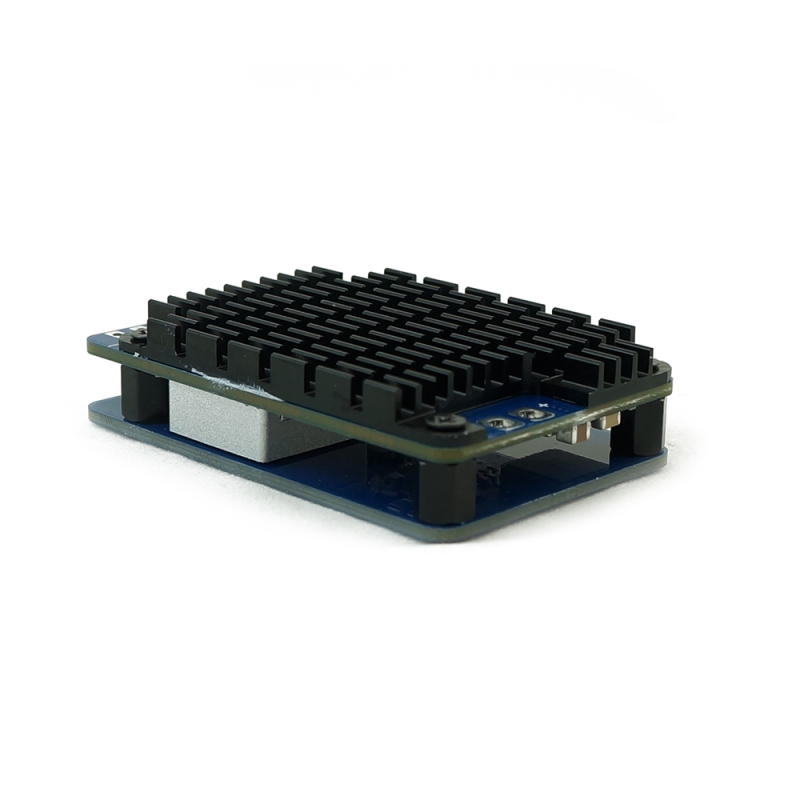

The module is built on a single board with an optional second bottom board for easy installation. An aluminum heatsink is used for efficient heat dissipation. The XT30 connector can be soldered directly to the power input. The built-in 1/21 (1K:20K) voltage divider allows standard flight controllers and receivers to accurately measure high input voltages. All BECs have overheating protection with automatic thermal shutdown, which increases operational safety on large platforms.

Key Technical Specifications

• Input Voltage: 9-55V (3-12S)
• 1st BEC: 5V/4A (6A peak) — suitable for flight controller, receiver, cameras, and GPS
• 2nd BEC: 12V/4A (6A peak) at input voltage over 13V — ideal for video transmitter or gimbal
• 3rd BEC: adjustable output 5.25V, 6V, or 8V up to 15A (25A peak) — optimal for servo motors and powerful cinema cameras
• Voltage Divider: 1/21 (1K:20K)
• Size: 61x40x15 mm
• Weight: 53 g

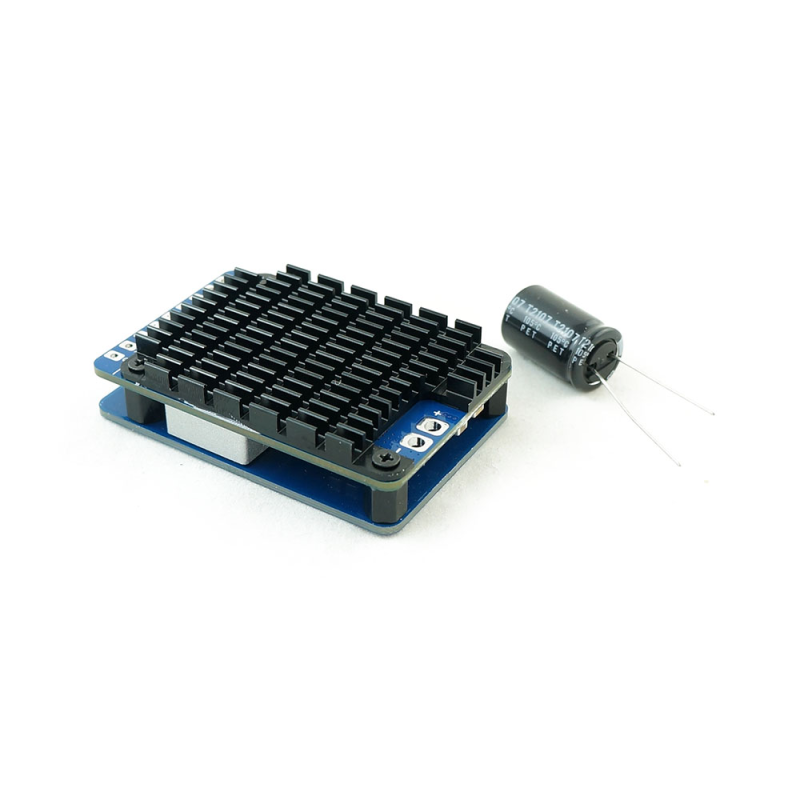

Package Contents

• 1x Matek Power Module 12S power module
• 1x additional capacitor

This module will be an excellent choice for engineers and enthusiasts who need a compact and well-designed solution for powering multiple systems simultaneously. Reliable BECs, a wide input voltage range, and high peak output capability allow the module to be used in demanding operating conditions: on large drones, FPV copters with gimbals, and large-scale aircraft. The aluminum heatsink and thermal shutdown function increase the safety and stability of the device even under prolonged loads.

Manufacturer: Matek

Product Category: Drones & Quadcopters > Stacks (FC+ESC)

The module supports soldering an XT30 connector directly to the input, has a built-in 1/21 voltage divider, and an optional bottom board for easy installation — making it a versatile solution for professional and amateur projects. If you need a reliable multi-BEC module for a complex project, the Matek 12S 9-55V 3xBEC power regulator will provide the necessary power, flexibility, and connection safety for all equipment on your aircraft.
