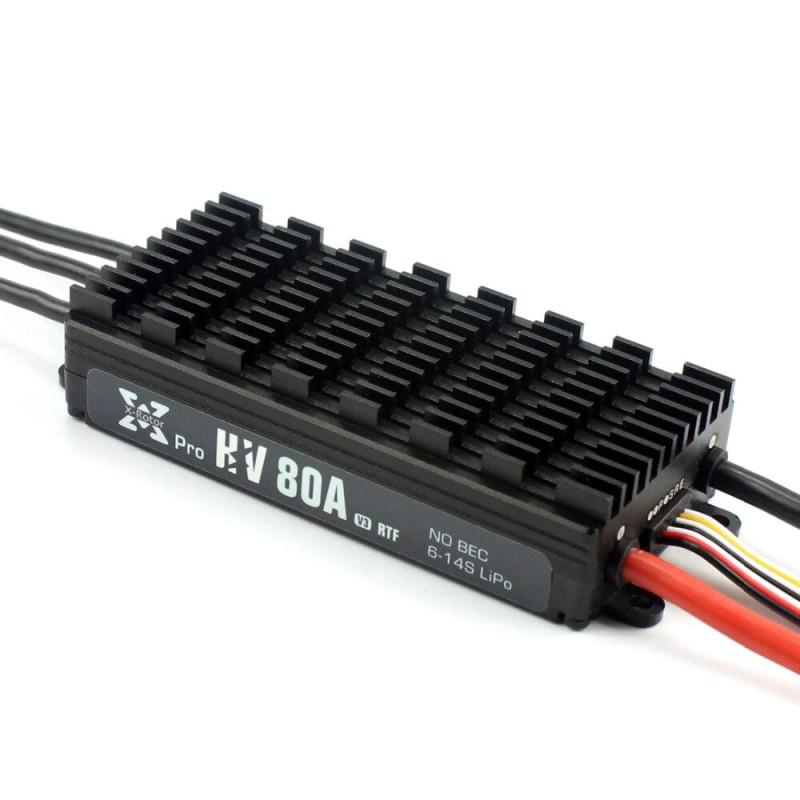

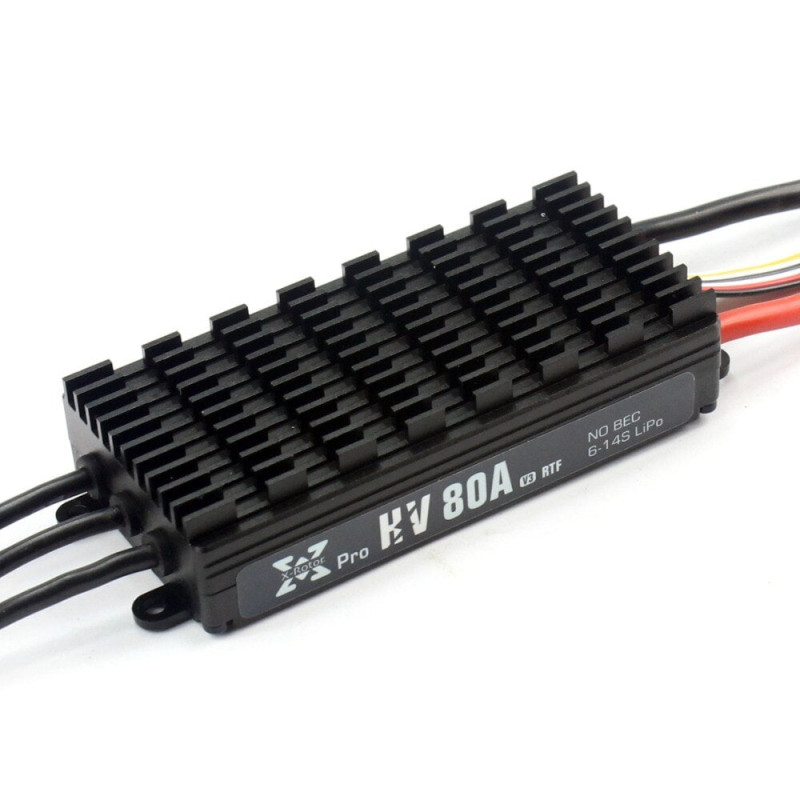

Hobbywing XRotor Pro 6-14S 80A HV V3 ESC — Speed Controller for Multicopters

The professional electronic speed controller Hobbywing XRotor Pro 80A HV V3 (model XRotor Pro-80A-HV-RTF-V3) is designed for use in agricultural multicopters and heavy-lift quadcopters where reliability, high power, and waterproof housing are required. This is a high-voltage ESC without a built-in BEC, compatible with 6-14S lithium batteries, making it an ideal choice for professional applications and specialized platforms. Brand: Hobbywing. Product category: Drones & Quadcopters > Stacks (FC+ESC).

Description and Key Advantages

The XRotor Pro 80A HV V3 ensures stable motor operation in BLDC mode, features a moisture-protected housing, and does not require additional fan cooling. This allows the controller to be operated in challenging field conditions, including in sprayers and other agricultural drones. The design focuses on ease of connection and durability, with optimized power and signal cables.

Technical Specifications

• Voltage: 6-14S Lithium Battery
• Continuous Current: 80 A
• Instantaneous Current (10 seconds): A
• Weight: 195 g
• No BEC. Fanless (no fan needed)

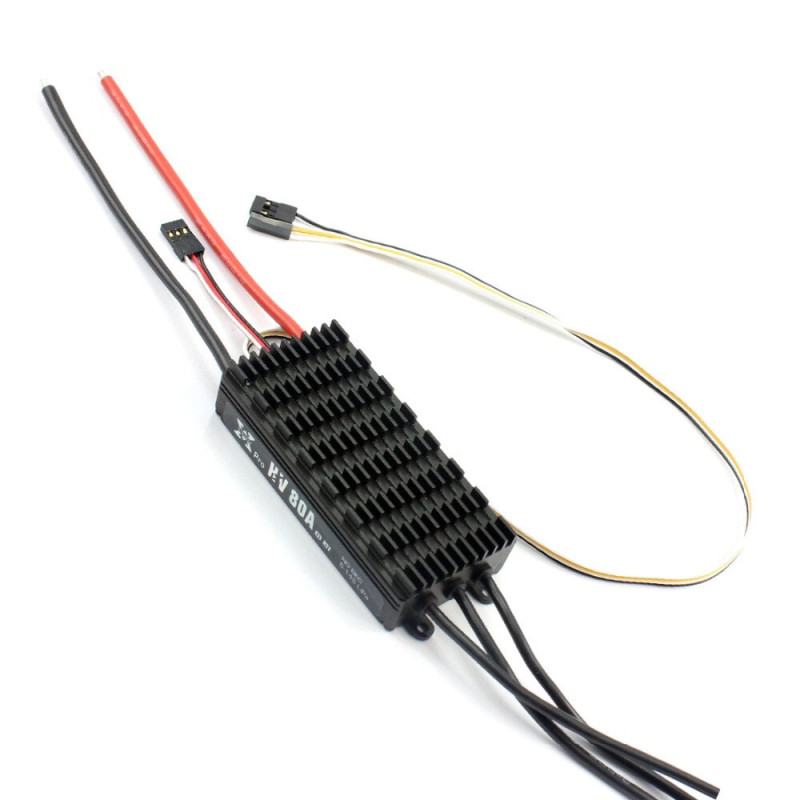

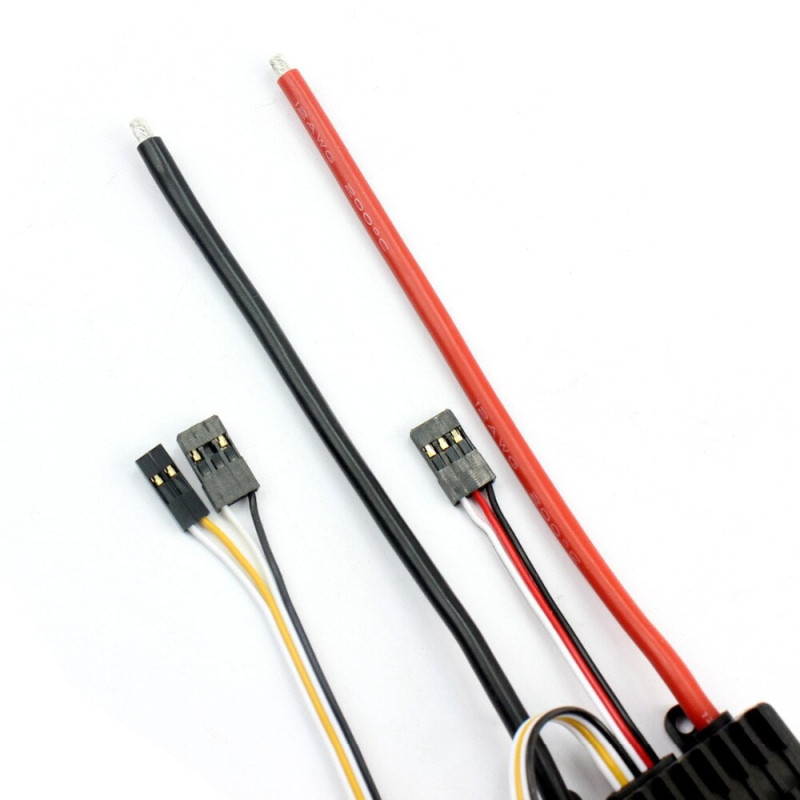

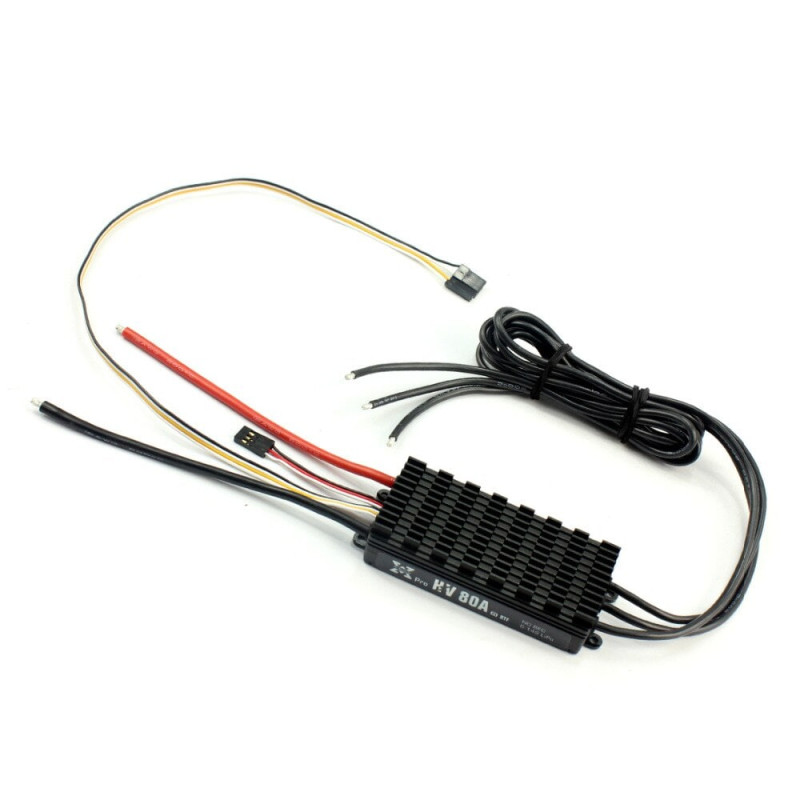

• Power Cable (red and black line): #12 silicone wire, 14 cm length
• Motor Line (3 black lines): #14 silicone wire, 95 cm length
• Signal Line (black and white line): 40 cm length
• Waterproof housing
• Model: XRotor Pro-80A-HV-RTF-V3
• Drive Mode: BLDC
• Parameter Programming Functions: Automatic Angle (High/Medium)
• Purpose: Electronic Speed Controller (ESC) for agricultural drone multicopters

This ESC from Hobbywing combines a high level of reliability with ease of integration into complex 6-14S power systems. Thanks to its wire configuration and sealed design, it is suitable for field applications where moisture protection and reliable motor connection are crucial. The XRotor Pro-80A-HV V3 model also features convenient lengths for power, motor, and signal cables for neat and safe installation.

When choosing a controller, pay attention to compatibility with selected motors, thrust parameters, and permissible battery voltage. The Hobbywing XRotor Pro 80A HV V3 is perfectly suited for large frames and professional agricultural drones where stable operation and electronics longevity are important.

Other characteristics and parameters are provided in the specification above; use this information for proper ESC selection in your project or when replacing components.
