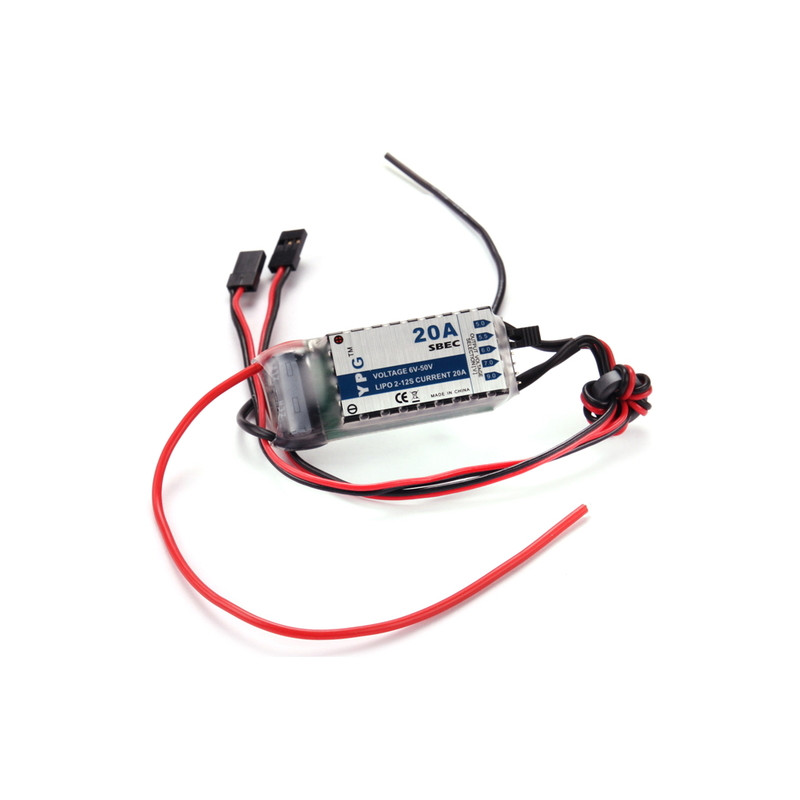

GARTT YPG 20A HV SBEC 2-12S Power Regulator

The professional switching power regulator GARTT YPG 20A HV SBEC 2-12S is a reliable and compact solution for models and drones that require stable power and output line redundancy. Manufacturer: GARTT. Category: Drones & Quadcopters > Stacks (FC+ESC). This module is designed for demanding projects where weight, dimensions, and electrical stability are critical.

Description and Purpose

The GARTT YPG 20A HV SBEC is a switching converter (SBEC) with two output lines for redundancy or load distribution between control equipment, servos, and other consumers. Compact dimensions of 45x26x8 mm and a weight of only 30 g allow easy integration of the module into most drone and model chassis without increasing their mass. Installation and setup do not require special tools: the output voltage is easily set with a jumper.

Key Features

• Wide power supply voltage range: 6 V to 50.4 V (2–12S), allowing operation with various battery types.
• Easy output voltage setting using a jumper — available values are 5 V, 5.5 V, 6 V, 7 V, 9 V.
• Nominal and peak output current up to 20 A, sufficient for powering controllers, servos, and additional modules.
• Two output lines for increased reliability: possibility of power redundancy or load distribution between different system blocks.
• Switching converter topology ensures efficient operation and minimal losses across a wide input voltage range.

Technical Specifications

Thanks to its two output lines, the GARTT YPG 20A HV SBEC allows for separate power lines for control equipment and servos, significantly reducing the risk of failure due to local overloads. The use of a jumper for output voltage selection makes setup quick and convenient, even in the field.

The regulator operates with an input voltage from 6 V to 50.4 V (2–12S), making it suitable for a wide range of battery configurations. The nominal and peak current of 20 A allows powering modern controllers, communication, telemetry modes, and actuators without the risk of voltage drop. Compact size and 30 g weight ensure easy integration into space-constrained designs, and the switching converter circuit guarantees efficiency and stable output voltage.

The GARTT YPG 20A HV SBEC 2-12S is ideal for both enthusiasts and professional developers who require a reliable, regulated, and compact power source with line redundancy. Use this module to enhance the power stability of your projects and reduce the risk of malfunctions in the field.
