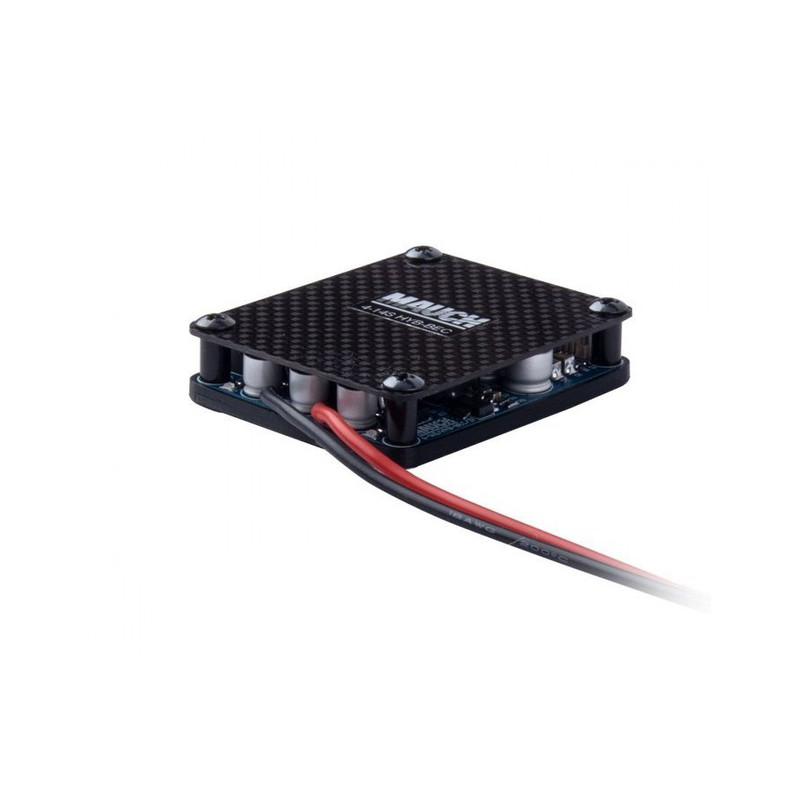

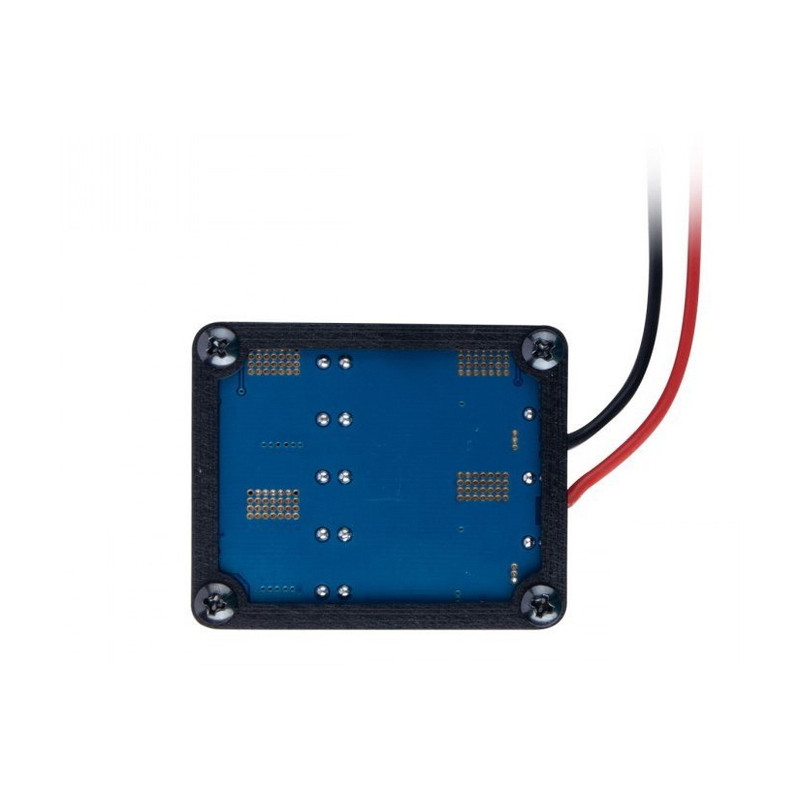

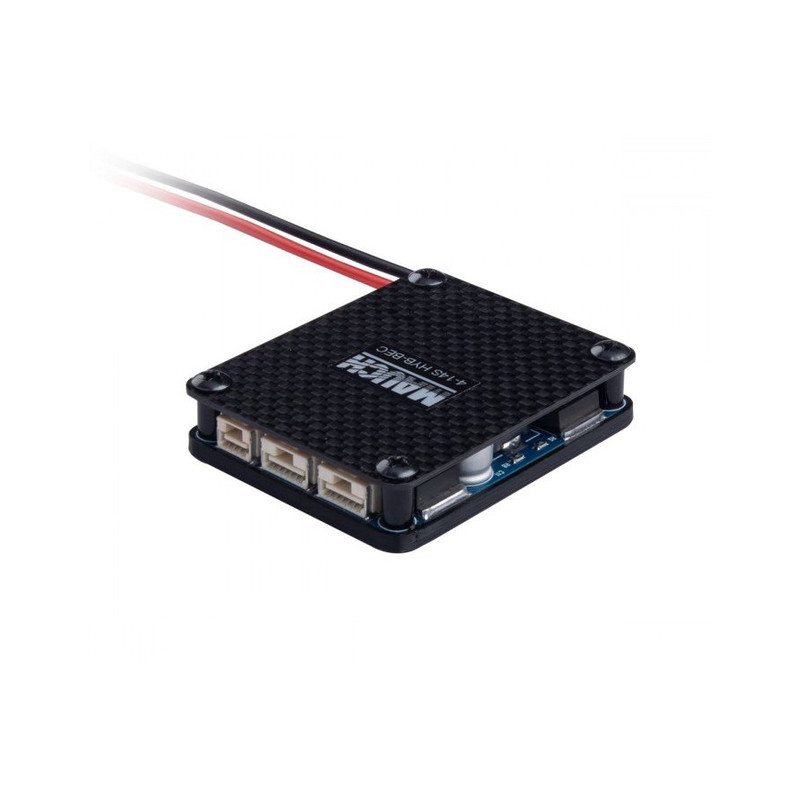

MAUCH PL 4-14S HYB-BEC 2x (2x5.3 V) Power Regulator

Manufacturer: MAUCH

Category: Drones & Quadcopters > Stacks (FC+ESC)

Key Features

• 1. Input Voltage from 4S to 14S: The module is designed to operate with power sources from 4S (16.8 V) to 14S (58.8 V), making it a versatile solution for various unmanned aerial vehicles.
• 2. Hybrid Stabilizer Type: The MAUCH PL 4-14S HYB-BEC features a hybrid structure that combines switching and linear voltage regulators (LDO) to ensure stable operation and minimal voltage drift.
• 3. Two Built-in Voltage Regulators: The module is equipped with two independent outputs, each generating a stable 5.3 V to power various onboard electronic components.
• 4. Maximum Current 5.3 V 3 A: Each output can provide up to 3 A of current, allowing connection of moderate to high-power consumers without the risk of overload.
• 5. Reverse Polarity Protection: Built-in protection prevents damage from accidental incorrect power supply connection.
• 6. Easy Installation and Compact Size: The device's housing allows for convenient integration of the regulator into the drone's design, simplifying mounting and maintenance.

Specifications

• Type: Hybrid (switching + linear LDO)
• Output Voltage (Output A): 5.3 V
• Output Voltage (Output B): 5.3 V
• Rated Current: 3 A per channel
• Peak Current: 3 A
• Input Voltage (in description): 4S to 14S (16.8 V – 58.8 V)
• Input Voltage (in specification): 12 – 60 V
• Dimensions: 59x48x13 mm
• Weight: 41 g

Package Contents

• Stabilizer – 1 pc
• Housing – 1 pc
• Sensor cable – 1 pc
• Control device connection cable – 1 pc

The MAUCH PL 4-14S HYB-BEC 2x (2x5.3 V) is a reliable choice for engineers and hobbyists who require stable power for onboard drone electronics. Thanks to the regulator's hybrid architecture, combining a switching converter and a linear LDO, it provides low noise and precise output voltage stabilization, which is critical for sensitive control and navigation systems. The presence of two independent 5.3 V channels allows simultaneous powering of multiple subsystems — for example, a flight controller and peripheral sensors or video transmitters. The housing and cable set ensure convenient integration and connection to the drone system, while the compact dimensions and low weight (41 g) minimize the impact on the overall mass of the aircraft. Built-in reverse polarity protection reduces risks during installation and maintenance. This module is well-suited for professional and semi-professional projects where reliability, resistance to input voltage fluctuations, and ease of installation are essential.
