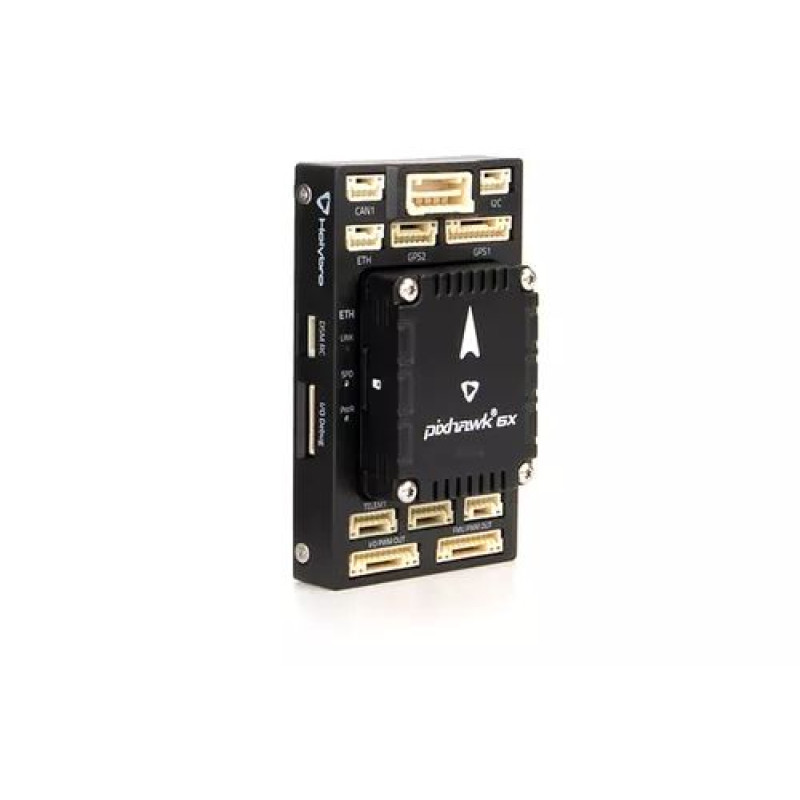

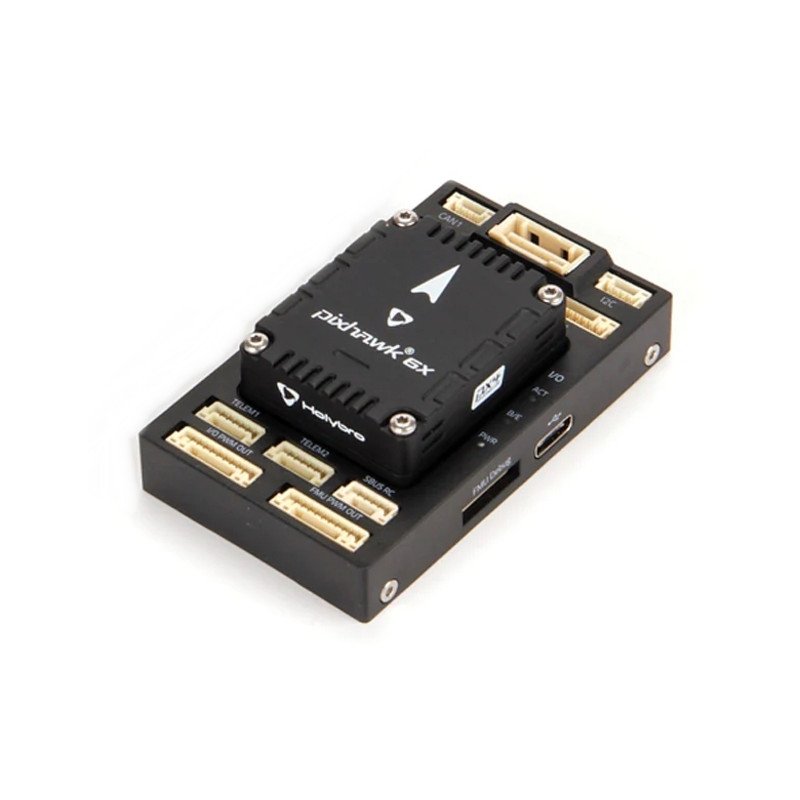

Holybro Pixhawk 6X Mini Set Flight Controller
The Pixhawk® 6X flight controller from HolyBro is an upgraded solution for creating autonomous aircraft and other vehicles. The device comes as a set (FC + baseboard) and is designed for integration into complex control systems thanks to its support for modern Pixhawk® FMUv6X and Pixhawk® Autopilot Bus Standards, and pre-installed PX4 Autopilot® software. The controller is developed for use in quadcopters, multirotors, vehicles, and other robotic platforms.
Key Advantages
- 1. Standard Support: Compatibility with Pixhawk® FMUv6X and Autopilot Bus Standard ensures flexible integration with additional modules and sensors.
- 2. Pre-installed PX4 Software: Ready for project development and testing immediately after connection, without additional software setup.
- 3. High-Performance Microcontroller: The basic description specifies the STMicroelectronics® STM32H753 microcontroller, guaranteeing fast computations and reliability in autopilot tasks.
- 4. Reliability and Versatility: Designed for various types of vehicles, it ensures accuracy and stable operation in complex conditions.
Please note: for the kit to function correctly, the FC module along with the baseboard is required. The FC module or baseboard alone will not work.
Technical Specifications
| SPECIFICATIONS | |
| OSD chip | Yes |
| Barometer | SPL06-001 (I2C) |
| Buzzer | No |
| Microcontroller | H7 Pixhawk® 6X |
| Purpose | For quadcopters |
| Features | New vibration isolation system for filtering high-frequency vibration and reducing noise to ensure reading accuracy |
| Cooling | Passive |
| Power supply | 5.2 |
| Ports/outputs | Ethernet, XT60, 6Pin Molex 2.0 mm |
| Type | Controller |
| Manufacturer | HolyBro |
| Country of manufacture | China |
| Size | 25 x 25 x10 mm |
| Weight | 100 g |
| Mounting | N/A |
| PACKAGE CONTENTS | |

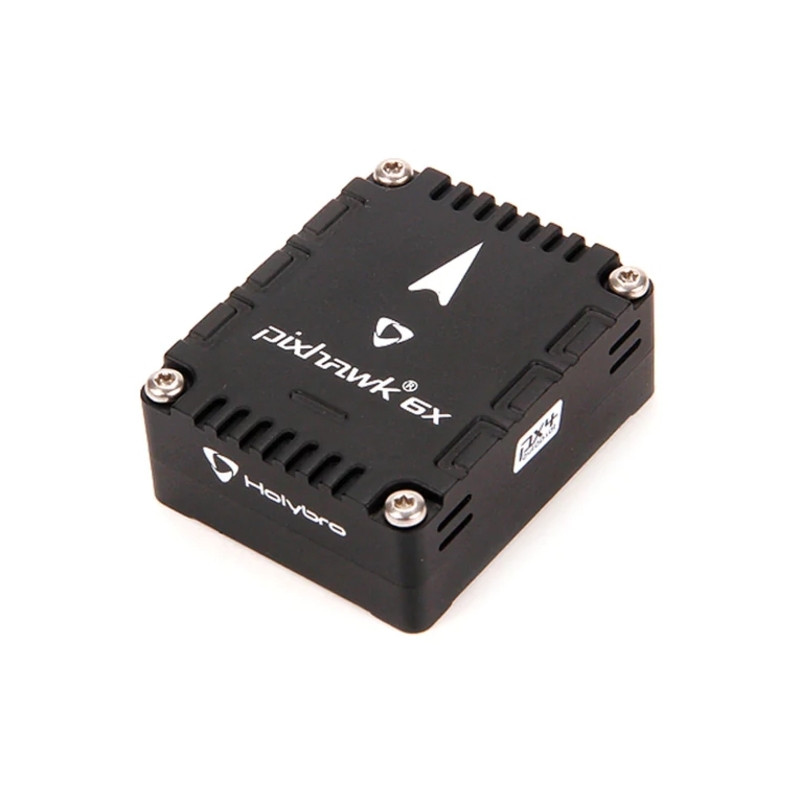

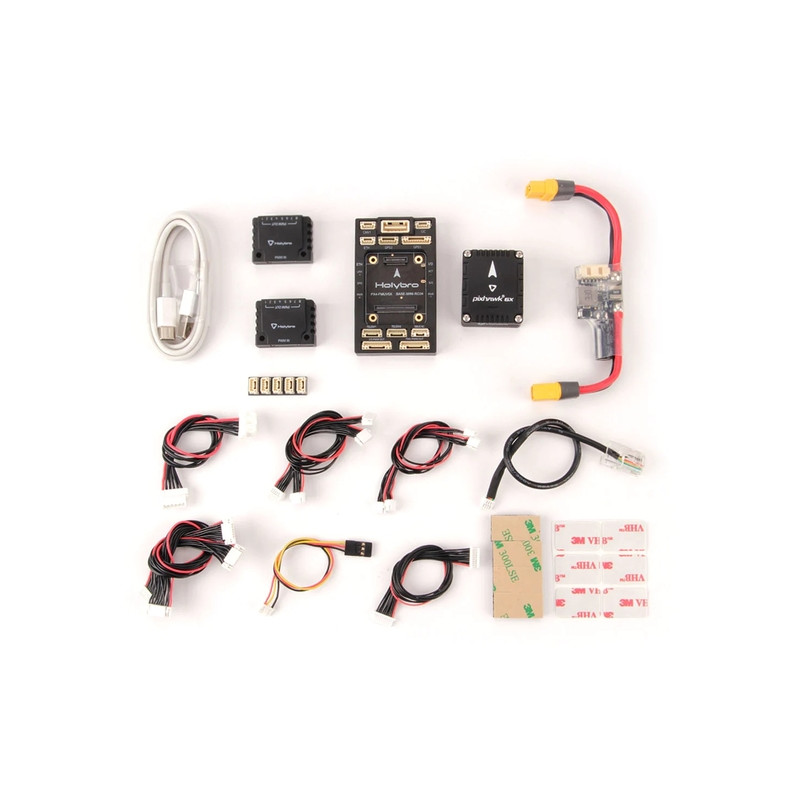

| The kit includes | Pixhawk 6X Flight Controller Module – 1 pc. Pixhawk Baseboard – 1 pc. PM02D Low Voltage Power Module – 1 pc. Cable set |
The Pixhawk® 6X Mini Set is suitable for both professional developers of autonomous systems and enthusiasts building their own drones. The combination of a high-performance STM32H753-based controller, pre-installed PX4 Autopilot®, and improved vibration isolation ensures accurate sensor readings and stable flight control. The presence of Ethernet, XT60 power, and standard Molex connectors makes integration simple and convenient.
If you are looking for a kit that provides a complete set for launching a project: flight controller, baseboard, and power module — the Pixhawk 6X Mini Set from HolyBro is an excellent choice.
