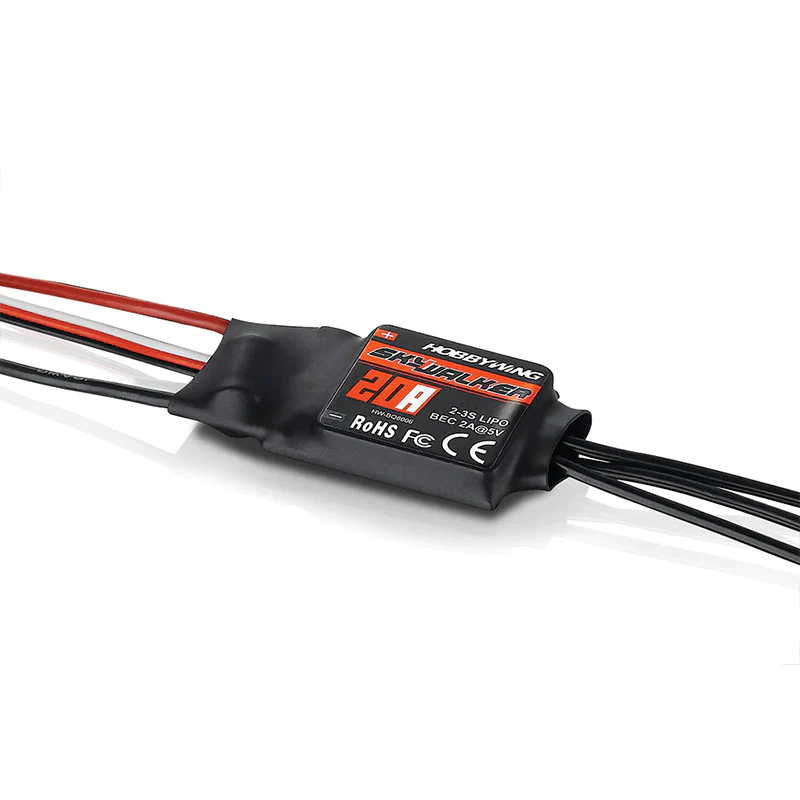

HOBBYWING SKYWALKER 20A V1 Speed Controller
Brand: Hobbywing. Category: Drones & Quadcopters > Stacks (FC+ESC).
The HOBBYWING SKYWALKER 20A V1 is a compact and reliable electronic speed controller (ESC) ideal for small and medium-sized RC models. Although this model belongs to a previous generation, it retains the basic set of functions essential for modelers: stable current supply, built-in BEC for powering the receiver and servos, protections, and programmability for specific tasks.
- Continuous Current: 20 Amperes — suitable for most light electric motors in small models.
- Peak Current: up to 25 Amperes in short-term mode, providing extra power reserve during acceleration.
- BEC: integrated Battery Eliminator Circuit with 5 V and 2 A output for powering model electronics.
- Input Voltage: compatible with 2S–3S LiPo batteries, offering flexibility in battery choice.
- Dimensions: approximately 42x25x8 mm, compact housing facilitates integration into the model's chassis.
- Weight: low weight, sufficient to maintain balance and minimize impact on the model's flight characteristics.
- Protections and Features: built-in overcurrent and overheat protection, support for braking function, and adjustable start mode for smooth and safe motor acceleration.
- Programming: controller parameters can be changed using a dedicated programmer or via software on a computer, allowing optimization for a specific model and control style.
Below are structured technical specifications for quick reference:
| Parameter | Value |
|---|---|
| Continuous Current | 20 A |
| Peak Current | 25 A |
| BEC | 5 V / 2 A |
| Input Voltage | 2S–3S LiPo |
| Dimensions | ≈ 42 × 25 × 8 mm |
| Weight | low (compact housing) |
| Protections | overcurrent, overheat |
| Functions | braking, adjustable start, programmable parameters |
The SKYWALKER 20A V1 is a useful choice for those working with older models or seeking a budget-friendly ESC for experimental projects and learning. Its compact size and well-designed protections allow for easy integration into the fuselage or chassis without major structural changes. The ability to fine-tune parameters via a programmer ensures adaptation to various motor types and flight styles.
Please note that this model belongs to earlier versions of the product line, so when selecting, consider the power and characteristics of your motor and battery to avoid overloading. For stable operation, it is recommended to adhere to the specified current and voltage limits, and to monitor temperature under load.
