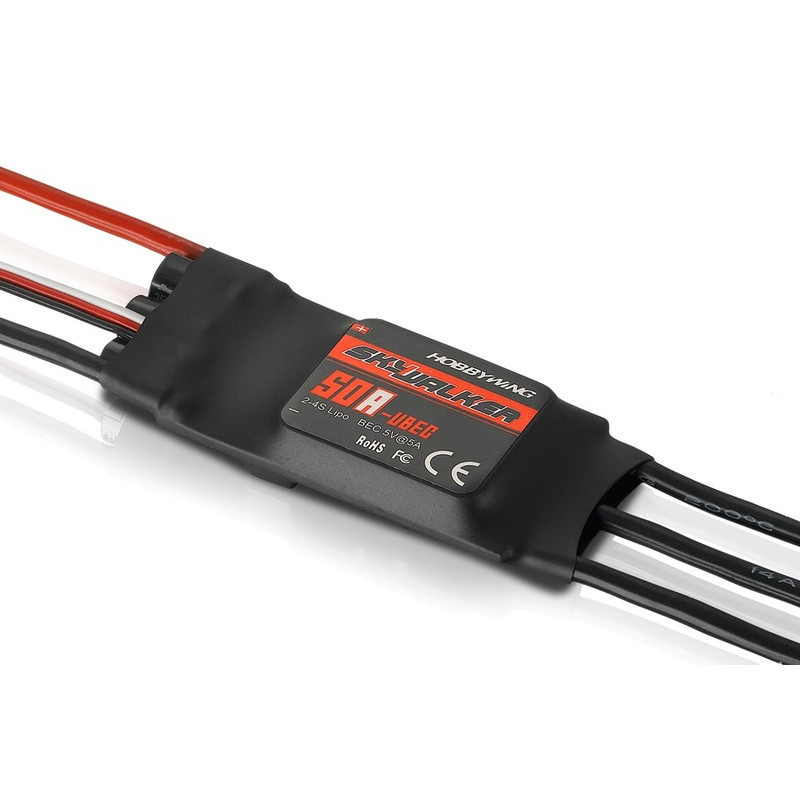

Speed Controller HOBBYWING SKYWALKER 50A V2 (Hobbywing brand)

Introducing the compact and reliable speed controller for radio-controlled devices — HOBBYWING SKYWALKER 50A V2. This ESC is designed by Hobbywing for medium-sized models: RC aircraft, quadcopters, and other electric models where stable current supply and efficient servo power are required. The SKYWALKER 50A V2 combines high performance with advanced protections and the ability for fine programming for specific tasks.

Key Advantages

• 1. Max continuous current: up to 50 Amps — optimal for medium motors.
• 2. Peak current: 65 Amps (up to 10 seconds) for short-term peak loads.
• 3. Flexible power supply: supports 2S to 4S LiPo batteries or 5 to 12 NiMH cells.
• 4. Built-in BEC: 5V / 5A switching BEC for powering the receiver and servos without additional converters.
• 5. Compact dimensions: 65 x 25 x 12 mm for easy mounting in the model chassis.
• 6. Low weight: 43 grams, minimally affecting the overall weight of the device.
• 7. Protections and functions: overcurrent protection, overheat protection, braking function, and adjustable start mode.
• 8. Programming: configurable via programmer or PC software for fine-tuning ESC behavior — from smooth start to aggressive acceleration.

Technical Specifications

The SKYWALKER 50A V2 controller supports a wide range of operating modes, allowing you to select the optimal battery for a specific configuration: from 2S to 4S LiPo or 5-12 NiMH. The built-in 5V / 5A switching BEC provides stable power to the receiver and servos without the need for additional power sources, simplifying the model's electrical circuit.

With dimensions of 65 x 25 x 12 mm and a weight of 43 grams, the controller is easy to integrate into the chassis of aircraft and models with limited space. Reliable overcurrent and overheat protections enhance operational safety, while the braking function and adjustable start mode allow you to adapt the ESC's behavior to your piloting style and design requirements.

The device's programmability via a programmer or PC software provides access to key parameter settings: start smoothness, braking modes, protection thresholds, and other parameters, allowing the controller to be adapted for specific tasks — from calm training flights to aggressive maneuvers.

Package contents: one SKYWALKER 50A V2 speed controller. Other accessories and cables are not included. Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts. Brand: Hobbywing.
