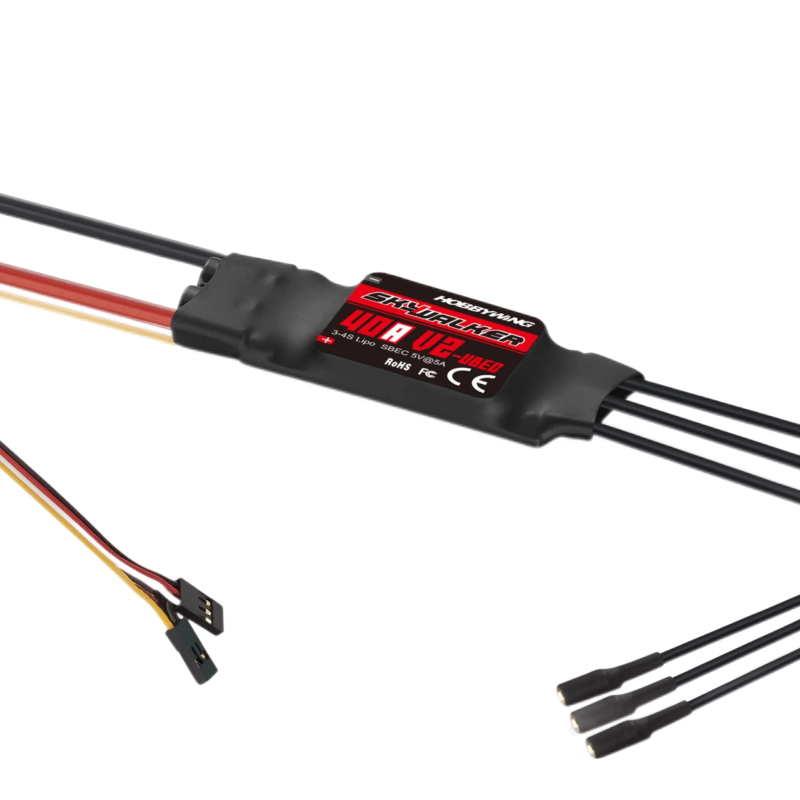

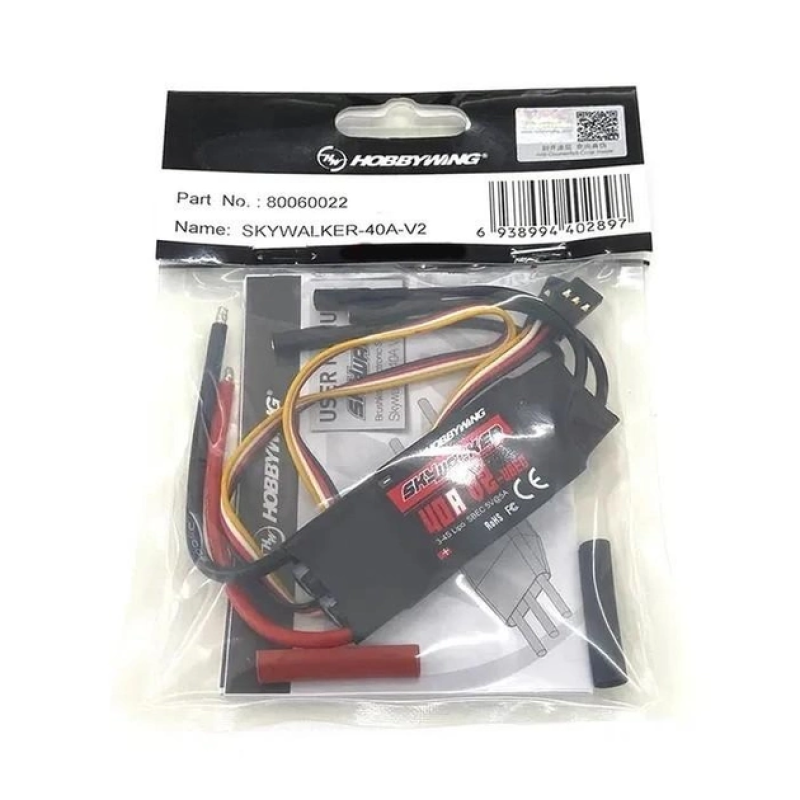

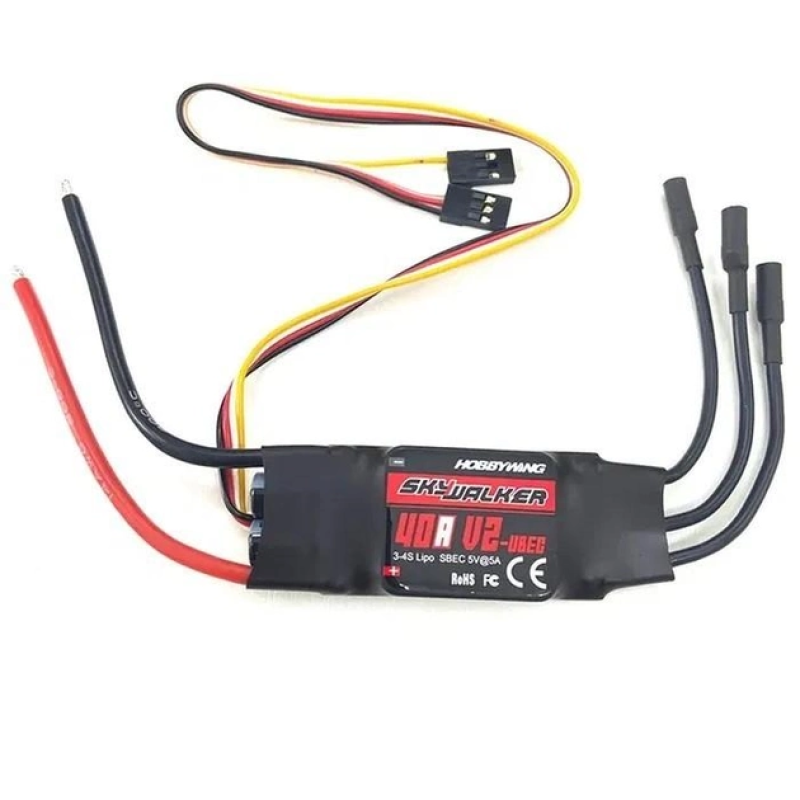

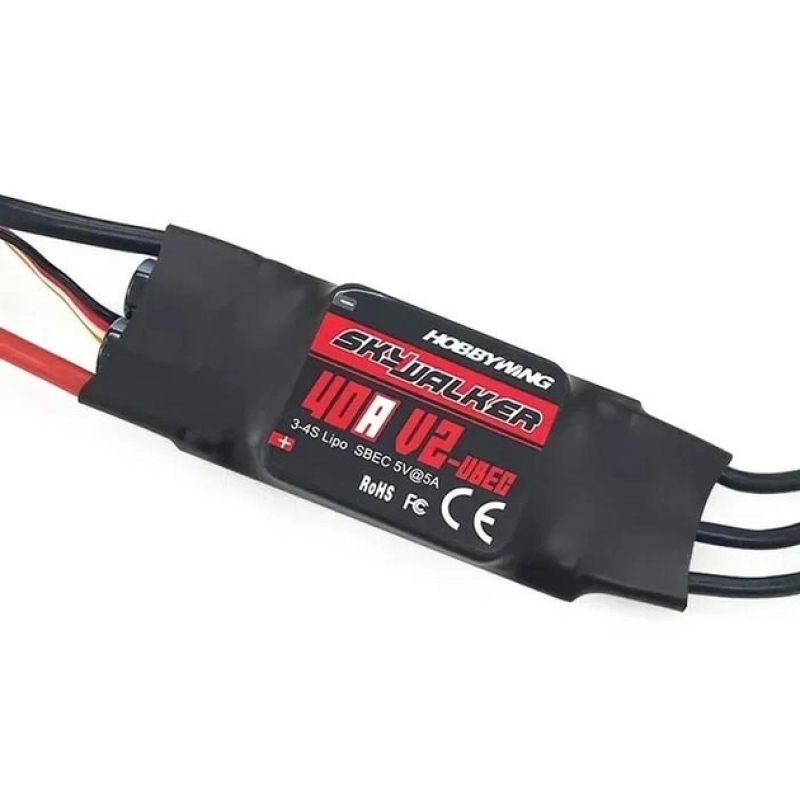

HOBBYWING SKYWALKER 40A V2 ESC

The HOBBYWING SKYWALKER 40A V2 is a reliable and powerful electronic speed controller (ESC) designed for medium-sized RC models such as airplanes and helicopters. This module ensures stable operation of the electric motor and includes a range of protections and settings to guarantee the safety and optimal performance of your model during flight.

Key Features and Capabilities

• 1. Maximum Current: The SKYWALKER 40A V2 can handle a continuous current of up to 40A, making it suitable for many medium-sized RC aircraft.
• 2. Power Supply Voltage: Supports 2S to 4S LiPo batteries (according to specifications), providing flexibility in choosing a power source for your model.
• 3. BEC (Battery Eliminator Circuit): Built-in BEC with an output voltage of 5.5V and a current of 3A for reliable power to the receiver and servos without additional power sources.
• 4. Size and Weight: Compact dimensions of approximately 68x25x8 mm and light weight, facilitating installation in the fuselage without significant additional bulk.
• 5. Protections and Functions: Features overcurrent protection, overheat protection, and other protective mechanisms; supports braking and a configurable start mode for smooth and controlled acceleration of the electric motor.
• 6. Programmable Parameters: Ability to program controller parameters using a dedicated programmer or software on a computer for precise tuning to specific model requirements.

The SKYWALKER 40A V2 is designed for pilots who need a combination of compactness, power, and reliability. Thanks to its high-quality circuitry and built-in 5.5V/3A BEC, this ESC eliminates the need for extra power sources for the receiver and servos, which is especially valuable in light and medium-sized models.

Advanced protective features reduce the risk of damage under high loads: overcurrent protection, overheat protection, and other safety measures ensure stable operation during intensive use. The braking function and configurable start allow for smooth control of the initial motor torque, which is important for control and safety during maneuvers.

Programming parameters allow you to adapt the throttle curve, sensitivity, braking modes, and other parameters to a specific motor and flight characteristics. For best results, it is recommended to use original or recommended cables and connectors, and to ensure proper cooling and correct mounting inside the model.

Manufacturer: Hobbywing

Category: Drones & Quadcopters > Stacks (FC+ESC)

Product ID: 11536
