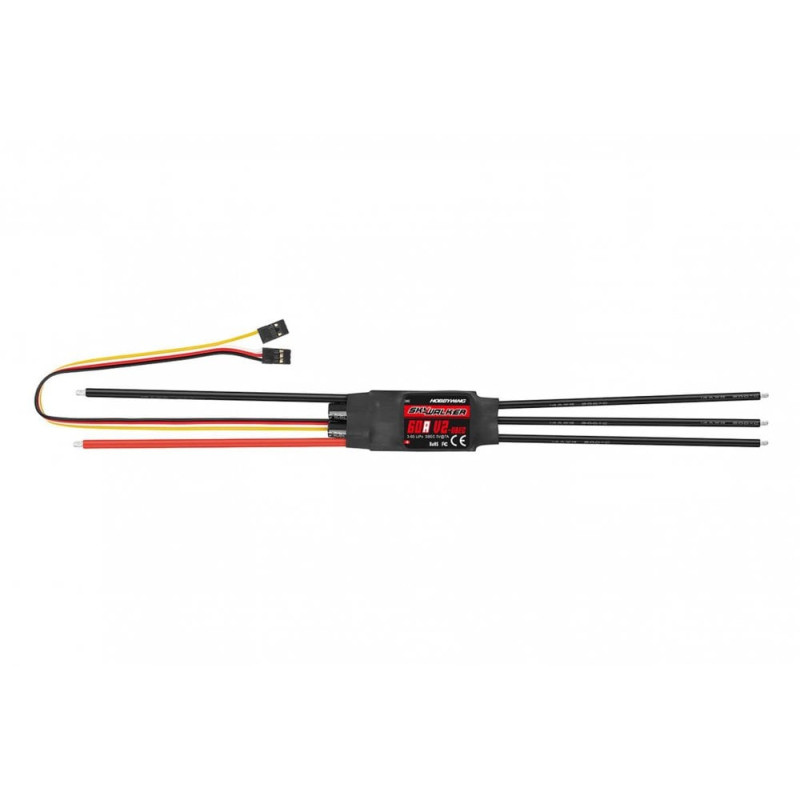

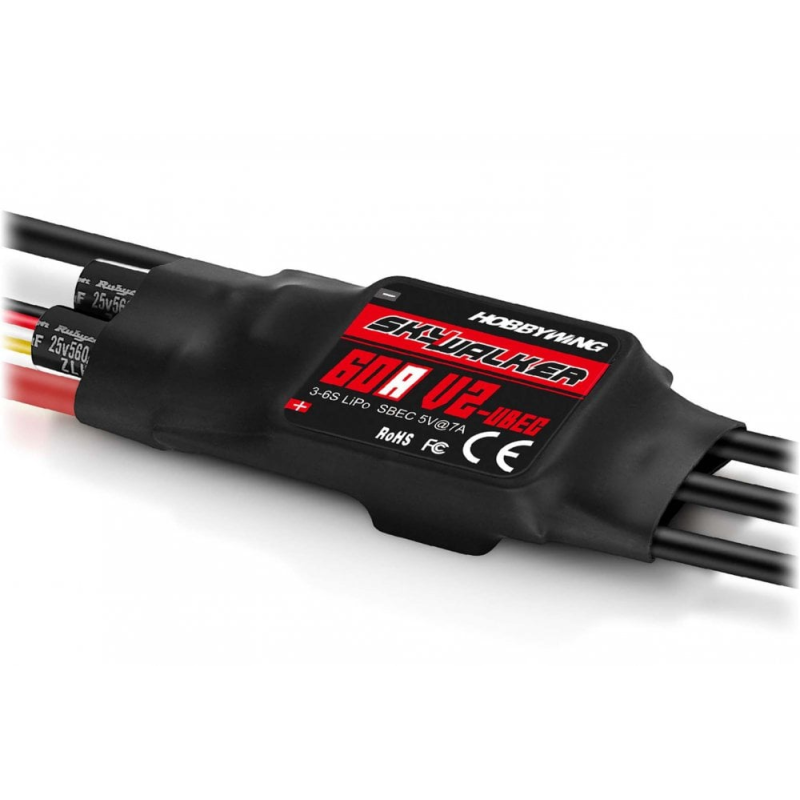

Hobbywing Skywalker 60A V2 ESC
The HOBBYWING Skywalker 60A V2 ESC is a reliable and compact brushless motor controller designed for use in drones and other radio-controlled models. This ESC from Hobbywing is intended for powering and precisely controlling motor speed when working with LiPo batteries ranging from 3S to 6S. The Skywalker 60A V2 combines high current output, a built-in stabilized UBEC, and convenient programming via a transmitter or LED program box.
The device features high load resistance: the continuous current is 60 A, and the peak current is up to 80 A, allowing it to be used on medium and heavy-category models. The built-in switching BEC provides stable power for electronics: 5 V at up to 5 A, which is sufficient to power the flight controller, receiver, and other auxiliary modules.
The Skywalker 60A V2 has high-quality power wires: 12AWG input wires 100 mm long and 14AWG output wires 75 mm long, ensuring minimal energy loss and reliable connections. The ESC dimensions are 73x30x12 mm, and its weight is only 68 g, making installation simple and compatible with most chassis and frames. Output connectors are not included (specified: absent).
Advantages and Applications
This ESC is suitable for both amateur and semi-professional projects: it guarantees stable motor speed control, reliable overload protection, and ease of setup. Although the device does not support firmware updates, its reliability and ready-made factory settings make it an excellent choice for those who value stable operation without additional firmware manipulations.
Specifications
| Parameter | Value |
|---|---|
| Model | Skywalker 60A V2 |
| Brand | Hobbywing |
| Product Type | Drones & Quadcopters > Stacks (FC+ESC) |
| Continuous Current | 60 A |
| Peak Current | 80 A |
| Input Voltage (LiPo) | 3-6S |
| BEC Output | 5 V @ 5 A (Switch Mode) |
| Dimensions | 73x30x12 mm |
| Weight | 68 g |
| Input Wires | 12AWG — 100 mm |
| Output Wires | 14AWG — 75 mm |
| Output Connectors | Absent |
| Programming | Via transmitter or LED program box |
| Firmware Update | Not supported |
| Additional Information | Designed for brushless motors, provides stable control and overload protection |
| Image (file/caption) | ../image/catalog/description/wp-content-uploads-2023-07-653bb9b55b3ff733Skywalker_UBEC_V2_Body.png — 653bb9b55b3ff733Skywalker UBEC V2 Body |
Package Contents
- Hobbywing Skywalker 60A V2 — 1 pc.
- Skywalker 60A V2 UBEC 3-6S ESC (integrated)
In summary, the Hobbywing Skywalker 60A V2 ESC is a compact, well-designed ESC with a high current rating, built-in switching BEC, and flexible programming options. It will be an optimal choice for users who need reliable motor control without the need for firmware updates and complex technical settings.
