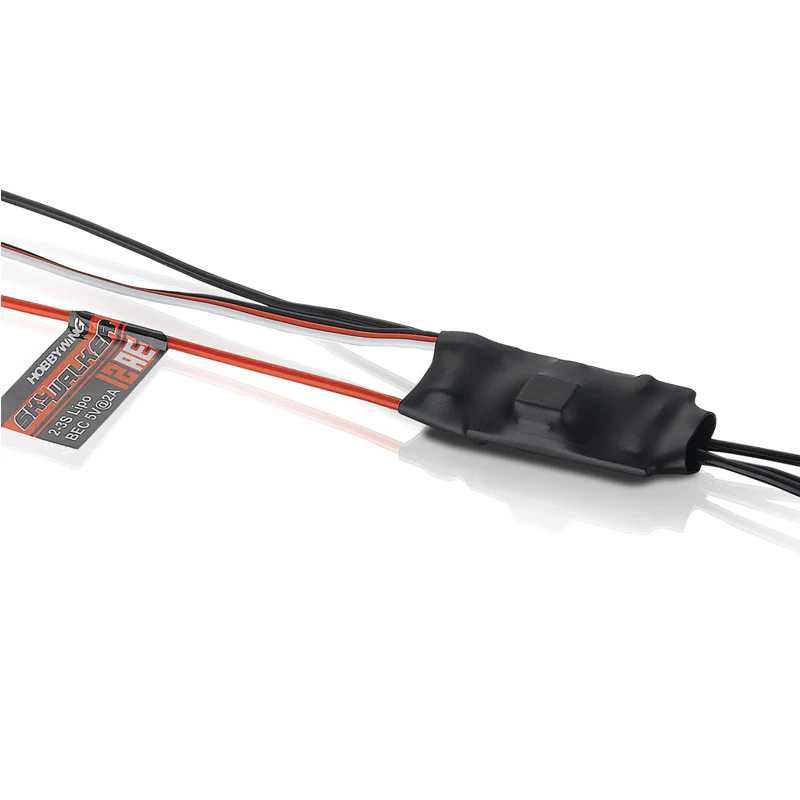

HOBBYWING SKYWALKER 12AE v1 Speed Controller

Manufacturer: Hobbywing

Category: Drones & Quadcopters > Stacks (FC+ESC)

The HOBBYWING SKYWALKER 12AE V1 is a compact and reliable electronic speed controller (ESC) designed specifically for small and medium-sized RC models, including multi-rotors and light aircraft. This ESC combines ease of installation, a basic set of protections, and the ability to fine-tune it for specific model requirements. It is suitable for users seeking a balance between power and compactness in electric motor power supply.

Key Features

• 1. Continuous Current: 12 Amps — ensures stable operation under continuous load, making it suitable for small and medium models.
• 2. Peak Current: up to 20 Amps in peak mode — useful for short bursts of acceleration and high loads during startup or maneuvers.
• 3. BEC (Battery Eliminator Circuit): built-in BEC with 5V output and 1A current for powering the receiver and auxiliary electronics.
• 4. Input Voltage: compatible with 2S to 3S LiPo batteries, providing necessary flexibility in power source selection.
• 5. Protections and Features: built-in overcurrent and overheat protection; supports braking function and adjustable startup mode for smooth and safe motor acceleration.
• 6. Programmable Parameters: configurable via a dedicated programmer or computer software to tailor characteristics to a specific model and flight style.

This SKYWALKER 12AE V1 controller from Hobbywing is ideally suited for enthusiasts and beginners who need a reliable ESC with basic protections and fine-tuning capabilities. The built-in BEC allows power to be supplied to the receiver and servos without additional modules, and 2S-3S LiPo support makes the device versatile for a wide range of models. A peak current of up to 20A ensures short-term power during intense maneuvers, while the braking and startup modes provide controlled motor response.

Usage recommendations: use this ESC in light and medium multi-rotors and airplanes with appropriate motors; before operation, ensure compatibility of motors and batteries in terms of current and voltage; if necessary, program parameters for optimal performance.

All provided data corresponds to the original technical description of the device: continuous current 12 A, peak current 20 A, BEC 5 V / 1 A, 2S-3S LiPo support, overload and overheat protection, braking function, startup mode, programmable via a dedicated programmer or computer software.
