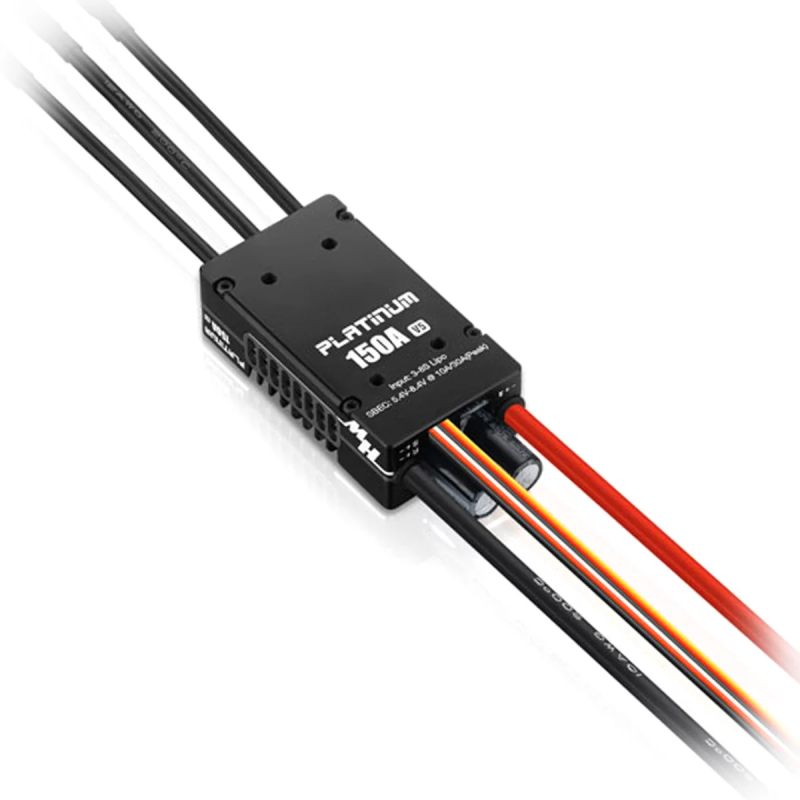

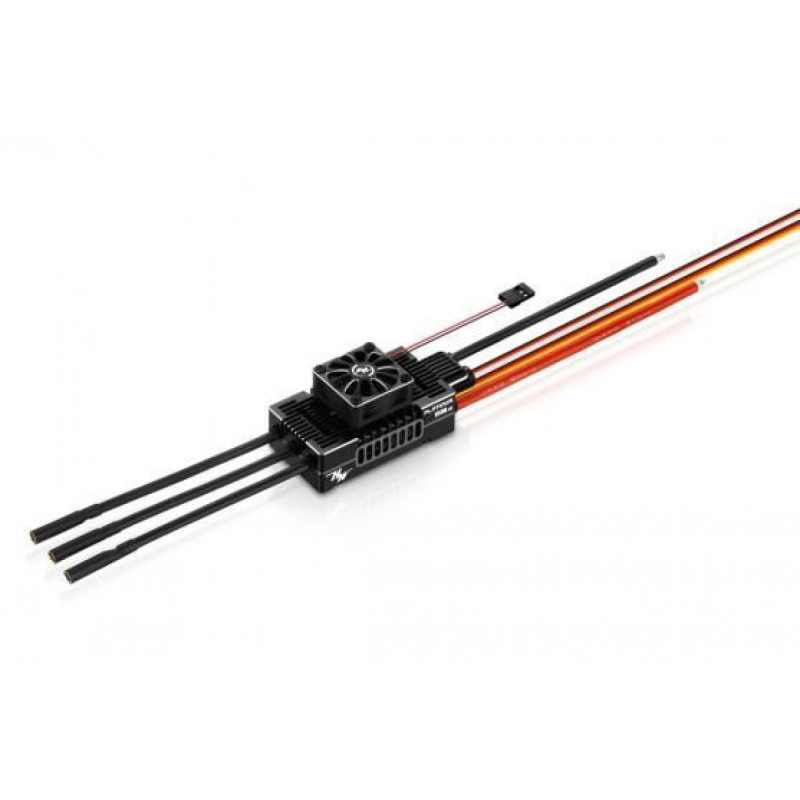

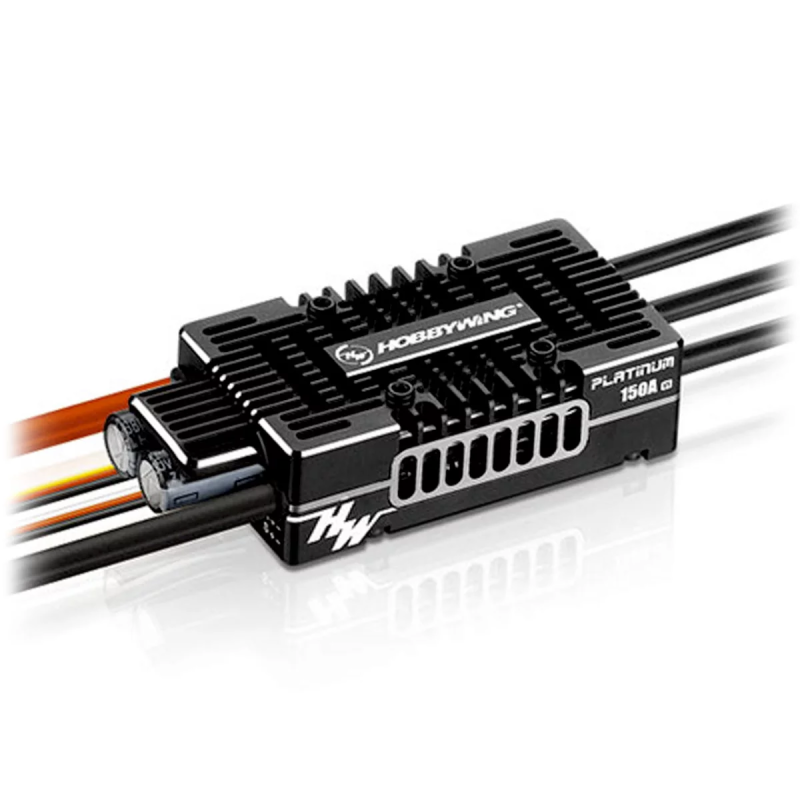

Hobbywing Platinum 150A V5 ESC

Manufacturer: Hobbywing
Category: Drones & Quadcopters > Stacks (FC+ESC)

Product Description: The Hobbywing Platinum 150A V5 ESC is a powerful and reliable electronic speed controller for brushless motors, designed for a wide range of aircraft and helicopter models. It combines high-quality components, a modern 32-bit 72MHz microprocessor, and advanced safety and customization features, making it an optimal choice for enthusiasts and professionals.

• Max continuous current: 150 Amps.
• Max burst current (10 seconds): 180 Amps.
• Input voltage: 3-8S LiPo batteries.
• BEC (Battery Eliminator Circuit): Switch mode 5-8 Volts, 10 Amps.
• Motor type: Brushless.
• Dimensions: 83x37x21 mm.
• Weight without cables: 140 grams.

Features

• Suitable for all brushless electric motors.

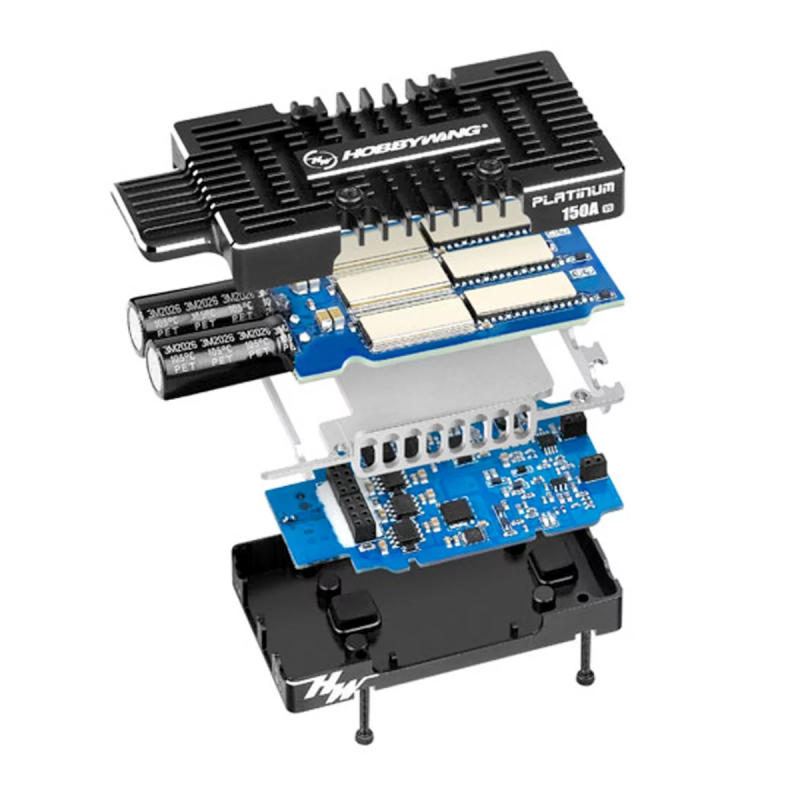

• High-quality components used for increased efficiency and extended ESC lifespan.
• 72MHz 32-bit microprocessor ensures precise signal processing and stable operation under load.
• Supports multiple flight modes: fixed-wing aircraft, helicopter with governor off, helicopter with governor (Elf), and helicopter with governor Store.
• Three start-up types: normal, soft, and super soft — for comfortable aircraft and helicopter launches.
• Microprocessor powered by a separate DC regulator to reduce the risk of control loss.
• High-power adjustable BEC: 5V–8V, 10A continuous current, 25A peak current.
• New governor program for improved stability under any load.
• Autorotation restart function — allows manual motor shutdown during autorotation and subsequent restart.
• Separate port for RPM signal output.
• Separate port for connecting a program box and setting parameters, which can also be used as a port for real-time ESC data logging.
• Multiple protection types: LiPo cutoff, overheat protection, emergency braking based on motor RPM.
• 8 steps of timing adjustment for various electric motors.
• Easily programmable with a programming card.
• Supports firmware updates via USB using the Multifunction LCD Program Box (sold separately).
• Ability to connect and configure via Wi-Fi module (sold separately).

Package Contents

• Platinum 150A V5 ESC.

Application: Ideal for sport and scale models requiring reliable power delivery and advanced customization options. Support for a wide range of 3-8S LiPo batteries and a powerful BEC make this ESC a versatile solution for models with high power demands.

The Hobbywing Platinum 150A V5 ESC combines high performance, thoughtful protections, and flexible customization options, ensuring stable and safe operation.
