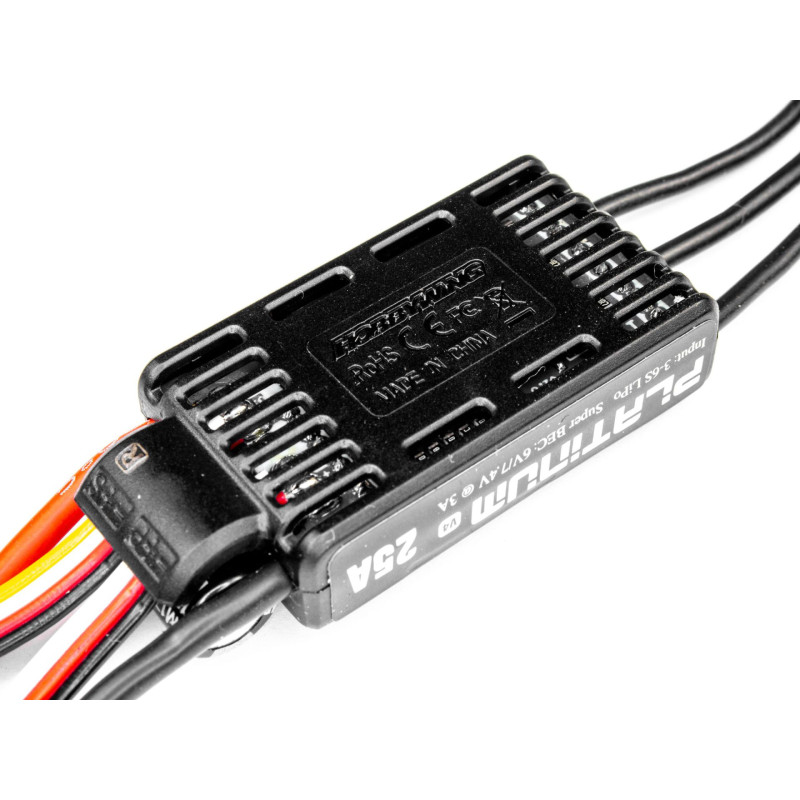

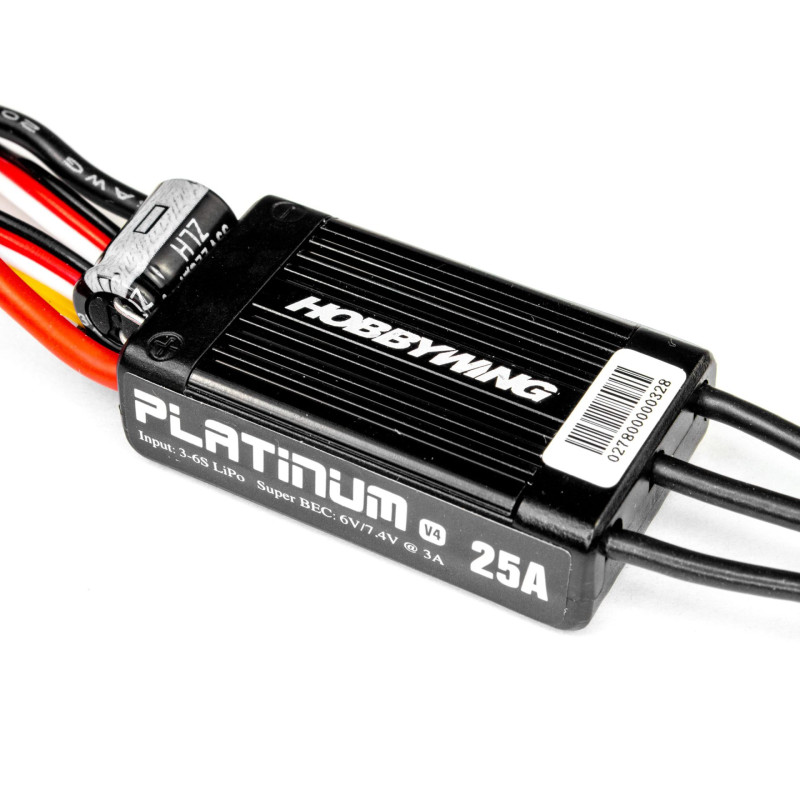

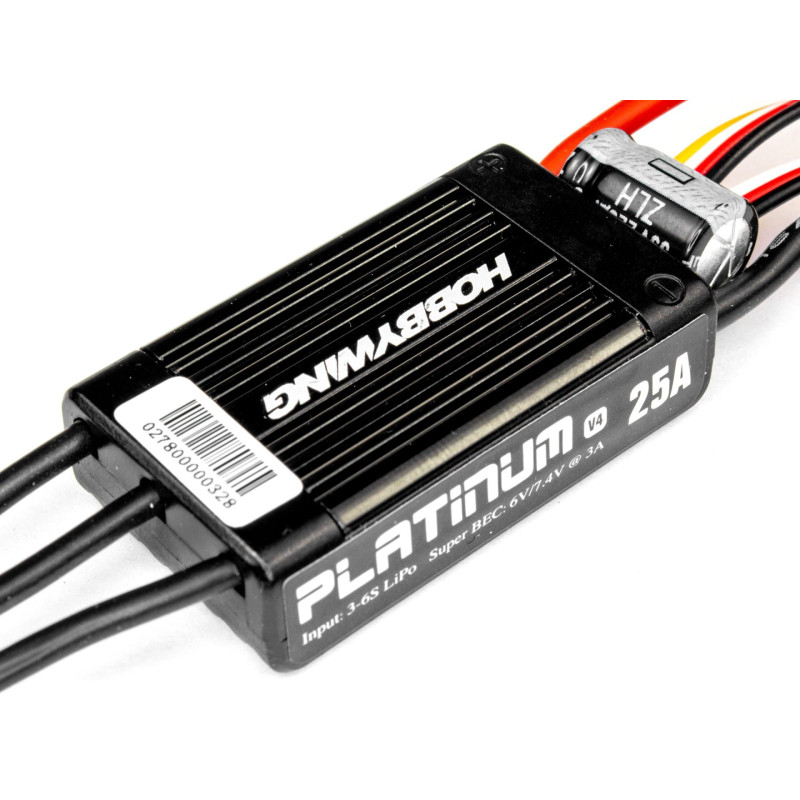

Hobbywing Platinum 25A V4 ESC

The Hobbywing Platinum 25A V4 is a reliable brushless electronic speed controller (ESC) from the Hobbywing brand, designed for radio-controlled models: airplanes, helicopters, other flying apparatus, and drones. This module is ideal for mid-range models requiring precise and stable power transmission from the battery to the brushless motor.

Key Features

1. 25A Power: The Platinum 25A V4 provides a continuous current of 25A, making it suitable for many medium-sized models.
2. Operating Voltage: The description indicates compatibility with 2S to 6S LiPo or 6 to 17 Volts; the technical specifications also state 11.1-22.2 Volts (3-6S Li-Po). Both values are provided in the original specification.
3. Brushless Design: Utilizes brushless technology for increased efficiency and durability.
4. Built-in BEC: Features a programmable switching BEC, providing 6 Volts / 3 Amps or 7.4 Volts / 3 Amps (7 Amps peak current), ensuring power to the receiver and servos.
5. Programming Parameters: Supports settings for braking, braking time, soft start, and other parameters for optimal adjustment to your model.

Technical Specifications

• Power Supply Voltage: 11.1-22.2 Volts (3-6S Li-Po). The primary description also mentions compatibility with 2S-6S or 6-17 Volts.
• Maximum Continuous Current: 25 Amps.
• Maximum Burst Current: 40 Amps (10 seconds).
• BEC (Battery Eliminator Circuit): Switching, 6 Volts / 3 Amps or 7.4 Volts / 3 Amps (7 Amps peak current), programmable switching.
• Generation: V4.
• Programming Capability: Programmer, USB adapter, Wi-Fi module.
• Connectors:
  • For motor connection (3.5 mm female connector) – 3 pieces.
  • For programming card connection – 1 piece.
  • For receiver connection – 1 piece.
  • For brake connection (yellow connector) – 1 piece.
• Dimensions: 47x22x10 mm.
• Weight: 27 grams.
• Manufacturer Code: 30204200.

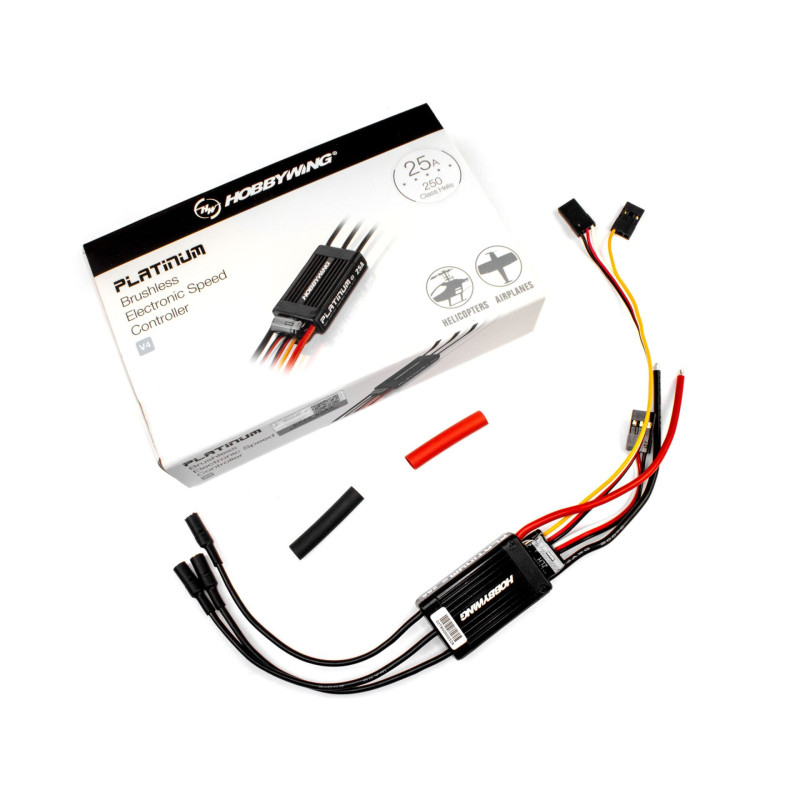

Package Contents

• Hobbywing Platinum 25A V4 Brushless ESC – 1 piece.

This ESC will be a good choice for those seeking a compact and lightweight controller with extensive programming capabilities and a switching BEC. The Platinum 25A V4 combines reliability, ease of integration, and compatibility with various battery and motor configurations. Before installation, pay attention to the battery voltage matching the stated ranges (both 2S-6S and 3S-6S are mentioned in the description), as well as the thermal regime during prolonged operation closer to the current limit.

Programming support via USB adapter, programmer, or Wi-Fi allows flexible ESC configuration to your requirements, and the set of connectors ensures convenient connection of the motor, programming card, receiver, and braking function.
