Hobbywing Platinum 40A V4 ESC
Hobbywing Platinum 40A V4 is a high-quality brushless electronic speed controller (ESC) from Hobbywing, designed to control electric motors in models of various sizes. This ESC combines compact dimensions, reliable electronics, and flexible configuration options, making it an excellent choice for RC aircraft and other models.
Key Features
- 1. Power: The 40A version (60A maximum burst current) ensures stable operation of brushless motors.
- 2. Battery Compatibility: Supports LiPo/LiFe, operating voltage according to technical data — 11.1-14.8 V (3-4S Li-Po).
- 3. BEC: Built-in switching BEC with programmable output voltages of 5V/7A, 6V/7A, 7.4V/7A, 8V/7A (18A peak current).
- 4. Programmability: A full set of settings — braking, braking time, soft start, airplane or helicopter modes, etc.
- 5. Programming Methods: Supports programmer, USB adapter, or Wi-Fi module for convenient setup.
- 6. Dimensions and Weight: Compact form factor of 48x30x15 mm with a weight of 50 g.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 11.1-14.8 Volts (3-4S Li-Po) |
| Max Continuous Current | 40 Amperes |
| Max Burst Current | 60 Amperes (10 seconds) |
| BEC | Switching, voltage options 5 V / 7 A, 6 V / 7 A, 7.4 V / 7 A, 8 V / 7 A (18 A peak current), programmable |
| Generation | V4 |
| Programming Capability | Programmer, USB adapter, Wi-Fi module |
| Connectors | For motor connection (3.5 mm female connector) – 3 pcs; for programming card connection – 1 pc; for receiver connection – 1 pc; for brake connection (yellow connector) – 1 pc. |
| Dimensions | 48x30x15 mm |
| Weight | 50 g |
| Manufacturer Code | 30215001 |
Purpose and Compatibility
The controller is designed to manage brushless electric motors in RC models — airplanes, helicopters, drones, and other devices using 3-4S Li-Po batteries. With 40A power and a 60A peak burst current, it is suitable for mid-range models where reliability and precise motor speed control are important.

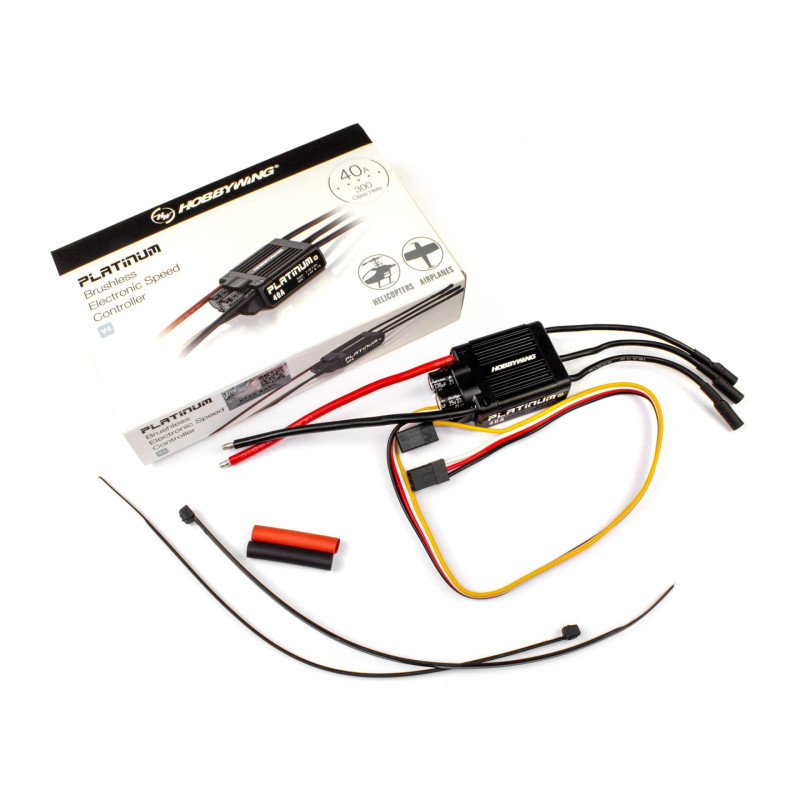

Package Contents
- Hobbywing Platinum 40A V4 Brushless ESC – 1 pc.
This Hobbywing ESC combines functionality (configurable BEC, multi-variant modes and programming methods), compact size, and the well-known manufacturer code 30215001, which facilitates identification and compatibility when selecting components. If you need a reliable controller for upgrading or building a model — the Platinum 40A V4 will be an excellent choice.
