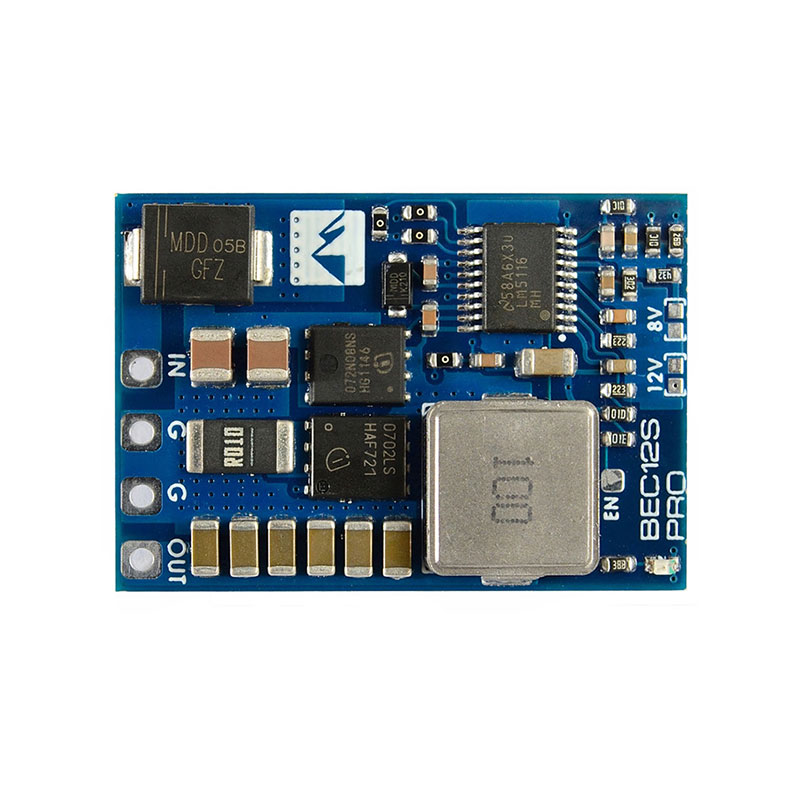

Matek BEC12S-PRO — Professional High-Voltage Power Regulator for UAVs
Matek BEC12S-PRO is a highly reliable DC-DC converter for powering drone onboard electronics up to 12S LiPo (50.4V). The module is designed for FPV platforms, industrial multicopters, and autonomous robotic systems that require stable, clean, and overload-protected voltage.
The BEC supports three fixed output options: 5.2V, 8V, or 12V, which can be selected for specific tasks — powering flight controllers, servos, video transmitters, amplifiers, and other electronics. With an efficiency of 88–96%, the module minimizes heat and losses, ensuring long-term stable operation.
Built-in protections include TVS protection, overload protection, short-circuit protection, overheat protection, and automatic recovery after critical conditions. The materials and component base meet high reliability requirements for RC modeling and industrial systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | High-voltage synchronous DC-DC step-down (buck) |
| Supported Input Voltage | 9–55 V (3–12S LiPo) |
| Input Protection | TVS (absorbs transient overvoltages) |

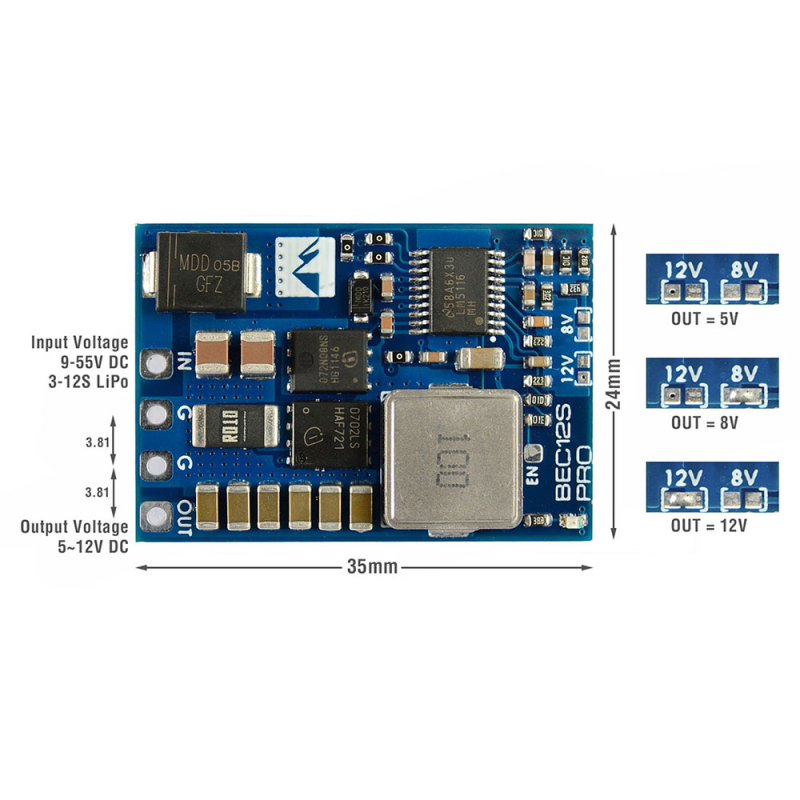

| Output Voltages | 5.2V / 8V / 12V (default 5.2V) |
| Maximum Output Current | 5 A (continuous) |
| Peak Current | 9 A |
| Efficiency | 88–96% |
| Output Ripple | 30 mV (5.2V @ 5A, VIN=50V) / 60 mV (12V @ 5A, VIN=50V) |
| Standby Current Consumption | 5–10 mA |
| Reverse Polarity Protection | None |
| Dropout Voltage | 2V (stable 12V requires input ≥ 14V) |
| Thermal Protection | Yes |
| Short-Circuit Protection | Up to 2 seconds, with auto-recovery |
| Overload Protection | Yes, with auto-recovery |
| Pin Pitch | 3.81 mm |
| Dimensions | 35 × 24 × 5.5 mm |
| Weight | 5 g |
| Packaging | 1 pc. |
