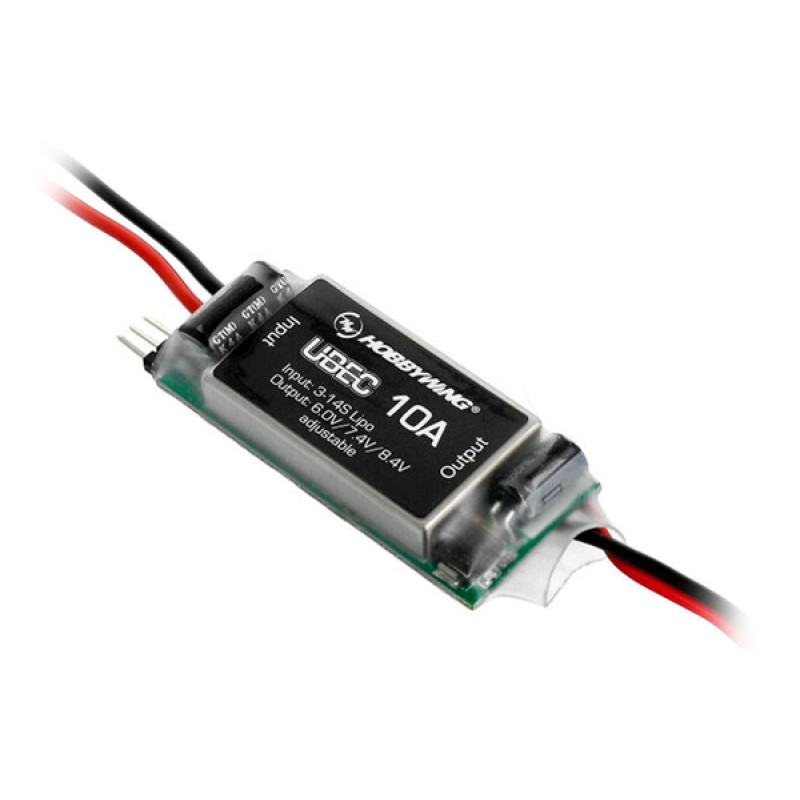

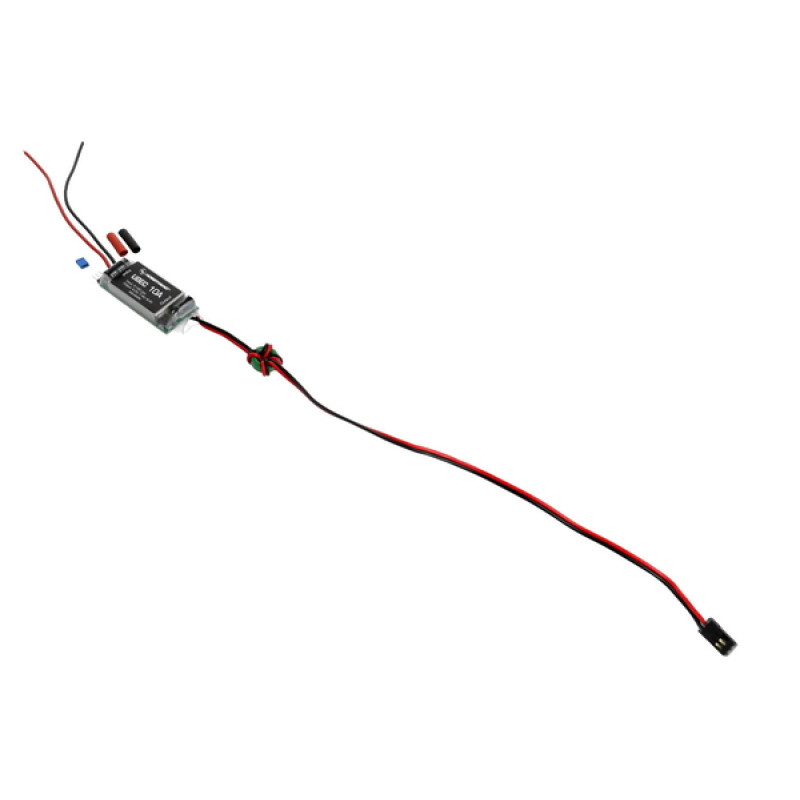

HOBBYWING UBEC 10A V1 HV 3-14S Power Regulator
HOBBYWING UBEC 10A V1 HV 3-14S is a reliable switching power regulator from Hobbywing, designed to stabilize and power electronics in models using high-voltage batteries. The device is optimally suited for drones and quadcopters and is categorized under «Drones & Quadcopters > Stacks (FC+ESC)». The UBEC ensures stable output voltage and protects electronics during intense loads, making it an excellent choice for hobbyists and professionals.
Key Advantages
- High-Voltage Battery Support: Works with a range from 3S to 14S (11.1–51.8 V), allowing the regulator to be used with various power sources.
- 10A Power: A nominal current of 10A ensures stable power delivery even under high load.
- 25A Peak Current: The regulator withstands short-term current peaks up to 25A.
- Protection: Built-in overload and overheat protection functions reduce the risk of damage to connected electronics.
- Hobbywing Reliability: High manufacturing quality and durability in flight conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Switching |
| Output Voltage | 6 V, 7.4 V, 8.4 V |
| Nominal Current | 10 A |
| Peak Current | 25 A |
| Input Voltage Range | 9–60 V (corresponds to 3S–14S, 11.1–51.8 V) |
| Dimensions | 55 x 25 x 12 mm |
| Weight | 35 g |
Package Contents
- HOBBYWING UBEC 10A V1 HV 3-14S Power Regulator — 1 pc.
This UBEC is ideal for installation in various DJI-type models, FPV racing quadcopters, airplanes, and other models where a stable low-voltage power line from a high-voltage battery is required. Its compact dimensions (55 x 25 x 12 mm) and low weight (35 g) allow for easy integration into limited chassis space, while the wide input voltage range and additional protection features ensure long-term and safe operation of flight system electronics.
