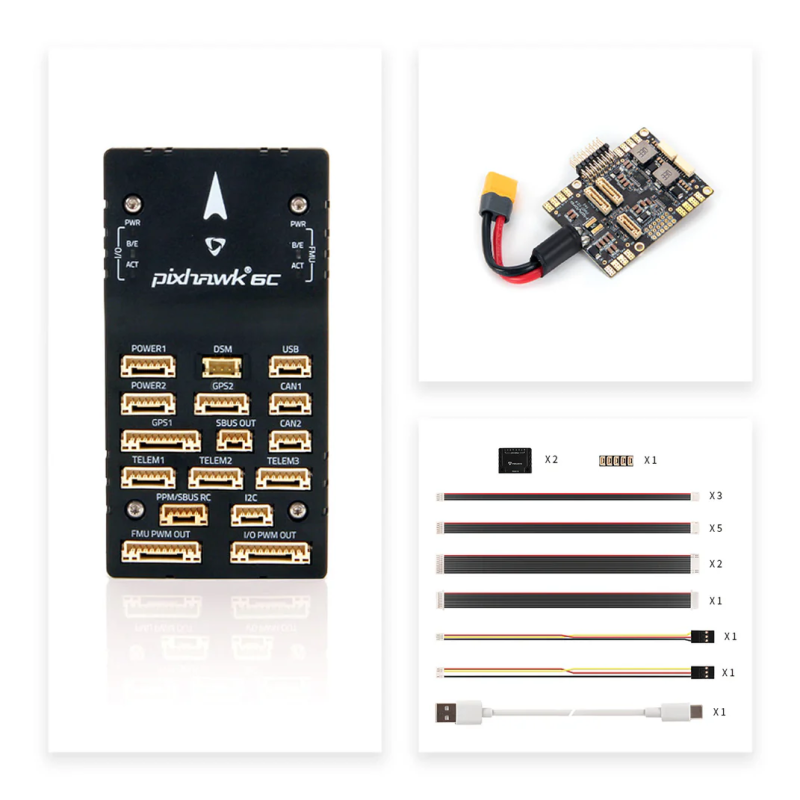

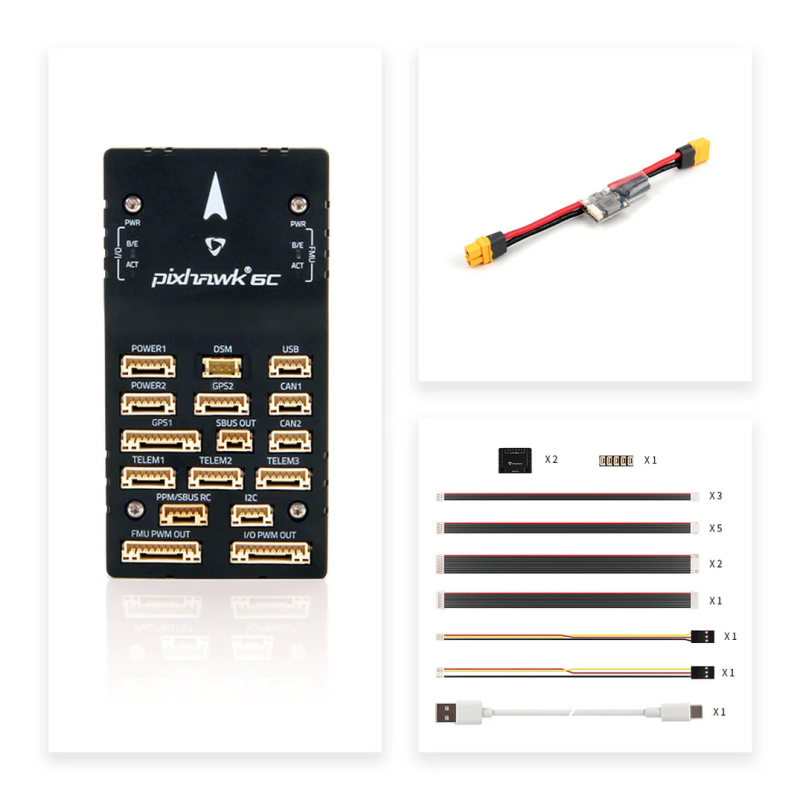

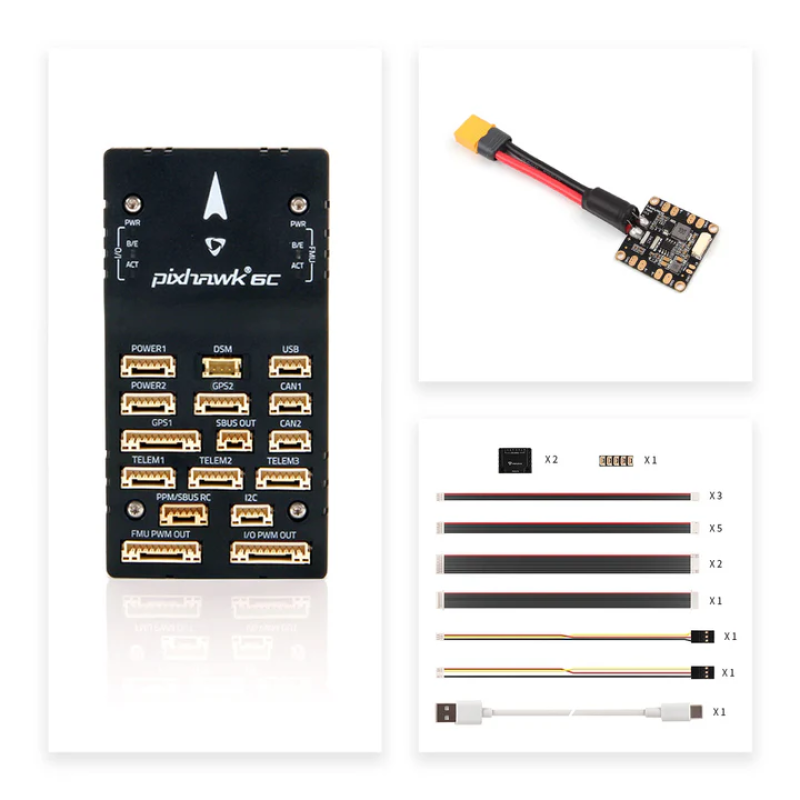

Holybro Pixhawk 6C Flight Controller (Plastic Case)

Holybro Pixhawk 6C — a modern flight controller with a plastic case, combining high computing power and reliable sensor solutions. This controller is ideal for autonomous aircraft, research and commercial drones, as well as for academic projects and startups.

The Pixhawk 6C is based on the STM32H743 microcontroller from STMicroelectronics, combined with advanced sensors from Bosch and InvenSense, ensuring stable operation, navigation accuracy, and measurement redundancy. The device has improved computing capability for implementing complex autopilot algorithms and real-time data processing.

Who it's for

The solution is suitable for researchers in corporate laboratories, startup engineers, educators and students, as well as for commercial applications requiring reliability, flexibility, and an extended set of interfaces.

Key Features

• High-performance STM32H743 processor with greater computing power and RAM.
• Economical, low-profile design in a plastic case.
• Integrated vibration isolation system for accurate IMU readings.
• Heated IMU for optimal operating temperature and low noise.

Technical Specifications

• Processors and Sensors:
  • FMU Processor: STM32H743 (32-bit, Arm® Cortex®-M7, 480 MHz, 2 MB Flash, 1 MB SRAM).
  • IO Processor: STM32F103 (32-bit, Arm® Cortex®-M3, 72 MHz, 64 KB SRAM).
  • Available Sensors: ICM-42688-P, BMI055, IST8310, MS5611 (barometer).
• Electrical Data:
  • Maximum Input Voltage: 6V.
  • USB Input: 4.75~5.25V.
  • Servo Input: 0~36V.
  • Current Limit for TELEM1: 1.5A.
• Mechanical Data:

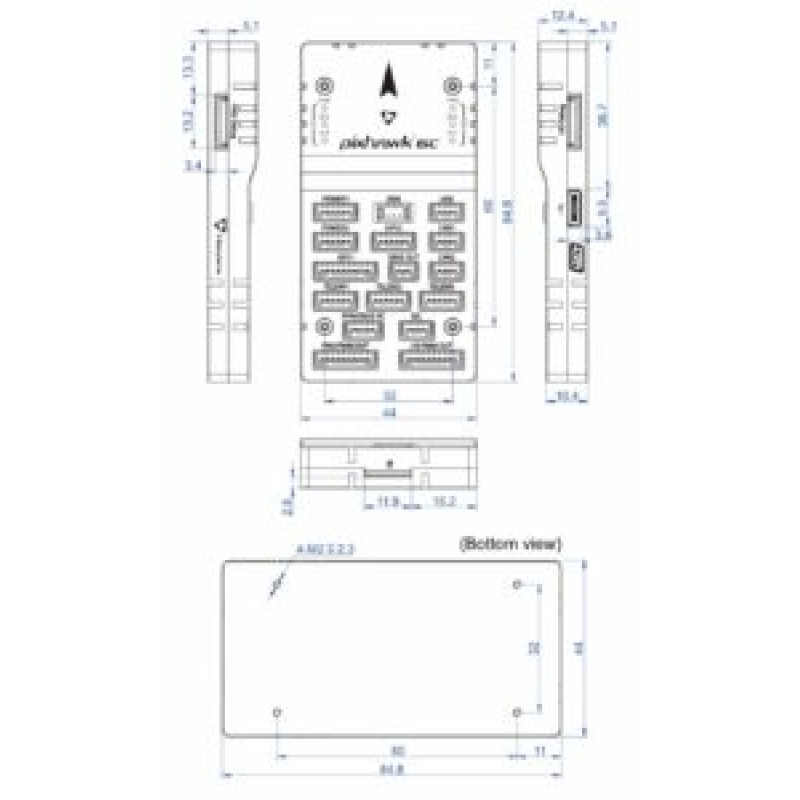

  • Dimensions: 84.8 x 44 x 12.4 mm.
  • Weight: 59.3 g.
• Interfaces:
  • 16 PWM outputs for servos.
  • 3 serial ports.
  • 2 GPS ports.
  • 1 I2C port.
  • 2 CAN buses.
  • 2 diagnostic ports.
  • R/C input.
  • S.BUS output.
  • 2 power inputs.
• Other Characteristics:
  • Operating and Storage Temperature Range: -40 to 85°C.

The Pixhawk 6C controller from Holybro combines a modern hardware platform and a set of interfaces for integration with various peripheral modules: GPS modules, radio receivers, power modules, and additional sensors. The plastic case provides protection for the electronics with low mass, which is important for aviation applications. Thanks to redundant IMUs and an optimized vibration isolation system, the Pixhawk 6C ensures stable and accurate operation in flight conditions.
