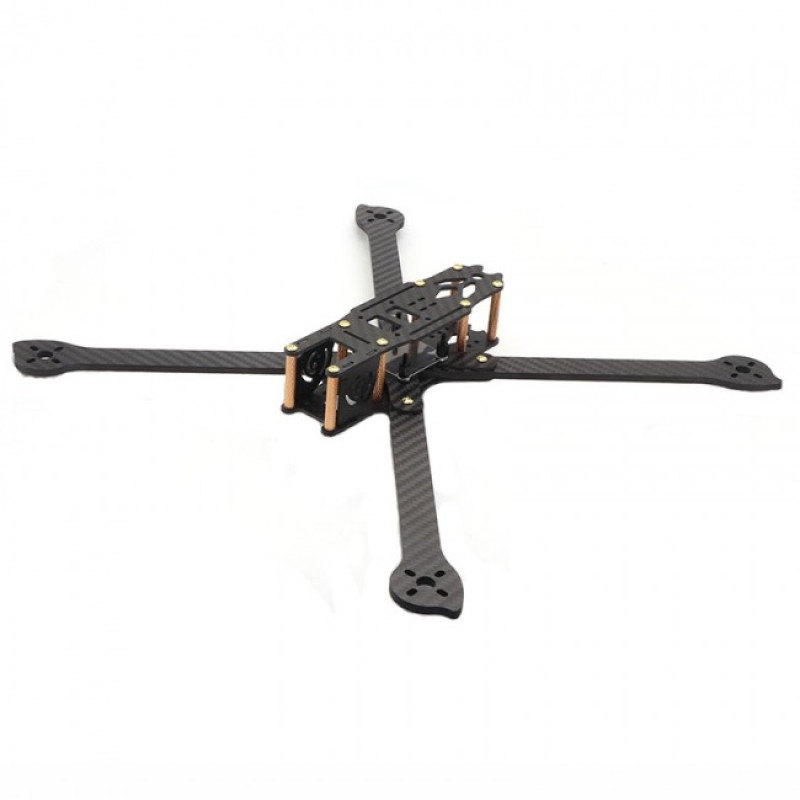

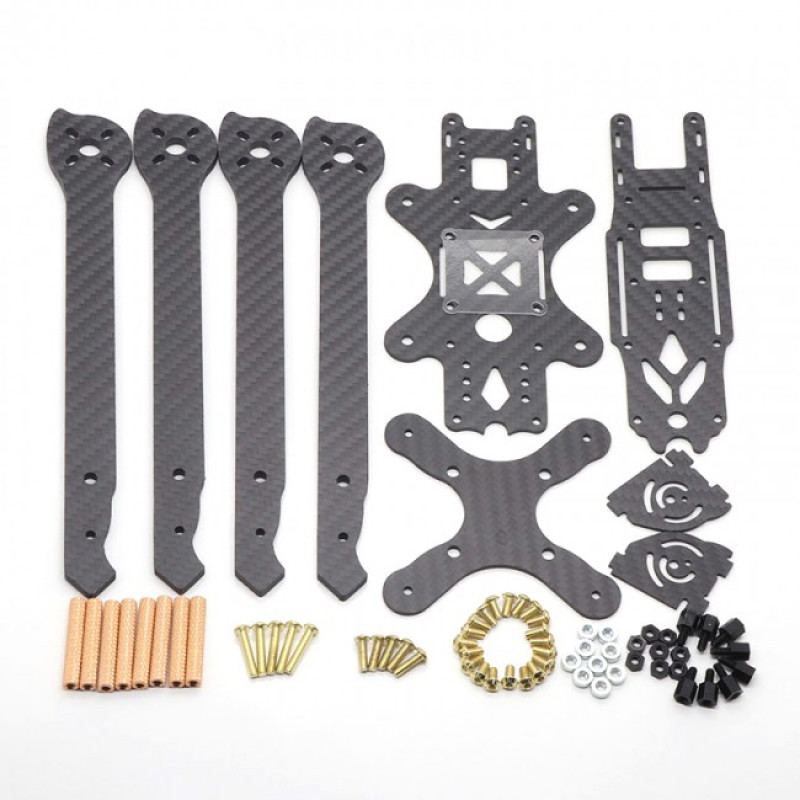

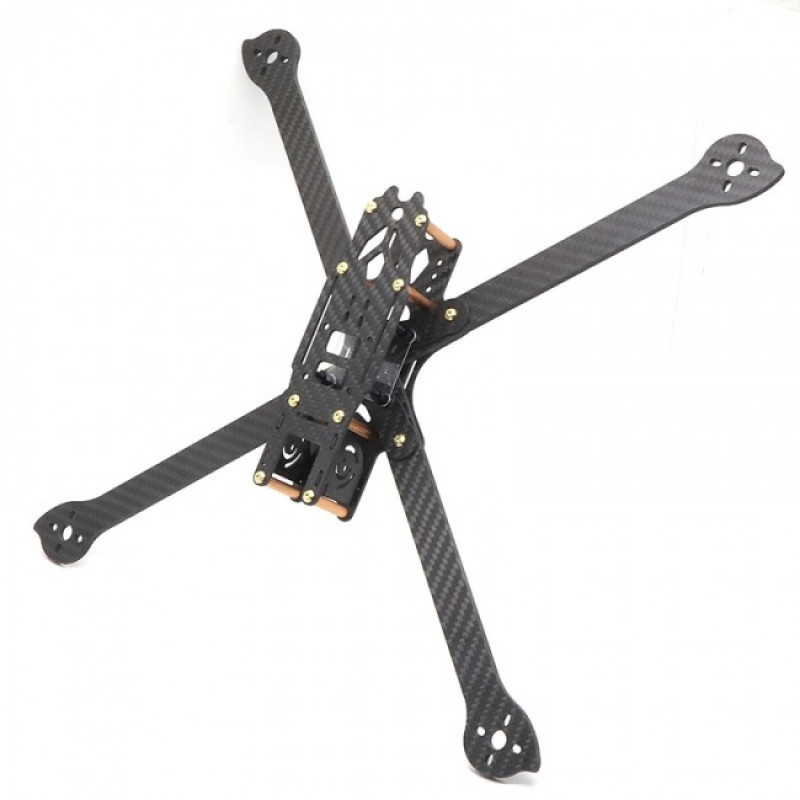

XL Carbon Frame
We offer a strong and lightweight XL carbon frame for assembling many types of quadcopters and drones. This frame is made of high-quality carbon, which provides an optimal weight-to-stiffness ratio and durability during aggressive maneuvers. Manufacturer: China. Product category: Drones & Quadcopters > Frames. The model is suitable for both racing and universal builds where weight and structural reliability are important.
Specifications:
- Motor-to-motor wheelbase: specified in option (232/294/390mm)
- Material: carbon
- Arm thickness: 4mm
- Main plate: 2mm
- Camera mounting distance: 22mm (mini)
- Height: 23mm (supports 2-layer stacks)
- Aluminum standoffs: M3x28mm
- Stack mounting holes: 30.5 x 30.5mm M3/M4
- Propellers: not included
- Motors (recommended): 2204 (for XL5), 2212-2306 (for XL9)
- ESC (recommended): from 20A (for XL5), 30-60A (for XL9)
- Battery (recommended): 1550mAh (for XL5), 3300mAh (for XL9)
- Weight: specified in option (116/131/154g)
| Motor-to-motor wheelbase | Weight |
|---|---|
| 232 mm | 116 g |
| 294 mm | 131 g |
| 390 mm | 154 g |
This frame features a well-designed arm and main plate geometry: 4mm arm thickness and 2mm main plate provide sufficient rigidity without excessive weight. The 23mm height allows for mounting two-layer stacks of controllers and other components, and the 30.5 x 30.5mm mounting holes are compatible with common flight controllers. M3x28mm aluminum standoffs ensure reliable placement of stacks and the camera. The 22mm (mini) camera mounting distance allows for compact video modules with a low center of gravity.
Recommended electronics are selected depending on the chosen frame version: for smaller variants (XL5), 2204 motors and ESCs from 20A are suitable, with an approximately 1550 mAh battery; for larger ones (XL9), it is better to use motors from 2212 to 2306, 30-60A ESCs, and a battery around 3300 mAh. Please note that propellers are not included and must be selected separately according to the recommended motors and frame characteristics.
The XL carbon frame is an excellent choice for those seeking a reliable platform for custom builds: lightweight, durable, and compatible with most standard components. The assembled structure allows for easy maintenance of electronics and replacement of parts without complex disassembly.
