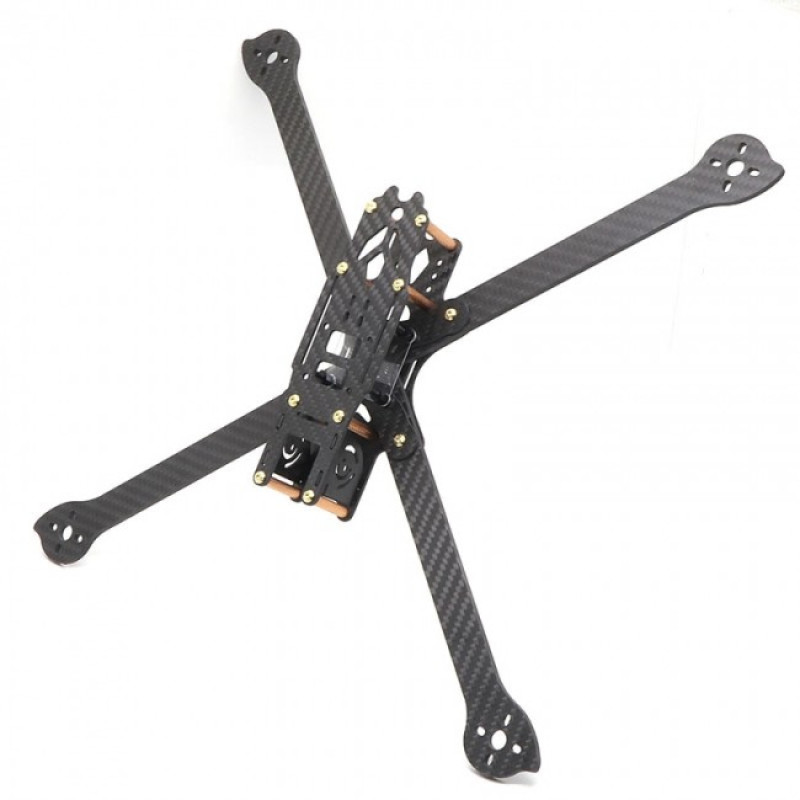

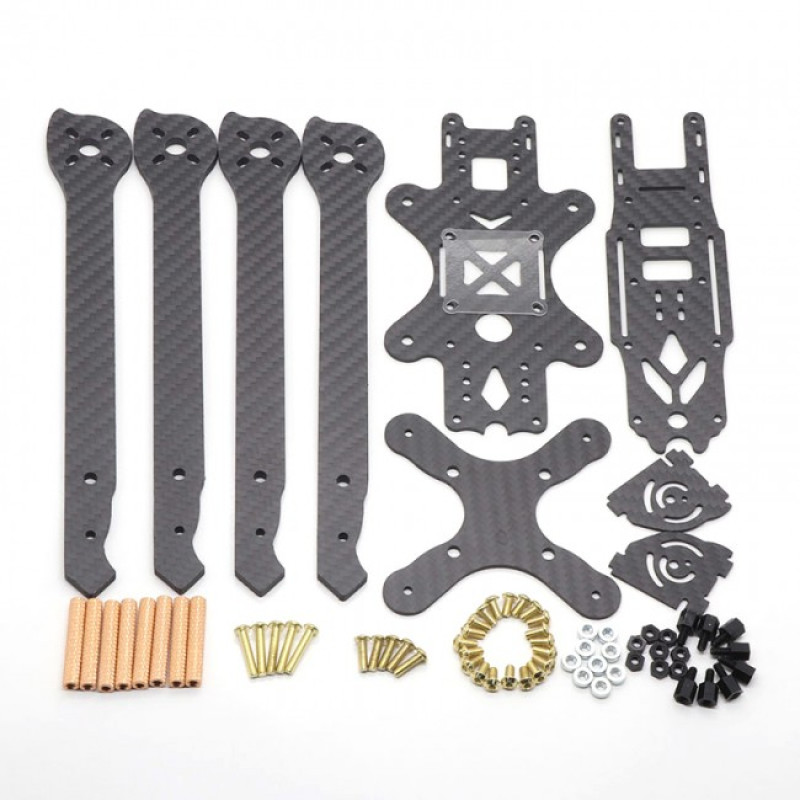

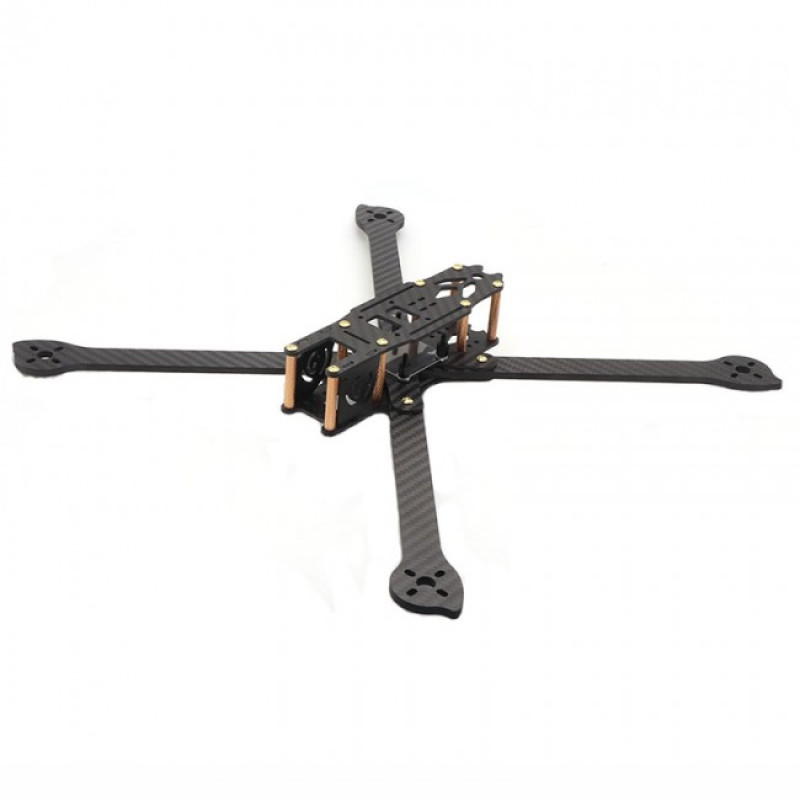

Carbon XL Frame

Carbon XL Frame — a durable and lightweight structure designed for drone enthusiasts and professionals. Made of carbon, this frame combines optimal rigidity and minimal weight, making it an excellent platform for assembling various quadcopter configurations. Manufacturer/brand: China. Product category: Drones & Quadcopters > Frames. This model is suitable for both racing builds and more stable aircraft due to its thoughtful geometry and compatibility with standard components.

Specifications:

• Motor-to-motor size: specified in option (232/294/390mm)
• Material: carbon
• Arm thickness: 4mm
• Main plate: 2mm
• Camera mounting distance: 22mm (min)
• Height: 23mm (supports 2-layer stacks)
• Aluminum standoffs: M3x28mm
• Stack mounting holes: 30.5 x 30.5mm M3/M4
• Propellers: not included
• Motors (recommended): 2204 (for XL5), 2212-2306 (for XL9)
• ESC (recommended): from 20A (for XL5), 30-60A (for XL9)
• Battery (recommended): 1550mAh (for XL5), 3300mAh (for XL9)
• Weight: specified in option (116/131/154g)

The frame features a well-designed 30.5 x 30.5mm mounting hole pattern, ensuring compatibility with standard flight controllers and stack boxes. M3x28mm aluminum standoffs add rigidity and allow for secure two-layer electronics mounting. The 23mm height is designed to accommodate 2-layer stacks, facilitating the placement of ESCs, VTXs, and other components.

Component recommendations: for smaller configurations (XL5), 2204 series motors and approximately 1550mAh batteries with ESCs from 20A are optimal; for larger sizes (XL9), more powerful 2212-2306 motors, batteries up to 3300mAh, and 30-60A ESCs should be used. The 4mm arm thickness and 2mm main plate ensure strength without excessive weight, while the carbon material provides resistance to impacts and vibrations.

Please note: propellers are not included, so select them according to the recommended motors and frame size. The product weight is specified in the options (116/131/154g) and allows for proper battery selection and center of gravity adjustment for your drone.

The Carbon XL Frame is a versatile platform from a Chinese manufacturer for those who value strength, lightness, and compatibility with standard drone components. It is well-suited for upgrading existing builds or creating new projects in the quadcopter frame category.
