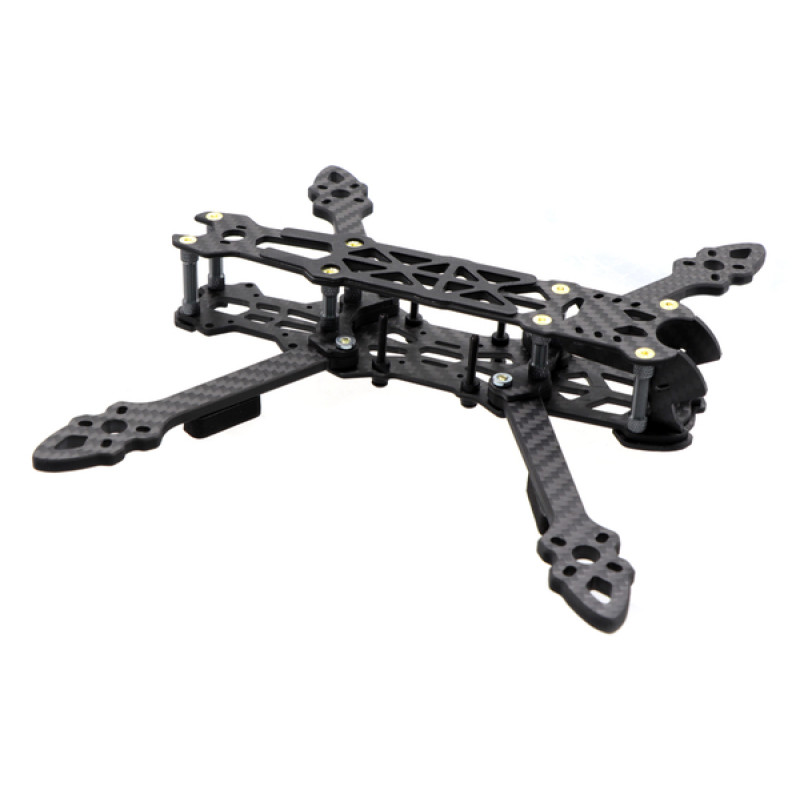

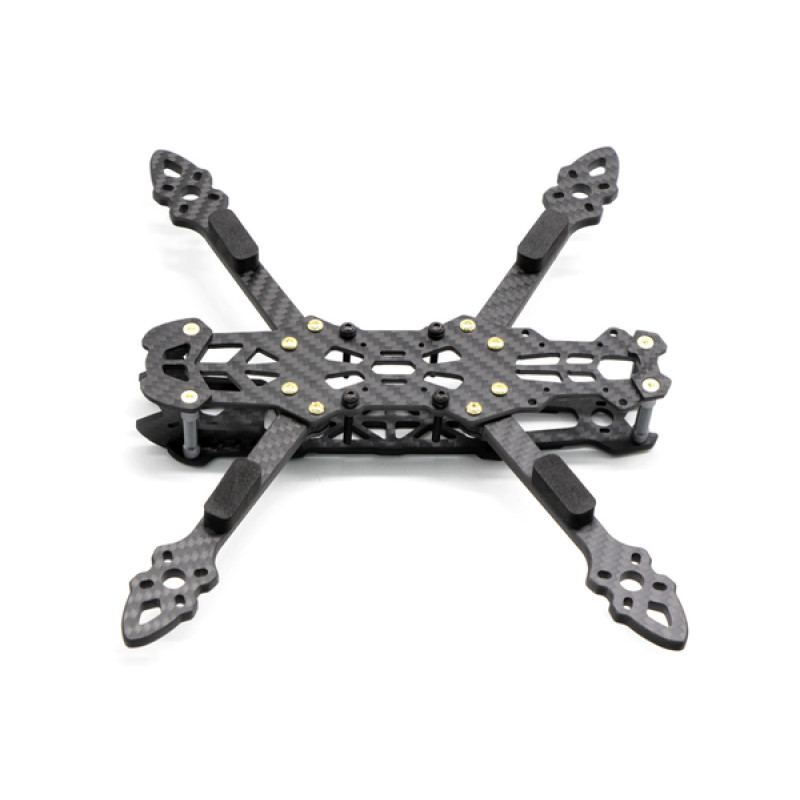

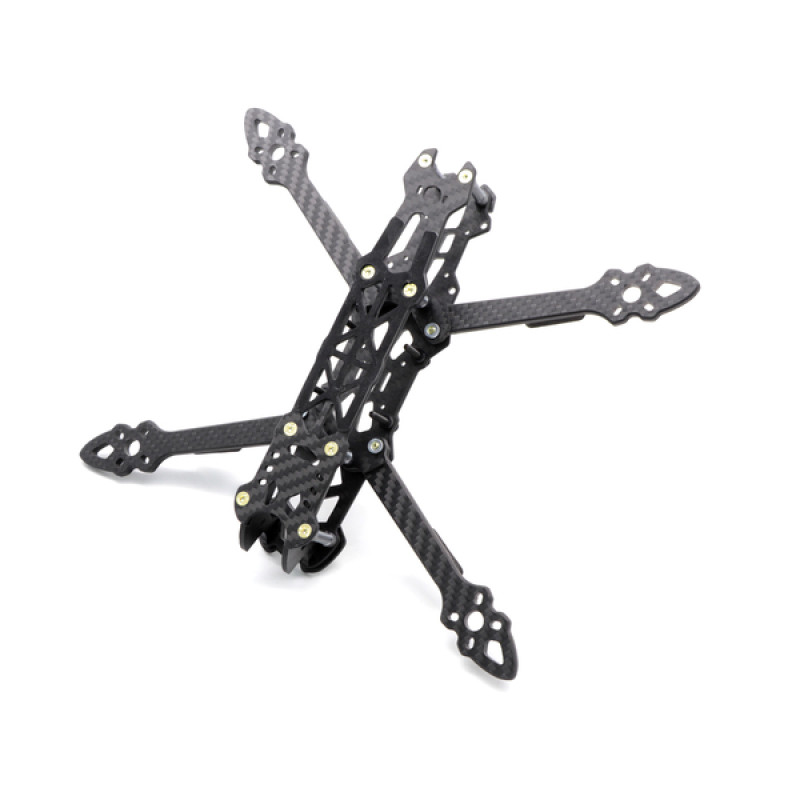

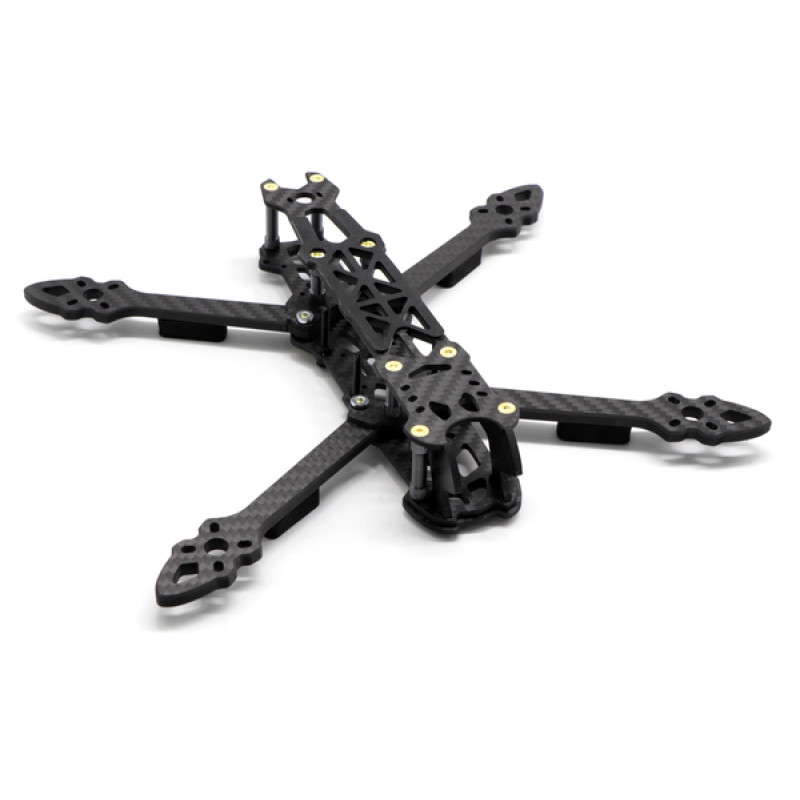

Mark4-7 Carbon Frame (295 mm) — Lightweight, Durable, and Optimized for 7" Propellers
The Mark4 7 295mm Carbon Frame is a high-quality carbon fiber chassis for racing and freestyle drones, designed for use with 7-inch propellers. Its construction combines minimal weight with increased rigidity, ensuring stability during sharp maneuvers and precise control. The model is named Mark4-7 and features an optimal wheelbase of 295 mm for balancing speed and maneuverability.
Key Advantages
- Lightweight: 121 g — reduces inertia and improves acceleration.
- Designed for 7-inch propellers — ideal for modern motor setups.
- Compact dimensions: 193×223 mm — suitable for narrow and high-speed configurations.
- Increased part durability due to optimal thickness of carbon elements.
| Parameters | Value |
|---|---|
| Name | Mark4-7 |
| Weight | 121 g |
| Wheelbase | 295 mm |
| Blade (Propeller) Size | 7 inches |
| Size | 193*223 mm |
| Arm thickness | 5 mm |
| Body thickness | 2.5 mm |
| Panel thickness | 2 mm |
| Splint thickness | 2 mm |
| Front and rear protective frame thickness | 2 mm |
Materials and Design Features: The frame is made of high-quality carbon, ensuring an optimal stiffness-to-weight ratio. The 5 mm arm thickness provides reliable support for motors and propellers, while the 2.5 mm body thickness and 2 mm panel thickness offer sufficient strength for mounting electronics and ESCs. Additional structural elements, such as the splint and front/rear protective frame, have a thickness of 2 mm, reducing the risk of deformation during hard landings.
Application Area
The frame is suitable for competitive and freestyle pilots who use 7-inch propellers and seek a balance between weight and mechanical stability. The compact dimensions of 193×223 mm and a wheelbase of 295 mm make this frame versatile for a wide range of motors and electronics.
Manufacturer: China
Product Category: Drones & Quadcopters > Frames

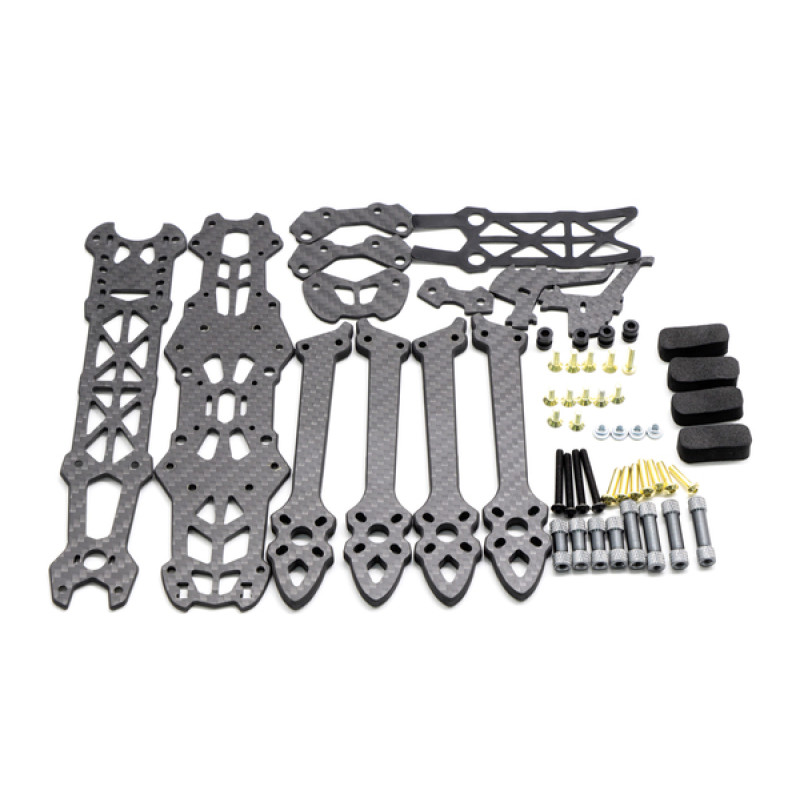

Package Contents:
- 1 x Hornet Mark4 7″ 295 mm Frame Kit
This frame is an excellent choice for those who want a reliable carbon fiber chassis with optimized geometry for 7-inch propellers and the stiffness-to-weight ratio required for aggressive flight.
