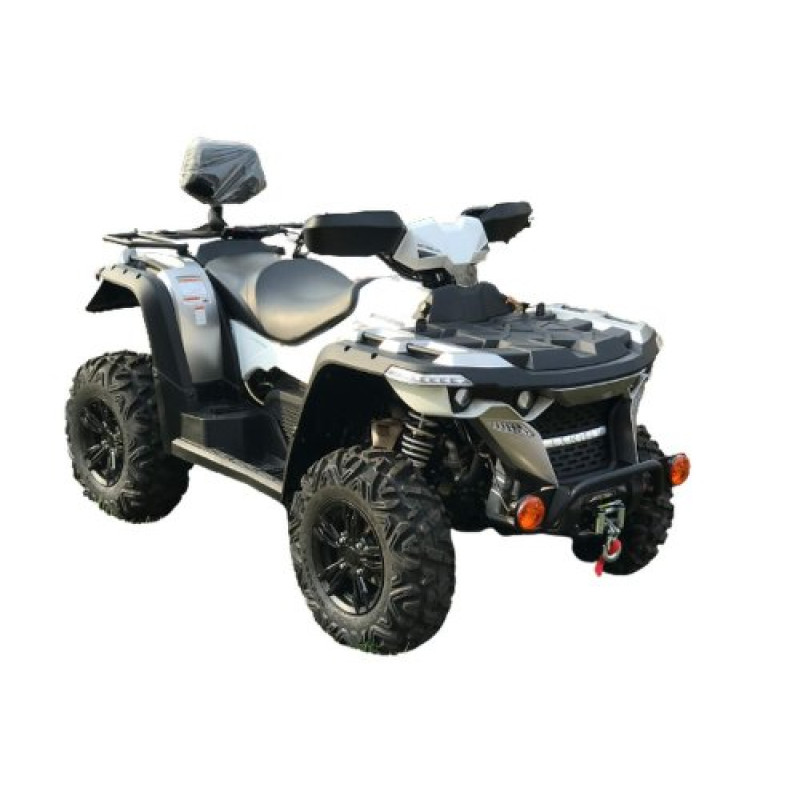

MotoLeader ML850 ATV Quad Bike
The MotoLeader ML850 ATV is a powerful and reliable quad bike from the category Motor Vehicles > Quad Bikes, designed for active recreation and work in challenging conditions. The model is equipped with a 4-stroke gasoline engine with EFI injector, 700 cm3 displacement and 41 hp, providing confident dynamics off-road. The nominal engine speed is 6900±150 rpm, with a maximum torque of 59 Nm at 5000 rpm. The starting system is an electric starter, and the cooling system is liquid, ensuring stable operation in various temperature conditions.
Key advantages of the model:
- 4x4 all-wheel drive with rear differential lock for enhanced off-road capability.
- Automatic continuously variable transmission (CVT) with L / H / neutral / reverse modes for easy control.
- Effective braking system: front hydraulic disc brakes on each wheel with manual actuation and rear hydraulic disc brake on the axle with pedal actuation; combined braking system with reinforced brake hoses.
- Parking brake locks the rear caliper and has manual actuation with a lock on the handlebars.
The ML850's equipment is extensive: rearview mirrors, handguards, an instrument panel with an LCD screen, a built-in winch, alloy wheels, and a tow hitch for towing. The electrical system includes front lenses with H4 format 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, and speedometer. Power is provided by a sealed 12V 18Ah lead-acid battery.
The chassis is designed for comfort and handling: independent front suspension with McPherson struts and independent rear suspension with double A-arms and an anti-roll bar. The wheelbase is 1350 mm; tire sizes are front 25x8-12 and rear 25x10-12. The fuel tank capacity is 14.2 L, with an average fuel consumption of about 6 L/100 km. Overall dimensions of the quad bike: 2370x1185x1265 mm.
The body design features high-strength ABS plastic for the front bumper, side mudguards, and fender flares. A tubular metal frame is integrated into the chassis and allows for the installation of additional storage boxes or other equipment. The model has a direct final drive and allows for towing thanks to the tow hitch.
Technical specifications:
| Engine power, hp | 41 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 700 |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Nominal engine speed, rpm | 6900±150 |
| Torque, Nm / rpm | 59 at 5000 |
| Transmission (gearbox) | automatic (CVT) |
| Transmission modes | L/H/neutral/reverse |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel with hand lever actuation (combined with rear brake) |
| Rear brake | hydraulic, disc on wheel axle with pedal actuation (combined with front brakes) |
| Parking brake | locks rear caliper with manual actuation and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1350 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 14.2 |
| Dimensions, LxWxH mm | 2370x1185x1265 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent with double A-arms and anti-roll bar |
| Average fuel consumption, L / 100 km | 6 |
| Equipment | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrical system | Front lenses with H4 format 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | lead-acid, sealed, 12V 18Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional storage boxes |
Manufacturer: MotoLeader. The MotoLeader ML850 ATV is ideal for those seeking a versatile quad bike with excellent off-road capability, well-designed suspension, and extensive factory equipment — from forest rides to heavy farm work. This model combines comfort, reliability, and functionality for active use in any conditions.
